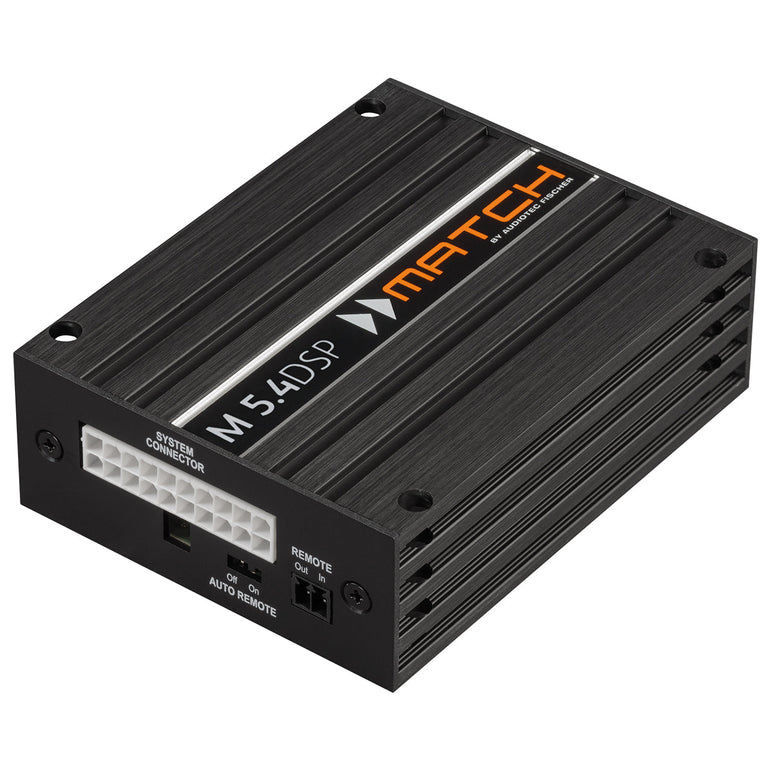

MATCH M 5.4DSP – 5-kanavainen DSP-vahvistin

Match M 5.4DSP

The new M 5.4DSP is a true power giant, yet it's the size of a smartphone. Incredible 400/800 watts RMS/ max. output power and the latest DSP technology improve any standard sound system and bring true hi-fi sound to your car.

Extremely compact installation:
In modern vehicles, the space available for sound enhancements is increasingly limited, posing new challenges for installers. Thanks to its small dimensions, the M 5.4DSP can be installed even in the most difficult spatial conditions, offering new possibilities for choosing an installation location.

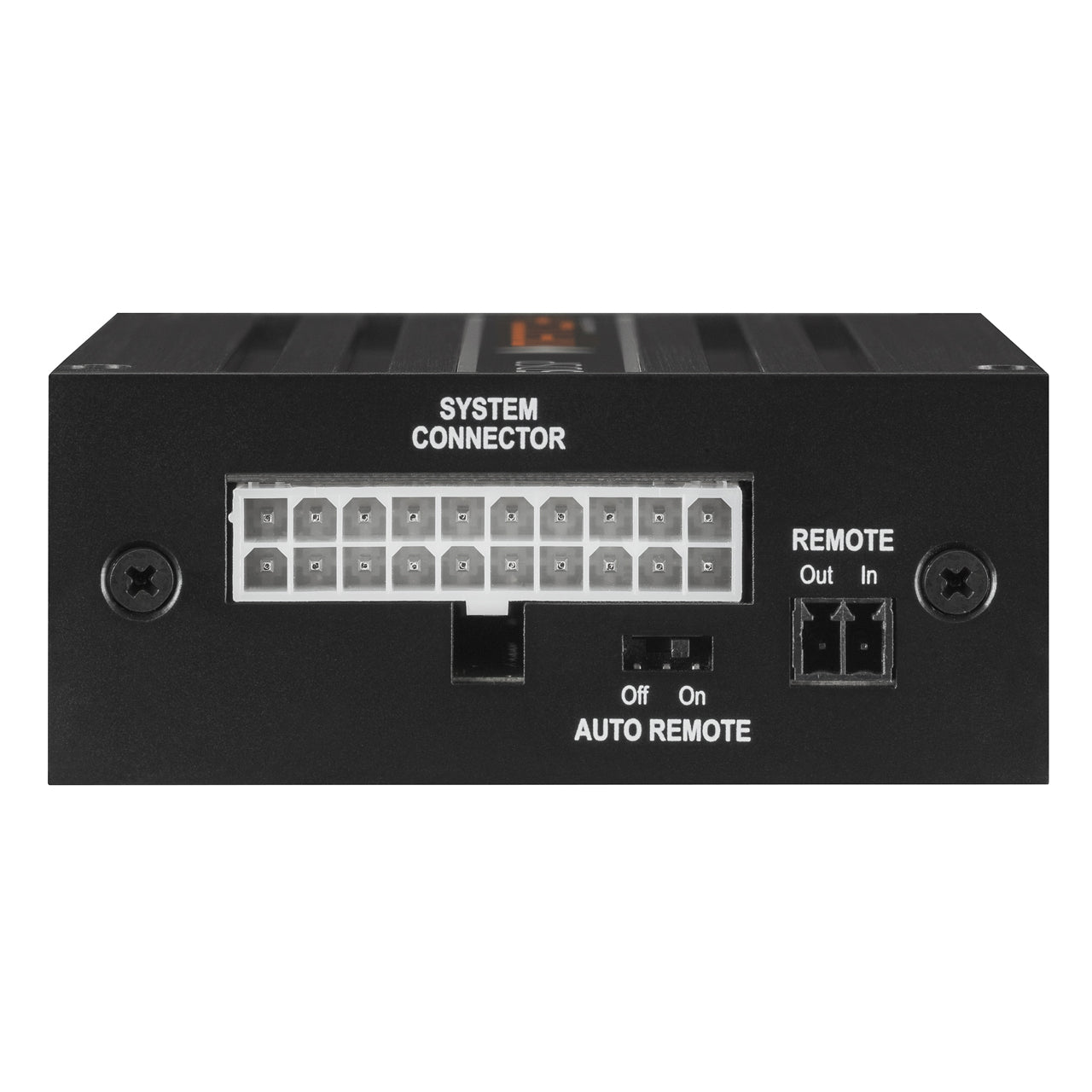

Furthermore, the completely new Smart Control Port (SCP) provides a significantly space-saving connection, thanks to its very compact and securely lockable connector. Through the SCP, all Audiotec Fischer remote controls – such as CONDUCTOR or URC.3 – can be easily connected and positioned even in the smallest installation spaces. Power can also be supplied to the device via the SCP, eliminating the need for an additional power cable and further simplifying installation.

High flexibility:
The highly powerful 64-bit signal processor offers nine DSP channels. Four freely configurable RCA outputs allow for the connection of additional amplifiers, such as the MATCH M 2.1AMP amplifier. This enables complex and space-saving multi-channel systems with enormous performance.

Technical specifications:
Output power RMS
- @ 4 OhmsHighPower mode: 4 x 60 Watts
MidPower mode: 4 x 35 Watts
- @ 2 Ohms-
- @ 1 Ohm-
- bridged @ 4 Ohms-
- bridged @ 2 Ohms-
- Subwoofer output @ 4 OhmsHigh- and MidPower mode: 1 x 90 Watts
- Subwoofer output @ 2 OhmsHigh- and MidPower mode: 1 x 160 Watts
Amplifier technologyClass GD
Inputs4 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote in
Input sensitivity5 - 11 Volts
Input impedance RCA / Cinch-
Input impedance highlevel9 - 33 Ohms with ADEP.3
Outputs
5 x Speaker output
4 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch3 Volts
Frequency response20 Hz - 20,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal converters
A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input 99 dB (A-weighted)
Distortion (THD) 0.03 %
Damping factor 50
Operating voltage10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
Power ratingDC 12 V ⎓ 40 A max.
Idle current280 mA
Max. remote output current500 mA
Fuse1 x 30 A Maxi-fuse (APX)
Additional features32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch, Smart Control Port, Start-Stop capability, USB
Dimensions (H x W x D)35 x 85 x 110 mm / 1.34 x 3.35 x 4.33″
Scope of delivery
1 x MATCH micro amplifier M 5.4DSP
1 x Control Input-to-SCP adaptor
1 x USB cable
1 x Connection cable PP-IOC (0.50 meter)
1 x Subwoofer connection cable PP-SOC (0.45 meter)
1 x Line Output-to-RCA cable
1 x Mounting material
1 x Instruction manual.
