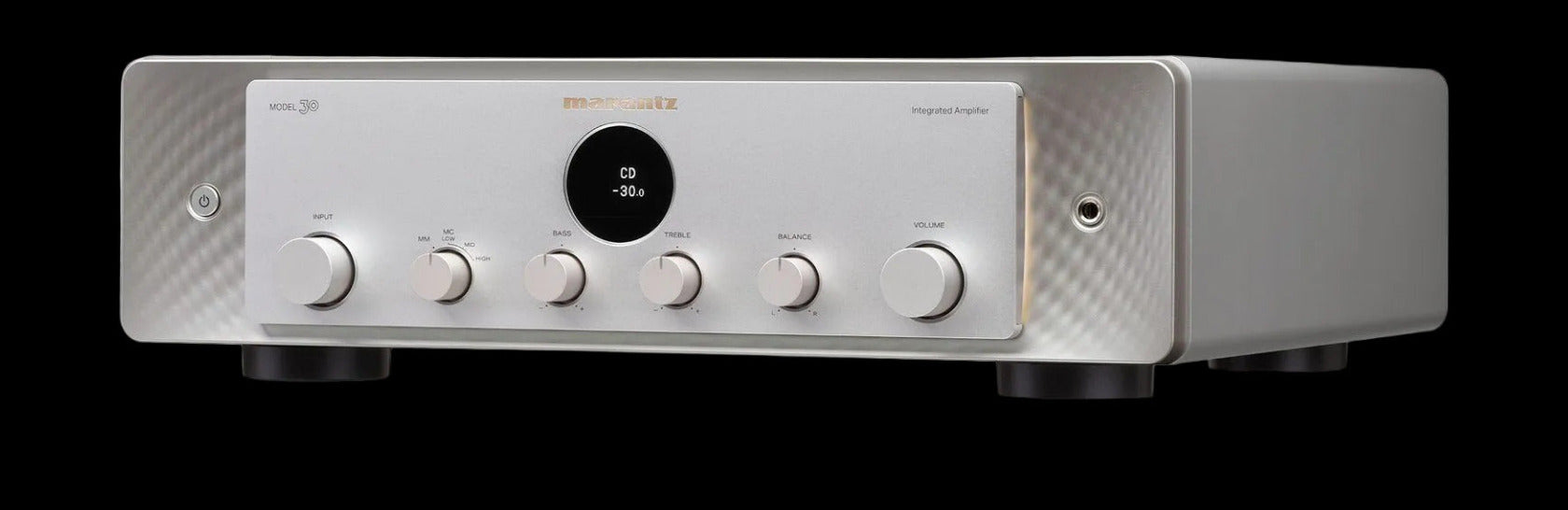

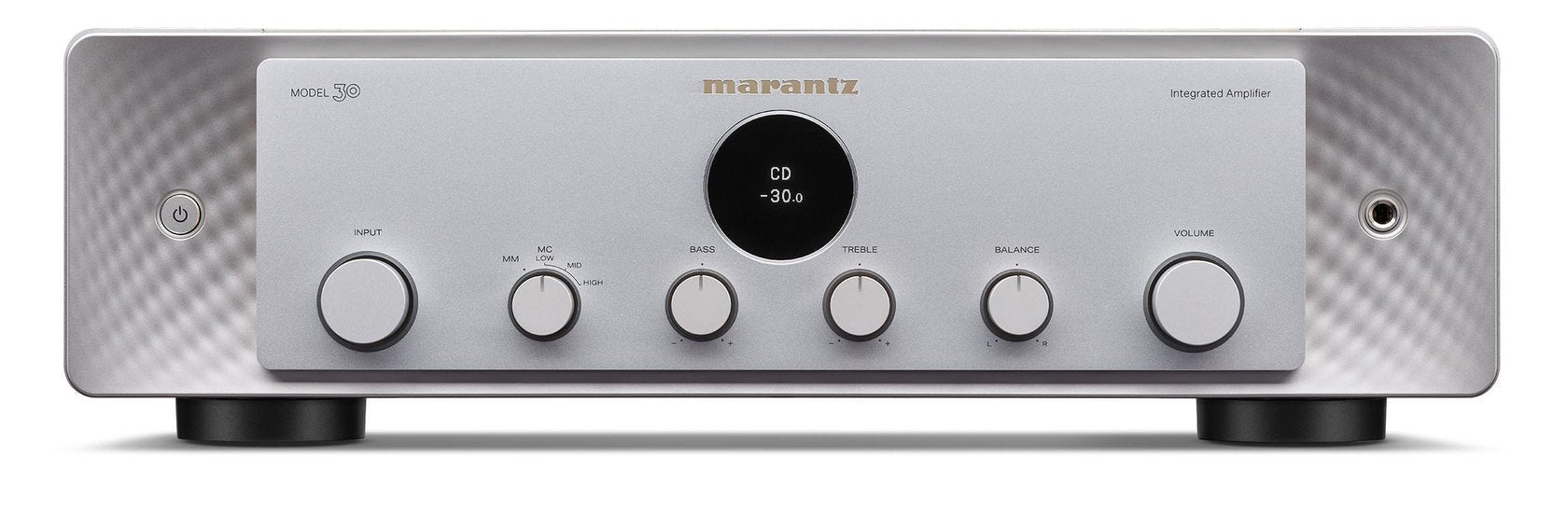

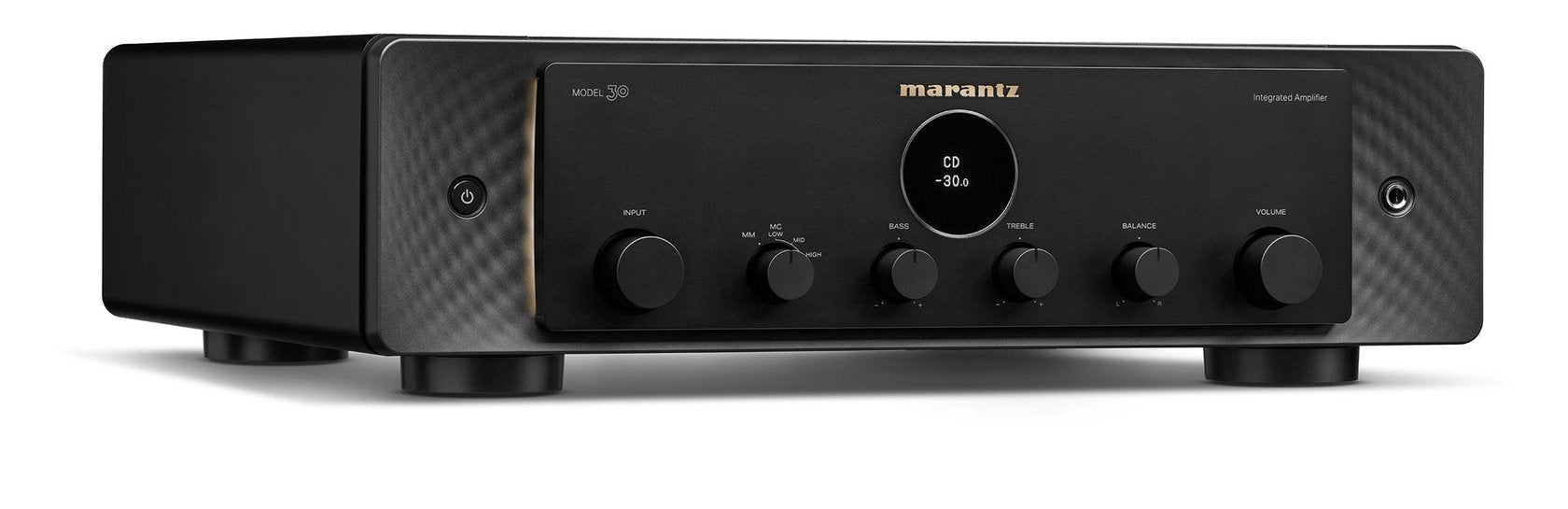

Marantz MODEL 30
The new MODEL 30 stereo amplifier ushers Marantz into a new era. The stylish new design incorporates strong elements of the timeless elegance found in traditional, now legendary Marantz devices. The amplifier's technology is derived from flagship models, the PM10 and PM KI RUBY. The MODEL 30 combines two devices in one: a high-quality Class A analog stereo preamplifier and a modern Class D power amplifier. Superb finish, sound quality, and reliable operation for decades to come have always been a Marantz hallmark, and this tradition continues and strengthens.
Specifications:
Features
- Aluminium extrusion heat sink o (Separate)
- Balance / Bass / Treble / Loudness o / o / o / -
- Channels 2
- Current Feedback Topology o
- Customised Components o
- Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
- HDAM version SA3, SA2
- High Grade Audio Components o
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / - / o
- Power Transformer: Toroidal / El SMPS
- Symmetric PCB Layout o
General
- Auto power off o
- Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
- Carton Weight (inc. product) in kg 17.6
- Detachable Power Cable o
- Maximum Dimensions (W x D x H) in mm 443 x 431 x 130
- Metal Front Panel o
- Power Consumption in W 130

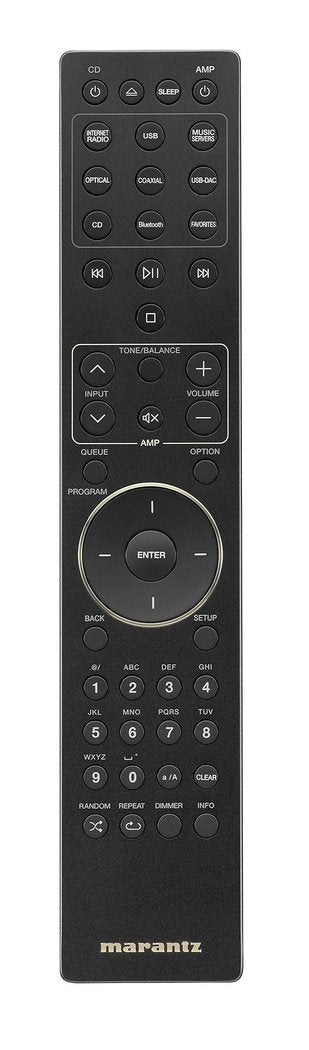

- Remote Control RC002PMND
- Standby Consumption in W 0.2
- System Remote Function o
- Weight in kg 14.8

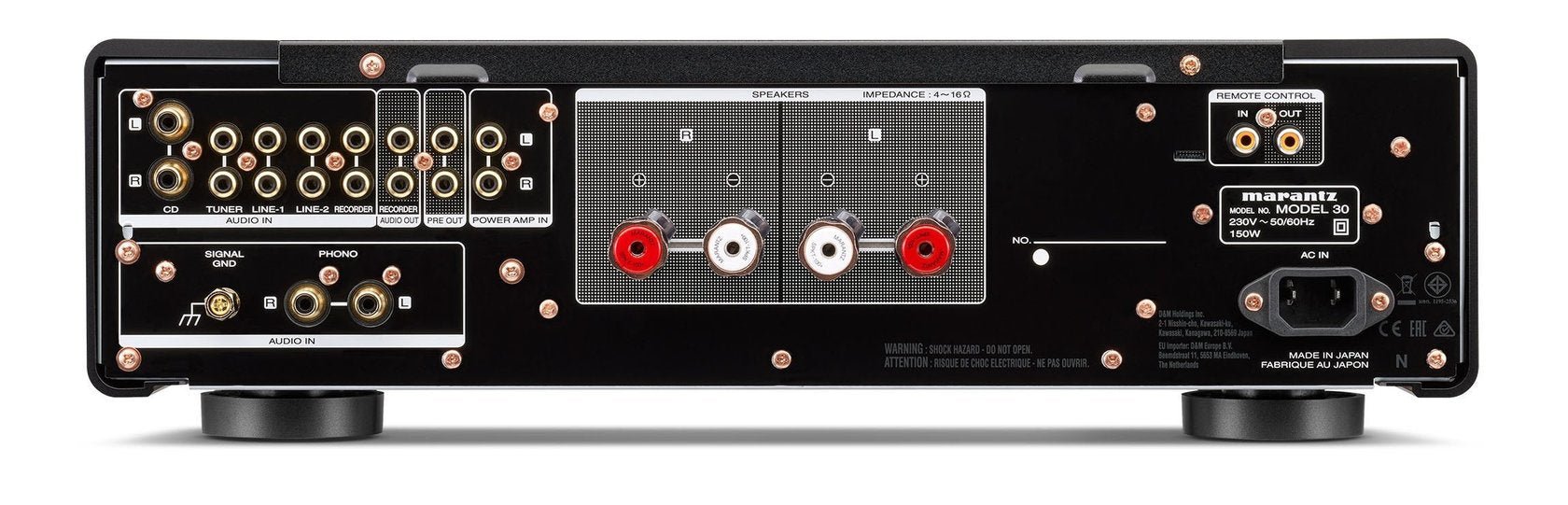

Inputs/Outputs
- Audio Inputs 6
- Audio Outputs 1
- Balanced In / Out - / -
- D-Bus o
- Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
- Floating Control Bus (3.5 mm mono jack x 2) -
- Gold Plated Cinch o
- HDMI: inputs / outputs -
- Headphone Gain Control (low / mid / high) -
- Headphone Out o
- Number of terminals 2
- Phono Input: MM / MC o / o
- Power Amp Direct IN o
- Pre-out / Main-in o / -
- Speaker A / B -
- Speaker Terminals Marantz SPKT-100+
Others
- 5mm aluminium top plate -
- BI-AMP and Multichannel option -
- Double Layer Bottom Plate o
- Input buffer amp (all inputs / CD only) - / -
- Linear Drive Power Supply o (pre-amplifier stage)
- Liniear volume control o
- Low noise LCD display -
- Low Noise OELD display o
- Marantz Musical Digital Filtering -
- Power Amp direct -
- Shottky diodes o
- Source Direct -
- System block shielding: copper / metal / none o / - / -
Specifications
- Damping Factor 500
- Frequency Response 5 Hz - 50kHz
- Input Sensitivity: Balanced High level -
- Input Sensitivity: High level 220 mV / 13 kohm
- Input Sensitivity: MC 250
- Input Sensitivity: MM 2.3 mV / 39 kohm
- Input Sensitivity: Power Amp Direct IN -
- Power Output (8 / 4 Ohm RMS) 100 W / 200 W
- Signal to Noise Ratio: High level 107 dB(2V input/Rated output)
- Signal to Noise Ratio: MM / MC 88 / 75 dB
- Signal to Noise Ratio: Power Amp Direct IN -
- Total Harmonic Distortion 0.005%
More information: Manufacturer's website
Marantz offers an extended 5-year warranty for its Premium and Premium+ products, provided the consumer registers their product within 3 months of the purchase date ( https://www.marantz.com/fi-fi/
Below is a summary of the instructions:
- Consumers is interested in a Marantz product and becomes aware of the 5years warranty via the brand website or the dealer
- Consumer buys a Premium or Premium plus product and can register this on a dedicated registration page ( within 3 months after purchase)
- Once all data is submitted, consumer will receive a confirmation email with a proof of the registration
- When a product breaks, consumer can go to the dealer/service center with the defect product, receipt and confirmation email
- Dealer/ service center to check if serial numbers match, and if purchase date on the receipt is matching the registration
- Once all is fine, consumer qualifies for the extra warranty and the service can be executed free of charge.
