KV-DUCATO-6G Reversing camera

KV-DUCATO-6G Reversing camera

• Reversing camera with microphone
• FIAT Ducato / CITROEN Jumper
• PEUGEOT Boxer facelift campervans

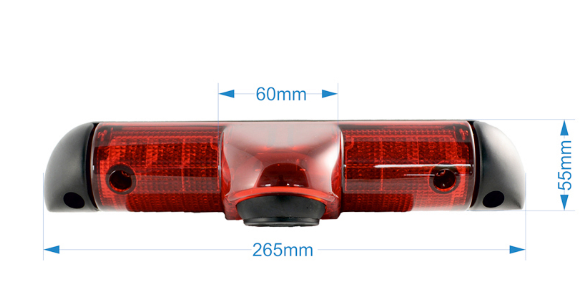

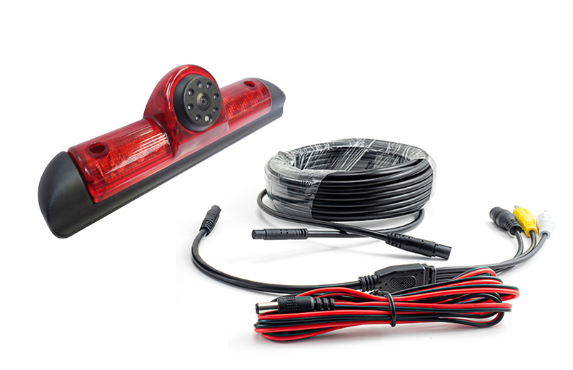

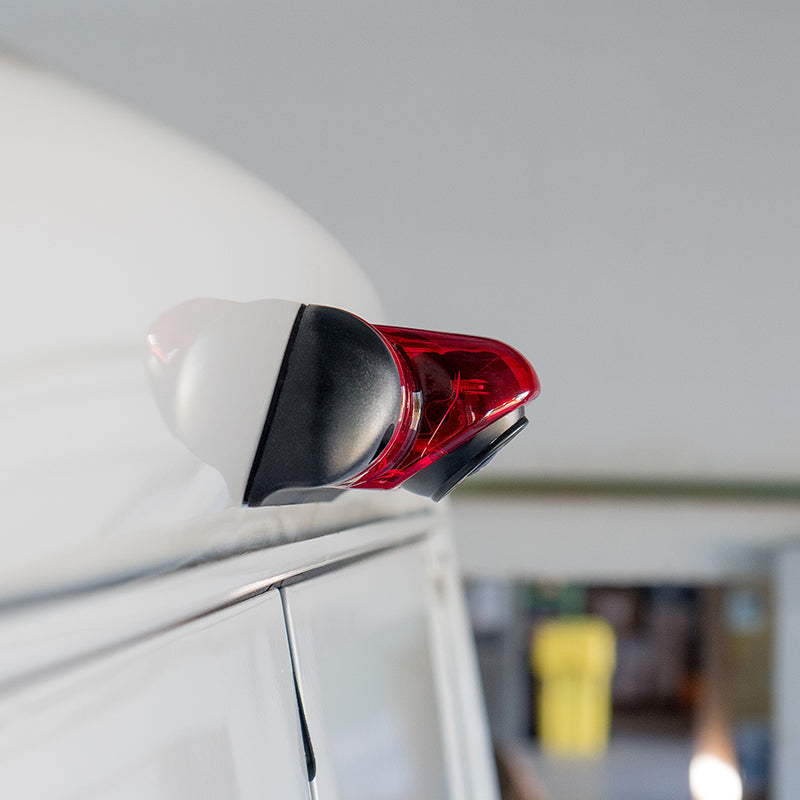

Model-specific reversing camera with microphone. Compatibility: FIAT Ducato / CITROEN Jumper and

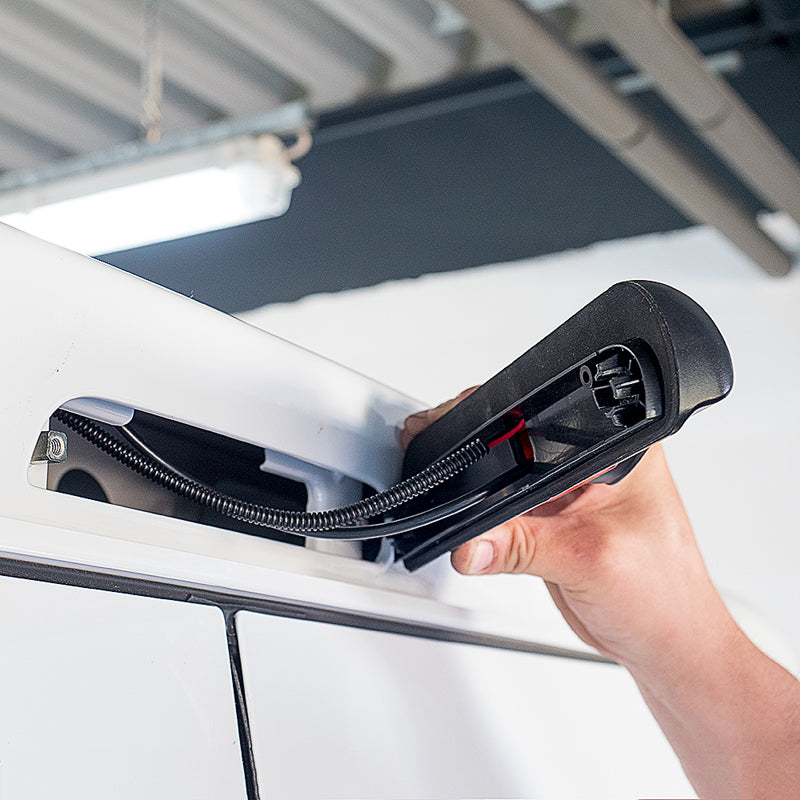

PEUGEOT Boxer facelift camper vans. KV-DUCATO-5G is easily replaceable in place of the original brake light.
The camera has an integrated infrared light, which ensures sufficient visibility even in the dark


Mounting screws at the front.
Mirrored image playback.
Auxiliary lines: switched on at the factory (can be switched off)
Image sensor: CMOS PC7070
Resolution: 648x488 pixels
Viewing angle 170°
Viewing angle 120° horizontal
Picture format: NTSC
580 line resolution
IP68 waterproof
Minimum illumination 0 lux
Operating voltage: 9-16 volts DC
Current consumption: max. 150 mA
Operating temperature: -30° to 70°C

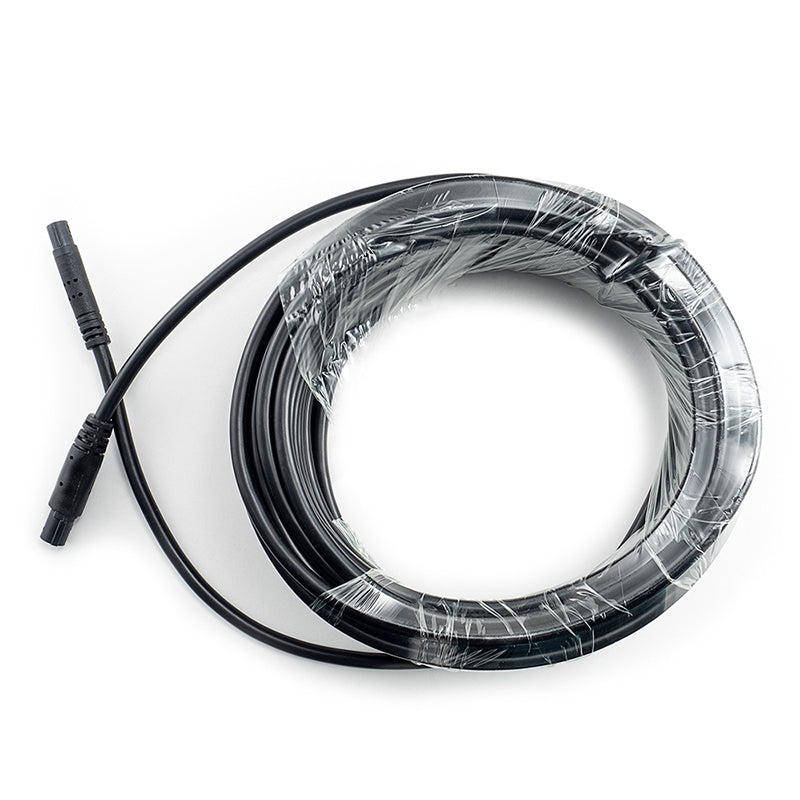

Cable length: 10 m
E-approval E9-10R-05.1652 / S3-E9-02.16396
CE approval EN 55022: 2010 EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008 EN55024:2010
- FCC approval ANSI C63.4-2003

NOTE!

The camera is not suitable for continuous use or monitoring. It should not be operated with continuous power as this may damage the camera due to overheating.

Specifications:
COMPATIBILITY:

- FIAT Ducato (3), type 250 year of manufacture 2006-2021
- CITROEN Jumper (2), type 250 year of manufacture 2006-2021
- PEUGEOT Boxer (2), Type 250 year of manufacture 2006-2021
- RAM ProMaster, type 250 year of manufacture 2006-2021
