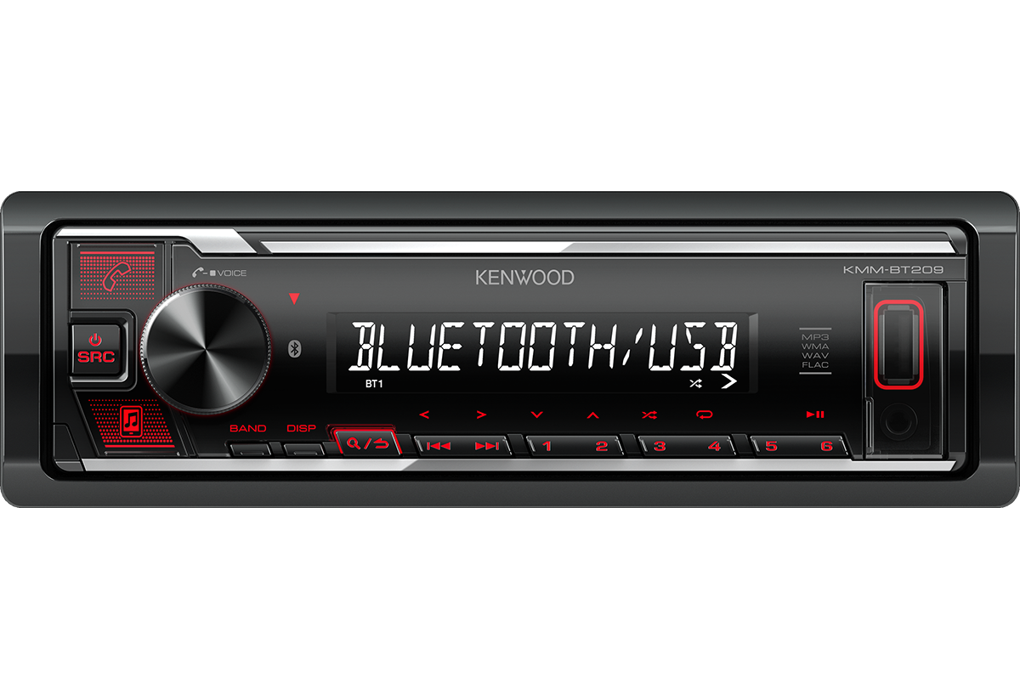

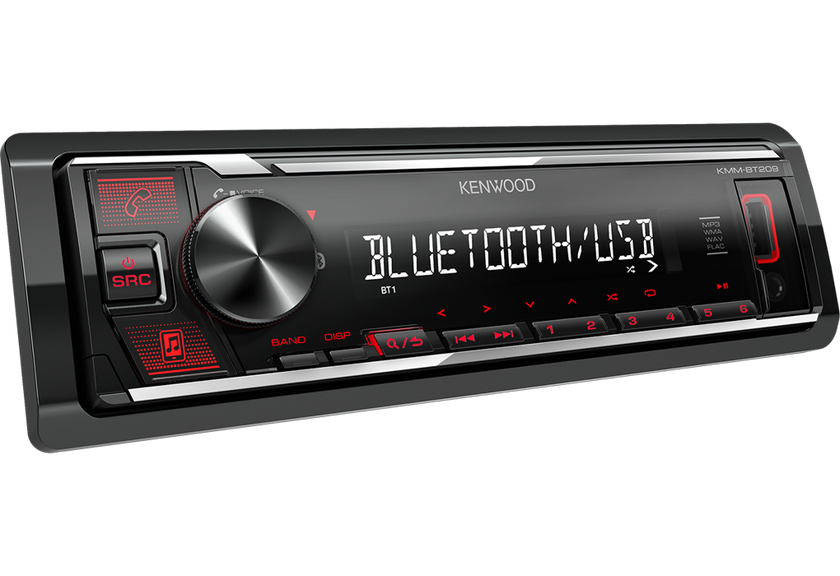

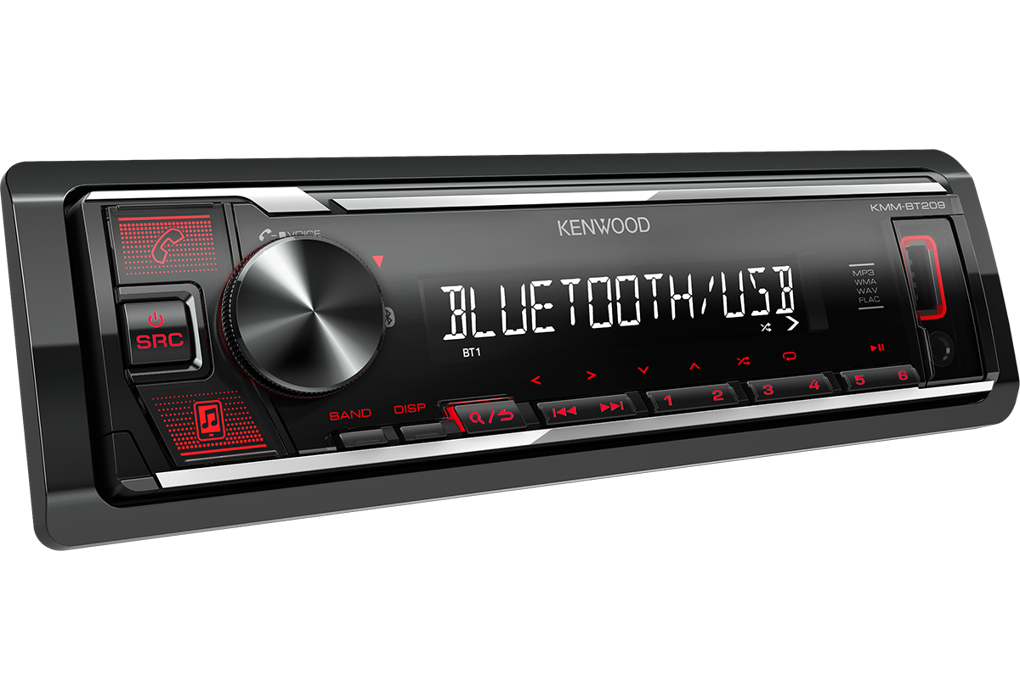

Kenwood KMM-BT209
Short body instrument 107mm (EICD)
• USB and AUX connections on the front panel
• USB port with 1.5A power output
• 1xHiVoltRCA output (2.5V)
• Red keyboard illumination
• White text
• Built-in amplifier for four speakers
• Bluetooth Handsfree & Audio
• Microphone included
• Removable front panel
• 1-line and 13-character player
135€ • 1 row and 13 character player
Main features
| Bluetooth technology for hands-free calls and music streaming. |
| Dual Phone Connection switches automatically between the 2 paired phones for incoming calls. |
| Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix |
| Use your Smartphone like a wireless remote control with the KENWOOD Remote app. |
| MP3 / WMA / AAC / WAV / FLAC music file playback. |
| Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements. |
| Rear or subwoofer (Switchable) RCA preout to connect a power amplifier. |
| Wide 1 line LCD display with high contrast, wide viewing angle & white LED backlight. |
| Menu language in English (default), Russian, Spanish or French. |
| Short body (100mm) for easy installation |
General
| Size | 1 DIN |
| Removable front panel | Yes |
| Button illumination color | Red LED |
| Rotary Encoder & Control Knob | Yes |
| Dual Accent Key | Handsfree & Audio Streaming |
| Memory protection | Tuner presets & menu settings |
| Mute and restore sound gradually | Yes |
| Touch sound | Yes |
| Digital 24-hour clock | Yes |
| Clock display when power off | default off |
| All-off Select (20/40/60 minutes) | Yes |
| Built-in Connector | Mitsumi, 16 pin |
| ISO connector | Yes, Mitsumi to ISO cable |
| Bluetooth unit built-in | Yes |
| USB interface x 1 | Yes, (Front) |
| Software upgradable | Yes |
| Mechless receiver | Yes |
| Short body | Yes |
Display Features
| Display Type | Liquid Crystal Display (LCD) |
| Display Layout | 1 line 13 Segments x 13 Digits |
| Vertical Alignment Liquid Crystal Display | Yes |
| Display Illumination | White (LED) |
| Dimmer Control | Manual / Set by Timer |
| Brightness control | 0 - 31 steps |
| Demo Mode | Yes |
| Menu languages | English(default) / Spanish / French / German / Russian |
Cosmetics features
| Dress plate | Black Injection |
| Preset key finish | Black Injection |
| Escutcheon finish | Piano black |
| Volume & operation Knob or wheel | Transparent Lighting |
| Triangle Illumination | Red LED |
| Front terminal dust cover | Yes |
| Button illumination color | Red LED |
| Illuminated front USB port | Red LED |
| Brightness Control (Key) | 0 - 31 steps |
| Dimmer Control (Key) | Manual / Set by Timer |
| Chrome-finished accents | Volume knob & faceplate |
Tuner
| Station selection method | Manual / Preset |
| FM reception | Yes |
| Mono switch | Yes |
| AM reception (MW/LW) | Yes |
| Station search | Yes |
| Tuner Presets (FM/AM) | 24 Presets (18FM / 6AM) |
| Mixed preset memory (FM & AM) | 6 presets |
| AME - Automatic station memory storage | Yes |
| Tuner Preset Back-up Memory | Yes |
| RDS | Yes |
| Radio Text Plus | Yes |
| Receiving traffic information | Yes |
| Local radio search | Yes |
| Regional radio reception | Selectable: AF/AF Reg/OFF |
| Automatic traffic information station search | Yes |
| EON function | Yes |
| PTY - Program type selection | Yes |
Playable Audio File
USB
| USB terminal | Yes, Front with dust cover |
| USB bus type | 2.0 High speed |
| MP3, WMA, AAC, WAV, FLAC playback | Yes |
| Repeat/demo/shuffle | Yes |
| Repeat/Shuffle | Yes |
| Direct search | Yes |
| Resume playback from where it last left off | Yes |
| Time display | Yes |
| 1.5A Smartphone Quick Charge | Yes |
Sound
| Maximum Output Power | 50W x 4 |
| MOSFET Power IC | Yes |
| Auxiliary Type | Mini jack, front panel |
| Line output connector | 1 RCA |
| Line output level | 2.5V |
| Preout Rear / Subwoofer Switchable | Yes |
| Subwoofer level | Yes |
| 2-Way X'over network | Yes |
| 3-Way x'over (bi-amp connection) | Yes |
| Tone Control / Easy EQ | 13 bands, 8 presets |
| Balance/Fader/Loudness Control | Yes |
| Bass Boost Circuit | Off/+1/+2/+3/+4/+5 |
| Sound attenuation (-20dB) and gradual recovery | Yes |
| Easy 3-band EQ mode | Yes |
| Graphic Equalizer + Preset | 13-Bands Graphic Equalizer with 8 Presets. |
| Digital Sound Processor (DSP) Built-in | Yes |
| Digital Time Alignment (DTA) | Yes |
| Low- & High-pass Filter | Yes |
| Speaker Size Control | Yes, Front/rear/subwoofer independently |
| Kenwood Sound Reconstruction | Yes |
| Sound Reconstruction | Yes |
| Space Enhancer space ID expansion function | Yes |
| Realizer function | Yes |
| Stage EQ | Yes |
| Drive EQ - driving noise compensation | Yes |
Bluetooth
| Max no. of reg. phones for HFP & A2DP | 5 |
| Hands Free Profile with High Sound Quality | HFP V1.7.1 |
| Maximum number of phones that can be connected | 5 |
| 2 phones full time connection | Yes |
| Audio Distribution Profile (A2DP) | Yes |
| High-quality audio streaming | SBC/AAC |
| Max no. of reg. units for A2DP | 5 units |
| Serial Port Profile (SPP) | Yes |
| Contact information usage profile (PBAP) | Yes |
| iPhone & Android automatic pairing via USB | Yes |
| KENWOOD Remote App Ready | |
| KENWOOD Music Mix Support | Yes |
| Knock / Hold | Yes |
| Private mode | Yes |
| Alphabetical search (contact information) | Yes |
| Background noise compensation | Yes |
| Echo cancellation | Yes |
| Showing phone status on car radio display | Yes |
| Displaying the status of your music device on the car radio display | Yes |
| Mobile network strength display | Yes |
| Battery charge status display | Yes |
| Bluetooth Pairing Indicator | Yes |
| High-quality microphone with background noise reduction | Rear Wired |
| Bluetooth software upgradable | Yes |
| *depending on phone manufacturer and model | & Kenwood device |

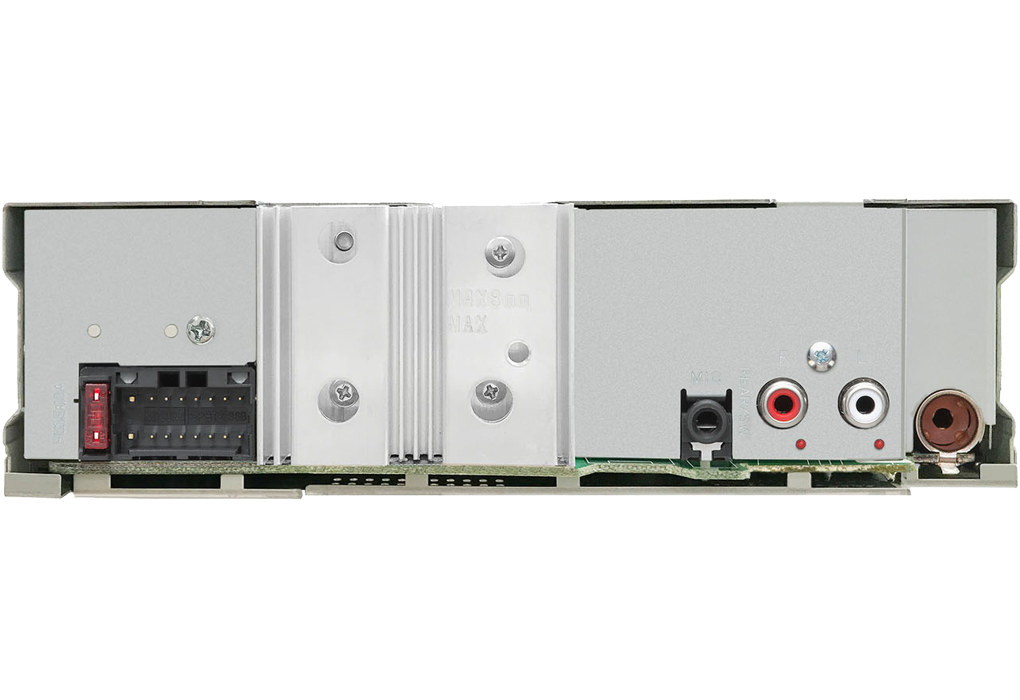

Connections
| Front USB & AUX Input | Yes |
| Possibility of retrofitting a wired remote control | Yes |
| DC cable | Mitsumi to ISO |
| Excitation power cable (P.CON) | Yes |
| Audio line-out connector | 1 RCA: Rear/Subwoofer (selectable) |
| FM antenna connection | JASO connector |
| Microphone jack (mini jack) | 3.5mm mini jack |
Radio
| ULA: 87.5 MHz - 108 MHz (50 Khz steps) | Yes |
| Sensitivity (VHF) | 0.56μV/75ohm (S/N 30dBf) |
| Attenuation sensitivity (ULA) | 1.58μV/75ohm (S/N 46dBf) |
| Frequency response (VHF) | 30Hz~15kHz (±3dB) |
| Interference range (mono, FM) | 68dB |
| Channel separation (1 kHz, FM) | 40dB |
| MW: 531 kHz to 1611 kHz (in 9 kHz steps) | Yes |
| Sensitivity (MW) | 28.5μV |
| LW: 153 kHz to 279 kHz (in 9 kHz steps) | Yes |
| Sensitivity (LW) | 45μV |
Codec Specs
| MP3 Format | MPEG 1/2 Audio Layer 3-Files |
| WMA Format | in accordance with Windows Media Audio |
| AAC Format | AAC-LC “.aac”(CD&USB) and “.m4a”(USB) files |
| WAV Format | RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format | FLAC files (up to 96kHz/24bit) |
USB
| USB version | USB 1.1 / 2.0 full speed |
| File system | FAT32 / 16 / 12 |
| Maximum current | 1500mA |
| DA converter | 24bit |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | "m4a" & "aac" file encoded by AAC-LC format |
| WAV Decode | Linear - PCM Files |
| flac Decode | FLAC files up to 96kHz/24bit |
Audio Specifications
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22W x 4 |
| Preout Level | 2500mV / 10kOhm, |
| Preout Impedance | ≤ 600Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
| AUX Frequency Response | 20Hz ~ 20kHz (±1dB) |
| AUX Maximum Input Voltage | 1000mV |
| AUX Input Impedance | 30kOhm |
DSP Specifications
| Frequency band - Front | 62.5Hz ~ 16kHz |
| Equalizer Gain | –9db ~ +9db |
| Q Control | 0.25/ 0.50/ 1.00/ 2.00 |
| High Pass Filter frequency | Through/50 ~ 220 (Hz) |
| High Pass Filter Slope | -12/-18/-24 dB/Oct |
| Low Pass Filter frequency | 50 ~ 120(Hz)/Through |
| Low Pass Filter Slope | -12/-18/-24 dB/Oct |
| Time Alignment | 0 — 610cm (2 cm step) |
| Choosing a car type | ► OFF ► COMPACT ► Full SIZE CAR ► WAGON ► MINIVAN ► SUVs ► MINIVAN LONG |
| Equalizer Type | Graphic |
| Frequency band | 13-zone |
Bluetooth
| Version | Bluetooth V4.2 |
| Frequency | 2.402 - 2.48 GHz |
| Power supply | +4dBm(max), 0dBm (AVE) power class 2 |
| Business trip | Unobstructed distance of about 10 m |
| Hands-free (HFP) | Yes |
| Serial Port (SPP) | Yes |
| Audio distribution (A2DP) | Yes |
| Audio codec | SBC/AAC |
| Video and Audio Control (AVRCP) | Yes |
| Contact information transfer (PBAP) | Yes |
Supplies
| Removal tools | 2 pieces |
| Mounting collar | Yes |
| Mounting frame | Yes |
| DC cord (Mitsumi to ISO) | 15cm |
| Hands-free microphone | with 3 m cable |
General
| Operating voltage | 14.4V (10.5~16V Allowable) |
| Maximum power consumption | 10A |
| Dark Current Consumption | Below 1mA |
| Dimensions (W x H x D) | 182 x 53 x 100mm |
| Weight | 600 gr. |
| Operating temperature | -10°C ~ 60°C |
| Instruction Manuals | Multi-language quick guide |
