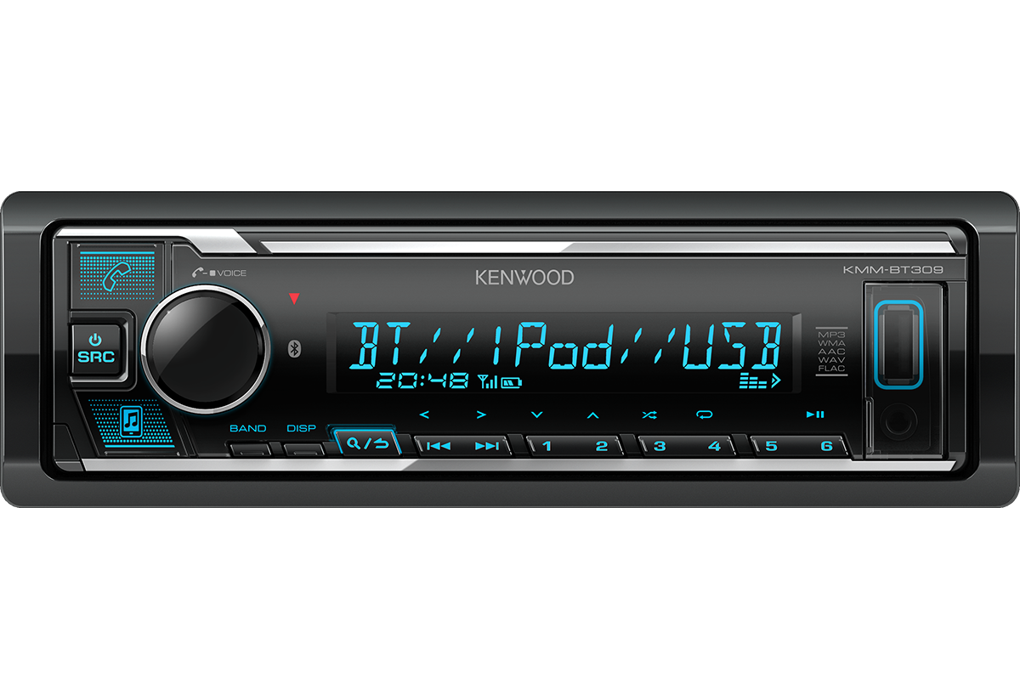

Kenwood KMM-BT309 radio-mp3 player
Main features
|
Bluetooth technology for hands-free calls and music streaming. |
|
Dual Phone Connection switches automatically between the 2 paired phones for incoming calls. |
|
Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix. |
|
Use your Smartphone like a wireless remote control with the KENWOOD Remote app. |
|
MP3 / WMA / AAC / WAV / FLAC music file playback. |
|
Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements. |
|
3 high power (2.5V) RCA preouts to connect multiple power amplifiers. |
|
Wide 1.5 line LCD display with high contrast, wide viewing angle & variable-colour backlight. |
|
Menu language in English(default), Russian, Spanish, French or German. |
|
Short body (100mm) for easy installation |
General
|
Size |
1 DIN |
|
Removable front panel |
Yes |
|
Button illumination color |
Variable LED |
|
Rotary Encoder & Control Knob |
Yes |
|
Dual Accent Key |
Handsfree & Audio Streaming |
|
Memory protection |
Tuner presets & menu settings |
|
Mute and restore sound gradually |
Yes |
|
Touch sound |
Yes |
|
Digital 24-hour clock |
Yes |
|
Clock display when power off |
default off |
|
All-off Select (20/40/60 minutes) |
Yes |
|
Built-in Connector |
Mitsumi, 16 pin |
|
ISO connector |
Yes, Mitsumi to ISO cable |
|
Bluetooth unit built-in |
Yes |
|
USB interface x 1 |
Yes, (Front) |
|
Software upgradable |
Yes |
|
Mechless receiver |
Yes |
|
Short body |
Yes |
Display Features
|
Display Type |
Liquid Crystal Display (LCD) |
|
Display Layout |
2 lines of text + custom icons |
|
Vertical Alignment Liquid Crystal Display |
Yes |
|
Display Illumination |
Variable by RGB LED |
|
Dimmer Control |
Manual / Set by Timer |
|
Brightness control |
0 - 31 steps |
|
Demo Mode |
Yes |
|
Menu languages |
English(default) / Spanish / French / German / Russian |
Cosmetics features
|
Dress plate |
Piano black |
|
Preset key finish |
Piano black |
|
Escutcheon finish |
Piano black |
|
Volume & operation Knob or wheel |
Transparent Lighting & Chrome Finished Ring |
|
Triangle Illumination |
Red LED |
|
Front terminal dust cover |
Yes |
|
Button illumination color |
Variable by RGB LED |
|
Illuminated front USB port |
Variable by RGB LED |
|
Brightness Control (Key) |
0 - 31 steps |
|
Dimmer Control (Key) |
Manual / Set by Timer |
|
Variable color illumination |
Yes |
|
Color Zone Concept |
2 zone color control |
|
Brightness zone concept |
2-zone brightness control |
|
Chrome-finished accents |
Volume knob & faceplate |
Tuner
|
Station selection method |
Manual / Preset |
|
FM reception |
Yes |
|
Mono switch |
Yes |
|
AM reception (MW/LW) |
Yes |
|
Station search |
Yes |
|
Tuner Presets (FM/AM) |
24 Presets (18FM / 6AM) |
|
Mixed preset memory (FM & AM) |
6 presets |
|
AME - Automatic station memory storage |
Yes |
|
Tuner Preset Back-up Memory |
Yes |
|
RDS |
Yes |
|
Radio Text Plus |
Yes |
|
Receiving traffic information |
Yes |
|
Local radio search |
Yes |
|
Regional radio reception |
Selectable: AF/AF Reg/OFF |
|
Automatic traffic information station search |
Yes |
|
EON function |
Yes |
|
PTY - Program type selection |
Yes |
Playable Audio File
|
AAC (*.m4a) files are playable |
USB |
|
AAC (*.aac) files are playable |
USB |
|
MP3 files are playable |
USB |
|
WMA (.wma) files are playable |
USB |
|
WAV (.wav) files are playable |
USB |
|
FLAC files are playable |
USB |
USB
|
USB terminal |
Yes, Front with dust cover |
|
USB bus type |
2.0 High speed |
|
MP3, WMA, AAC, WAV, FLAC playback |
Yes |
|
Repeat/demo/shuffle |
Yes |
|
Repeat/Shuffle |
Yes |
|
Direct search |
Yes |
|
Resume playback from where it last left off |
Yes |
|
Time display |
Yes |
|
1.5A Smartphone Quick Charge |
Yes |
iPod features
|
Made for iPod & iPhone * |
Yes |
|
USB Direct Control (audio, 1 cable, Lightning connector) |
With the optional KCA-iP103 cable |
|
Music playback |
Yes |
|
Alphabetical search |
Yes |
|
Skip search |
Yes |
|
Search for similar files |
Yes |
|
Direct search |
Yes |
|
iPod EQ Mode |
Yes |
|
Manual iPod control |
Yes |
|
App & iPod control |
Yes |
|
Spotify app link |
Yes |
|
iAP via Bluetooth |
Yes |
|
iTunes Radio app |
yes iAP2 |
|
Reverse browsing |
Yes |
|
Charging and power management |
Yes |
|
* Always use the latest Apple software version |
|
Sound
|
Maximum Output Power |
50W x 4 |
|
MOSFET Power IC |
Yes |
|
Auxiliary Type |
Mini jack, front panel |
|
Line output connector |
3 RCA |
|
Line output level |
2.5V |
|
Subwoofer level |
Yes |
|
2-Way X'over network |
Yes |
|
3-Way x'over (bi-amp connection) |
Yes |
|
Tone Control / Easy EQ |
13 bands, 8 presets |
|
Balance/Fader/Loudness Control |
Yes |
|
Bass Boost Circuit |
Off/+1/+2/+3/+4/+5 |
|
Sound attenuation (-20dB) and gradual recovery |
Yes |
|
Easy 3-band EQ mode |
Yes |
|
Graphic Equalizer + Preset |
13-Bands Graphic Equalizer with 8 Presets. |
|
Digital Sound Processor (DSP) Built-in |
Yes |
|
Digital Time Alignment (DTA) |
Yes |
|
Low- & High-pass Filter |
Yes |
|
Speaker Size Control |
Yes, Front/rear/subwoofer independently |
|
Kenwood Sound Reconstruction |
Yes |
|
Sound Reconstruction |
Yes |
|
Space Enhancer space ID expansion function |
Yes |
|
Realizer function |
Yes |
|
Stage EQ |
Yes |
|
Drive EQ - driving noise compensation |
Yes |
Bluetooth
|
Max no. of reg. phones for HFP & A2DP |
5 |
|
Hands Free Profile with High Sound Quality |
HFP V1.7.1 |
|
Maximum number of phones that can be connected |
5 |
|
2 phones full time connection |
Yes |
|
Audio Distribution Profile (A2DP) |
Yes |
|
High-quality audio streaming |
SBC/AAC |
|
Max no. of reg. units for A2DP |
5 units |
|
Serial Port Profile (SPP) |
Yes |
|
Contact information usage profile (PBAP) |
Yes |
|
iPhone & Android automatic pairing via USB |
Yes |
|
|
|
|
KENWOOD Remote App Ready |
|
|
KENWOOD Music Mix Support |
Yes |
|
Knock / Hold |
Yes |
|
Private mode |
Yes |
|
Alphabetical search (contact information) |
Yes |
|
Background noise compensation |
Yes |
|
Echo cancellation |
Yes |
|
Showing phone status on car radio display |
Yes |
|
Displaying the status of your music device on the car radio display |
Yes |
|
Mobile network strength display |
Yes |
|
Battery charge status display |
Yes |
|
Bluetooth Pairing Indicator |
Yes |
|
High-quality microphone with background noise reduction |
Rear Wired |
|
Bluetooth software upgradable |
Yes |
|
*depending on phone manufacturer and model |
& Kenwood device |

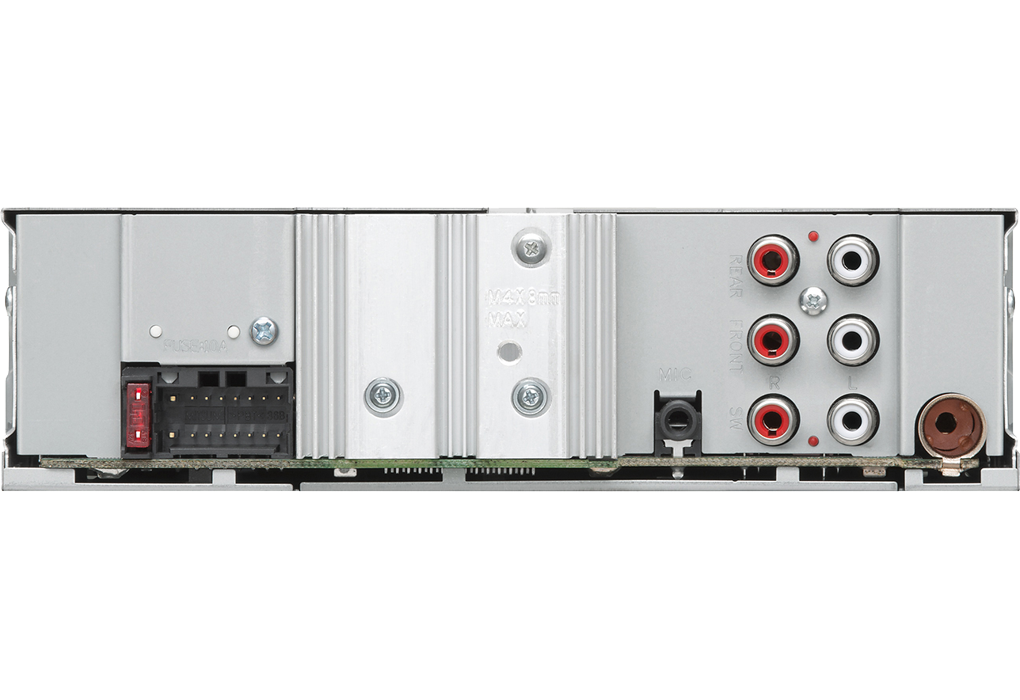

Connections
|
Front USB & AUX Input |
Yes |
|
Possibility of retrofitting a wired remote control |
Yes |
|
DC cable |
Mitsumi to ISO |
|
Excitation power cable (P.CON) |
Yes |
|
Audio line-out connector |
3 x RCA: Front/Rear/Subwoofer |
|
FM antenna connection |
JASO connector |
|
Microphone jack (mini jack) |
3.5mm mini jack |
Radio
|
ULA: 87.5 MHz - 108 MHz (50 Khz steps) |
Yes |
|
Sensitivity (VHF) |
0.56μV/75ohm (S/N 30dBf) |
|
Attenuation sensitivity (ULA) |
1.58μV/75ohm (S/N 46dBf) |
|
Frequency response (VHF) |
30Hz~15kHz (±3dB) |
|
Interference range (mono, FM) |
68dB |
|
Channel separation (1 kHz, FM) |
40dB |
|
MW: 531 kHz to 1611 kHz (in 9 kHz steps) |
Yes |
|
Sensitivity (MW) |
28.5μV |
|
LW: 153 kHz to 279 kHz (in 9 kHz steps) |
Yes |
|
Sensitivity (LW) |
45μV |
Codec Specs
|
MP3 Format |
MPEG 1/2 Audio Layer 3-Files |
|
WMA Format |
in accordance with Windows Media Audio |
|
AAC Format |
AAC-LC “.aac”(CD&USB) and “.m4a”(USB) files |
|
WAV Format |
RIFF waveform Audio Format (only for LinearPCM) |
|
FLAC Format |
FLAC files (up to 96kHz/24bit) |
USB
|
USB version |
USB 1.1 / 2.0 full speed |
|
File system |
FAT32 / 16 / 12 |
|
Maximum current |
1500mA |
|
DA converter |
24bit |
|
MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
|
WMA Decode |
Compliant with Windows Media Audio |
|
AAC Decode |
"m4a" & "aac" file encoded by AAC-LC format |
|
WAV Decode |
Linear - PCM Files |
|
flac Decode |
FLAC files up to 96kHz/24bit |
Audio Specifications
|
Maximum Power |
50W x 4 |
|
Output Power (DIN45324,+B=14.4v) |
22W x 4 |
|
Preout Level |
2500mV / 10kOhm, |
|
Preout Impedance |
≤ 600Ohm |
|
Speaker Impedance |
4Ohm ~ 8Ohm |
|
AUX Frequency Response |
20Hz ~ 20kHz (±1dB) |
|
AUX Maximum Input Voltage |
1000mV |
|
AUX Input Impedance |
30kOhm |
DSP Specifications
|
Frequency band - Front |
62.5Hz ~ 16kHz |
|
Equalizer Gain |
–9db ~ +9db |
|
Q Control |
0.25/ 0.50/ 1.00/ 2.00 |
|
High Pass Filter frequency |
Through/50 ~ 220 (Hz) |
|
High Pass Filter Slope |
-12/-18/-24 dB/Oct |
|
Low Pass Filter frequency |
50 ~ 120(Hz)/Through |
|
Low Pass Filter Slope |
-12/-18/-24 dB/Oct |
|
Time Alignment |
0 — 610cm (2 cm step) |
|
Choosing a car type |
► OFF |
|
Equalizer Type |
Graphic |
|
Frequency band |
13-zone |
Bluetooth
|
Version |
Bluetooth V4.2 |
|
Frequency |
2.402 - 2.48 GHz |
|
Power supply |
+4dBm(max), 0dBm (AVE) power class 2 |
|
Business trip |
Unobstructed distance of about 10 m |
|
Hands-free (HFP) |
Yes |
|
Serial Port (SPP) |
Yes |
|
Audio distribution (A2DP) |
Yes |
|
Audio codec |
SBC/AAC |
|
Video and Audio Control (AVRCP) |
Yes |
|
Contact information transfer (PBAP) |
Yes |
Supplies
|
Removal tools |
2 pieces |
|
Mounting collar |
Yes |
|
Mounting frame |
Yes |
|
DC cord (Mitsumi to ISO) |
15cm |
|
Hands-free microphone |
with 3 m cable |
General
|
Operating voltage |
14.4V (10.5~16V Allowable) |
|
Maximum power consumption |
10A |
|
Dark Current Consumption |
Below 1mA |
|
Dimensions (W x H x D) |
182 x 53 x 100mm |
|
Weight |
600 gr. |
|
Operating temperature |
-10°C ~ 60°C |
|
Instruction Manuals |
Multi-language quick guide |
