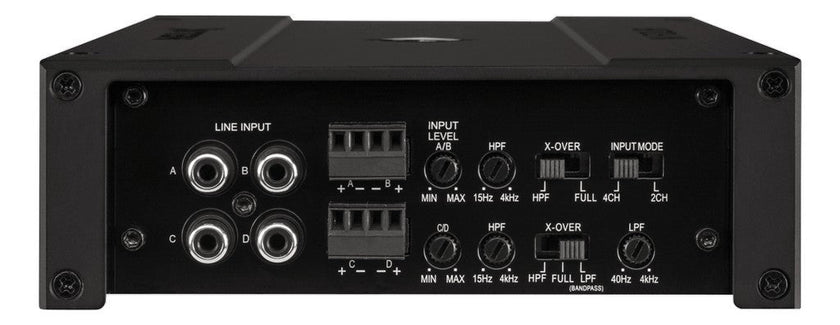

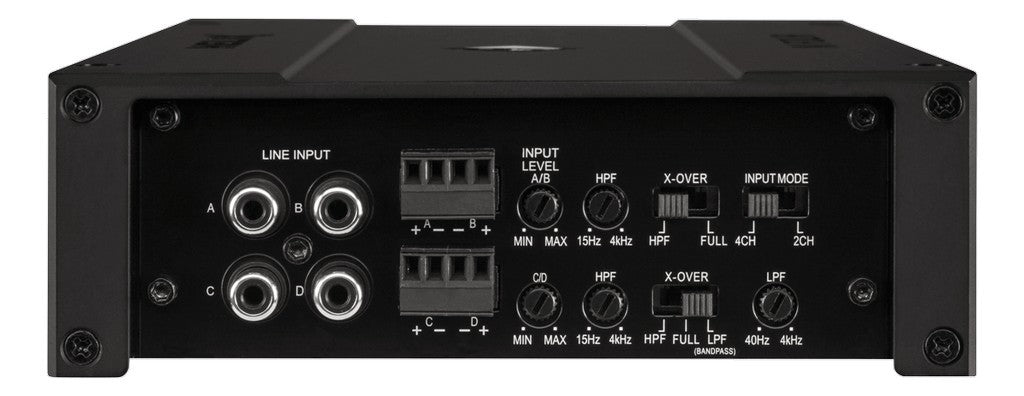

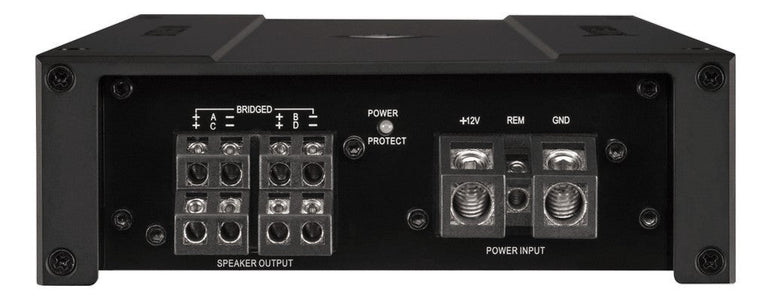

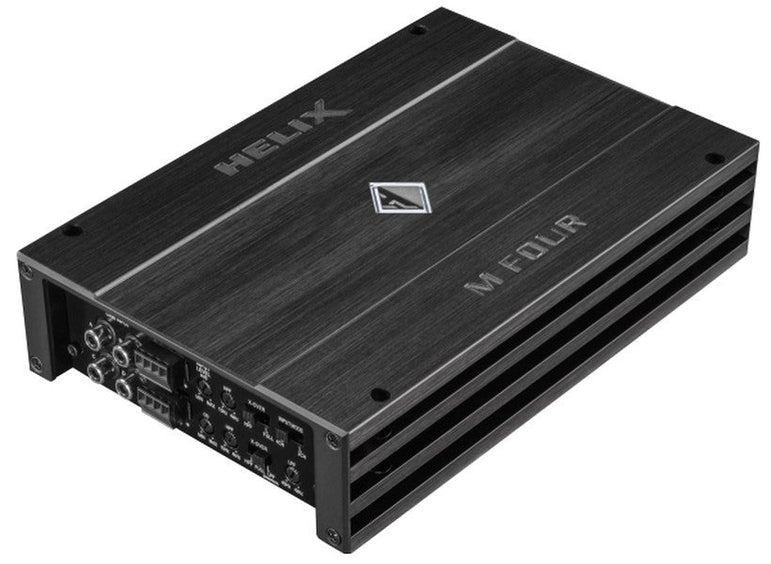

Helix M FOUR
The Helix M-series amplifiers are incredibly small in size, yet feature-packed and powerful. This is made possible by advanced Class D technology.
The intelligent speaker level input works even in new cars thanks to the ADEP circuit. And this amplifier doesn't turn off at every traffic light thanks to Start&Stop compatibility. The crossover filter adjustment ranges are so wide that they can make crossovers from subwoofer to tweeter and everything in between.
Despite their small size, Helix's M-series products offer plenty of power and, above all, the excellent sound quality that Helix has been known for as a manufacturer for decades.
Specifications:
@ 4 Ohms 4 x 100W RMS, 200W Peak
@ 2 Ohms 4 x 100W RMS, 200W Peak
bridged @ 4 Ohms 2 x 200 W RMS, 2 x 400 W Peak
Amplifier technologyClass D
Inputs4 x RCA
4 x High-level speaker input
1 x Remote In
Input sensitivity RCA 0.5 - 6 Volts
High level input sensitivity 1.3 - 13 Volts
Input impedance RCA 20 kOhms
Input impedance high level 13 Ohms
Outputs4 x Speaker output
Frequency response 10 Hz to 30,000 Hz
Highpass15 Hz - 4000 Hz adjustable
Lowpass40 Hz - 4000 Hz adjustable
Bandpass 15 Hz - 4000 Hz adjustable
Slope high- / lowpass12 dB/Oct.
Signal-to-noise ratio analog input98 dB (A-weighted)
Distortion (THD)0.05%
Damping factor100
Operating voltage10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current1,100 mA
Fuse2 x 30 A Maxi fuse (APX)
Start-Stop capability
High level input with automatic turn on function
Advanced Diagnostics Error Protection (ADEP)
Dimensions (H x W x D) 50 x 230 x 154 mm.
