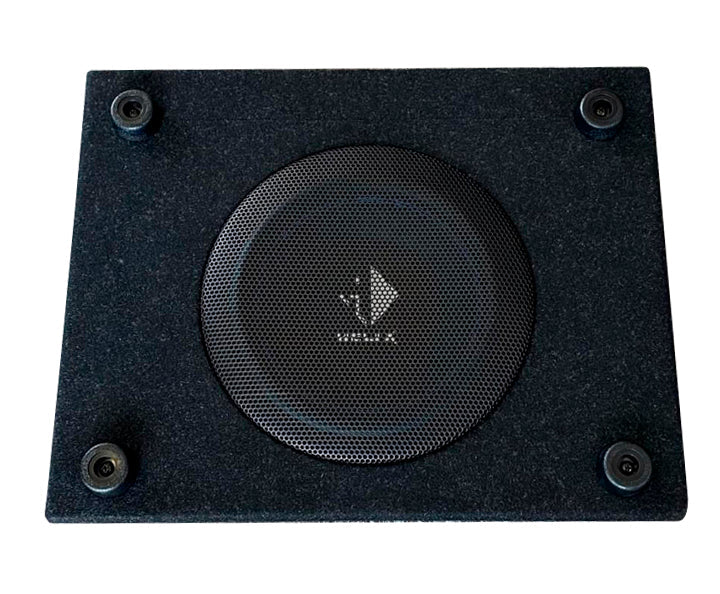

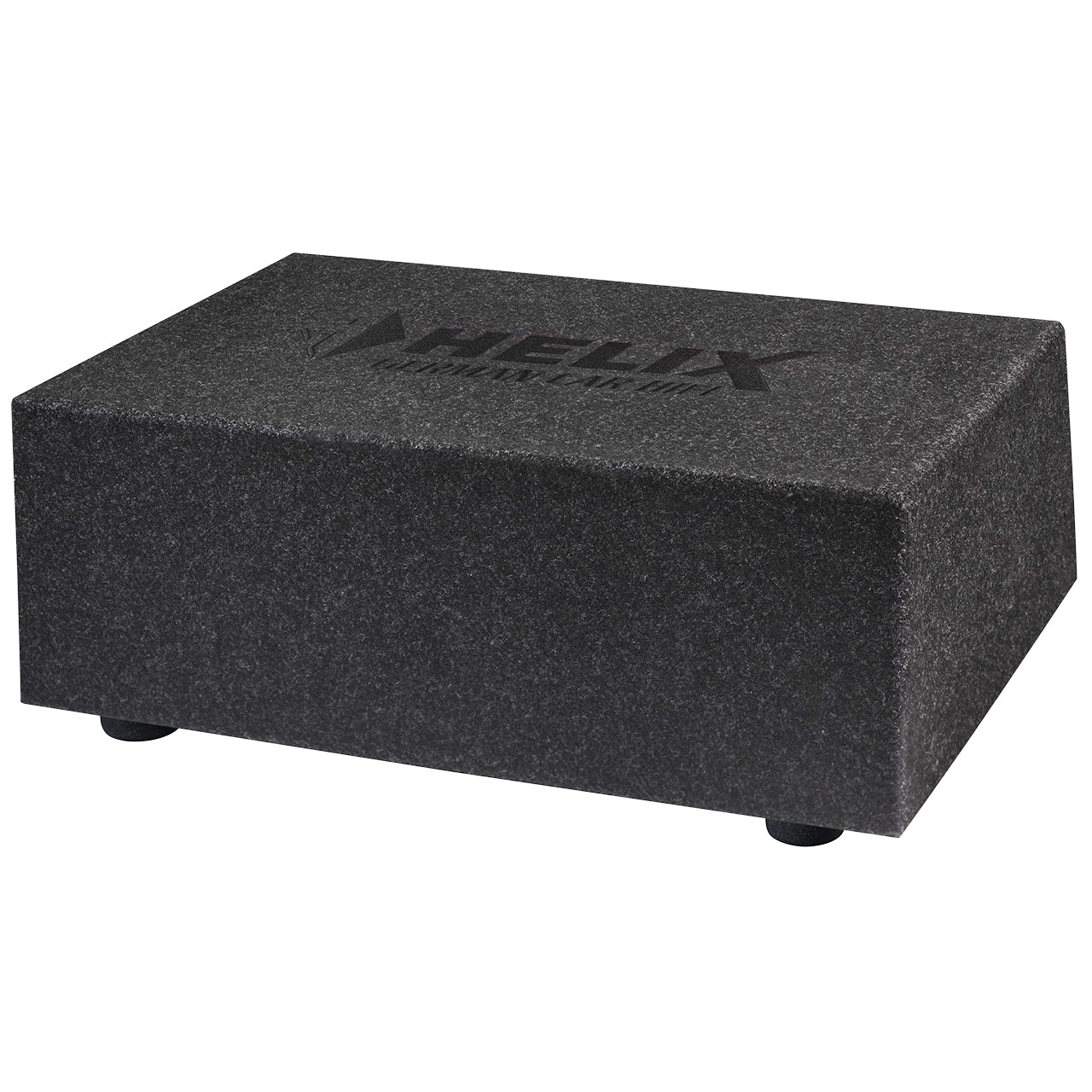

Helix K 10E.2
10″ Helix subwoofer in a compact reflex enclosure.
The driver is directed downwards, so placement of this enclosure is easy because the subwoofer is protected underneath the enclosure.
A compact solution for bass needs. Fits even in a small trunk or under the seat of a van. Thanks to the double voice coil (2x2 Ohm), it is an excellent solution for many types of amplifiers.
Specifications:
Power RMS / max. P300 / 600 Watts
Impedance z2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax+/- 8.0 mm
Port tuning frequencyFb43 Hz
Efficiency 1 W / 1 mSPL89 dB
Dimensions (H x W x D) 187 x 470 x 375 mm /
7.4 x 18.5 x 14.8”
Recommended DSP settings Recommended ″self-define″ highpass filter with 37 Hz cut-off frequency and Q = 1.5
additional EQ filter 115 Hz / Q = 0.7 / -2 dB.
