HELIX IK E8.1-DVC2

HELIX IK E8.1-DVC2

• 8″ pre-enclosed subwoofer
• Reflex housing

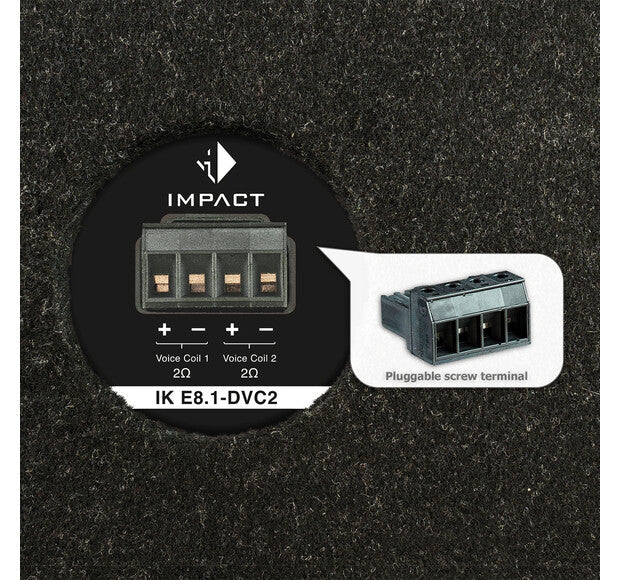

• 2 x 2 Ohms
• 300W

Match's IK series 8″ subwoofer reflex enclosure is a compact solution for bass needs.
Fits even in a small trunk or under the seat of a van.

Specifications:
Technical data:

Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 2 x 2 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity
SPL
91 dB @ 2.83V / 1m
85dB @ 1W/1m

Dimensions (H x W x D)
184 x 310 x 285 mm
7.2 x 12.2 x 11.2″


Recommended DSP settings:

″Self-define″ highpass 44 Hz / Q = 1.6
EQ filter: 115 Hz / Q = 0.9 / -3.5 dB

Scope of delivery
1 x Downfire enclosure subwoofer IK E8.1-SVC2
1 x Data sheet
