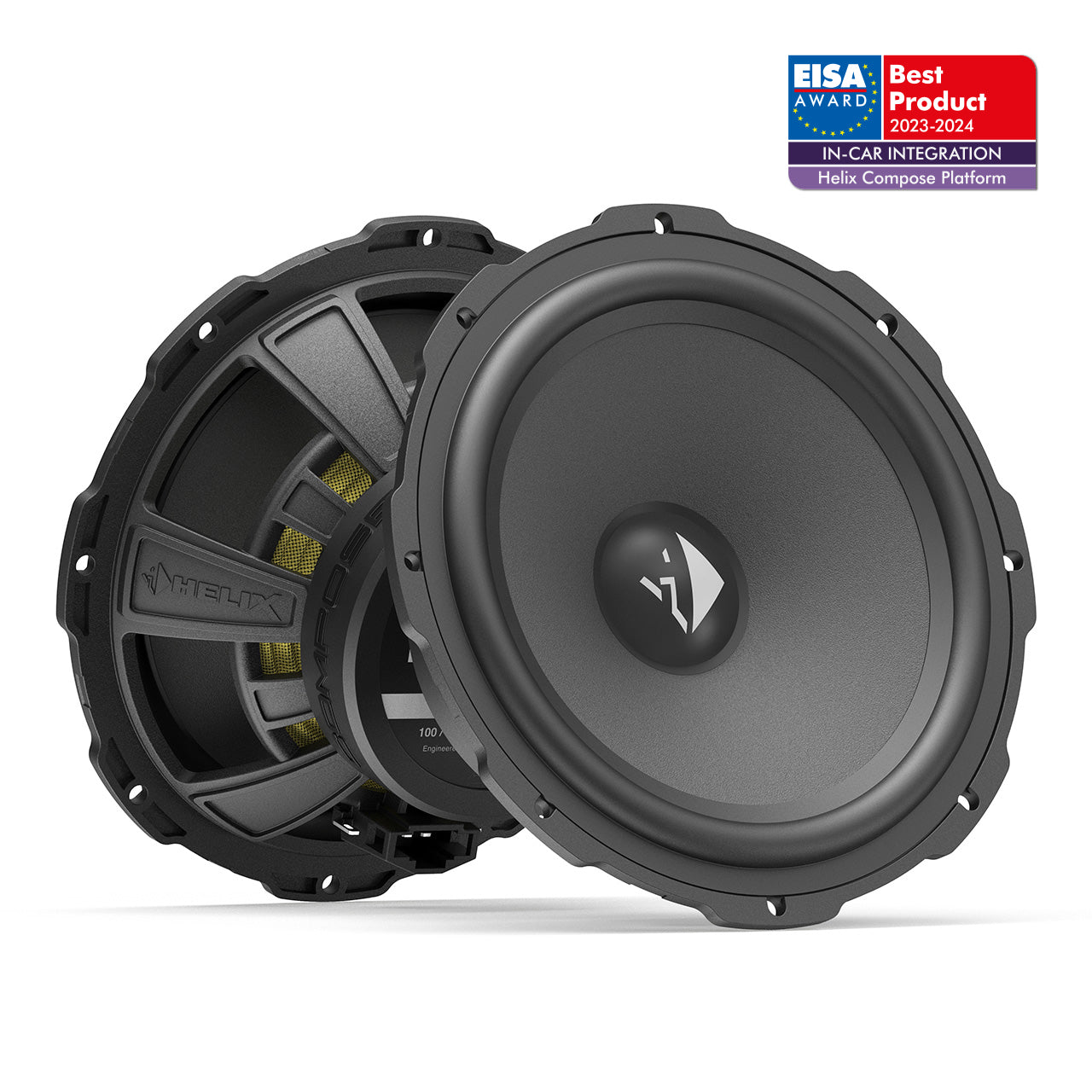

Helix Ci3 W165FM-S2 - 2 Ohm
The HELIX COMPOSE i3 series is a top quality midbass with an excellent price/quality ratio
Compose i3 series uses high-quality materials:
- Extremely lightweight and coated paper cone ensures accurate and detailed reproduction.
- The frame is made of a polymer composite, which is additionally reinforced with glass beads, resulting in a very rigid and reverberant-free material.
- Powerful magnet
One of the key elements of the Compose series is a patented mounting system called FlexMount, which is based on specially developed speaker adapters.<br>
This technology allows you to install i3 speakers in an almost infinite number of car models by simply changing the adapter ring that fits your car.
FlexMount adapter rings are either included with the speaker or can be purchased separately (be sure to check out our FlexMount selection).
The i3 series is compatible with all FlexMount, FlexConnect, ProConnect and WireKits adapters.
Specifications:
Power handling RMS / max. P
100 / 150 Watts
Impedance Z 2 Ω
DC resistance Re 1.8 Ω
Frequency response 60 Hz to 3,500 Hz
Resonance frequency Fs 74 Hz
Mechanical Q factor Qms 3.92
Electrical Q factor Qes 0.92
Total Q factor Qts 0.74
Compliance Cms 370 µm/N
Equivalent air volume Left 8.8 L
Force factor B*I 3.5 Tm
Sensitivity SPL 94 dB @ 2.83 V / 1m
88 dB @ 1W / 1m
Cone area Sd 133 cm²
Moving mass MMS 12.5 g
Cone material Paper with Cenosphere coating
Mechanical resistance Rms 1.48 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height 11.3 mm
Max. linear excursion Xmax +/- 3.7 mm
Outer diameter ø 165 mm / 6.5″
Installation diameter ø 142 mm / 5.59″
Installation depth 60.7 mm / 2.39″
Features
ProConnect terminal,
FlexMount165
