GZ SQL Bundle 8 inc coax

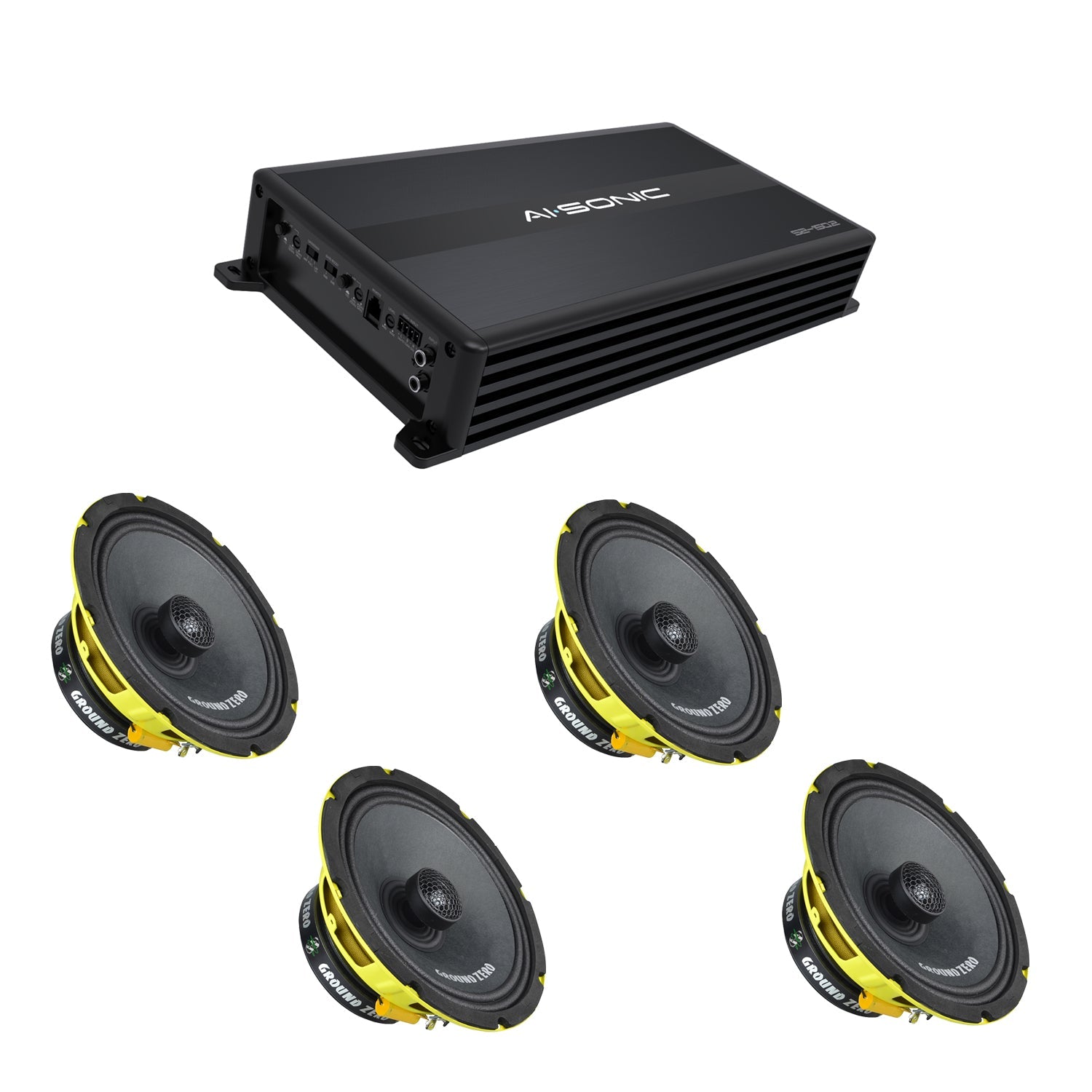

The GZ SQL Bundle 8 inc coax includes 4 really loud GZCF 8.0SPL speakers and a high-quality Ai-Sonic 2-A150.2 amplifier.
GZCF 8.0SPL:

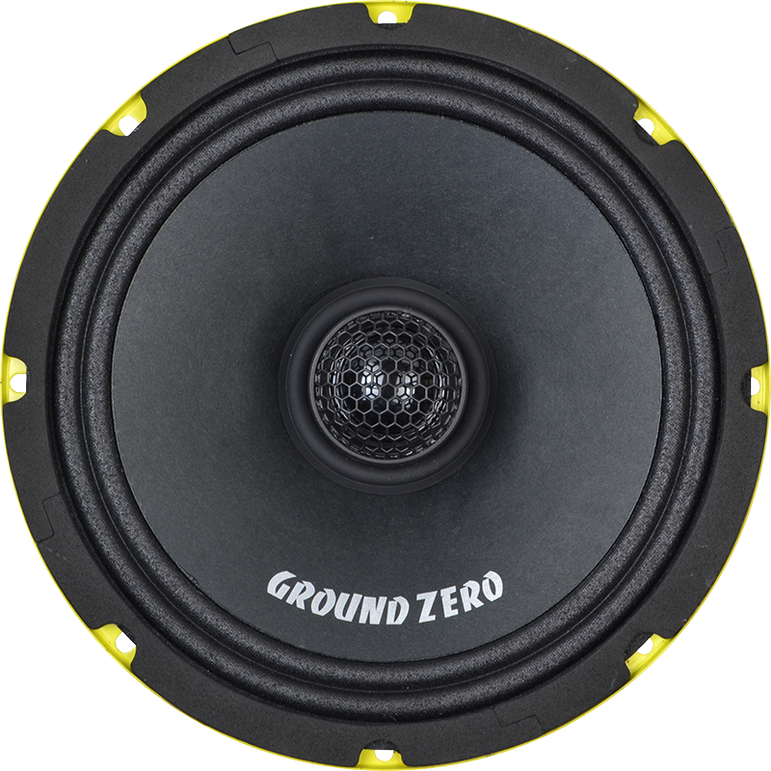

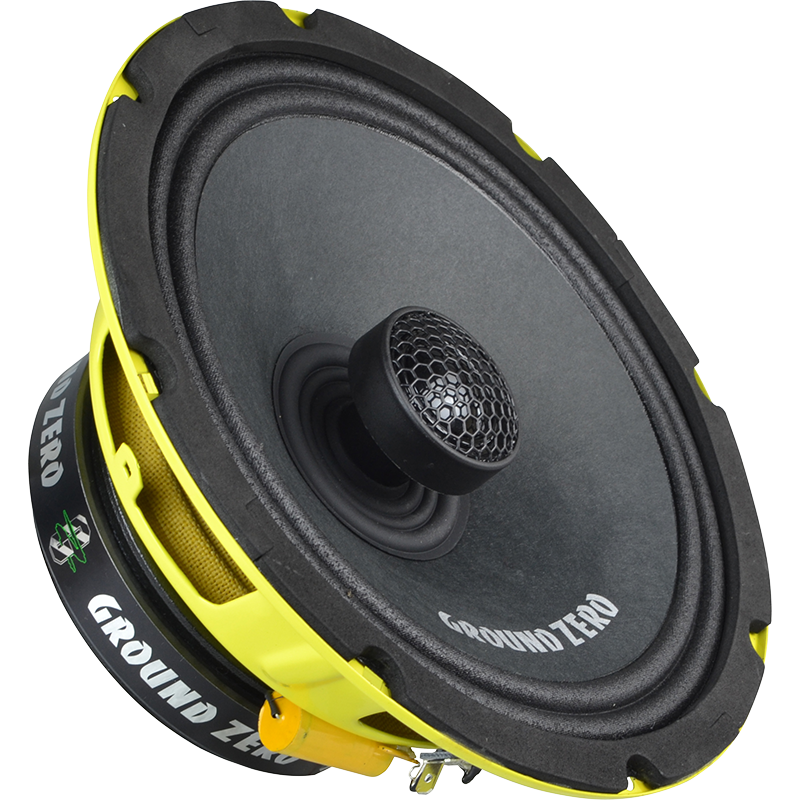

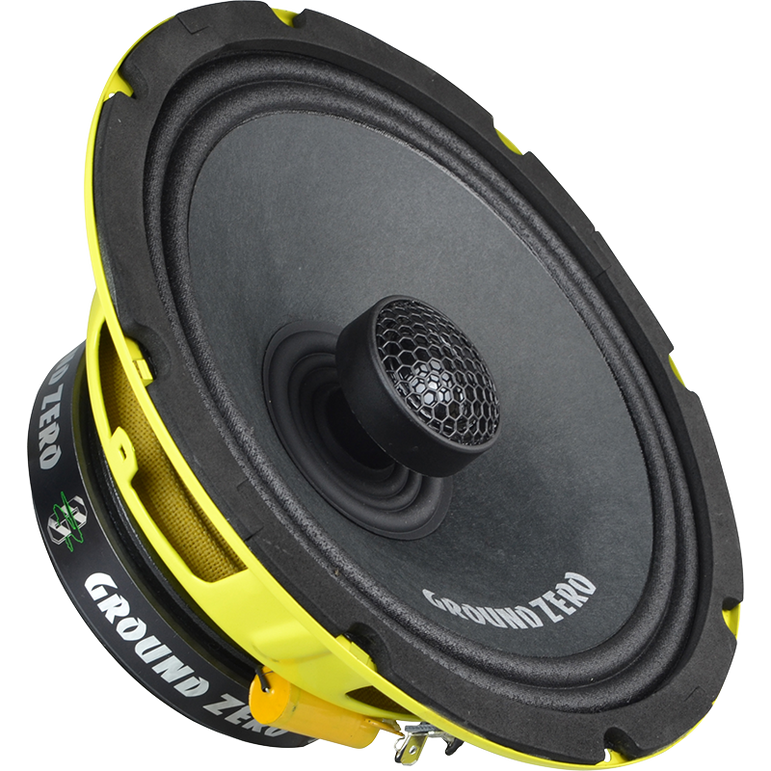

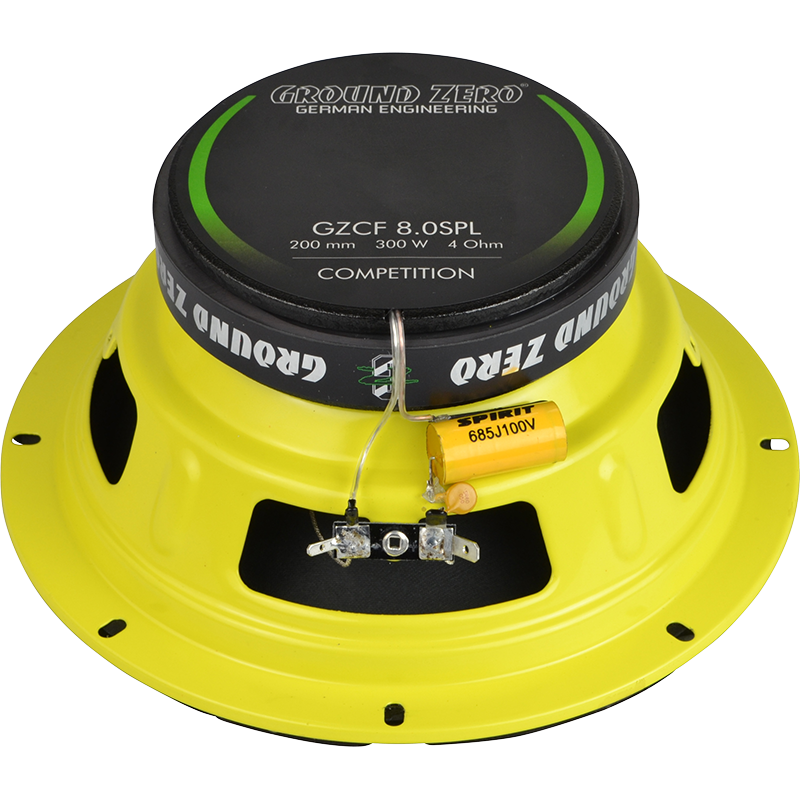

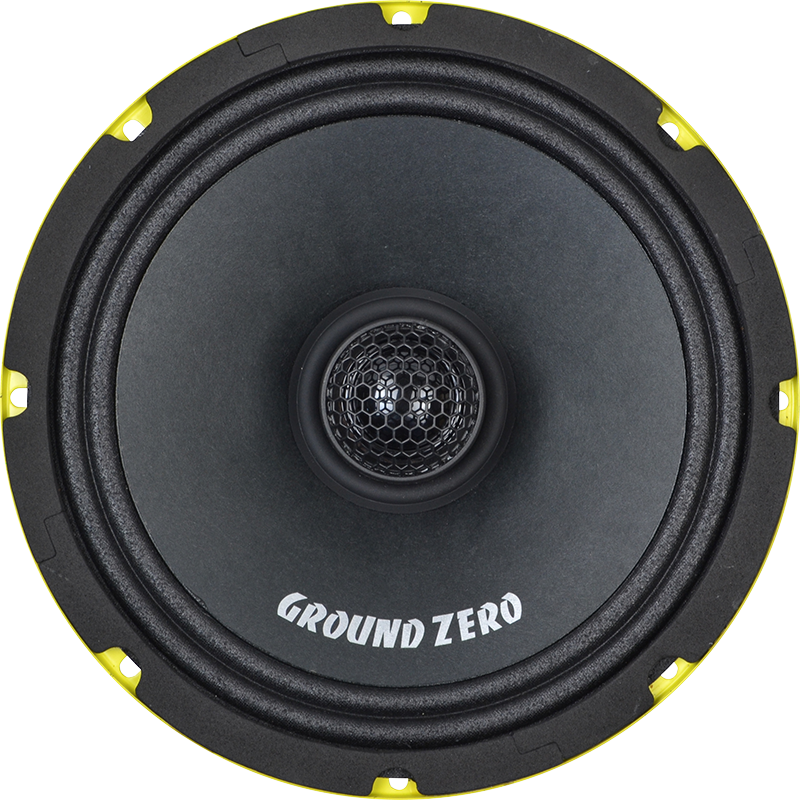

The Ground Zero GZCF 8.0SPL is a sturdy and really loud-sounding 8″ 2-way coaxial speaker from the Competition series with a 1″ Mylar tweeter and a passive 6dB/oct high-pass filter.
Speaker grilles are included in the package.
S2-A150.2:
AI-Sonic S2 amplifiers. Designed in Finland by AI-Group.
With excellent sound quality, versatile control features, and the ability to connect to any system to drive any speaker, it's hard to beat the Ai-Sonic S2 amplifiers.
The ambitious goal was to design and implement an amplifier range that offers the best possible sound quality in its price range. The work began by designing a unique cooling profile.
Maximizing cooling and minimizing the physical size of the devices continued with the PCB design. The locations of the components on the PCB are carefully selected to achieve the smallest possible physical size of the amplifier and efficient component cooling.
The circuit board uses twice as much copper as a standard car amplifier circuit board.
Three years have been spent selecting and testing the components for the AI-Sonic S2 amplifiers. By testing and listening to numerous different parts and combinations of parts, we have found the parts that form the best possible whole in their price range.
All components of AI-Sonic amplifiers are slightly oversized for the amplifier's power output. Dual power supplies are used in larger models.

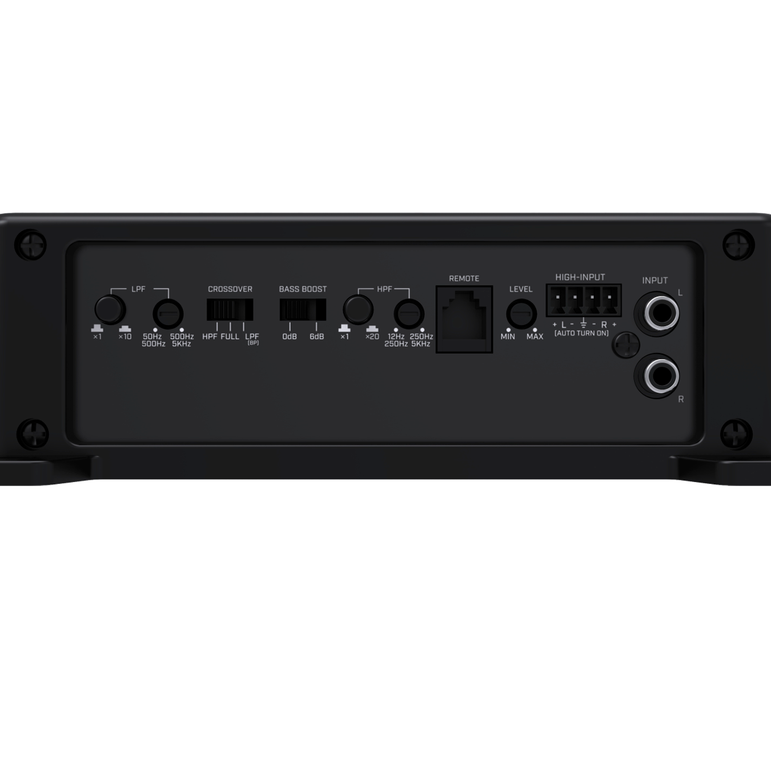

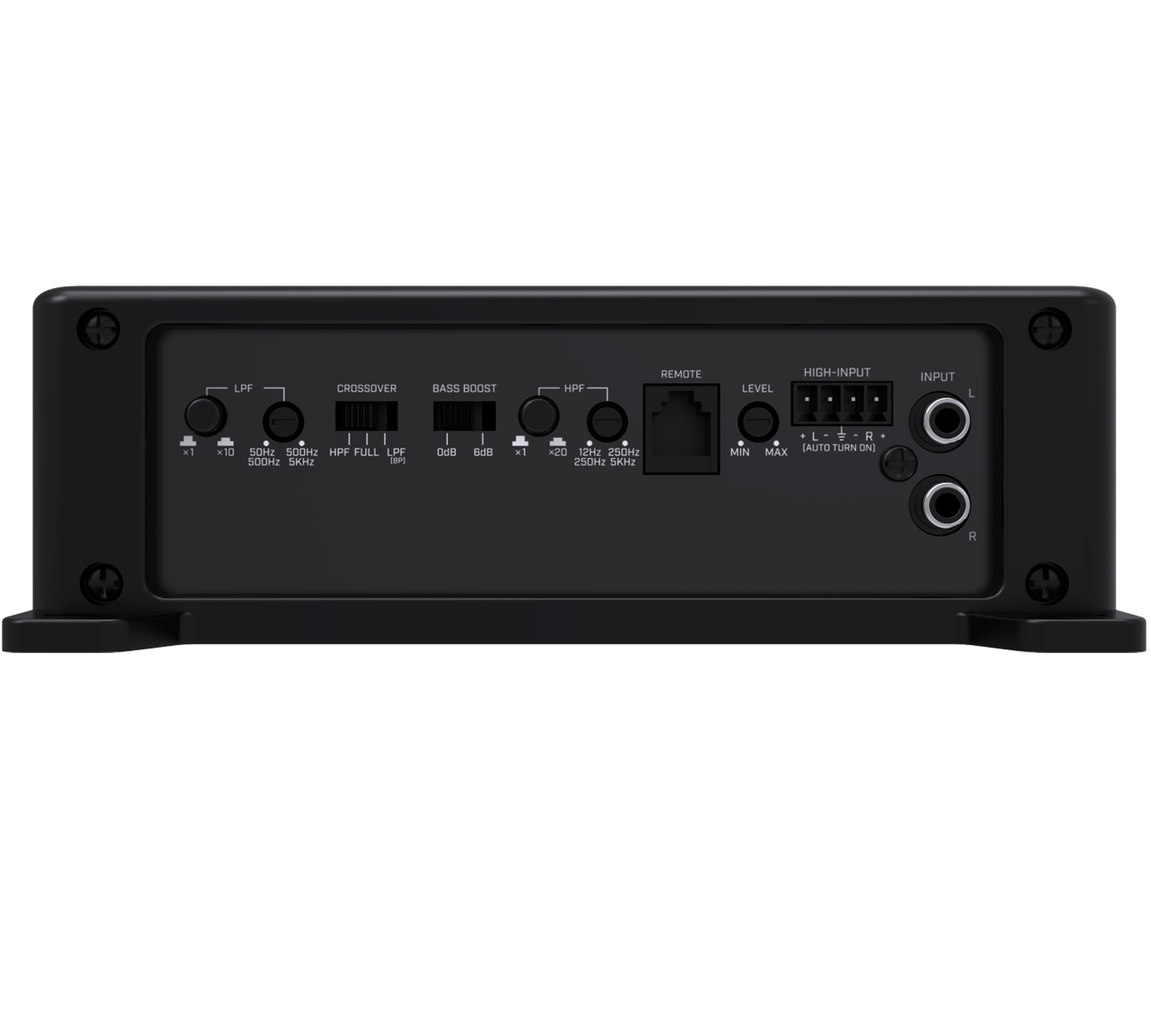

Optional remote level control. (Note: Only works when LPF is on.) The level control also has power, clip and fault status indicators.
Specifications:

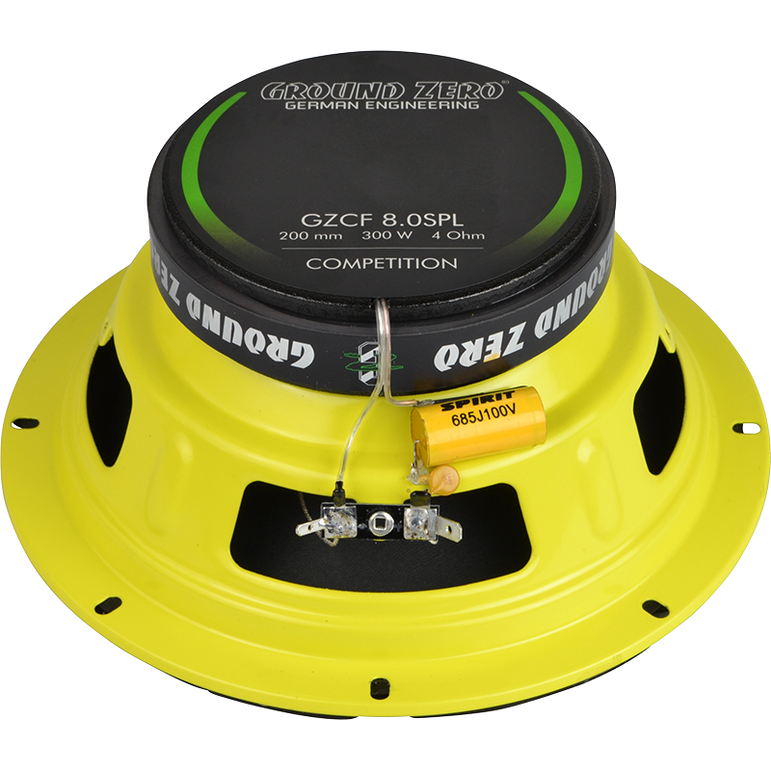

GZCF 8.0SPL:
300 Watts max
200 mm / 8″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar Tweeter
2-way coaxial speaker system
Pressed paper cone
High-excursion foamed W-surround
Resonance free steel basket
25 mm / 1″ Mylar tweeter
Ferrite motor
6 dB/oct high pass filter

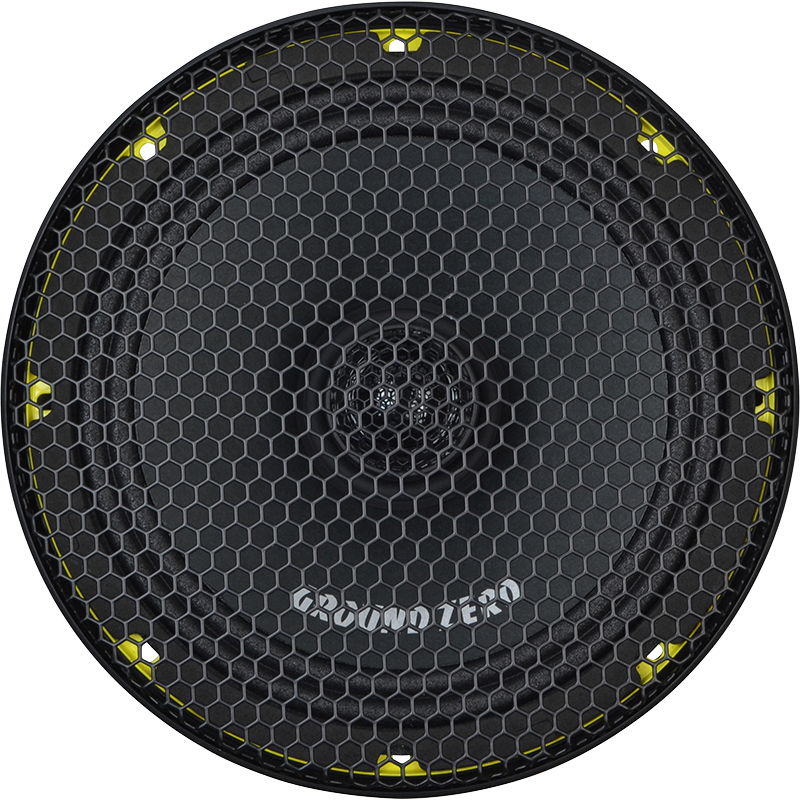

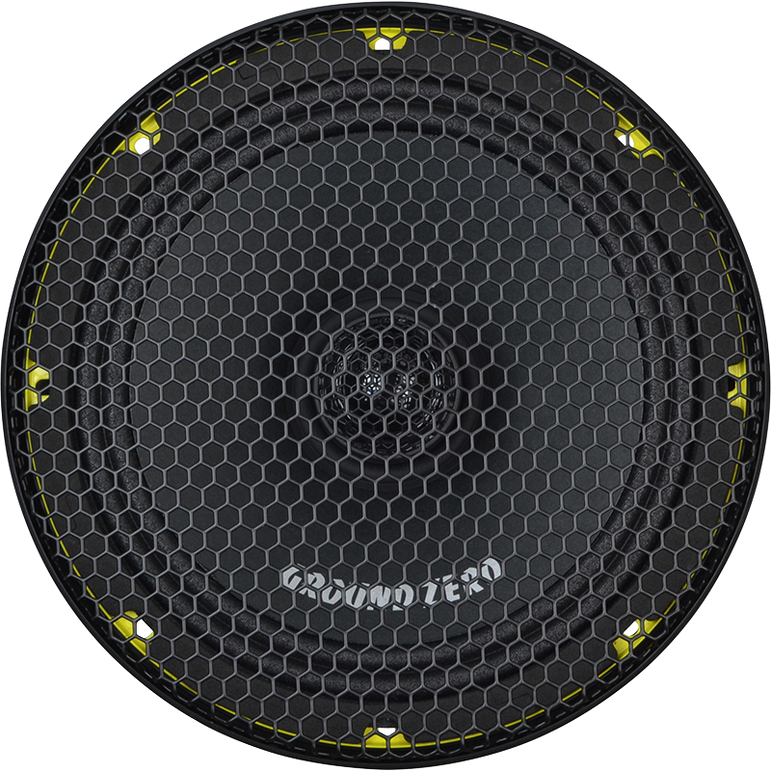

Incl. Hexagon style protection grill.

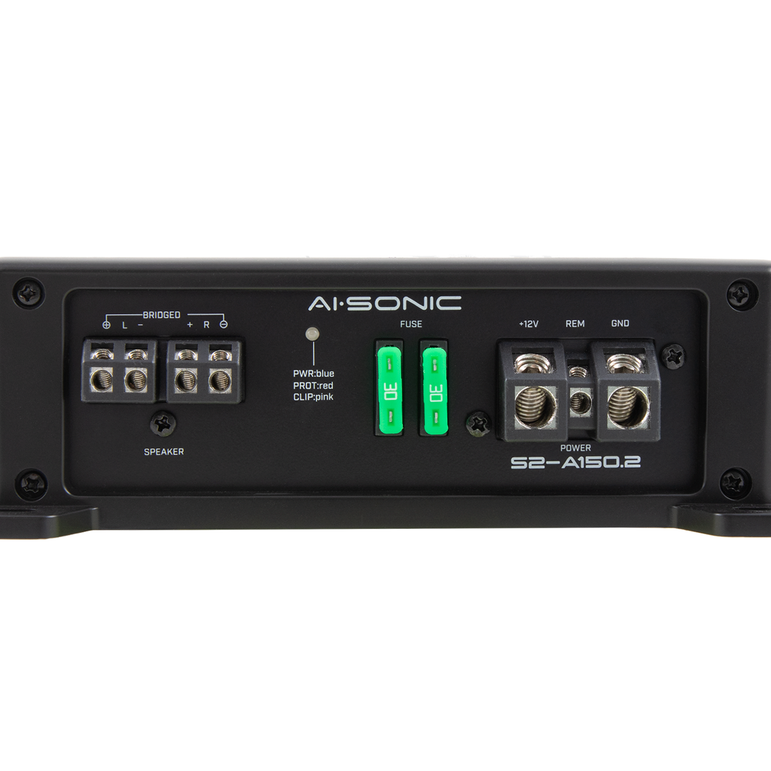

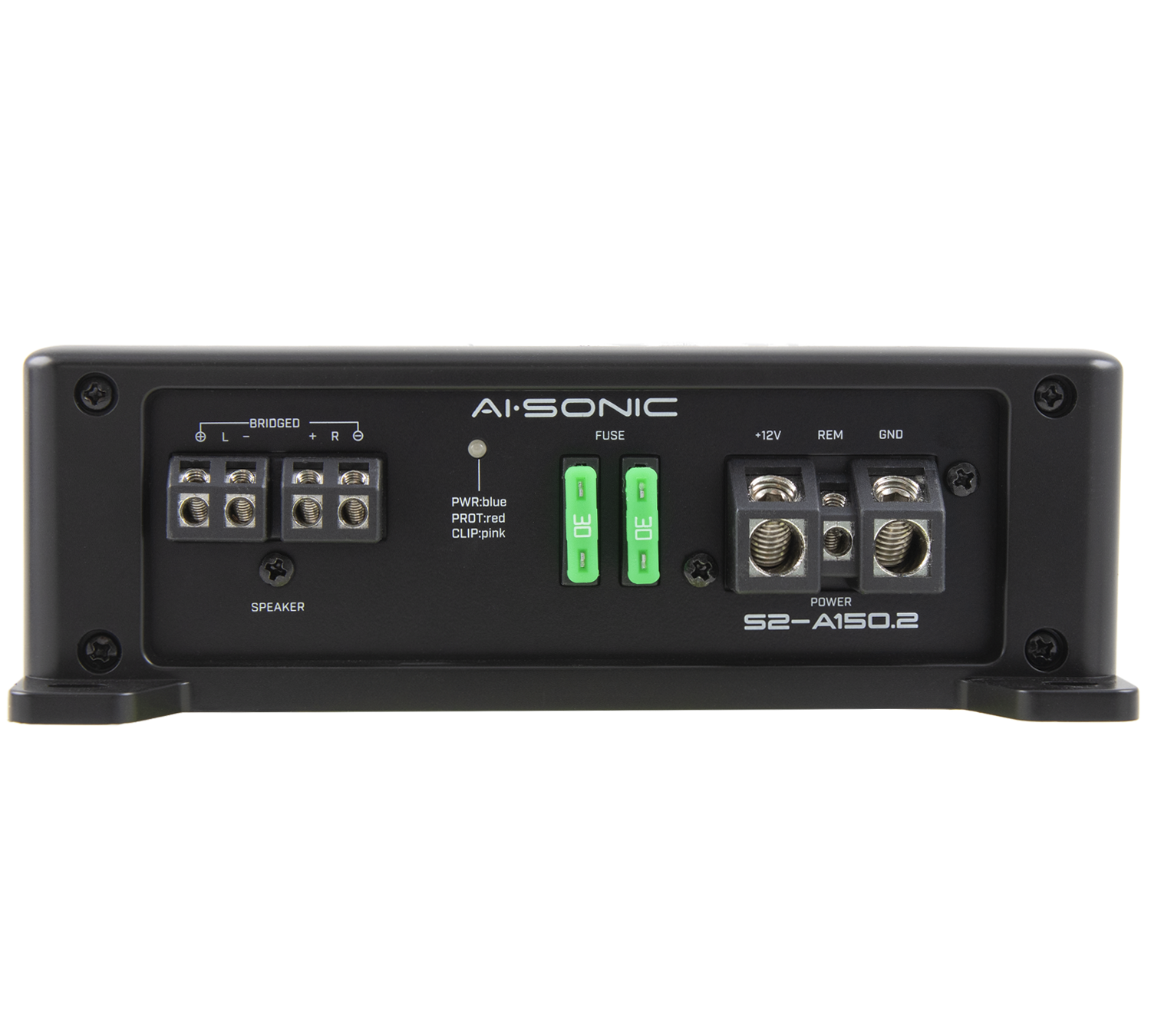

S2-A150.2:
RMS POWER (2ohm) 12v 1%THD 2x225W
RMS POWER (4ohm) 12v 1%THD 2 x 150W
BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
THD 0.02% 4ohm, 0.04% 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V
LOW PASS x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 2 x 30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 52A
DIMENSIONS W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
W: 374mm / (14.7IN).
