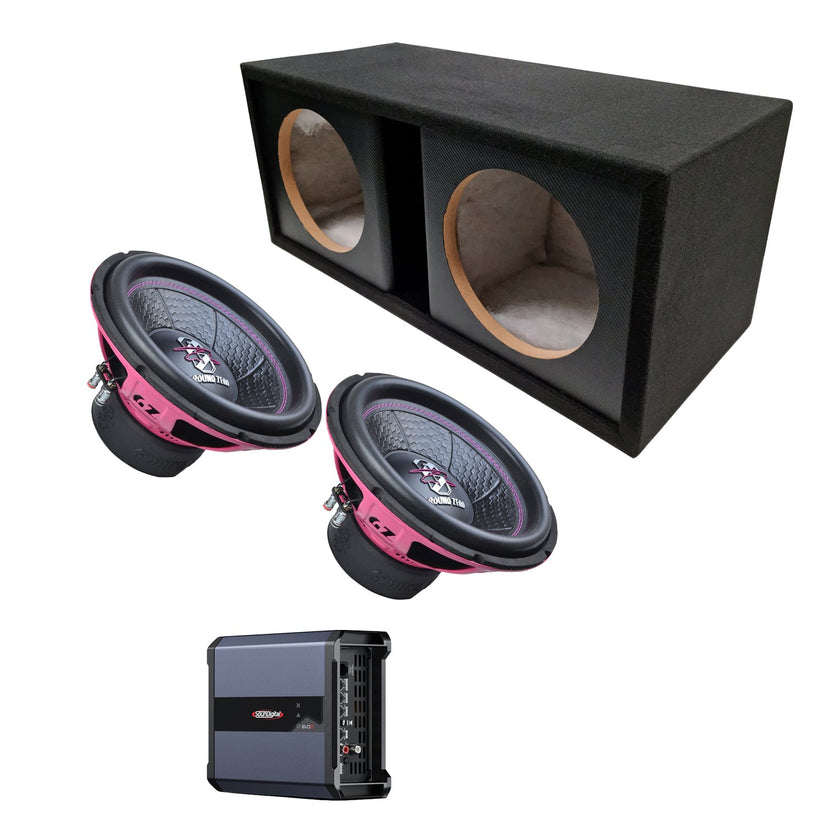

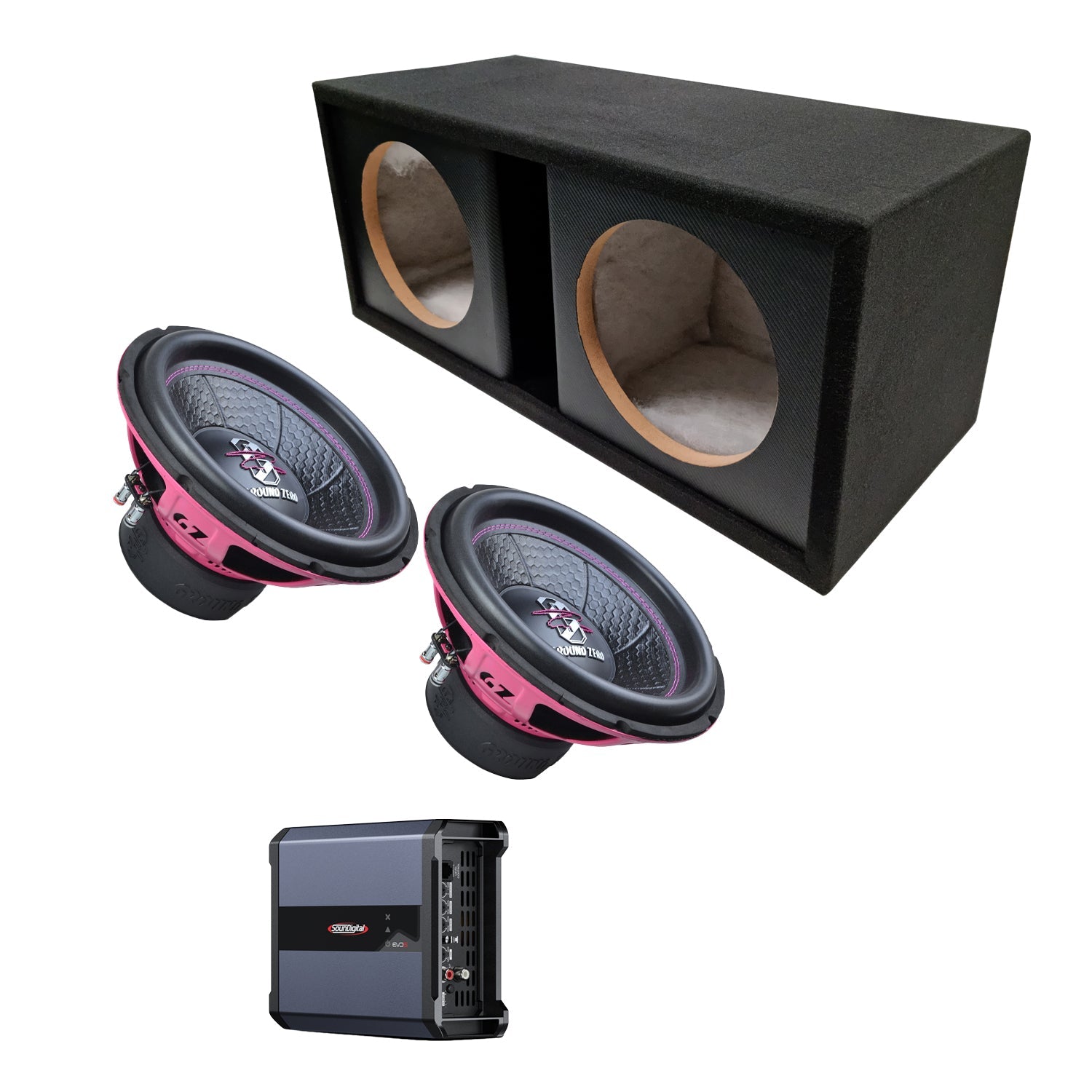

GZ Pink Powerpacked 2x12 inc includes 2 GZIW 12XSPL-D2 PINK subwoofers, a 4-AI212SLOT enclosure and an SD1200.1-2 EVO5 amplifier.

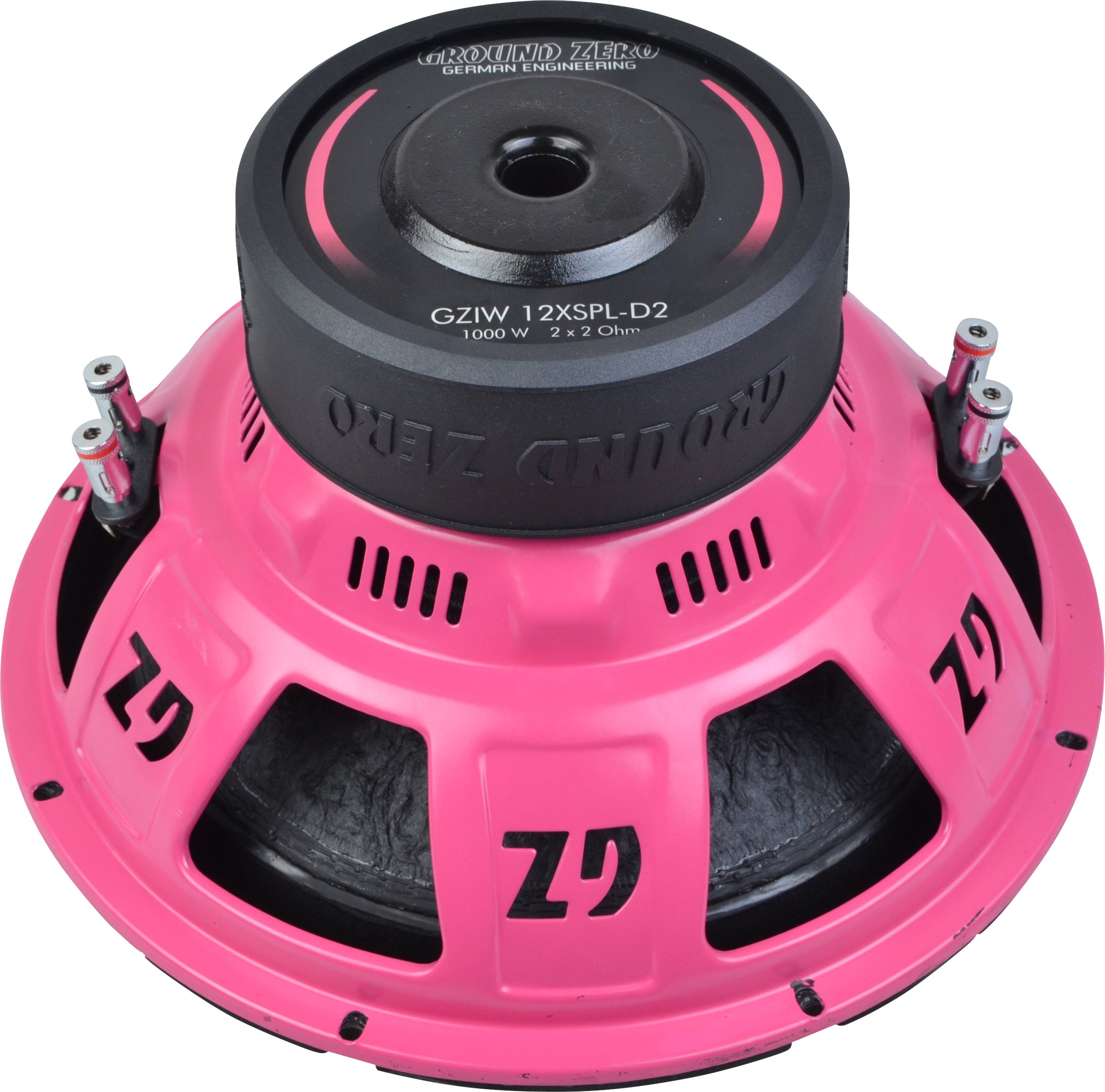

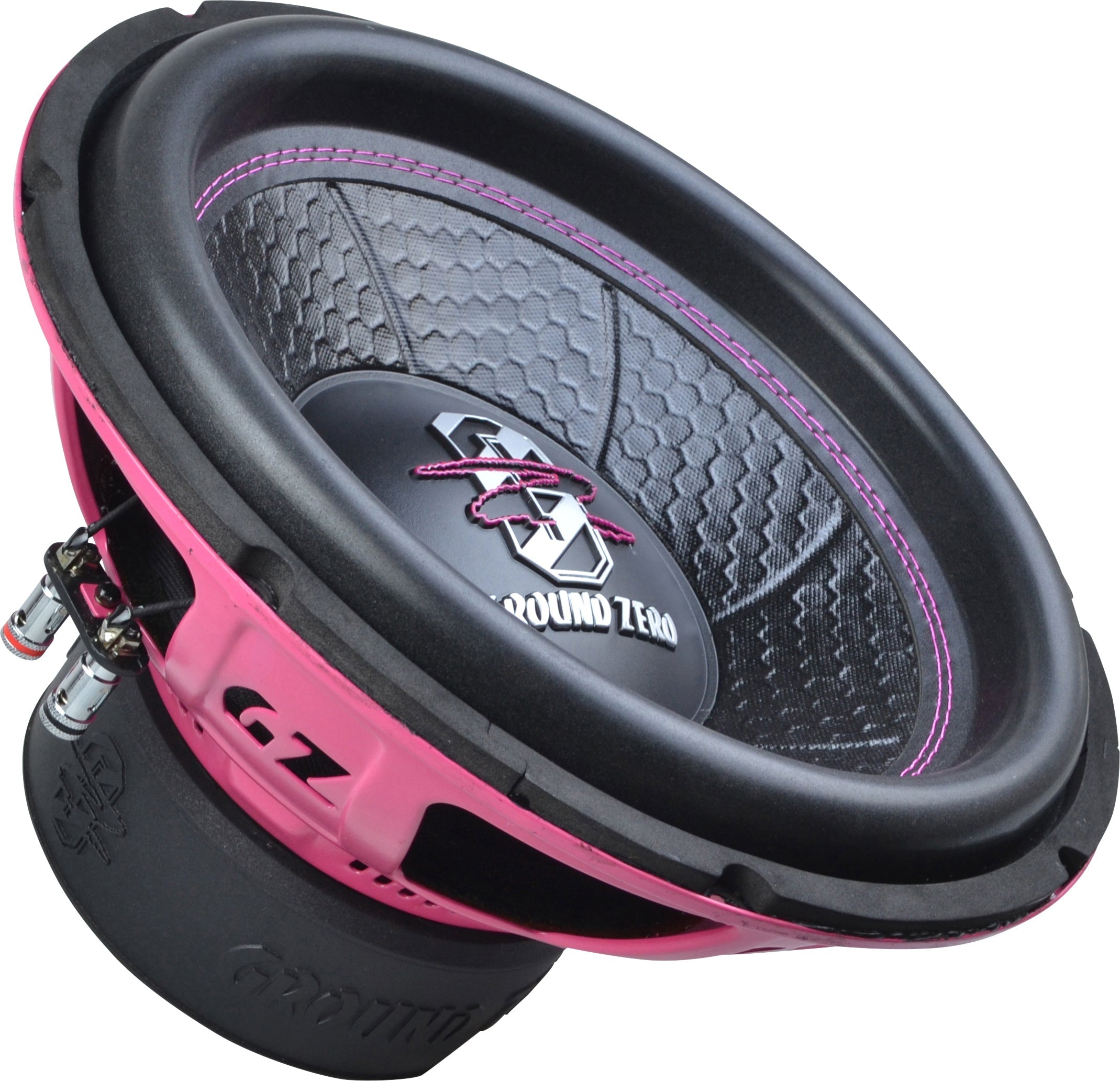

GZIW 12XSPL-D2 PINK:

The Ground Zero Iridium XSPL brings a new subwoofer element designed for sound pressure use to an unprecedentedly affordable price range!

All new GZIW basses have a new updated under-suspension + voice coil, the IMPP cone is spirally stiffened which significantly affects the cone's resonance, thus the updated GZIW guarantees an even tighter kick.

Don't let the low price fool you. This element is excellent in terms of performance for its price. More design work has been done than on most manufacturers' higher price ranges. Klippel optimization involves 10 hours of testing, where the element's behavior is measured in many ways and weak points are dug out before production. This results in a very high-performance element.

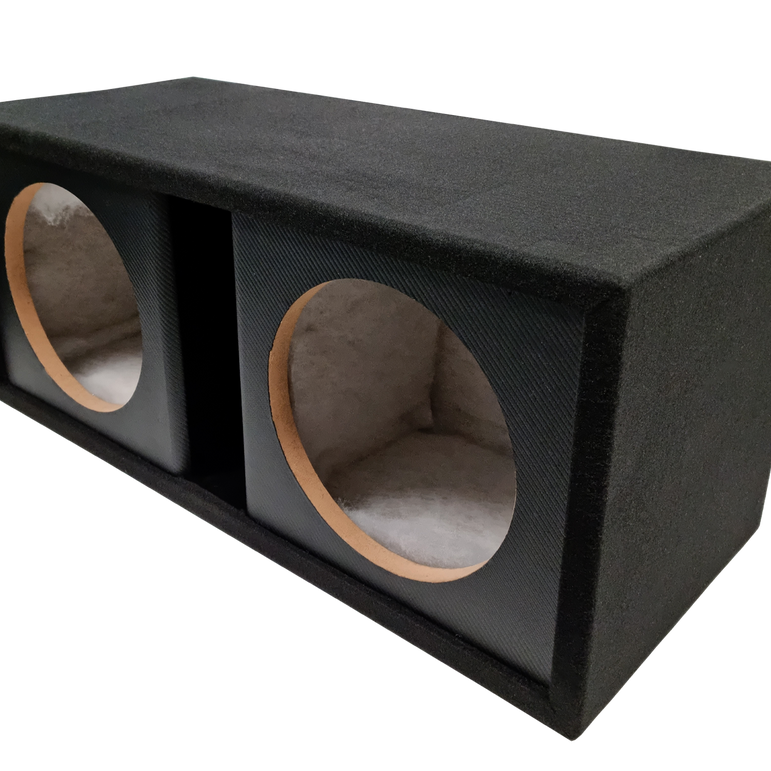

4-AI212SLOT:

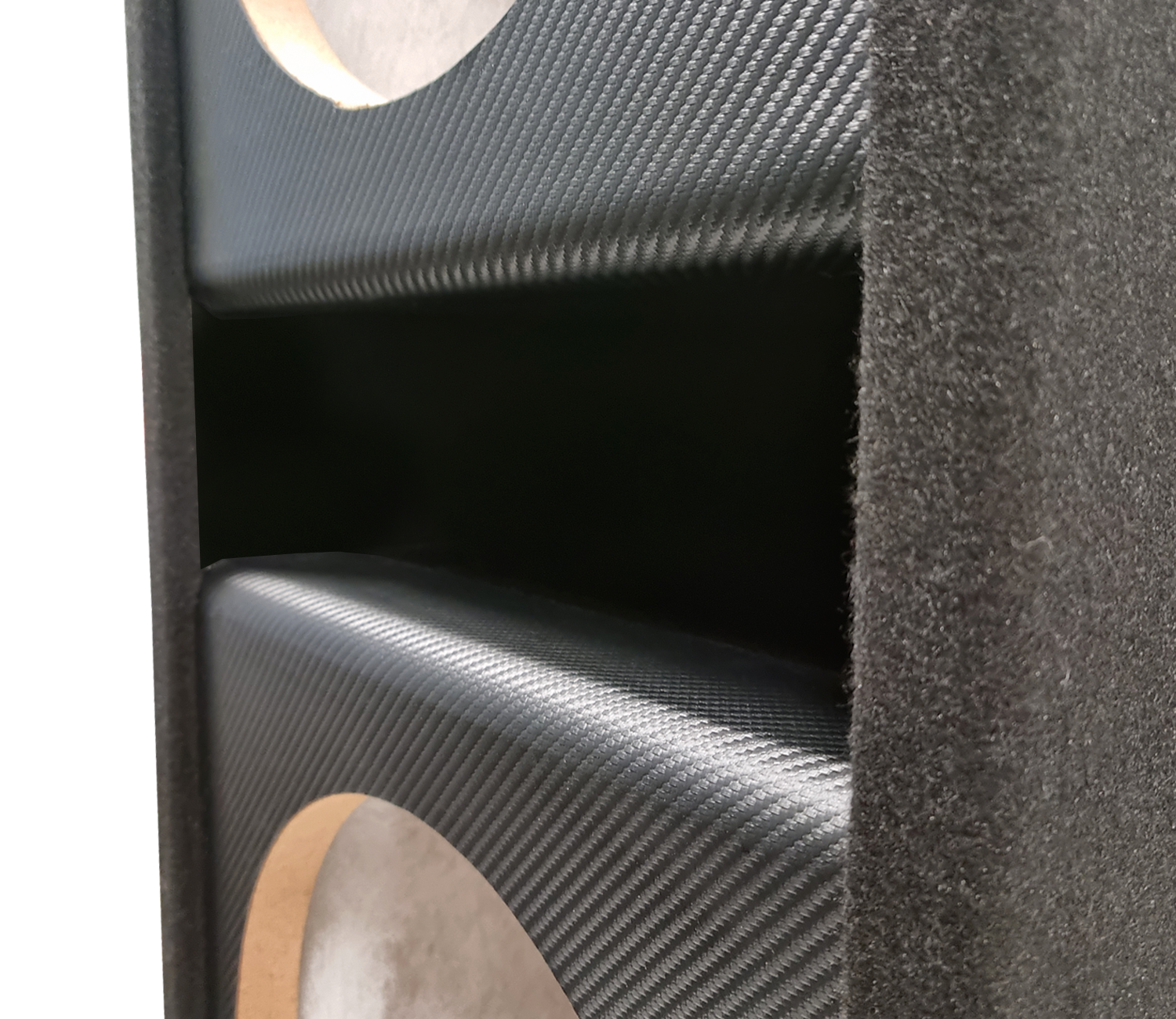

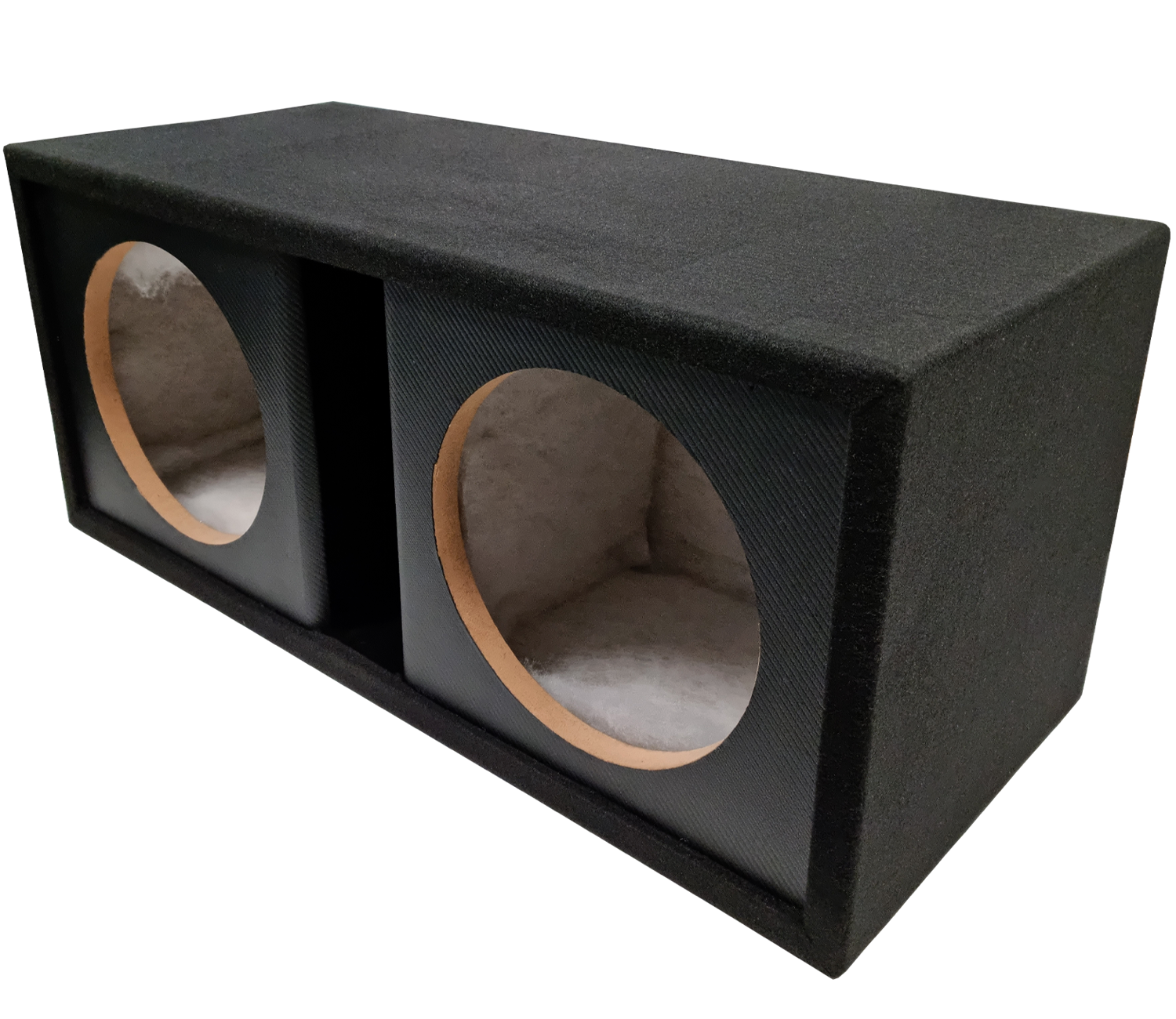

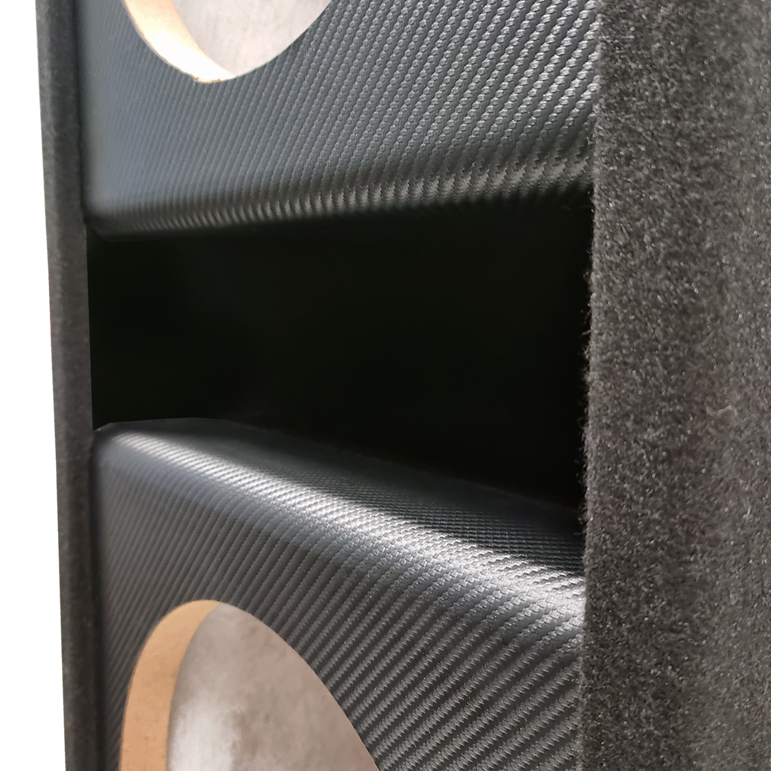

4-AI212SLOT is an ISO enclosure made of MDF board. Large port with rounded ends for good flow.
The case is upholstered in black felt, and the front panel has carbon fiber-look tape. The case comes with a connector terminal with cable.

Enclosure dimensions: width 930mm x height 380mm x depth 400mm

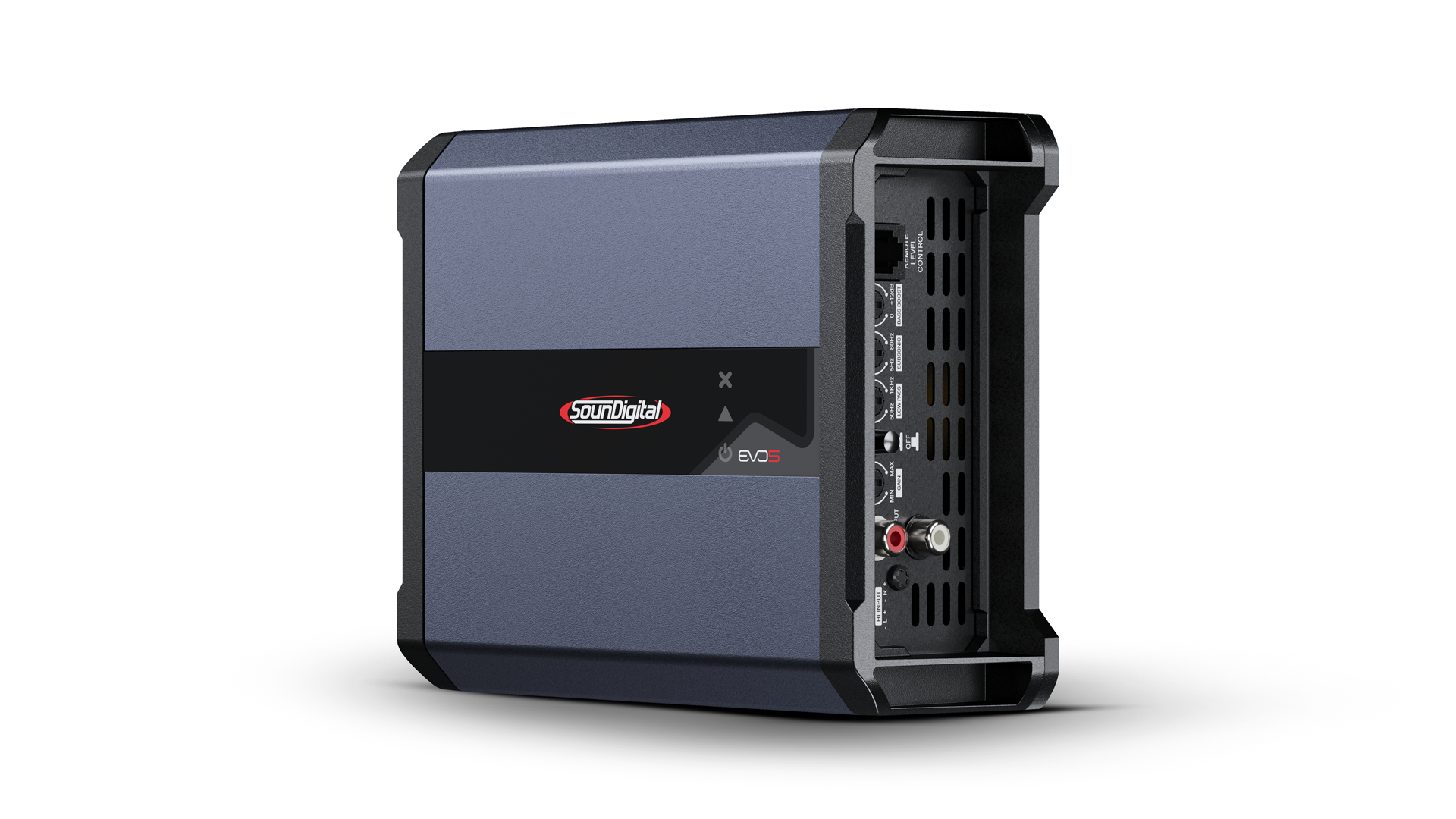

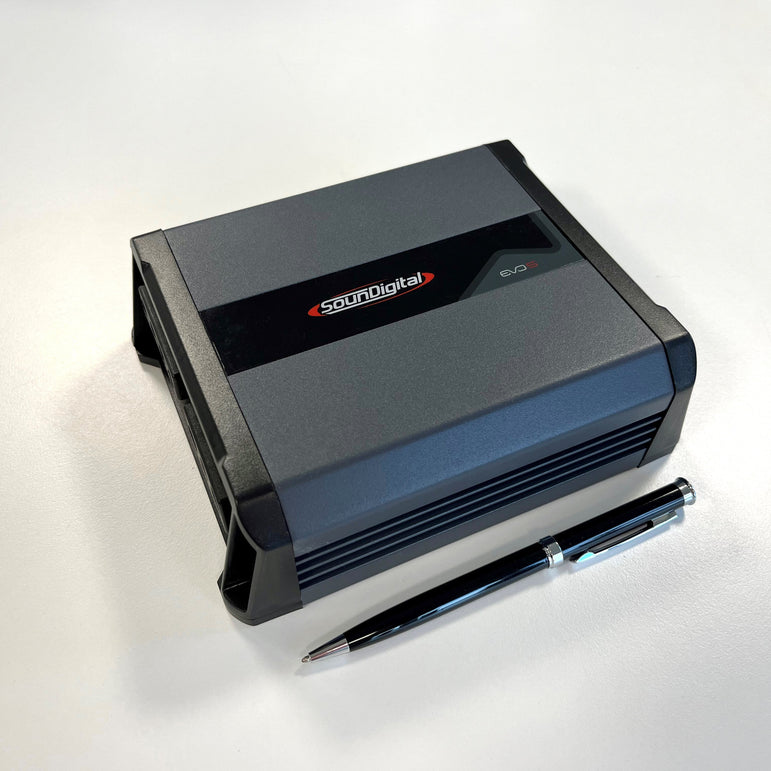

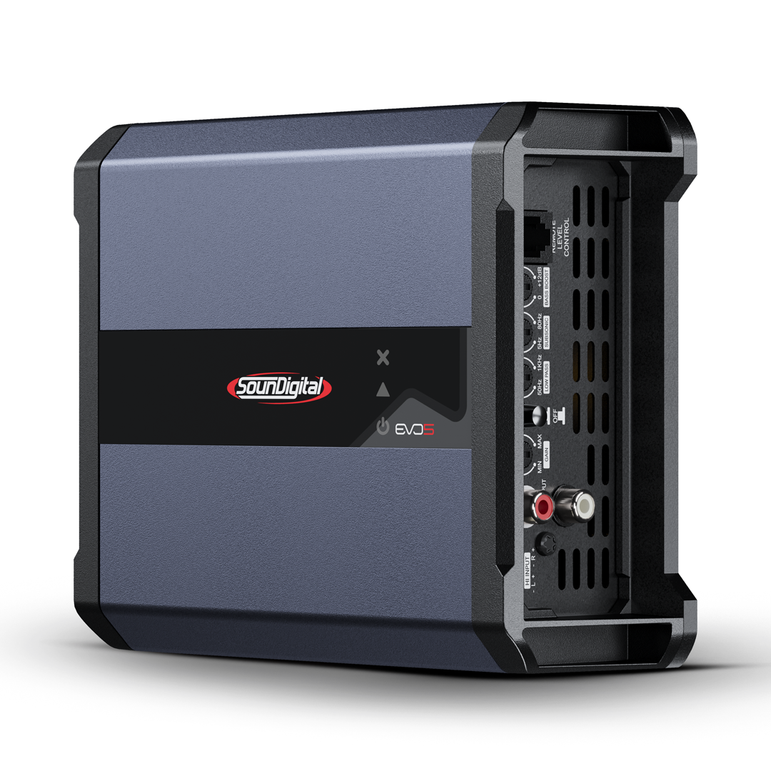

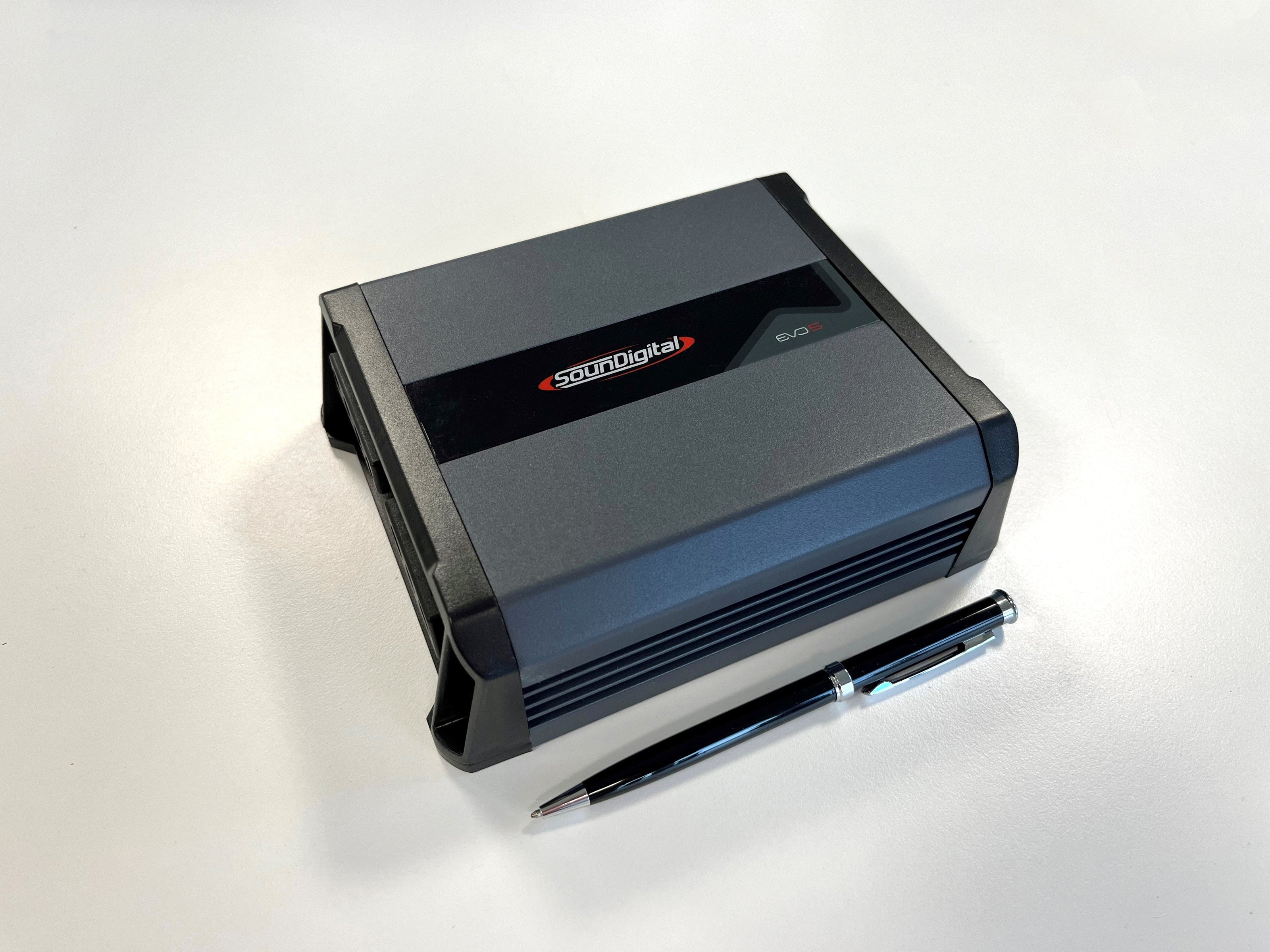

SD1200.1-2 EVO5:

Take your audio to the next level with the SounDigital EVO5 series amplifiers – compact size, lots of power and speaker-level input in one package!

Never before has such great power been achieved from such small dimensions. And at a very reasonable price!

All models have a damping factor of over 1000!

High power levels consume a lot of power, and in many cars, voltage drops during peak music and when playing loudly are a problem.

Soundigital's amplifiers take this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts!

Specifications:
GZIW 12XSPL-D2 PINK:

- Pink 12″ XSPL Subwoofer
- Progressive 2-layer spider
- Voice coil 63 mm / 2.5″
- Impedance 2 x 2 Ohm
- Re 4.33 Ohm
- Fs 32.5 Hz
- Qms 10.76
- Qes 0.79
- Qts 0.73
- Left 40.4 L
- Le 2.48 mH
- MMS 231 gr
- Bl 15.9
- Xmax 34 mm / 1.34″
- Efficiency (SPL 1w / 1m)
- Power handling (SPL) 1000 Watts
- Rec. amplifier power 500 - 1000 Watts
- Outer diameter 310 mm / 12.2″
- Mounting cut out 285 mm / 11.22″
- Mounting depth 162 mm / 6.38″

4-AI212SLOT:

Ported enclosure for 2x12″ subwoofer
Net volume: 2x40 liters.
Port area: 350 cm2
Port height: 350mm
Port width: 100mm
Tuning frequency: 38 Hz
Diameter of speaker hole: 285mm
Measurements ( W x H x D ): 930 x 380 x 400.

SD1200.1-2 EVO5:

Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1200 WRMS
Power @ 4Ω: 1 X 792 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz~80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V~16V
