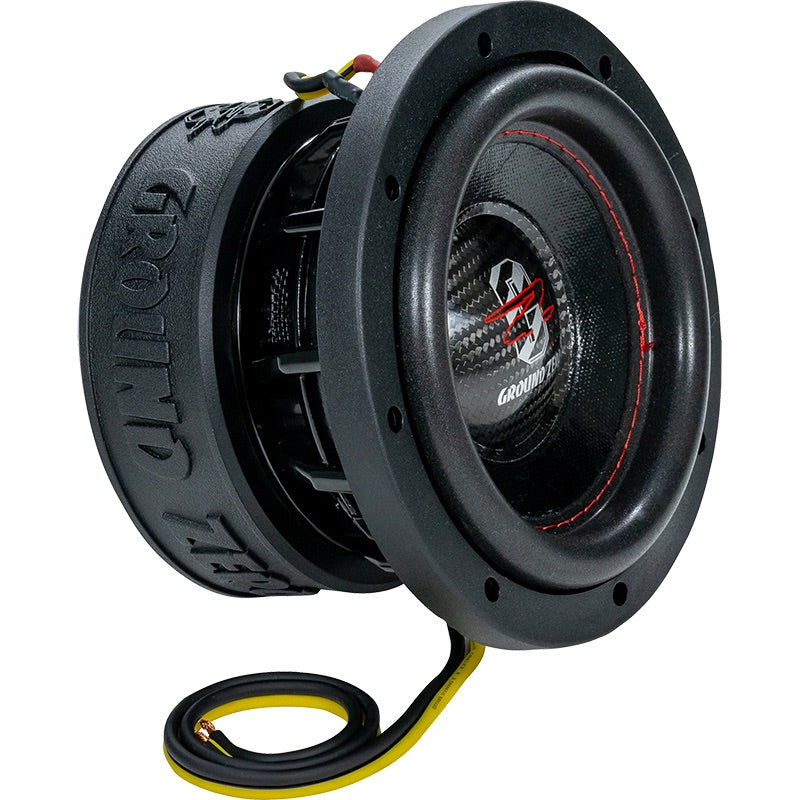

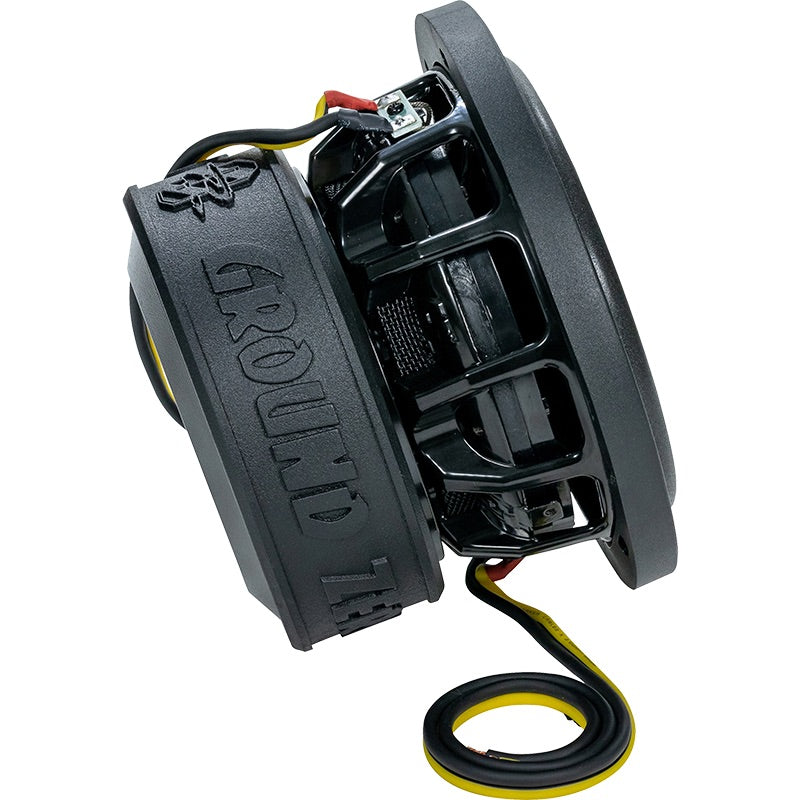

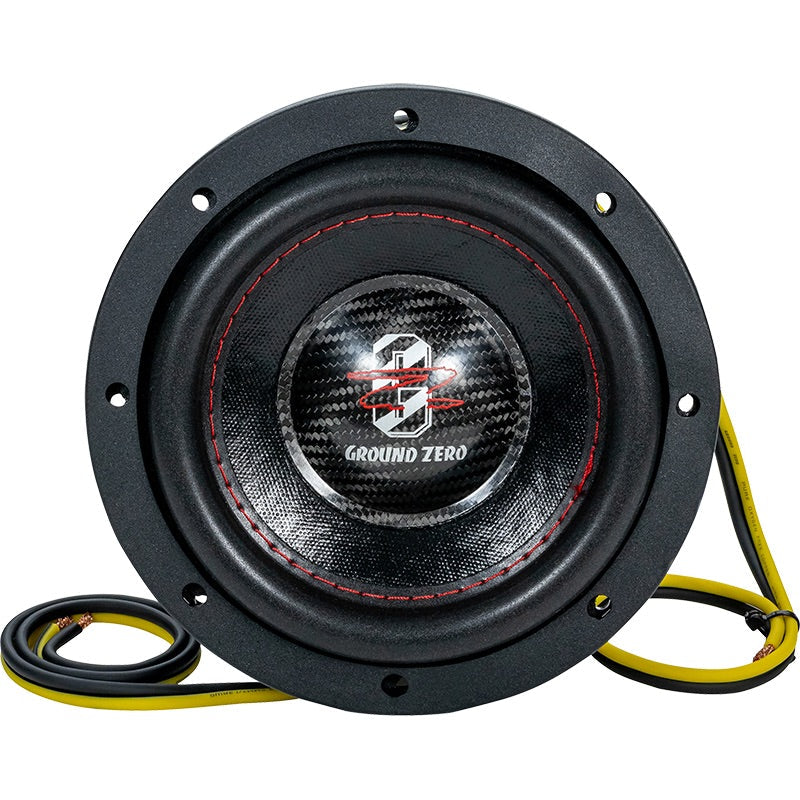

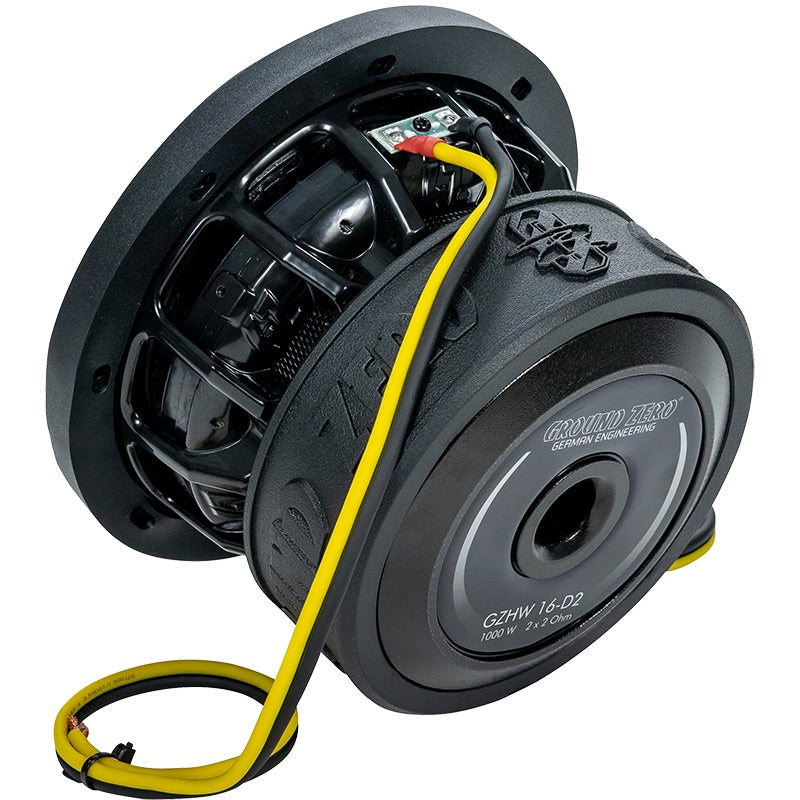

Ground Zero Hydrogen GZHW 16-D2
• 6.3″ Subwoofer
• 1000W
• 2 x 2 Ohms
• 2″ voice coil
• Carbon fiber dust cup
The Ground Zero Hydrogen series subwoofers are designed for users who value sound quality but still want to play LOUD!!
This Klippel-optimized, robust subwoofer encapsulates Ground Zero's know-how and expertise, making it a true work of art: a black-painted open cast chassis, a well-ventilated robust magnet, a pressed paper cone, double bottom suspension, a wide top suspension with red stitching, and all of this is topped off with a carbon fiber dust cup with the Ground Zero logo.
It is recommended to install the element in a 6-15L* reflex enclosure.
*net.
Specifications:
Model High-Performance Subwoofer
Diameter 16 cm / 6.3”
Power handling (RMS/SPL) 500 / 1000 Watt
Impedance 2x 2 Ohms
Efficiency 81 dB
Power recommendation 400 – 1000 Watt
Voice coil 50 mm / 2” copper
Cone Reinforced paper
Max. Excursion (Xmax)) 30 mm / 1.18”
Mounting cut out Ø 153 mm / 6.02”
Mounting depth 110 mm / 4.33"
Resonance frequency (Fs) 51 Hz
Damping ratio (Qts) 0.46
Equiv. air volume (Left) 2.8 L / 0.10 cu.ft.
