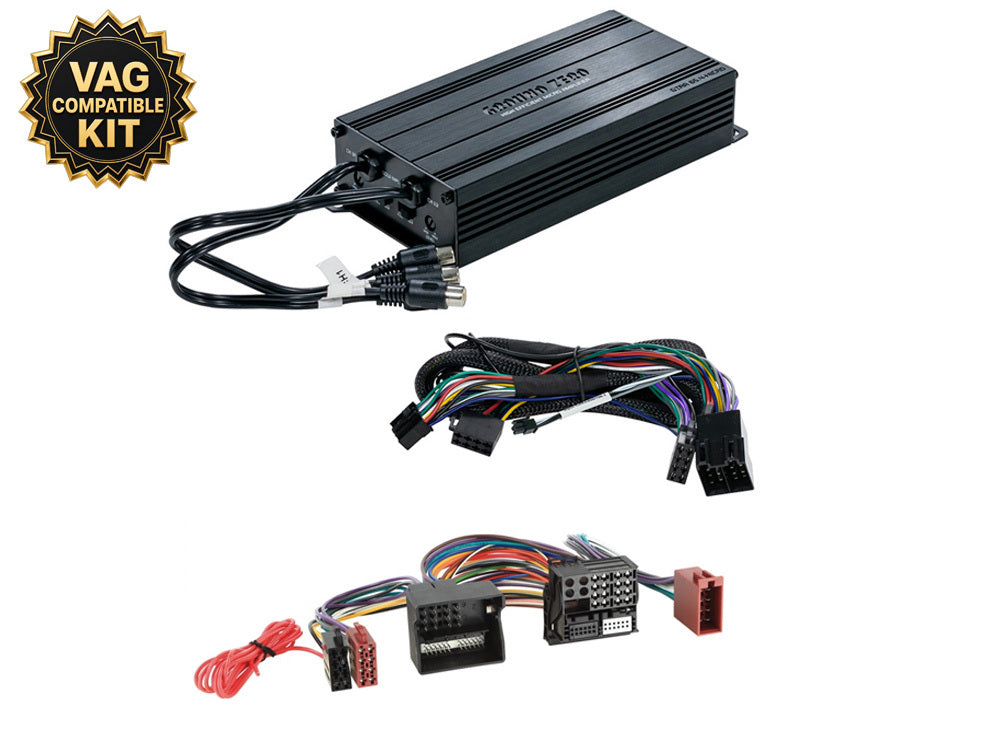

Ground Zero GZRA 65.4-MICRO-VAG-KIT – Plug&Play amplifier kit for VAG vehicles

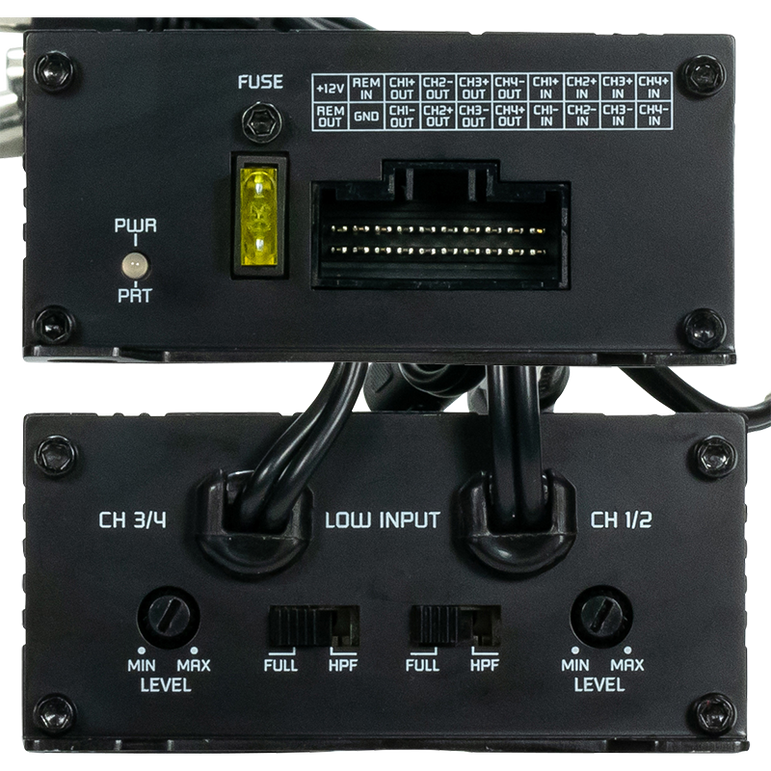

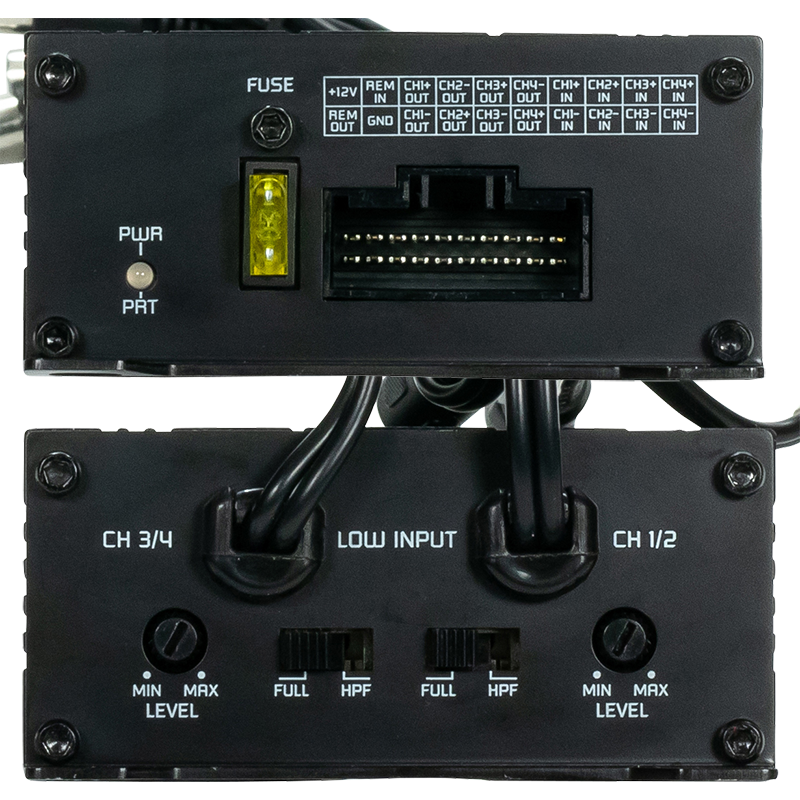

The GZRA 65.4-MICRO-VAG-KIT is a compact 4-channel plug&play amplifier kit that connects directly to the original connectors of VAG group vehicles without cutting or modifying wires. The package includes an ISO wiring harness and an ACV 57-1324-02 T-cable.
- 4-channel Class D micro-amplifier
- 4 × 65 W RMS @ 4 Ω / 4 × 75 W RMS @ 2 Ω
- Bridged: 2 × 150 W RMS @ 4 Ω
- High-level / RCA inputs + auto-on

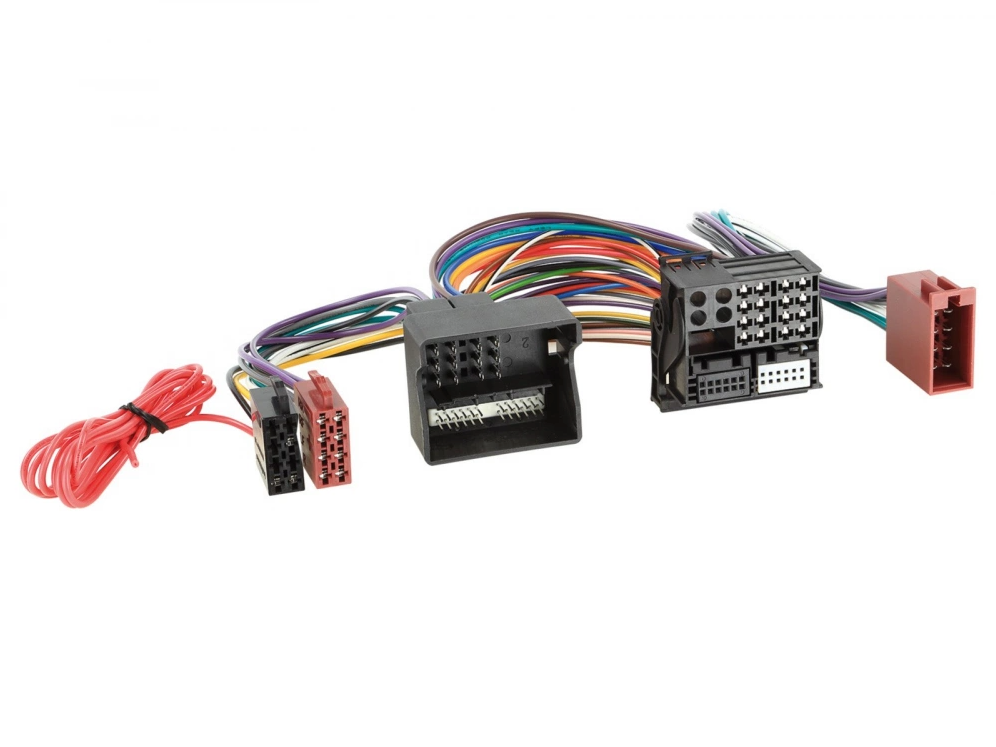

- ISO wiring harness + ACV 57-1324-02 T-cable included
- Designed for VAG group vehicles (Audi, Seat, Skoda, VW)
If you also need a subwoofer amplifier, see Ground Zero GZRA 450.1-MICRO or Ground Zero GZRA 700.1-MICRO – fully compatible with the amplifier in this kit.
Technical specifications
- Type: Class D, 4-channel
- Power @ 4 Ω: 4 × 65 W RMS
- Power @ 2 Ω: 4 × 75 W RMS
- Power bridged @ 4 Ω: 2 × 150 W RMS
- Max. power: 340 W
- Frequency response: 10 Hz – 22 kHz
- HPF / LPF / BPF: yes
- High-level input / Auto-on: yes
- Dimensions (heatsink): 82 × 185 × 40 mm
- Weight: 2.5 kg
Compatibility (VAG Group)
Audi: A1 (8X) 2010–2018, A3 (8P) 2003–2013, A4 B6/B7 2000–2009, A5 (8T/8F) 2007–2011, A6 (C5) 2001–2006, Q3 (8U) 2011–2018, Q5 (8R) 2008–2017, R8 (42) 2007–2015, TT (8J) 2006–2014
Seat: Alhambra (7N) 2010–2015, Altea (5P) 2004–2015, Exeo (3R) 2009–2013, Ibiza (6J) 2008–2015, Leon (1P) 2005–2012, Mii (AA) 2011–2019, Toledo 2005–2015
Skoda: Citigo (AA) 2012–2017, Fabia (5J) 2007–2014, Octavia (1Z) 2004–2013, Rapid (NH) 2012–2015, Roomster (5J) 2006–2015, Superb (3T) 2008–2015, Yeti (5L) 2009–2013
VW: Amarok (2H) 2010–2016, Beetle (16) 2011–2016, Caddy III (2K) 2003–2015, Caravelle (7H) 2004–2015, CC (3C) 2008–2016, Eos (1F) 2006–2015, Fox (5Z) 2005–2011, Golf V/VI 2003–2013, Jetta III/IV 2005–2014, Multivan (7H) 2003–2015, Passat B6/B7 2005–2014, Phaeton (3D) 2007–2010, Polo IV/V 2005–2014, Scirocco III 2008–2014, Sharan II (7N) 2010–2015, T5/T6 Transporter 2003–2019, Tiguan I (5N) 2007–2016, Touareg I (7L) 2003–2010, Touran (1T) 2003–2015, UP! (AA) 2011–2016
