Ground Zero GZPW 10SQX

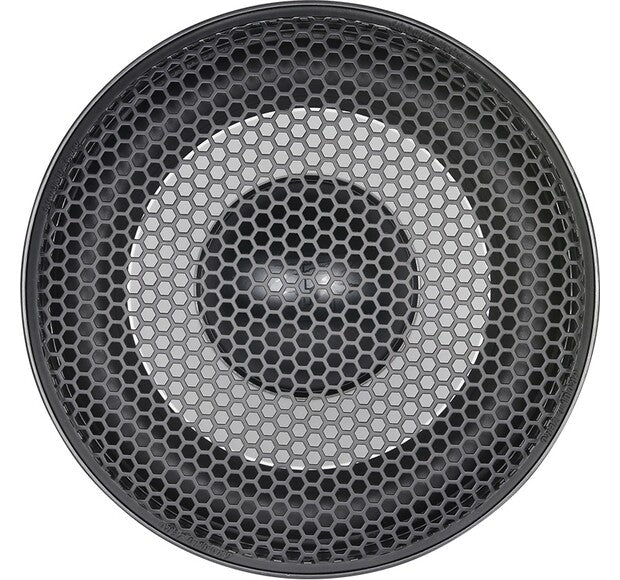

The Ground Zero GZPW 10SQ is a 10″ subwoofer from the Plutonium collection designed for High End SQ use with very good sound quality. The element comes with the protective grille shown in the pictures.

Type High-End SQ Subwoofer
Diameter 25 cm / 10″
Power handling (RMS) 400 / 700 Watts
Impedance 2x 2 Ohms
Efficiency 84 dB
Power recommendation 300 – 700 Watts
Voice coil 50 mm / 2″ Aluminum
Membrane Layout Anodized aluminum
Max. Excursion (Xmax) 36 mm / 1.42″
Mounting Ø 236 mm / 9.29″
Mounting depth 148 mm / 5.83″
Resonance frequency (Fs) 36 Hz
Overall Quality (Qts) 0.59
Equiv. air volume (Left) 22.0 L / 0.78 cu.ft.


Model
High-End SQ Subwoofer

Power Handling (RMS)
400 / 700 Watts

Impedance
2x 2 Ohms

Efficiency
83.8 dB

Power Recommendation
300 – 700 Watts

Voice Coil
50 mm Aluminium

Membrane Layout
Anodized aluminum

Max. Excursion (Xmax)
30mm

Mounting Ø
236mm

Mounting Depth
148mm

Resonance Frequency (Fs)
34Hz

Overall Quality (Qts)
0.58

Equiv. Air Volume (Left)
23.54 L.
