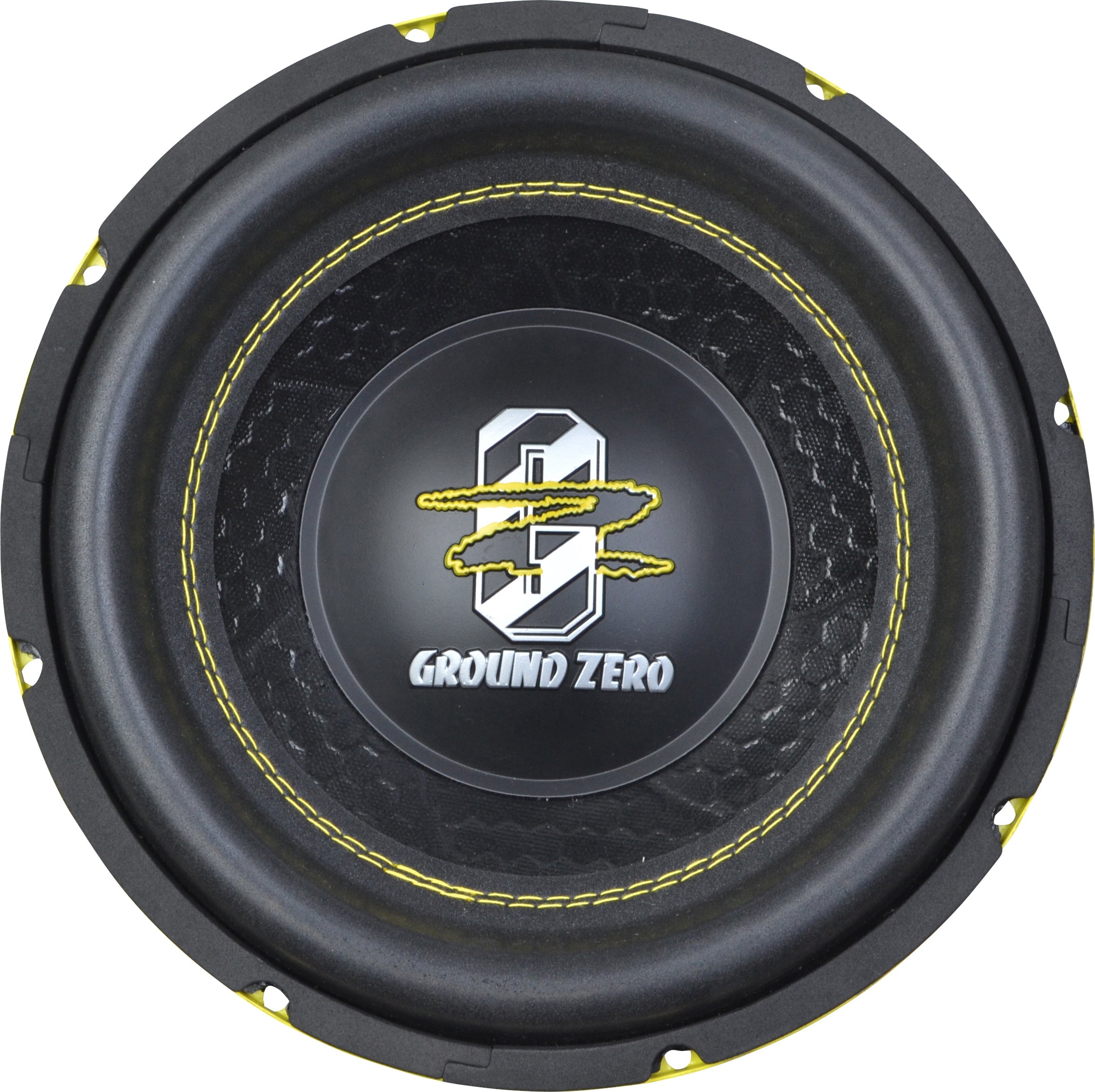

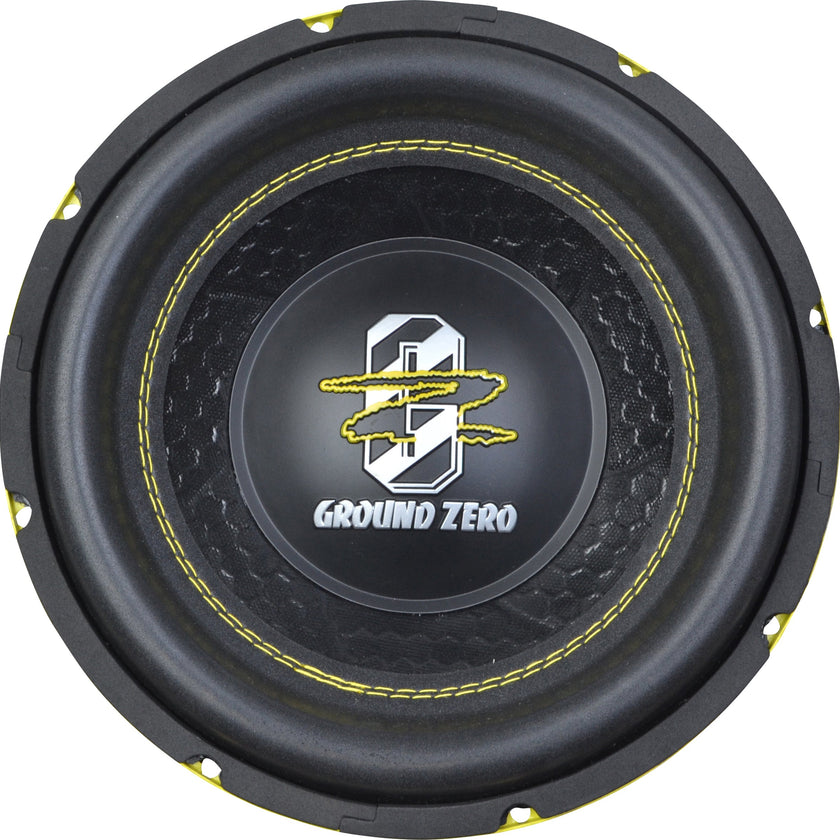

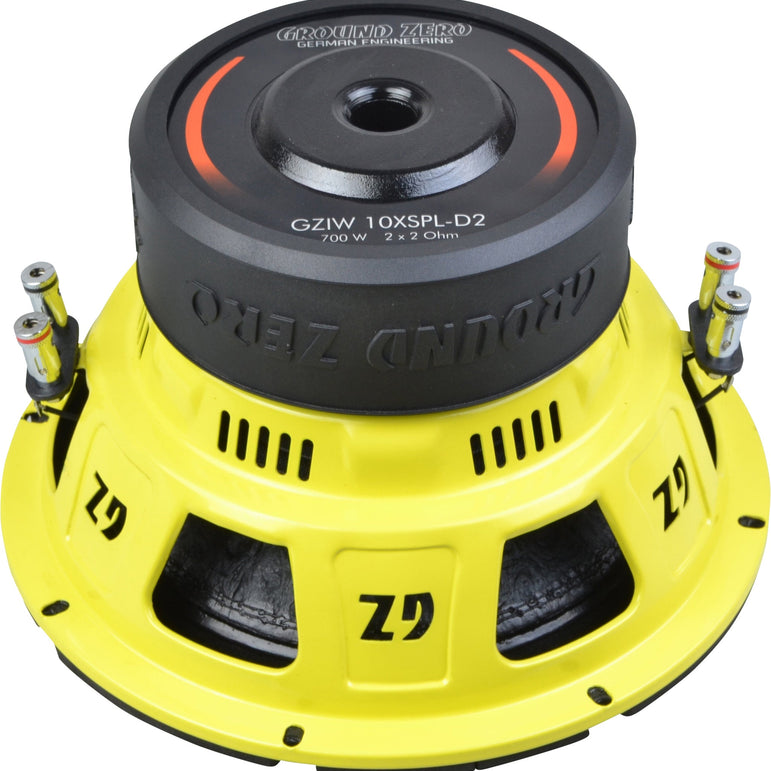

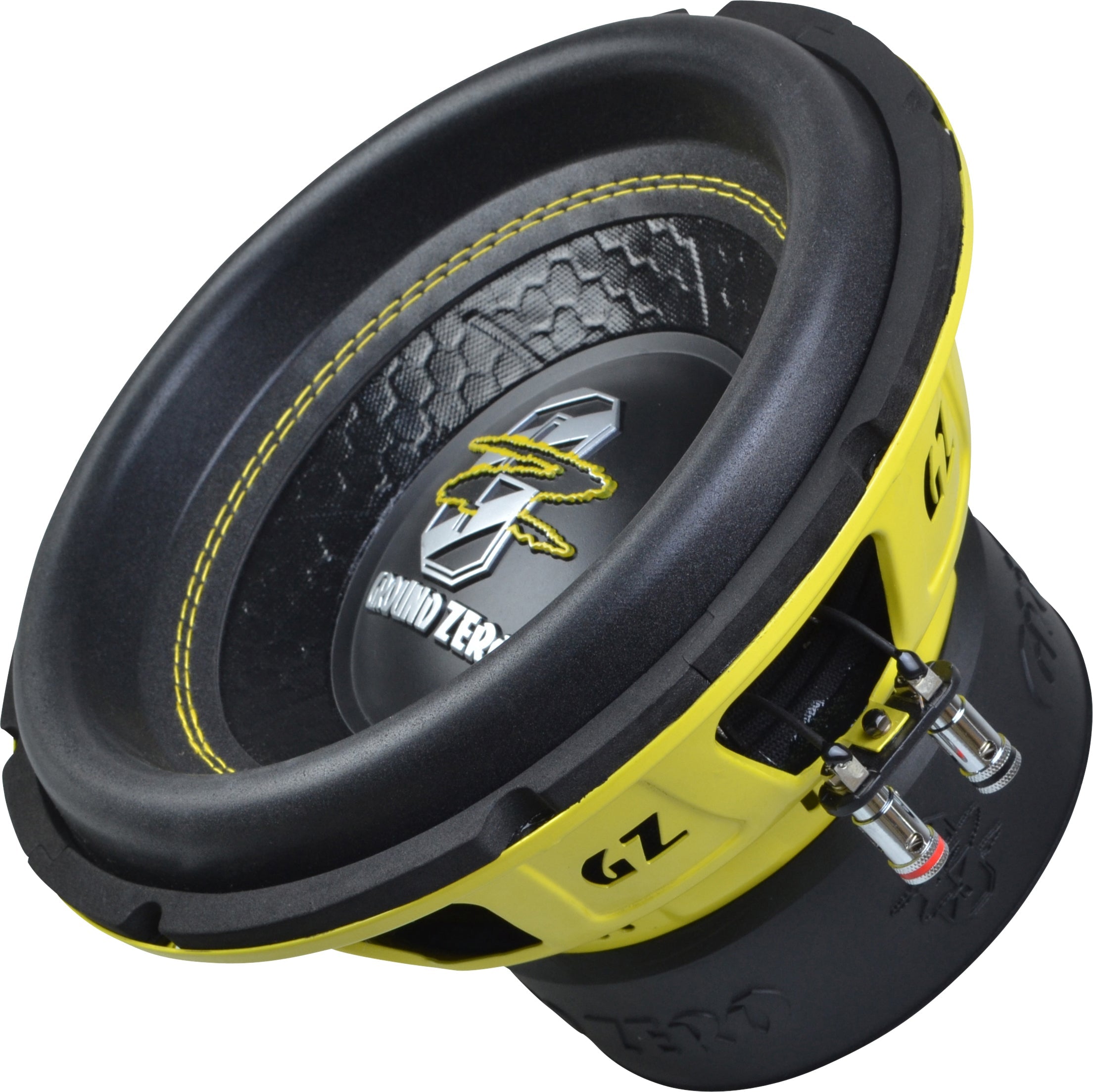

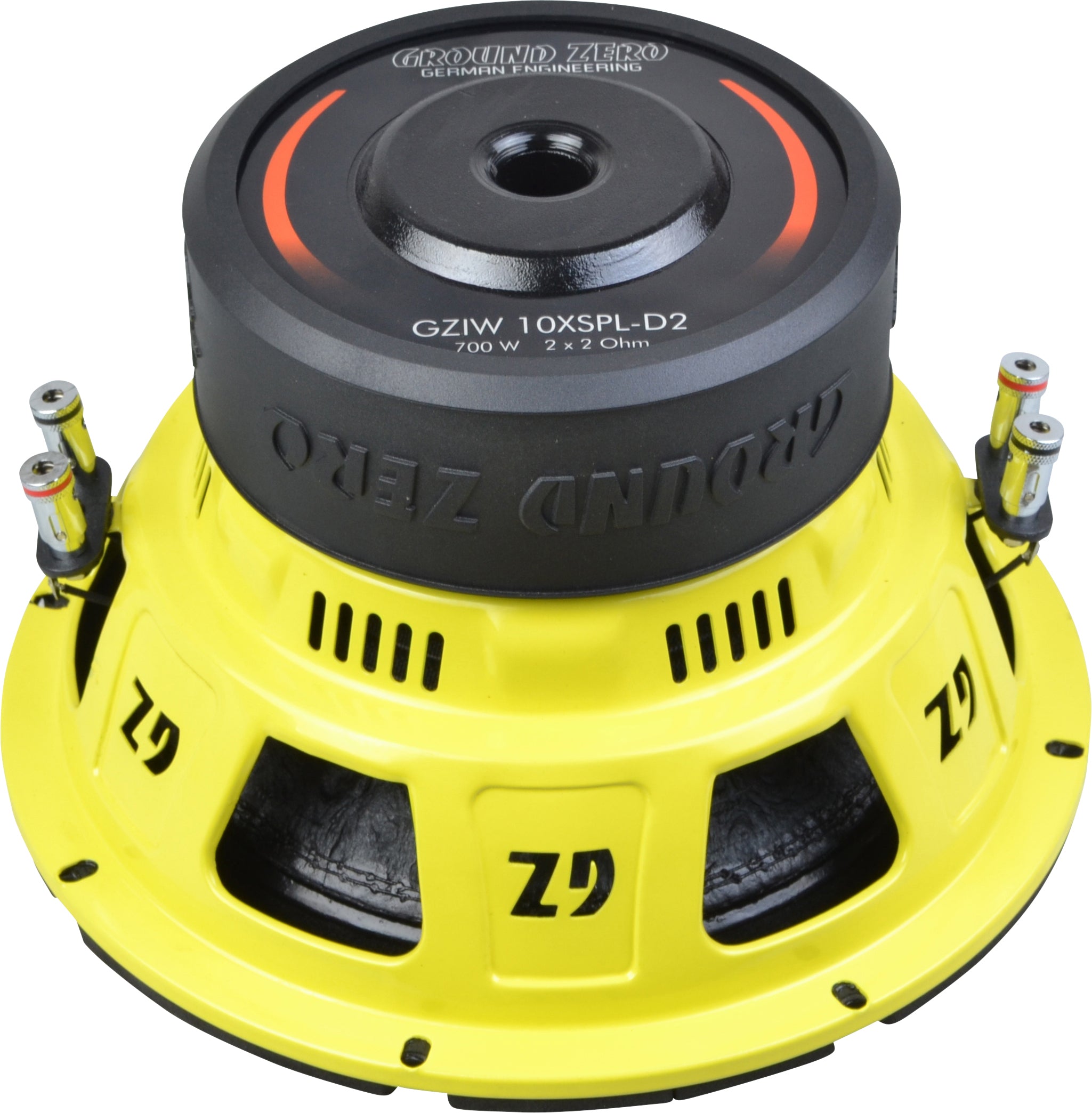

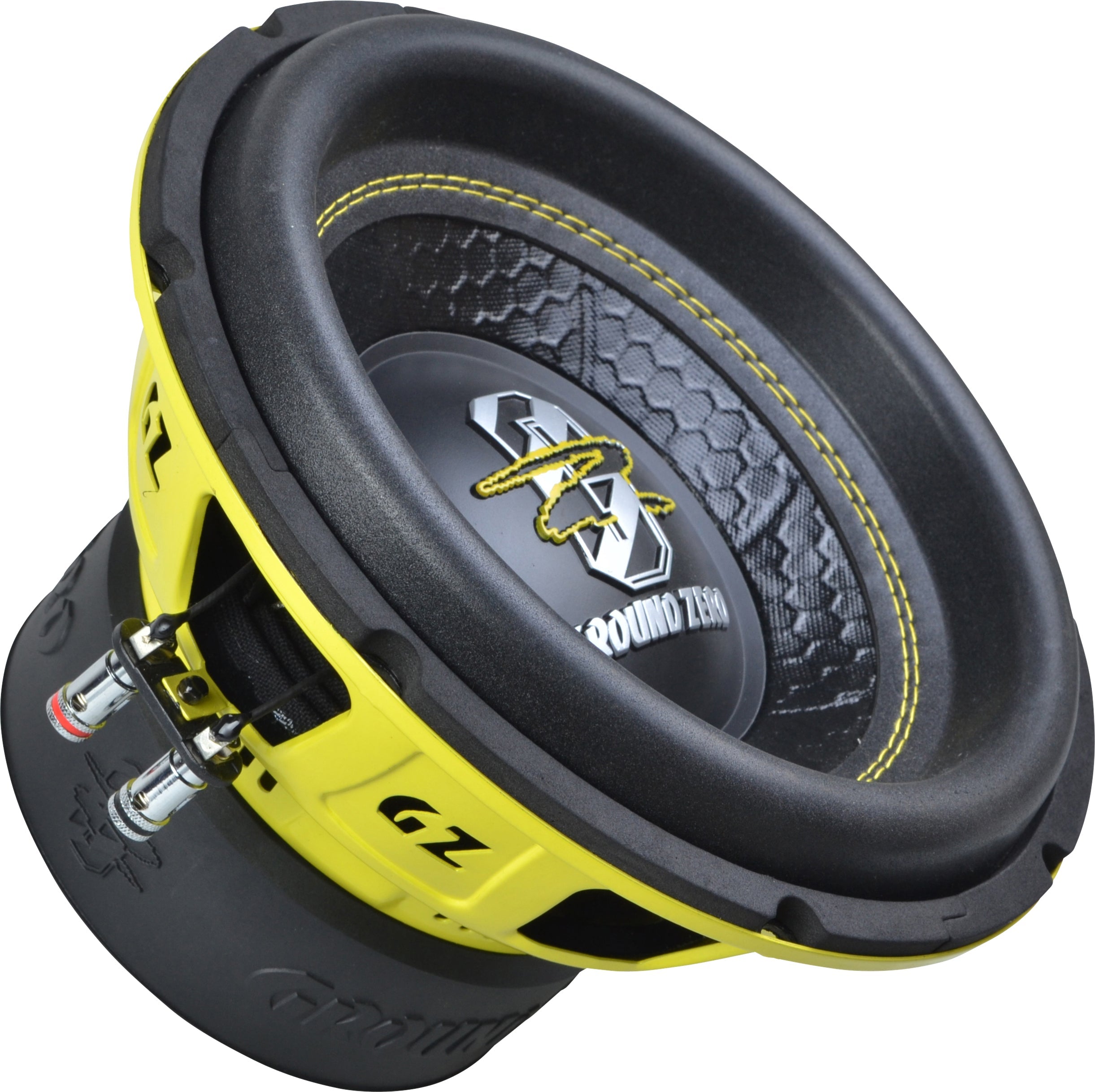

Ground Zero GZIW 10XSPL-D2
The Ground Zero Iridium XSPL brings a new subwoofer element designed for sound pressure use to an unprecedentedly affordable price range!
The subwoofer has been redesigned in many ways compared to the old GZIW 10spl subwoofer:
- Honeycomb patterned reinforced paper cone
- Significantly lower Fs (40.8 Hz in the old element)
- Frame with the familiar ″GZ″ logo from the GZIW 10SPL-EXT model
Don't let the low price fool you. This driver is excellent in terms of performance for its price. More design work has been done than on most manufacturers' higher price ranges. Klippel optimization involves 10 hours of testing, where the driver's behavior is measured in many ways and weak points are dug out before production. This creates a very high-performance driver. Thanks to the flat impedance response, the driver absorbs power well. Thanks to the carefully designed voice coil and its cooling, power endurance is excellent. The long travel allows for ample sound pressure levels even at lower frequencies.
Specifications:
Voice coil: 63mm / 2.5″
Impedance: 2x2 Ohm
Re: 3.94 Ohm
Fs: 36.2 Hz
Qms: 10.5
Qes: 0.65
Qts: 0.61
Left: 15.4l / 0.54 cu.ft.
Le: 2.96 mH
Weight: 205.4 grams
Bl 17.0
Xmax: 32mm / 1.26″
Efficiency (SPL 1w/1m): 84dB
Power handling: 700w
Rec. amplifier power: 400-700w
Outer diameter: 257mm / 10.12″
Mounting cut out: 230mm / 9.06″
Mounting depth: 147mm / 5.79″
Recommended enclosures:
Bassreflex / vented: 33 liter net / 1.16 cu.ft. net
Port: 1x10cm / 1x4″
Port length: 19cm / 7.48″
Frequency: 39Hz
Bandpass (4th order): 15 liter net / 0.53 cu.ft. net sealed
25 liter net / 0.88 cu.ft. net vented
Port: 1x10cm / 1x4″
Port length: 25cm / 9.84″
Tuning frequency: 55Hz
Bandwidth (-3dB): 35-88Hz.
