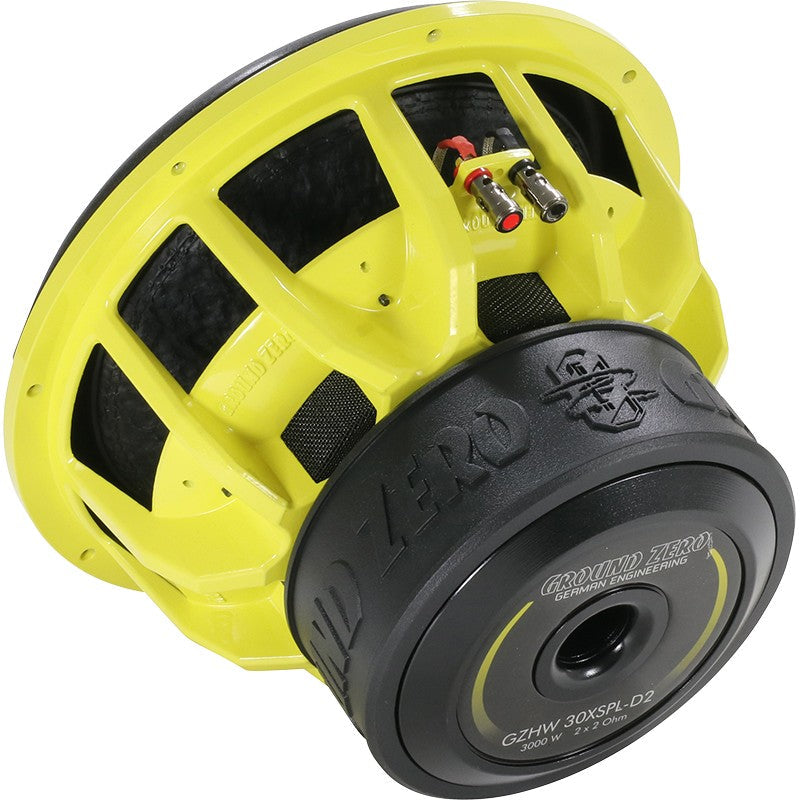

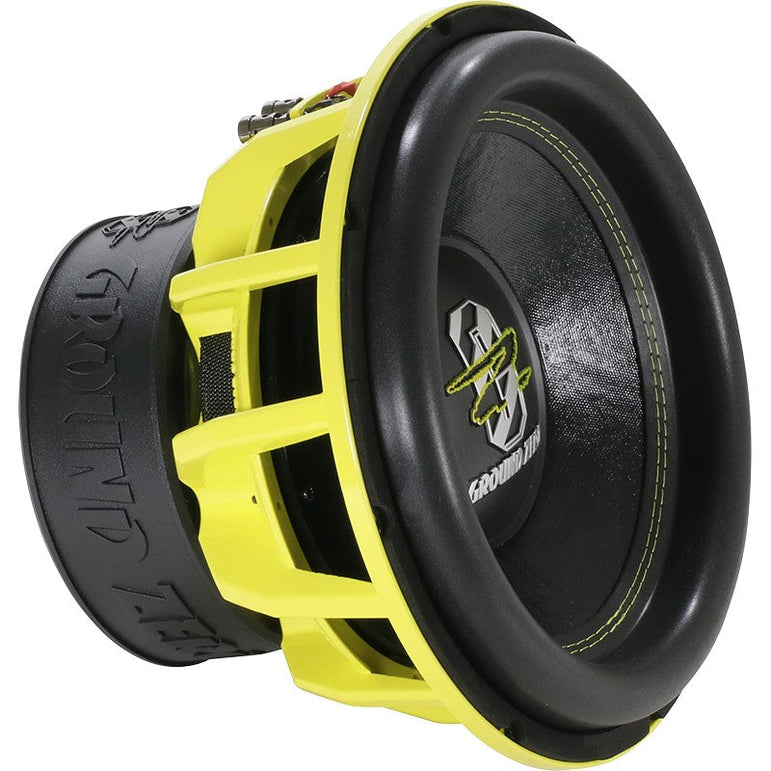

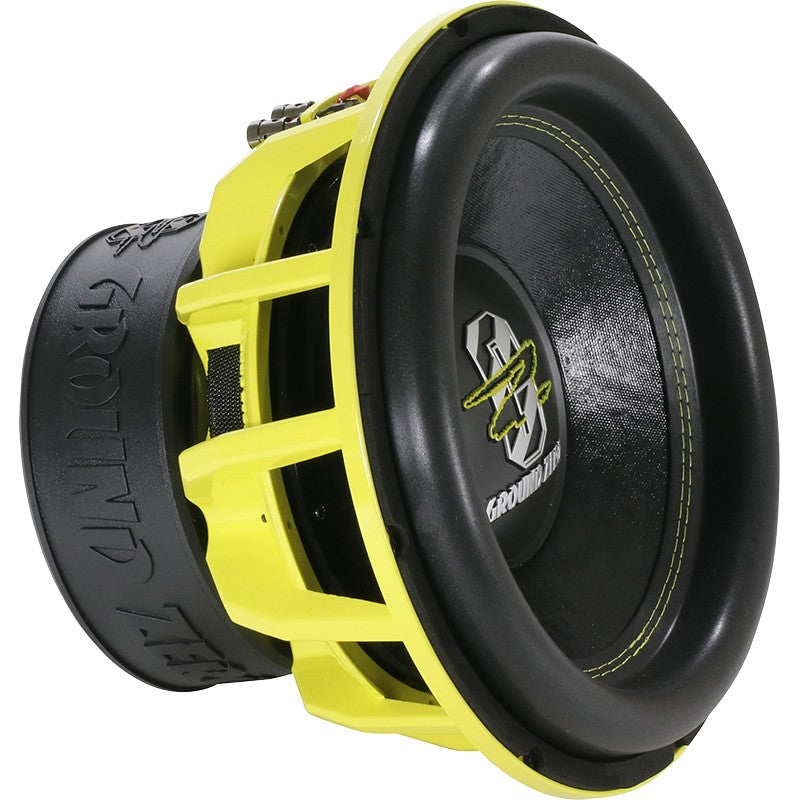

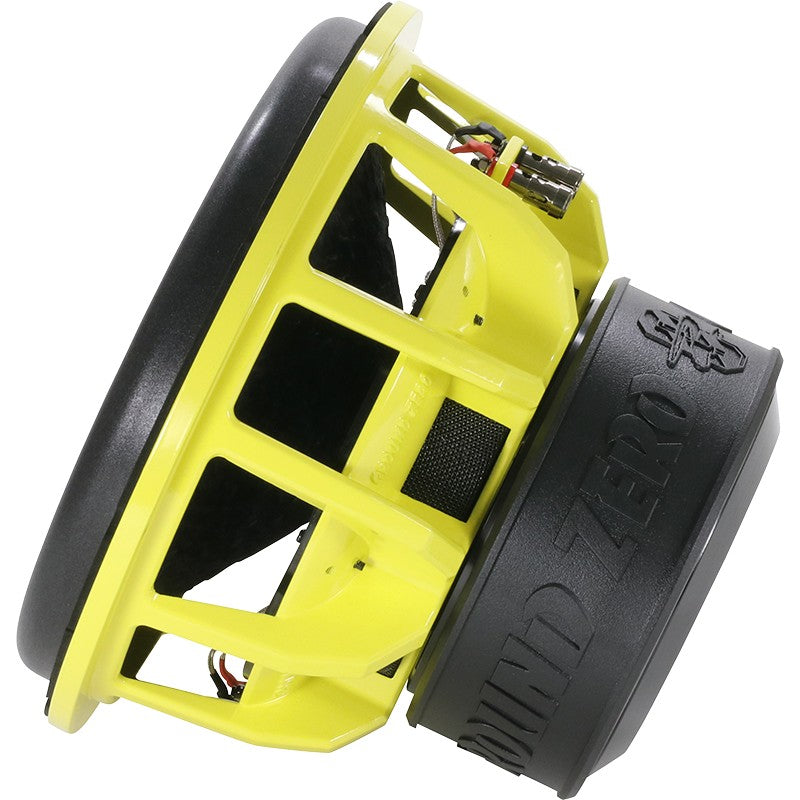

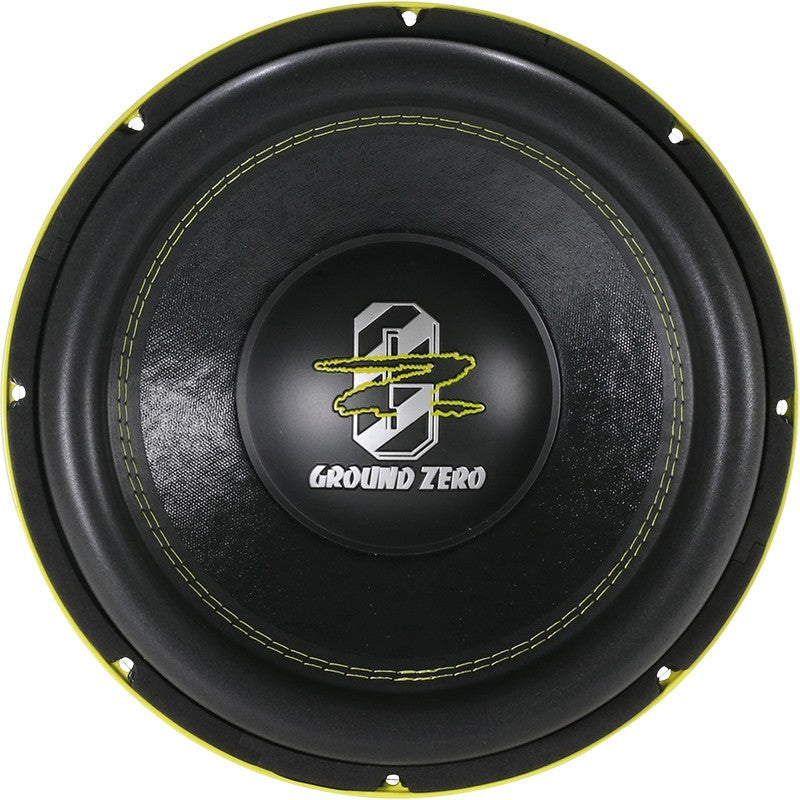

Ground Zero GZHW 30XSPL-D2
Klippel optimization has been used in the design of Hydrogen SPL drivers. During a 10-hour testing period, the driver's behavior is studied with numerous measurement results, allowing for the identification of weaknesses and problems that require improvement at an early design stage. The driver is subjected to up to four times its rated power. The result is a driver with a very flat impedance response, meaning it accepts power well at all frequencies, has good sensitivity, and can handle power effectively.
Technical specifications:
Features
- High power 12” SPL subwoofer
- Klippel® optimized
- Efficient triple magnet
- Massive aluminum cast basket
- Reinforced paper cone
- 3” copper voice coil
- High-Roll sandwich surround
- Double spider
Technical data
Model: GZHW 30SPL
Diameter: 300 mm / 12″
Mounting diameter: 315 mm / 12.4“
Mounting depth: 198 mm / 7.8“
Voice coil: 75 mm / 3” copper voice coil
Cone: Reinforced paper
Power Handling: 3000 W SPL Power
Impedance: 2 x 2 Ohm
SPL: 85 dB
Xmax: 45 mm / 1.77″
Fs: 35.4 Hz
Qts: 0.44
Vas: 15.8 L / 0.56 cu.ft.
Box recommendation: See owners manual.
Features
- High power 12” SPL subwoofer
- Klippel® optimized
- Efficient triple magnet
- Massive aluminum cast basket
- Reinforced paper cone
- 3” copper voice coil
- High-Roll sandwich surround
- Double spider
Technical data
Model: GZHW 30SPL
Diameter: 300 mm / 12″
Mounting diameter: 315 mm / 12.4“
Mounting depth: 198 mm / 7.8“
Voice coil: 75 mm / 3” copper voice coil
Cone: Reinforced paper
Power Handling: 3000 W SPL Power
Impedance: 2 x 2 Ohm
SPL: 85 dB
Xmax: 45 mm / 1.77″
Fs: 35.4 Hz
Qts: 0.44
Vas: 15.8 L / 0.56 cu.ft.
Box recommendation: See owners manual.
