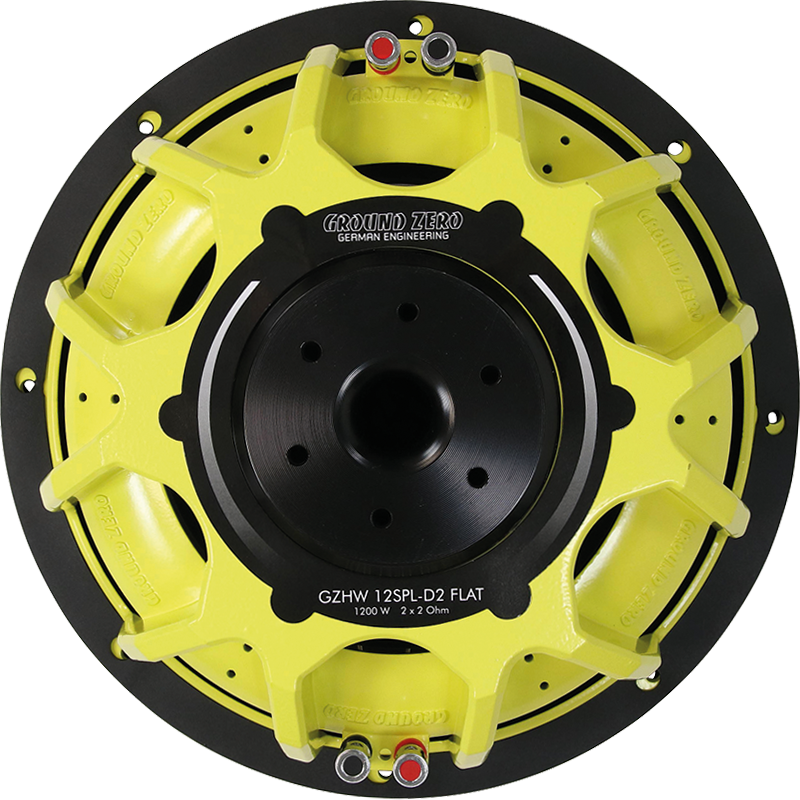

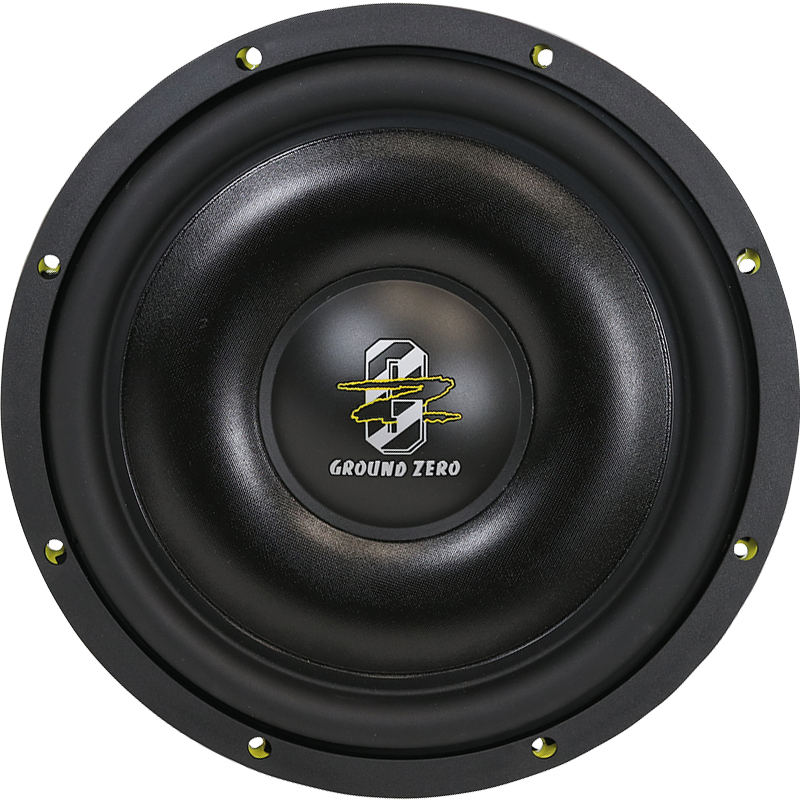

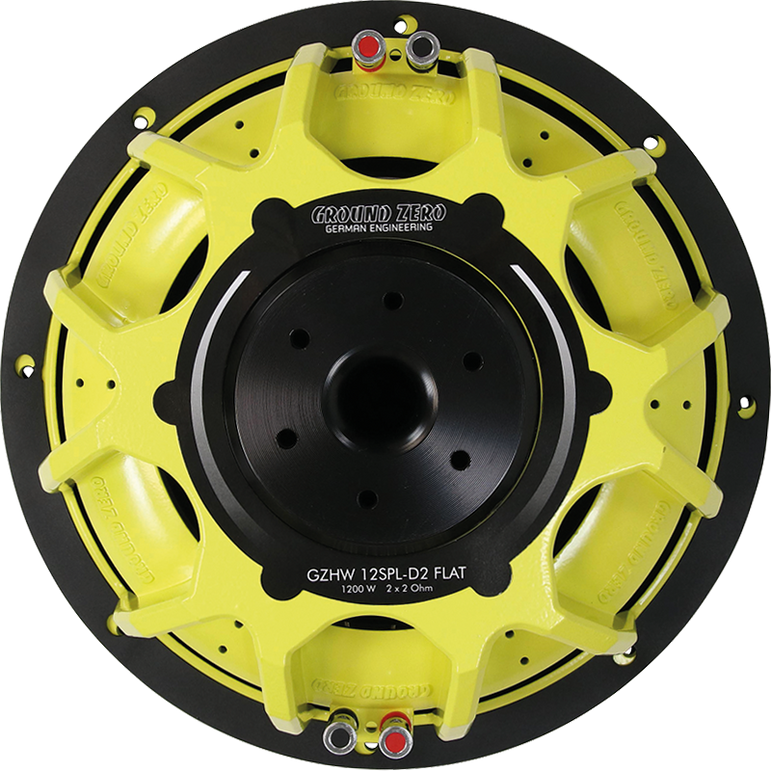

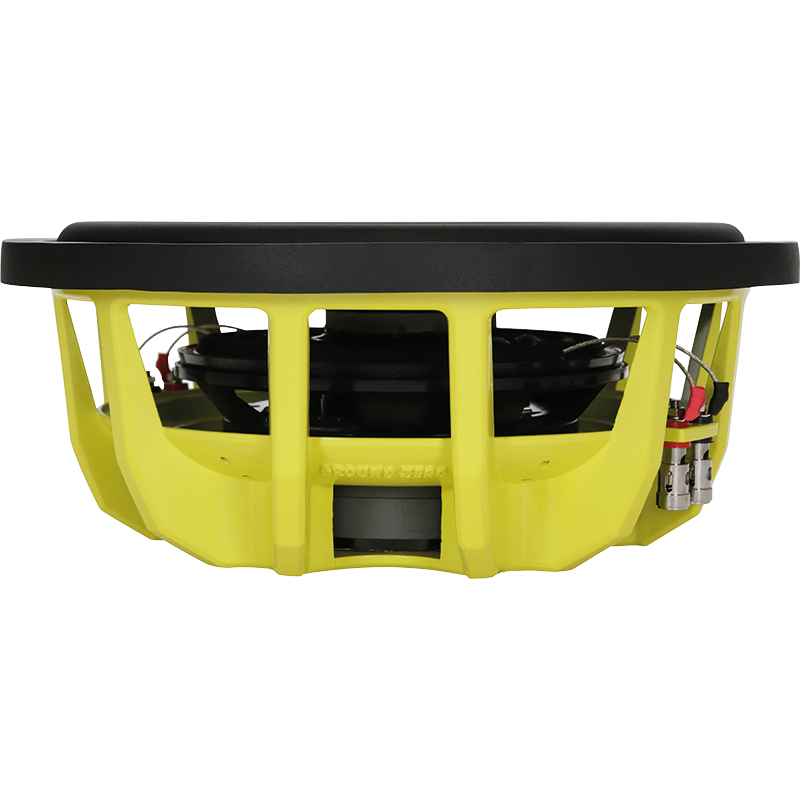

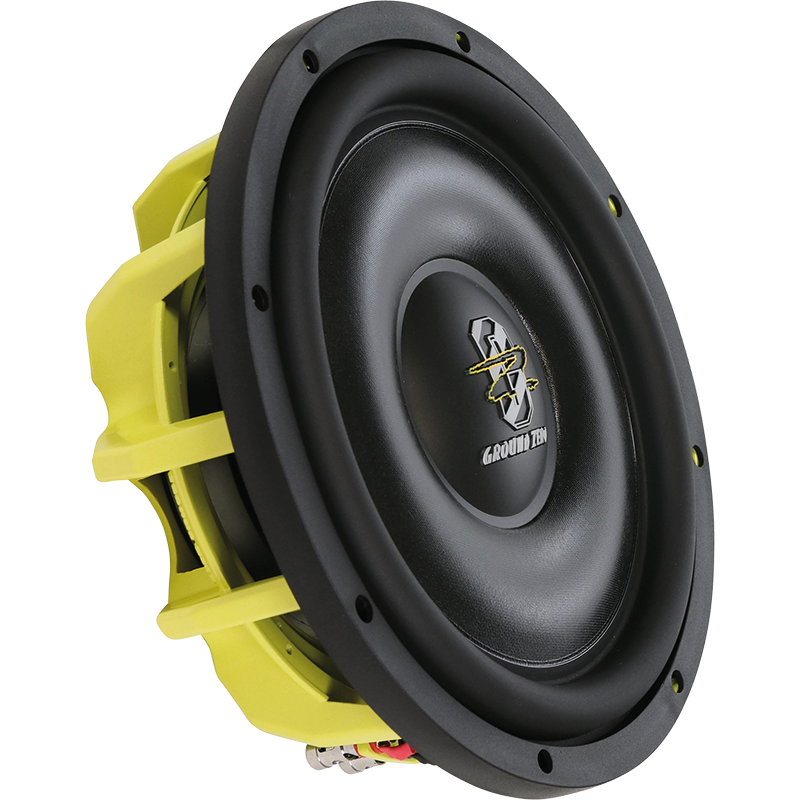

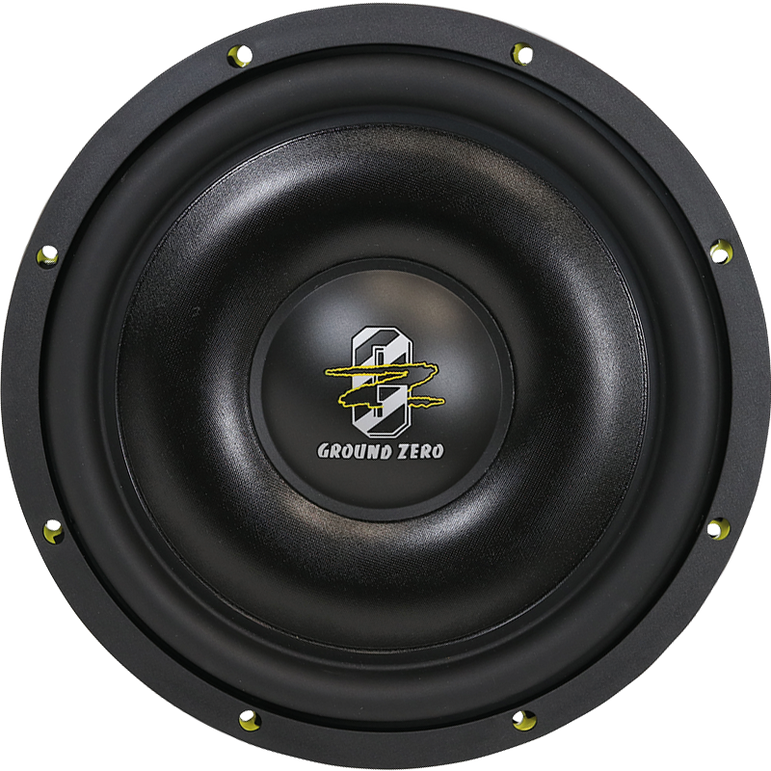

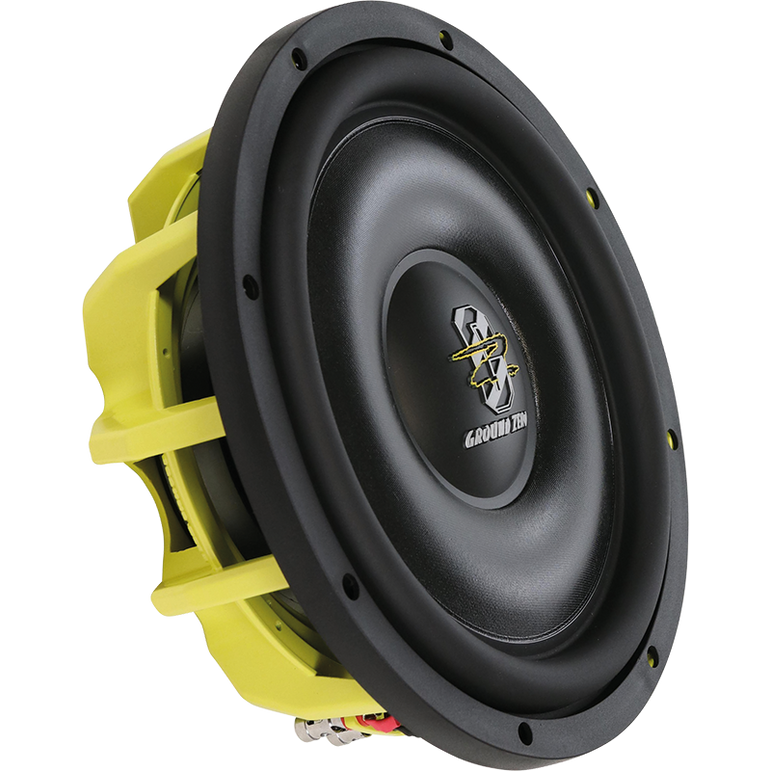

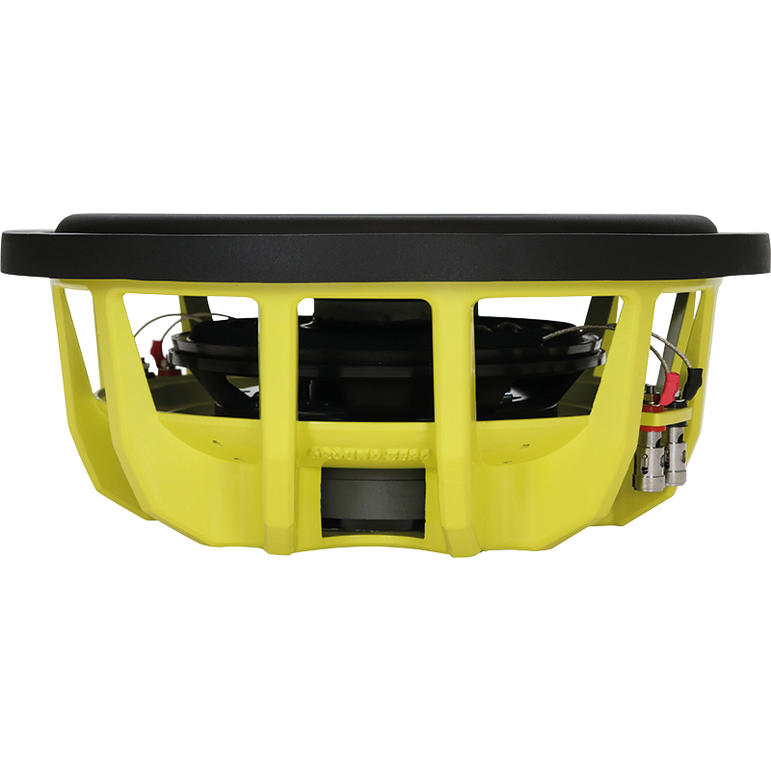

Ground Zero GZHW 12SPL-D2 FLAT
The NEW HYDROGEN series GZHW 12SPL-D2 FLAT subwoofer is the answer
Problems with tight installation space. A great choice for low installation space.
12″ flat SPL subwoofer
Klippel® optimized
Aluminum frame
Reinforced paper pulp cone
HighRoll sandwich suspension
63 mm / 2.5″ voice coil
Printing terminals
Case recommendation:
Reflex: 29 liters (net)
Port: 1 x 70 mm / 1 x 2.76”
Gate length: 210 mm / 8.27”
Tuning frequency: 38 Hz
Specifications:
Model High-Quality Flat SPL Subwoofer
Diameter 30 cm / 12″
Power handling (RMS/SPL) 700 / 1200 Watts
Impedance 2x 2 Ohms
Efficiency 88 dB
Power recommendation 500 – 1200 Watts
Voice coil 63 mm / 2.5″ Copper
Cone Sandwich paper
Max. Excursion (Xmax) 32 mm / 1.26″
Mounting Ø 284 mm / 11.18″
Mounting depth 118 mm / 4.65″
Resonance frequency (Fs) 21 Hz
Overall quality (Qts) 0.30
Equiv. air volume (Left) 19.7 L / 4.15 ft³
