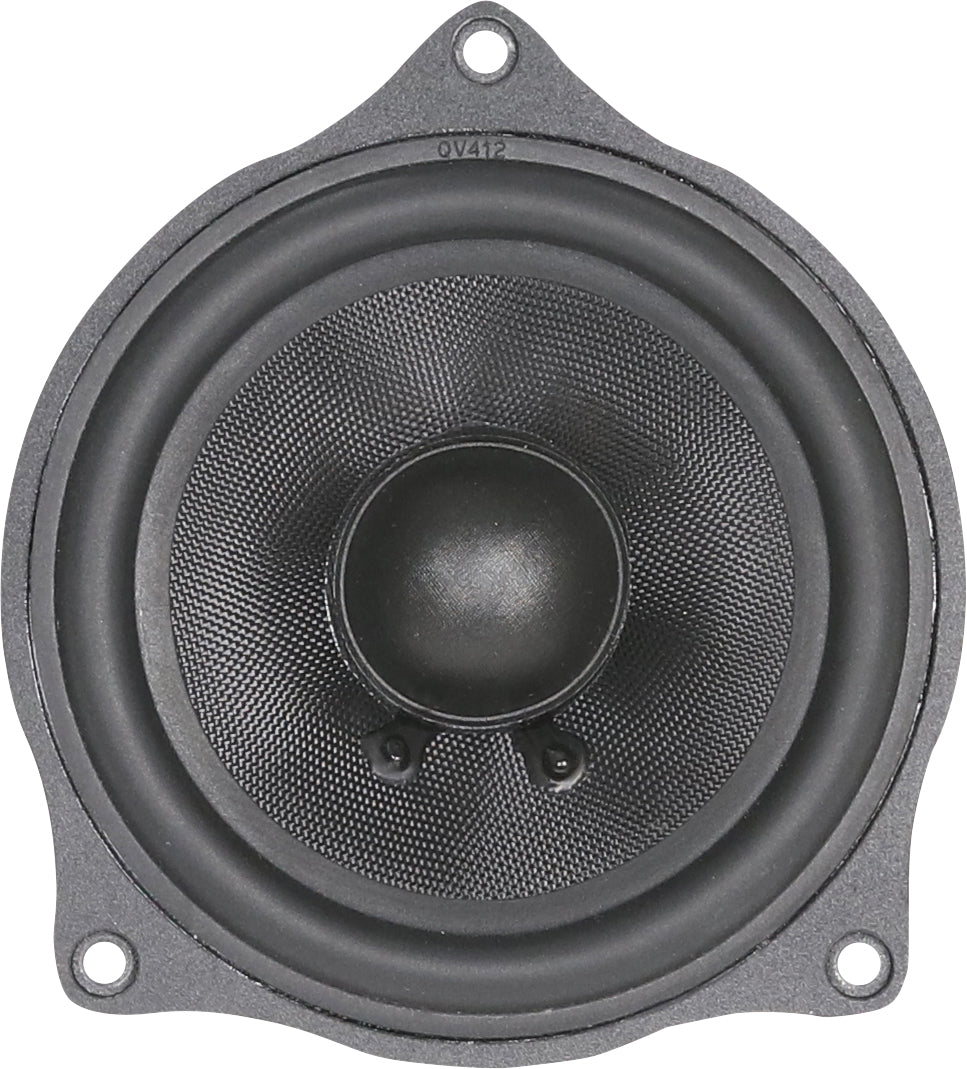

Ground Zero GZCS 100.2BMW

Ground Zero GZCS 100.2BMW

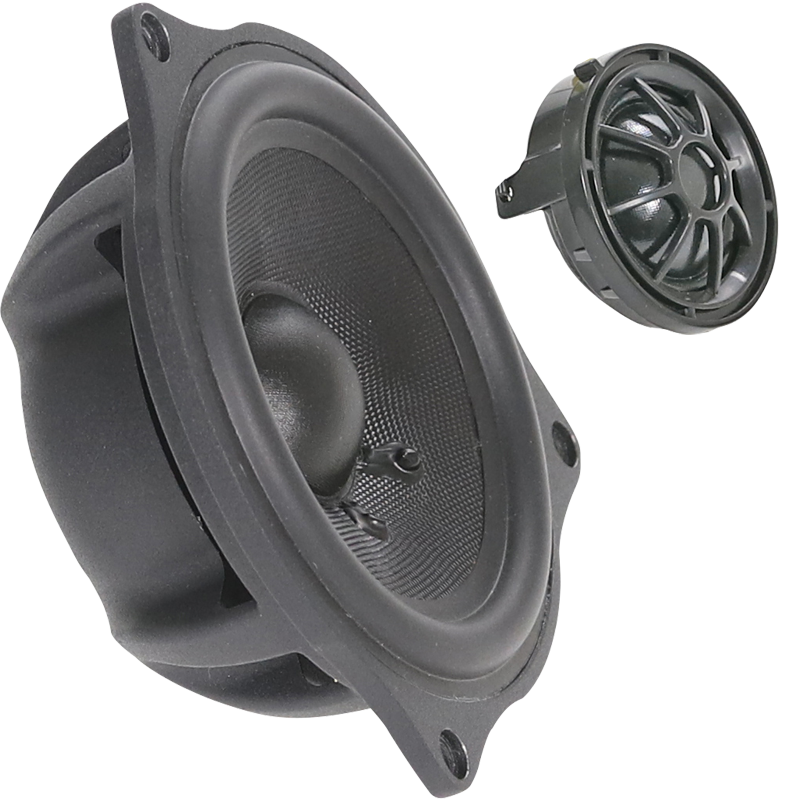

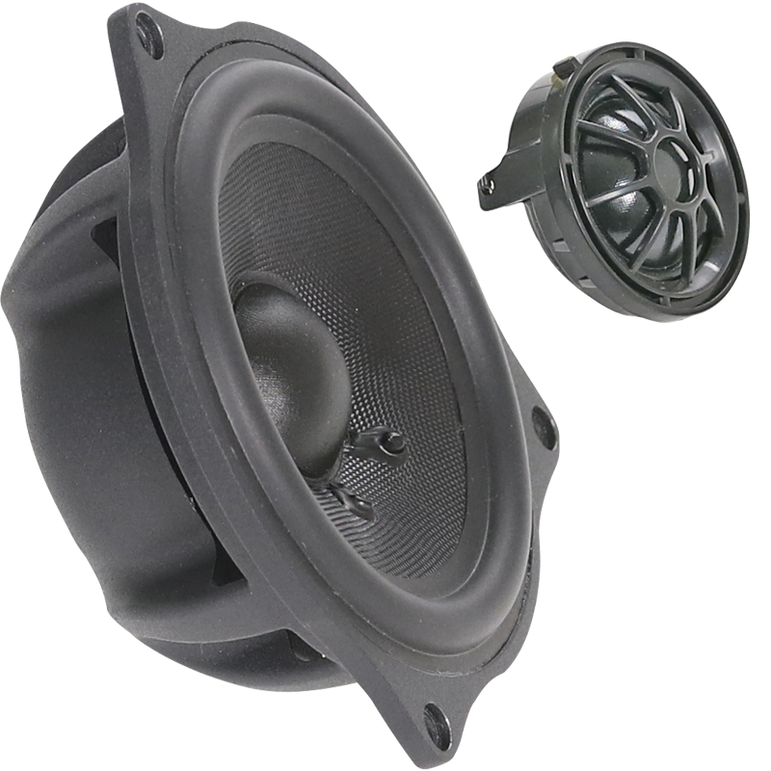

Ground Zero's renewed Klippel® optimized BMW separate kit.
The series is 100% Plug&Play.

All model-specific connectors and a speaker adapter are included, so all you need for installation is the tools needed to remove the door panel and speaker.

The set includes high-quality German-made midrange and tweeters.

Also included are 12/6 dB/oct crossover filters with treble level control.

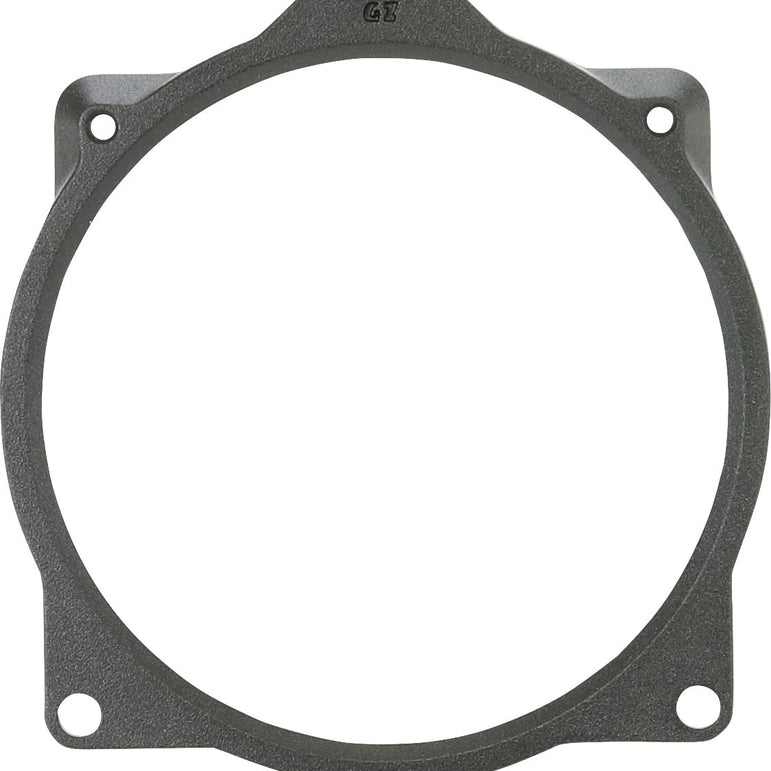

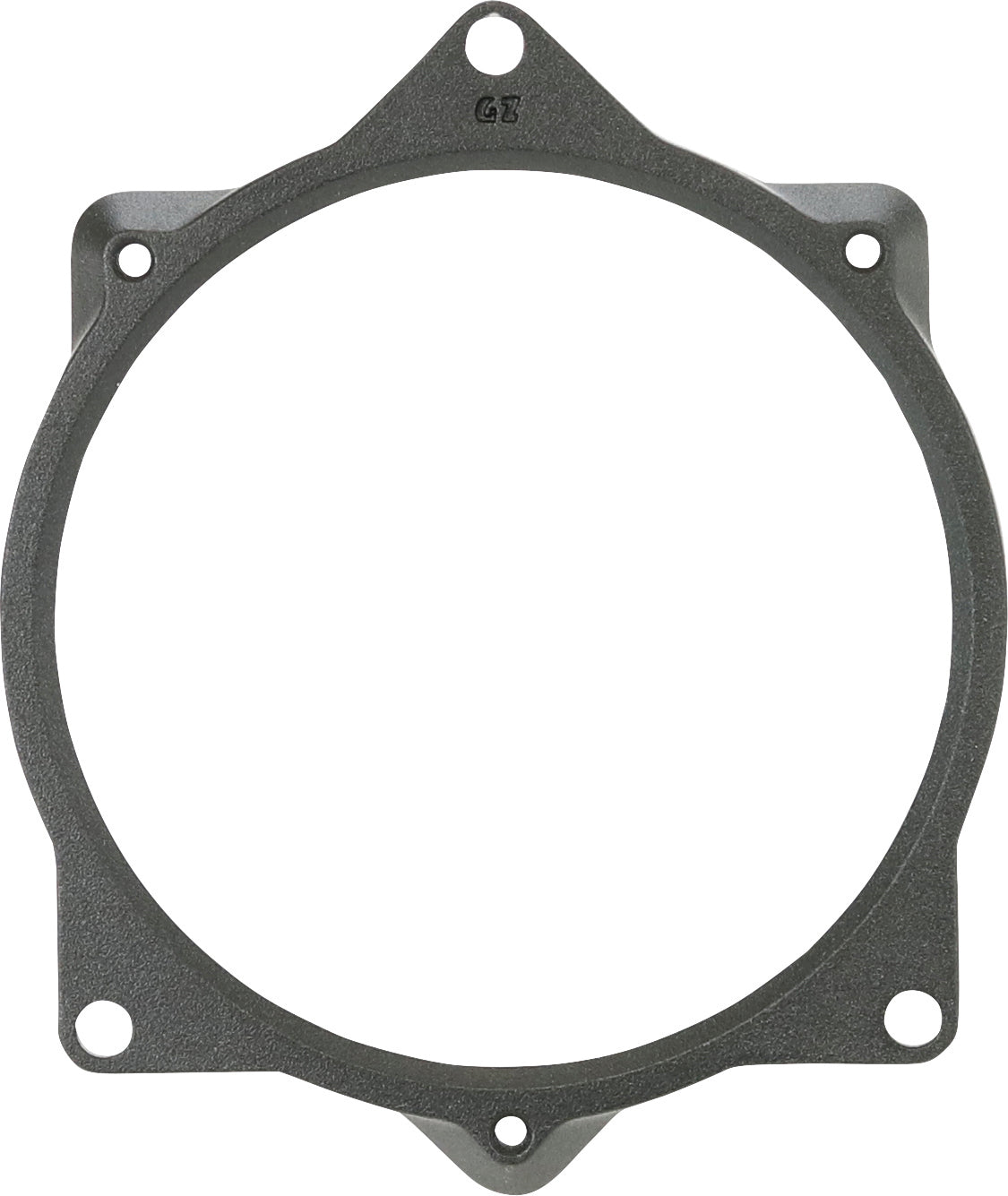

The set replaces the old -A, -B and -C models. Thanks to the included adapter ring, this new model is compatible with the same BMW models as the three old models.

Specifications:

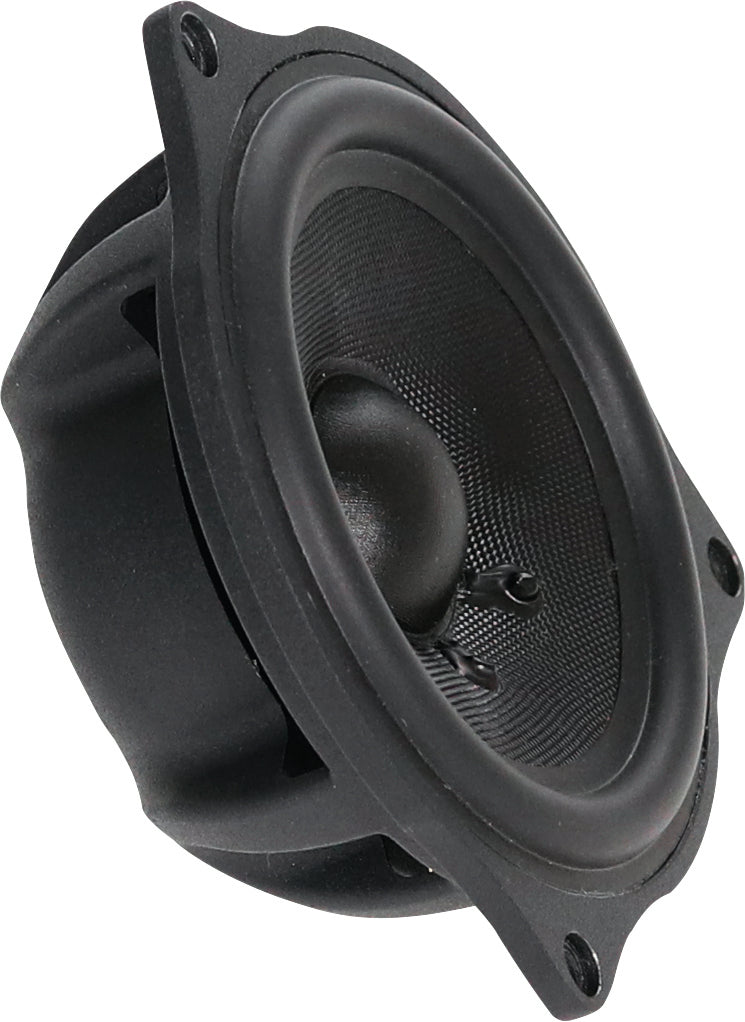

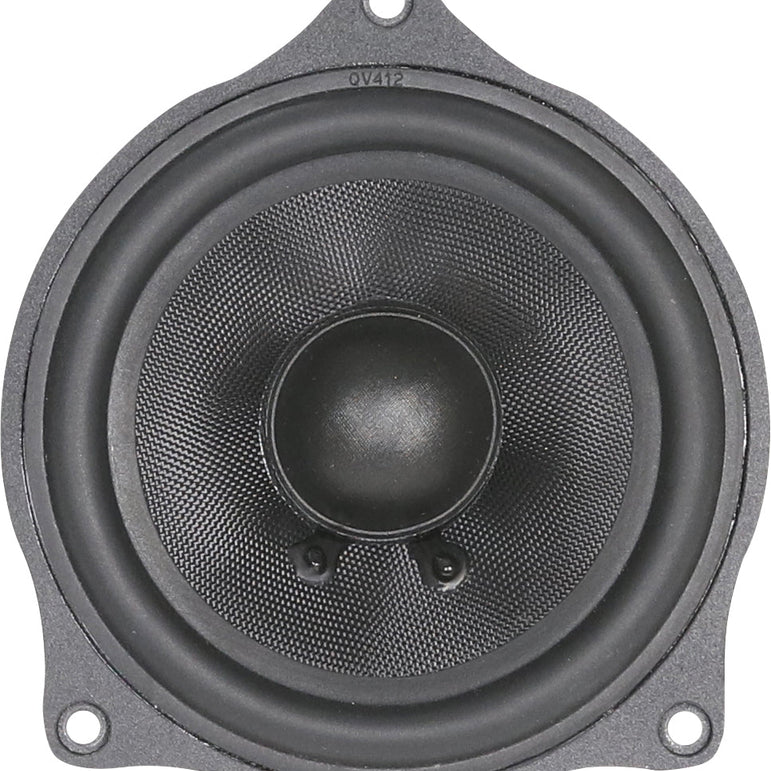

Nominal diameter (woofer): 100mm / 4″ midrange

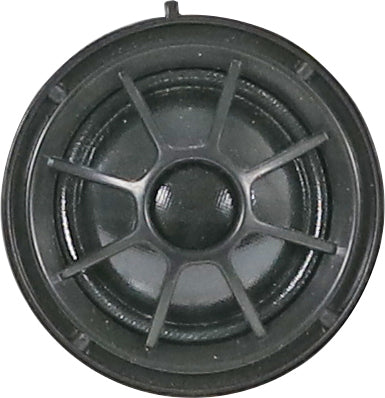

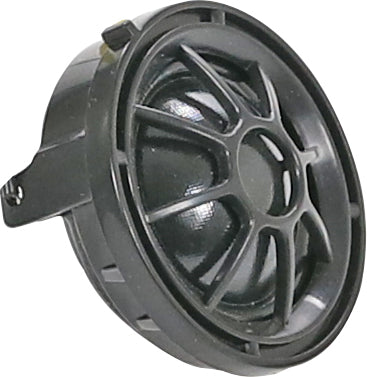

Nominal diameter ( Tweeter ): 25mm / 1″ Tweeter
Impedance: 4 Ohm
Frequency response: 70 Hz - 24 kHz
Cross frequency: 5000 Hz
Power handling (RMS): 70 Watts
Power handling (max): 110 Watts
Efficiency (SPL): 87 dB
Resonance frequency: 77 Hz (midwoofer)
Xmax (p2p): 7 mm

Compatibility:

BMW:

Front: E60, E61, E63, E64, E81, E82, E84 E87, E88, E90, E91, E92, E93, F10, F11, F18, E87, F10, F12, F13, F21, F22, F23, F30, F32, F33, F34, F35, F36, F82, F83, F45, F46, F80, I12COUPE, G30, E65, E66, E657, E70, E71, E83, E89, F01, F02, F03, F04

Rear: E63, E64, E88, E91, E93, F10, F21, F23, F26, F31, F45, F46, E60, E61, E65, E66, E657, E71, E81, E82, E84, E87, E90, E92, F01, F02, F03, F04, F07, F10, F11, F18F22, F87, I12 COUPE

REAR DOOR: F06, F12, F13F25, F30, F32, F34, F35,F36,
F48,F80, F82

REAR SHELF: F12, F13, F25, F30, F32 F34, F35, F36, F48, F80, F82

D-PILLAR: F15, F16, F86, G05

MINI:

Front:
F54 with Harman/Kardon Sound System
F55 with Harman/Kardon Sound System
F56 with Harman/Kardon Sound System
F57 with Harman/Kardon Sound System
