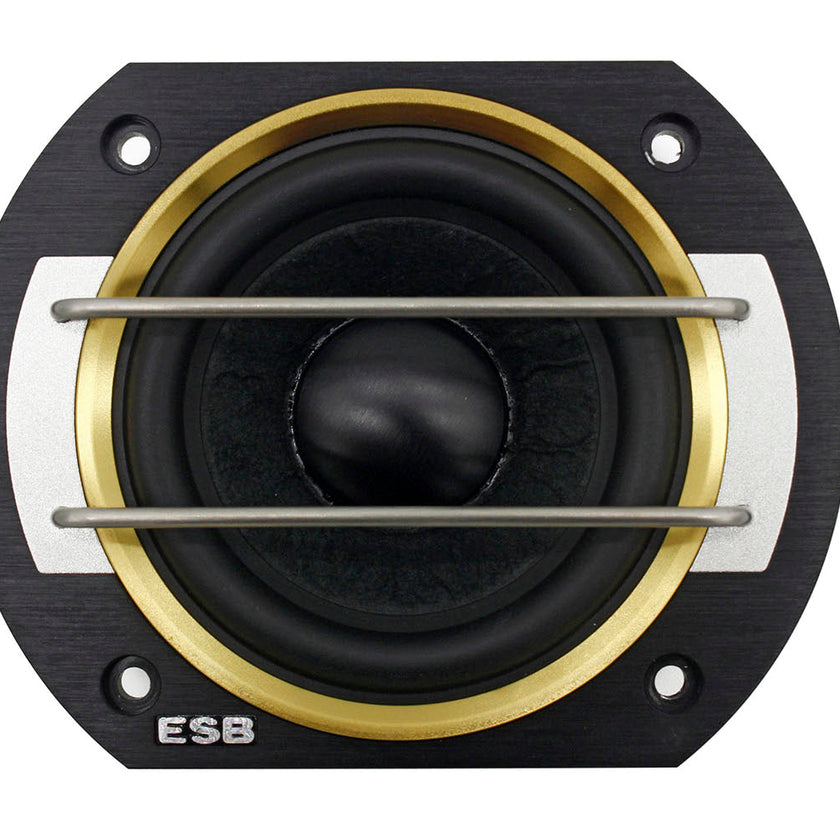

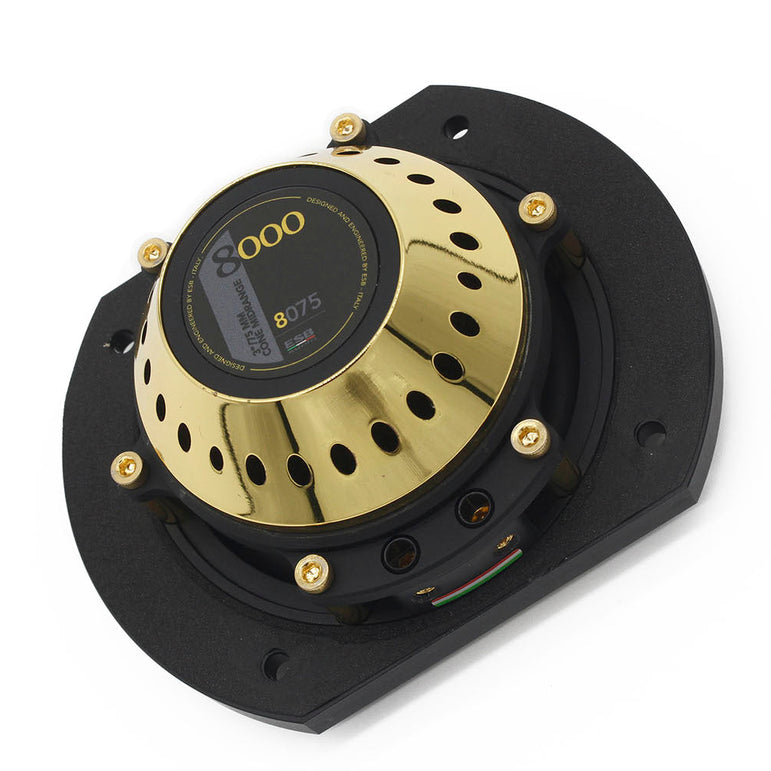

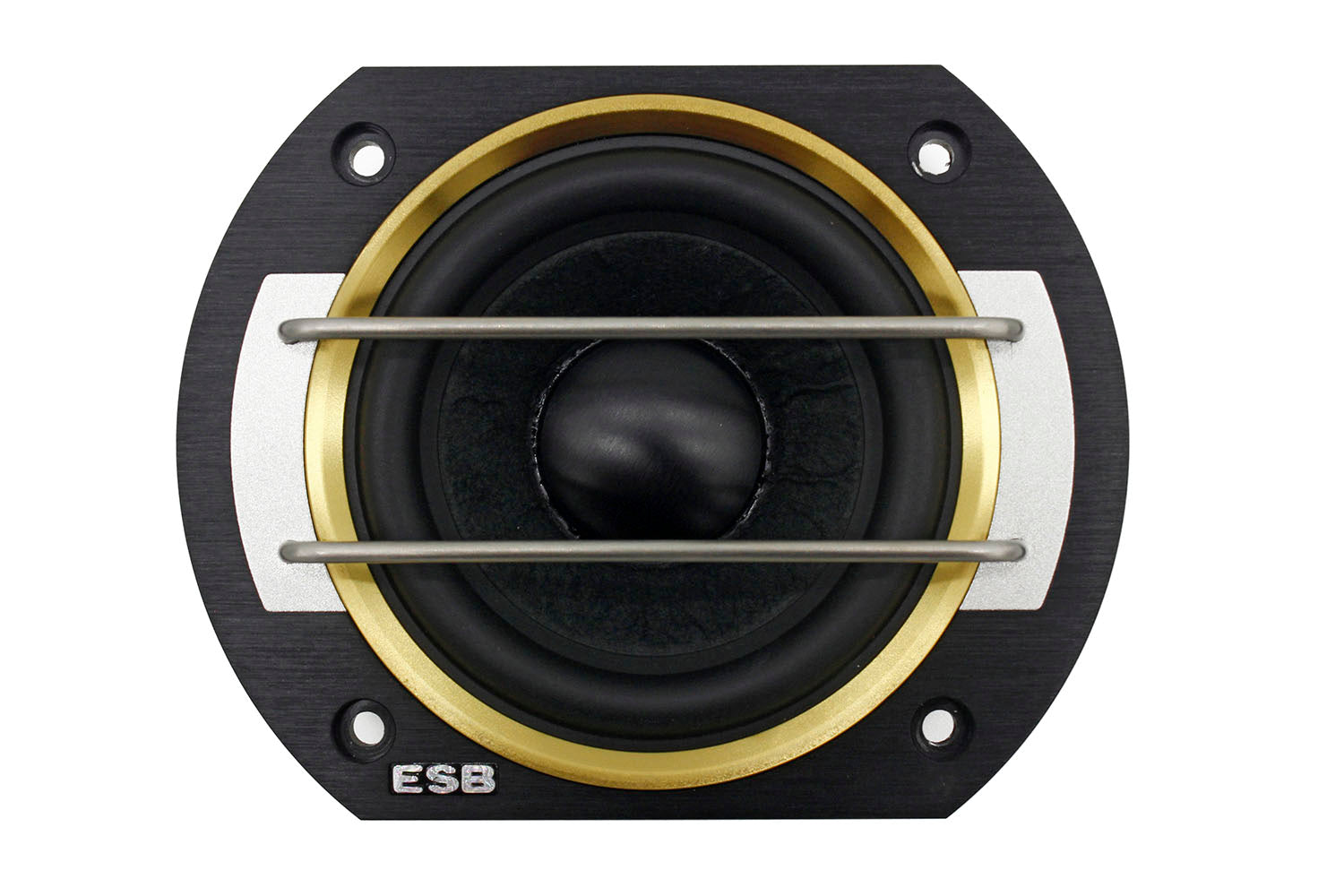

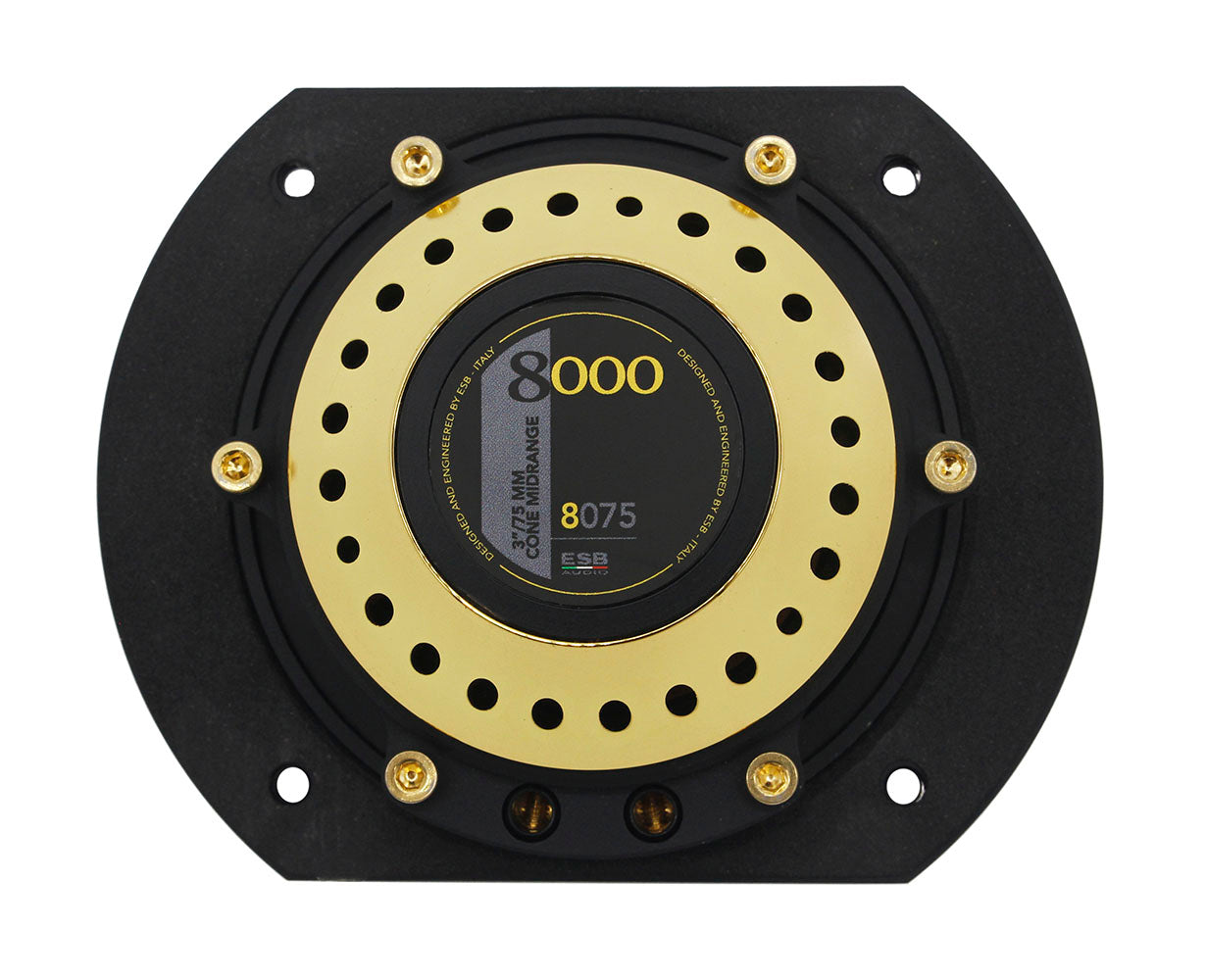

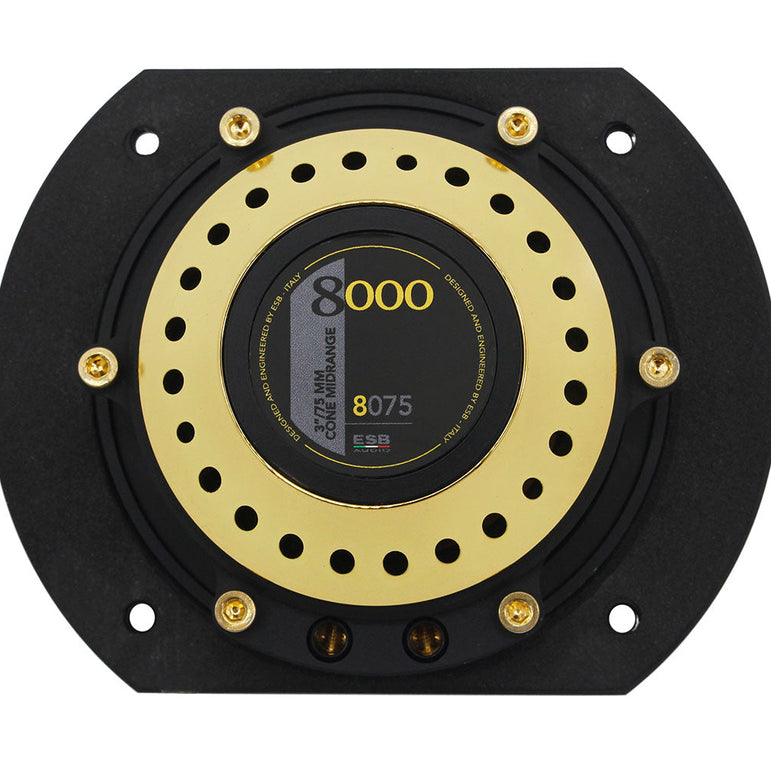

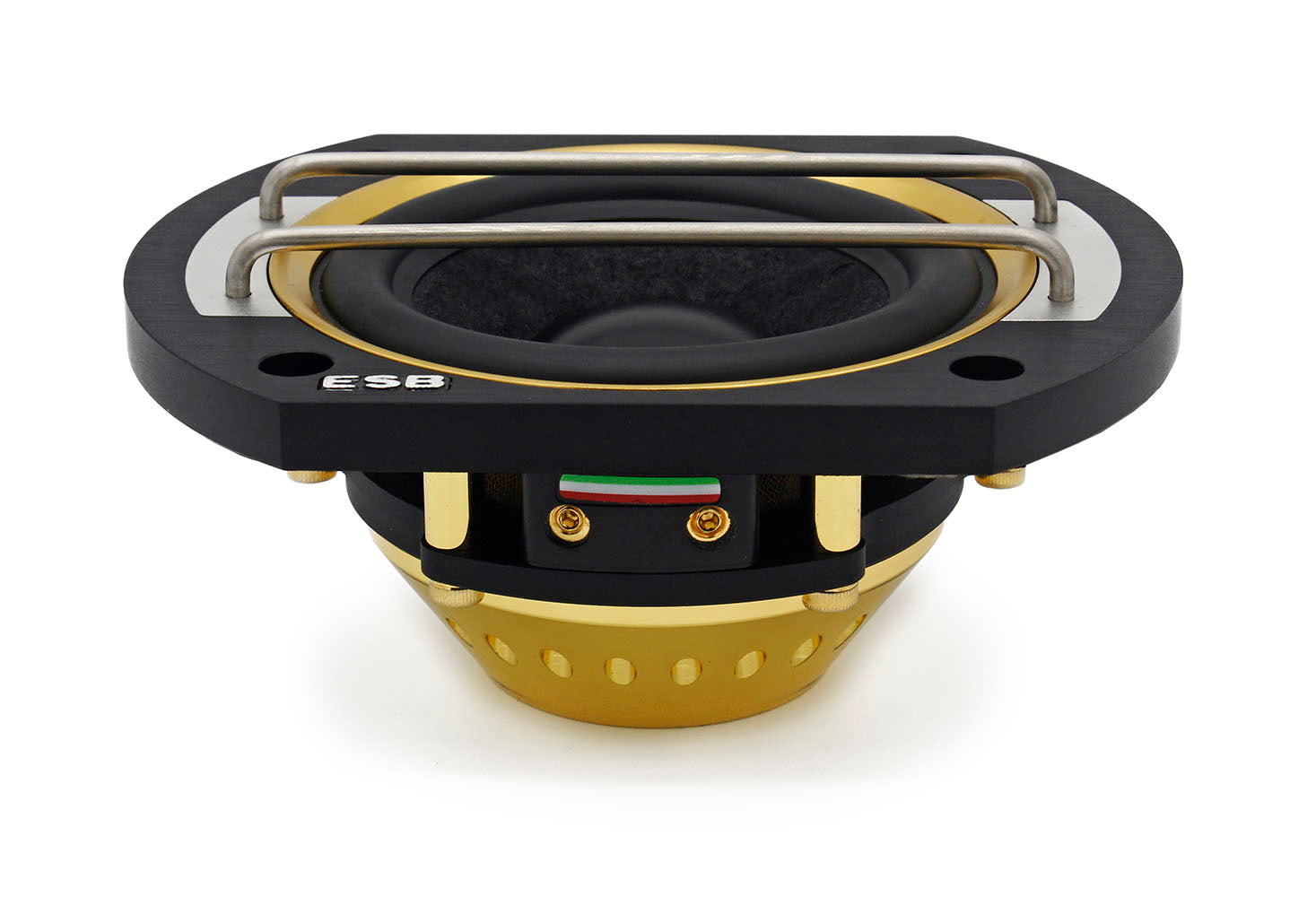

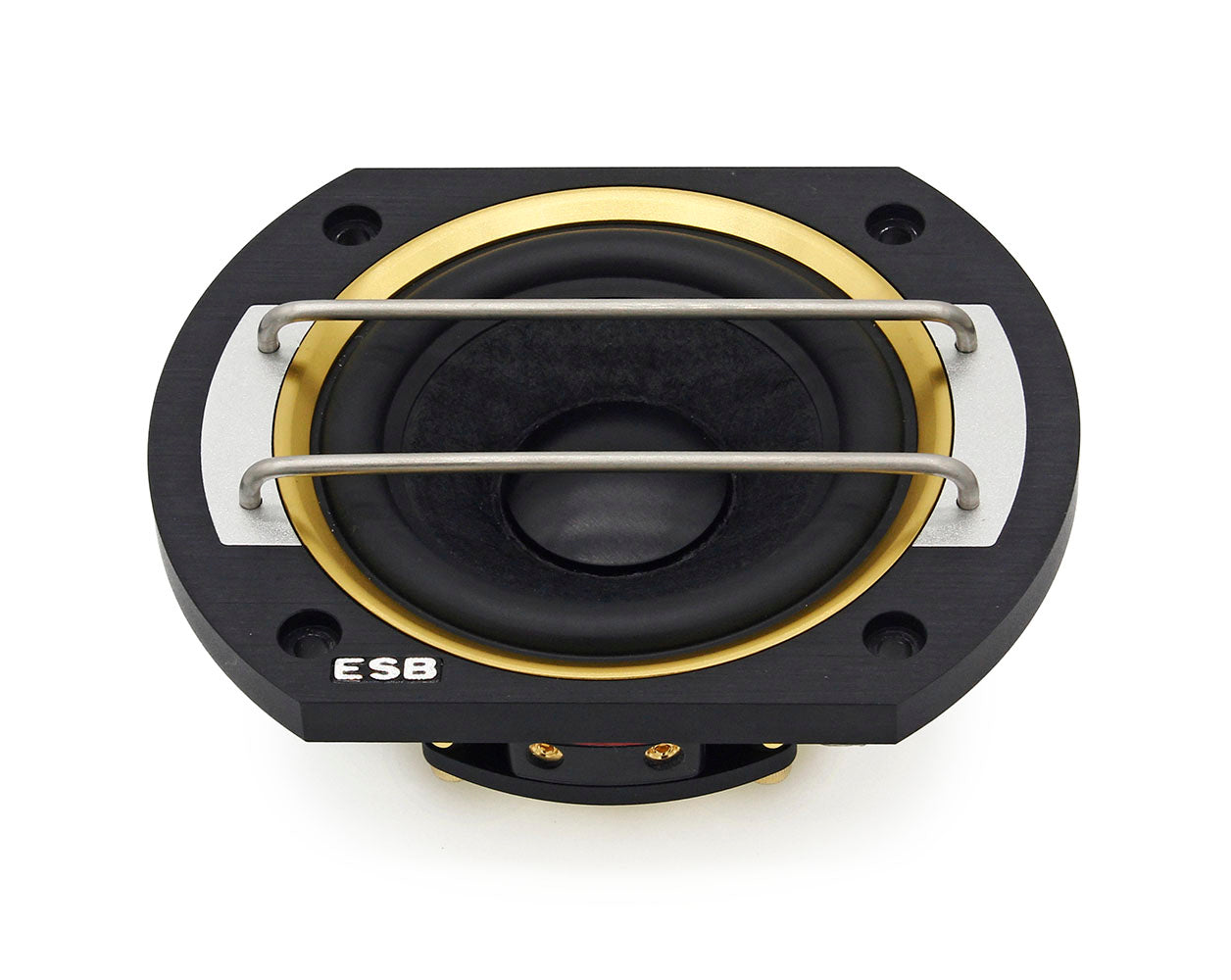

ESB Audio 8.075 Ottomila 75mm Midrange (Pair)

ESB Audio 8.075 3"/75 mm Cone Midrange (Pair)

Key Features

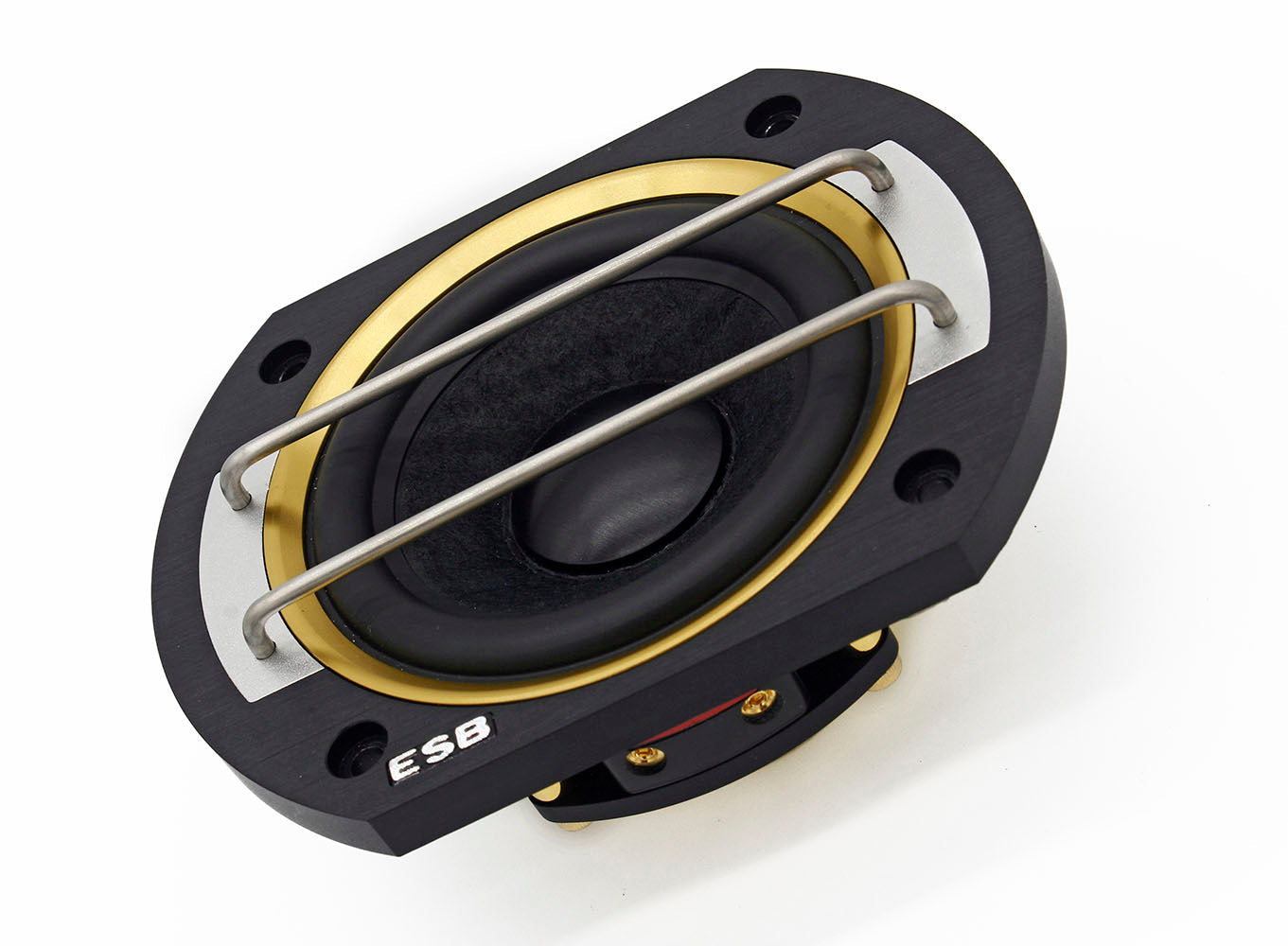

• The Neodymium magnetic motor is optimized with FEA simulation to ensure a perfectly symmetrical magnetic flux in both directions of the cone movement. The metallic parts of the motor are CNC-machined from solid, refined material for maximum linearity of the magnetic flux and minimum magnetic losses. This reduces distortion at high power levels.

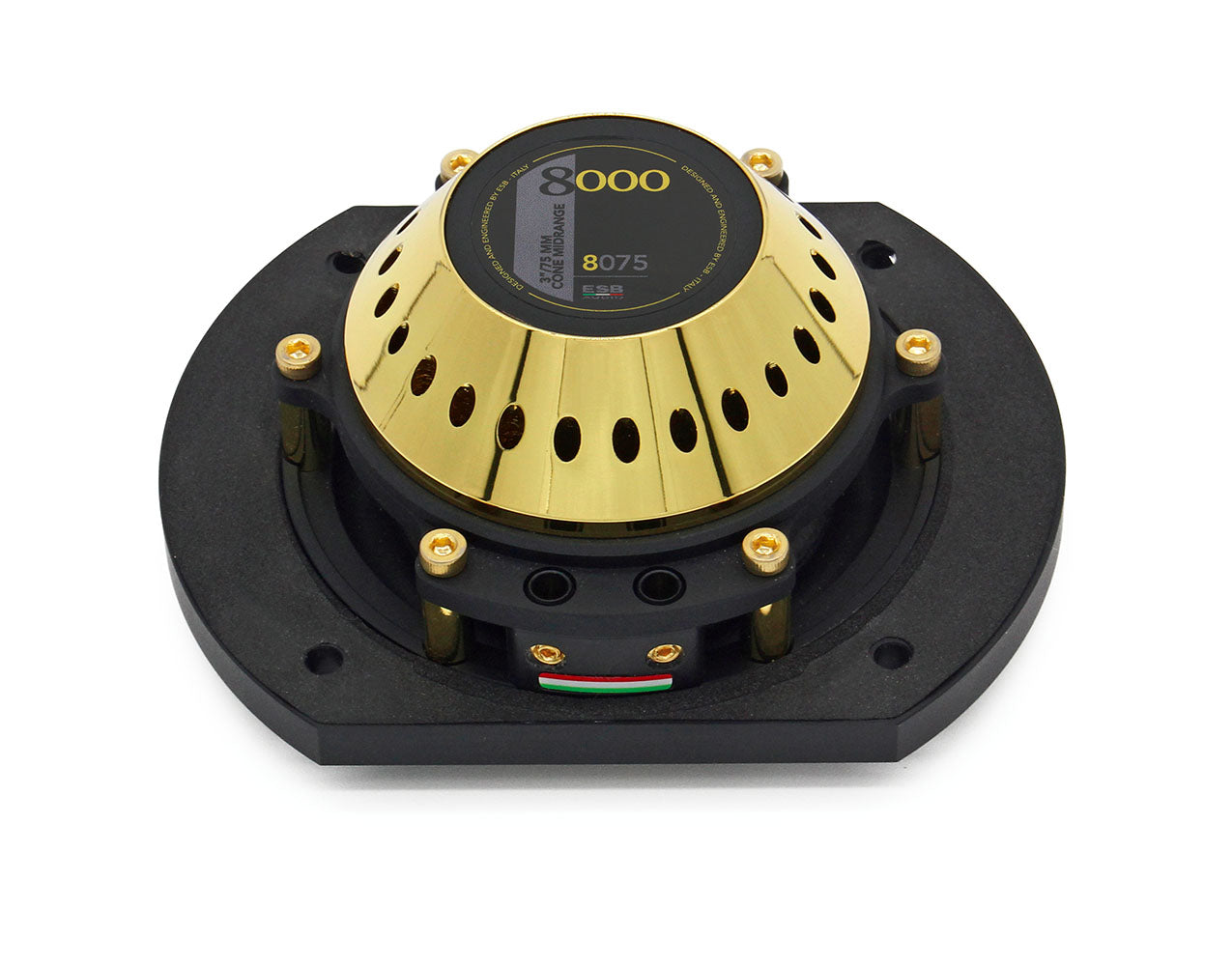

• The 25.5 mm CCAW (Copper Clad Aluminum Wire) dual-layer voice coil is wound on an aluminum former for exceptional power handling and compression-free reproduction, even in the most demanding musical passages.

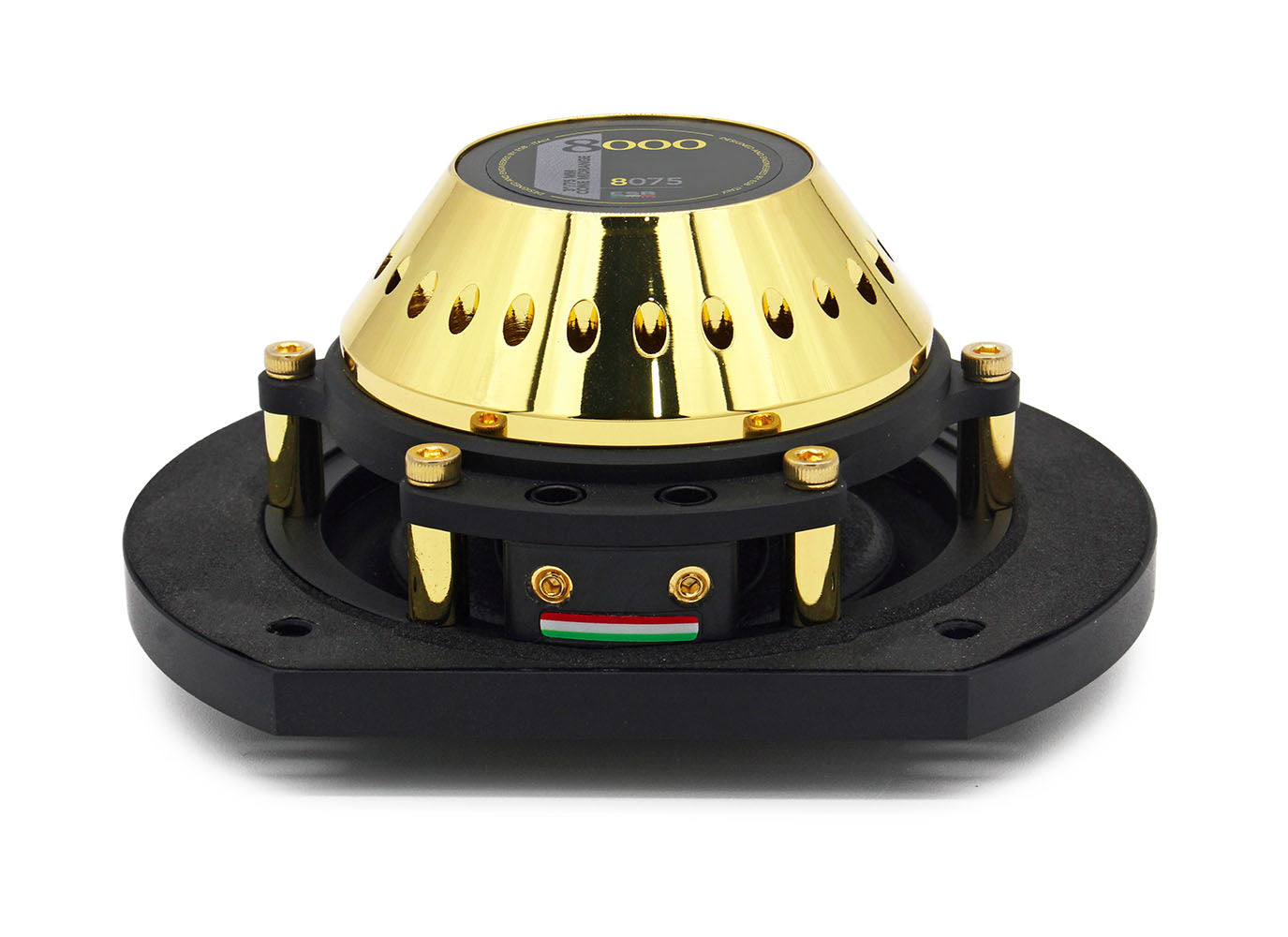

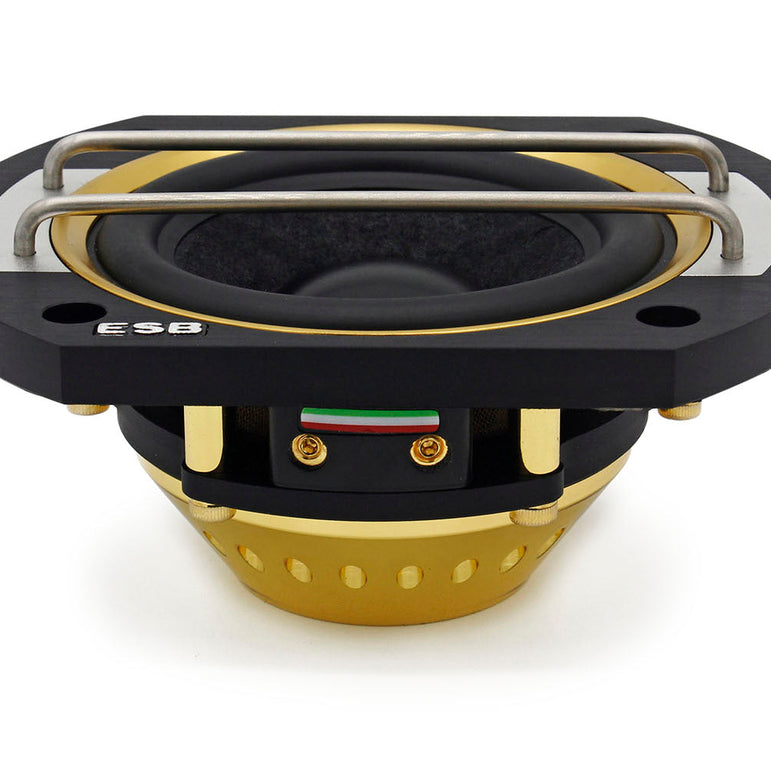

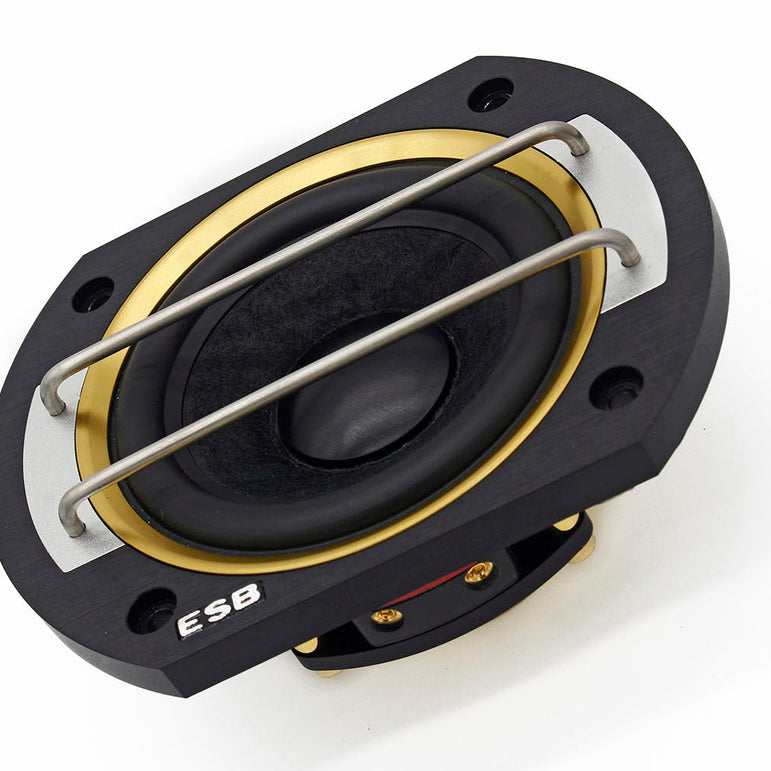

• The unpressed cellulose pulp cone with an exponential profile and vinylic ester resin coating ensures a perfect balance between stiffness, weight, and self-damping. The cellulose pulp ensures a very natural and linear reproduction across all musical passages with excellent extension at high frequencies without audible breakup. The aluminum dust cap, directly connected to the voice coil former, increases and linearizes the upper end of the bandwidth.

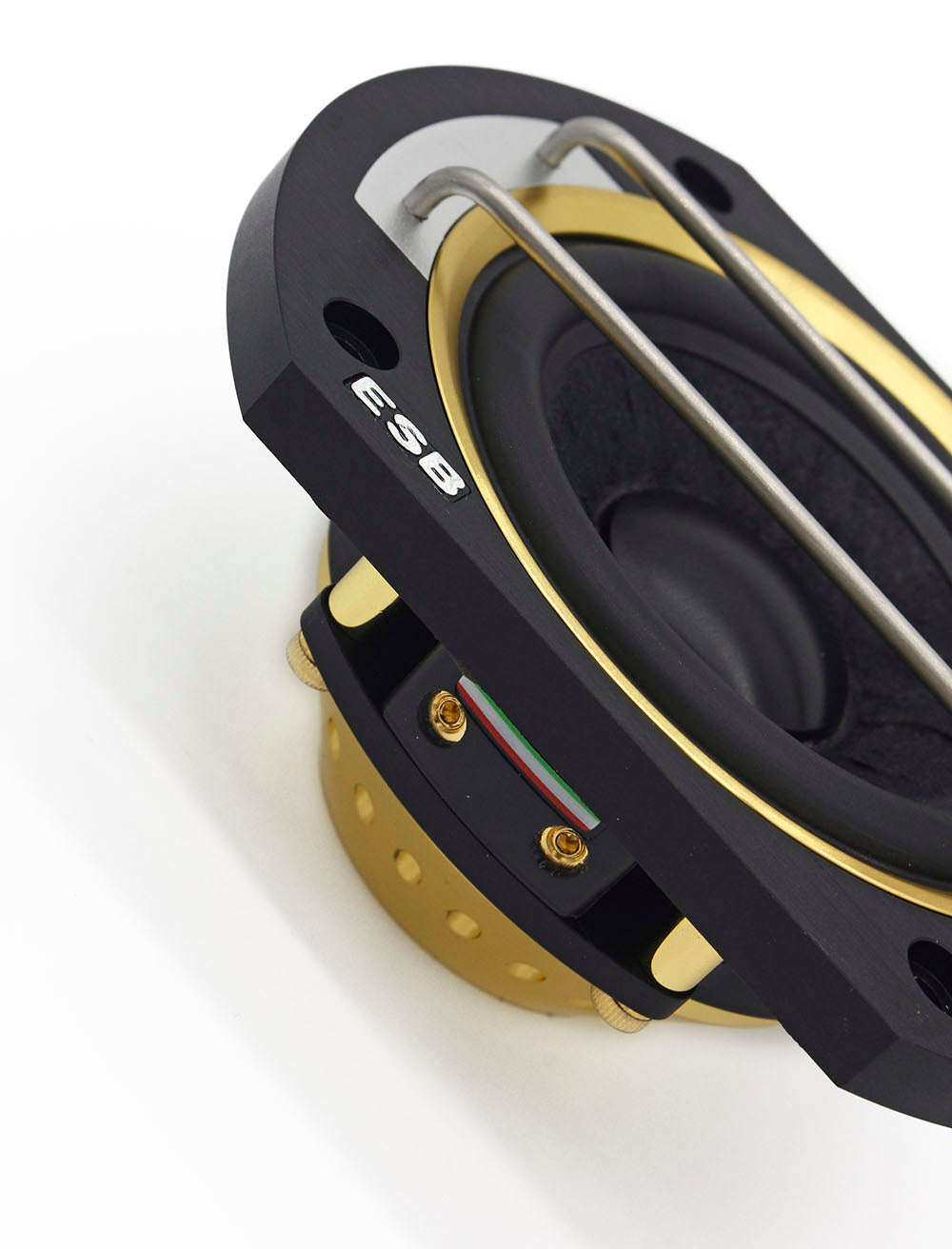

• The CNC aluminum basket ensures a drastic reduction of rear reflections from the cone and greater torsional rigidity. High structural and torsional rigidity for perfect alignment of components requires extremely tight tolerances in the construction and assembly system. This results in better efficiency, greater power handling, and less distortion.
• The exclusive rubber suspension provides maximum linearity of movement and high reliability in extreme conditions.

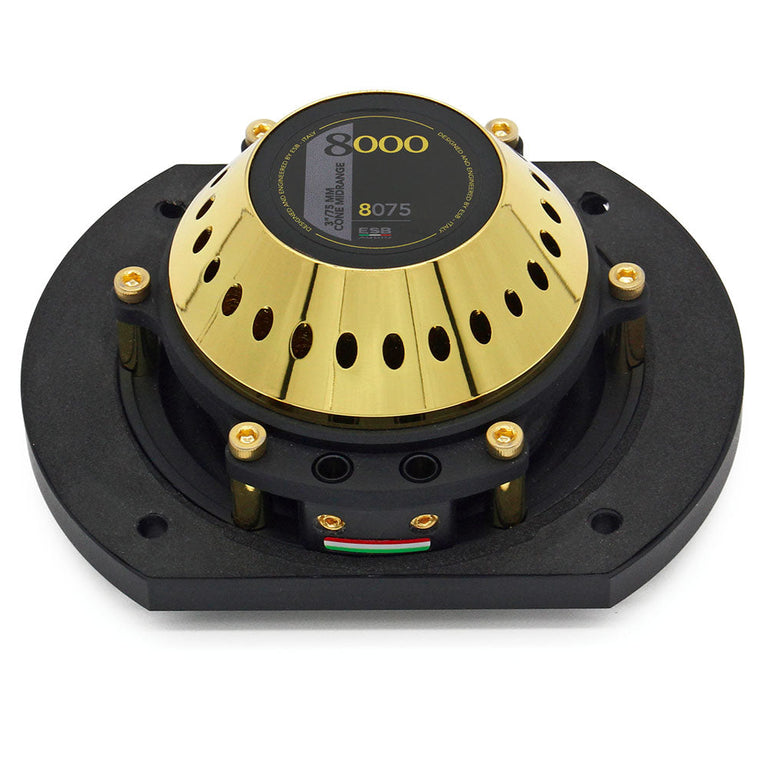

• The axial ventilation system ensures high heat dissipation, power handling, and reliability.

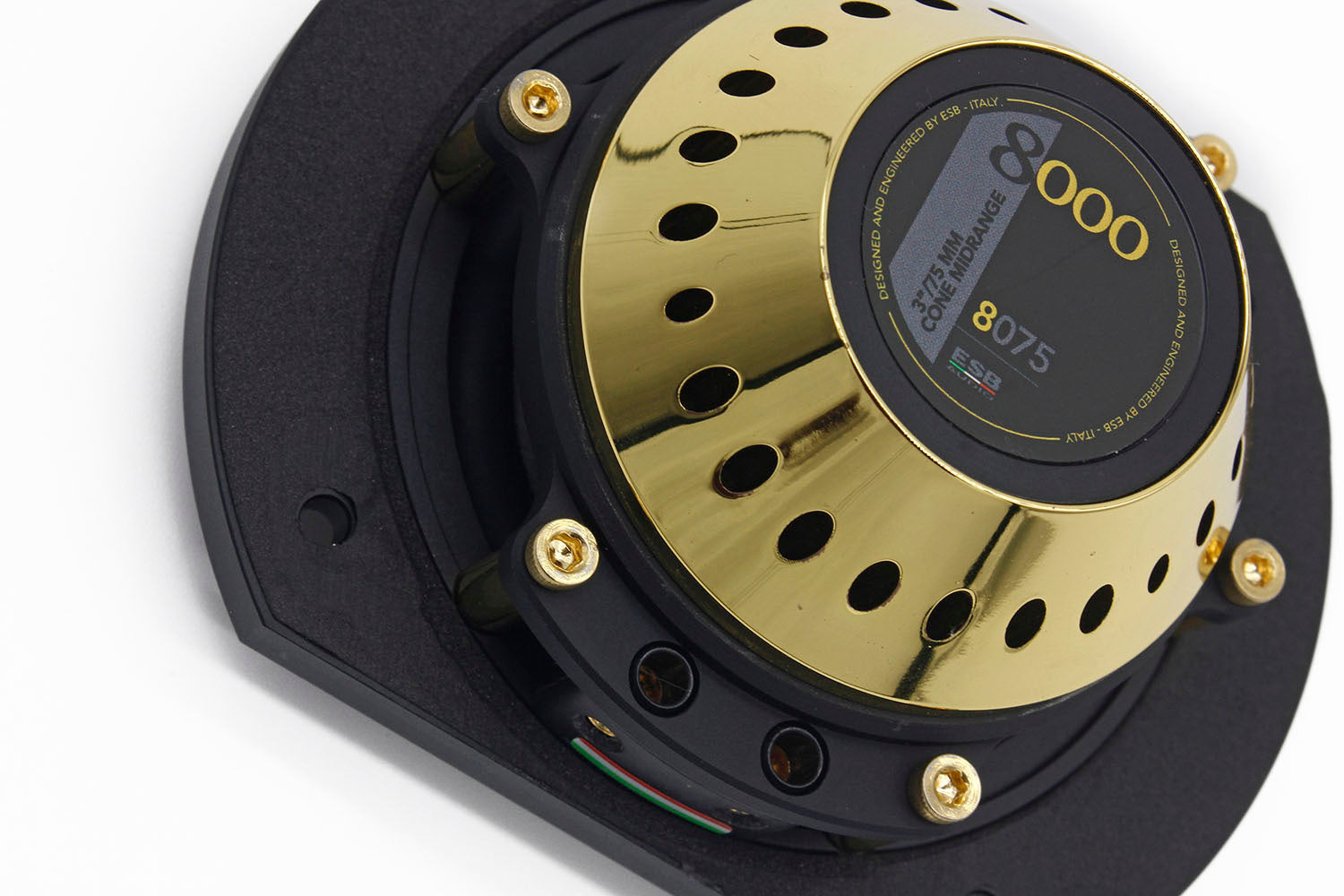

• The large Conex™ spider allows for smooth and gentle movement at low excursions and gently restrains the cone at high excursions, thus increasing its useful range.
• The exclusive terminal connection design accepts very large cables.

Specifications

• Nominal Impedance: 4 Ohm
• Nominal Power: 120 Watt
• Transient Power: 240 Watt
• Frequency Response: 95 Hz ~ 16 kHz
• Sensitivity: 94 dB 2.83V/1m
