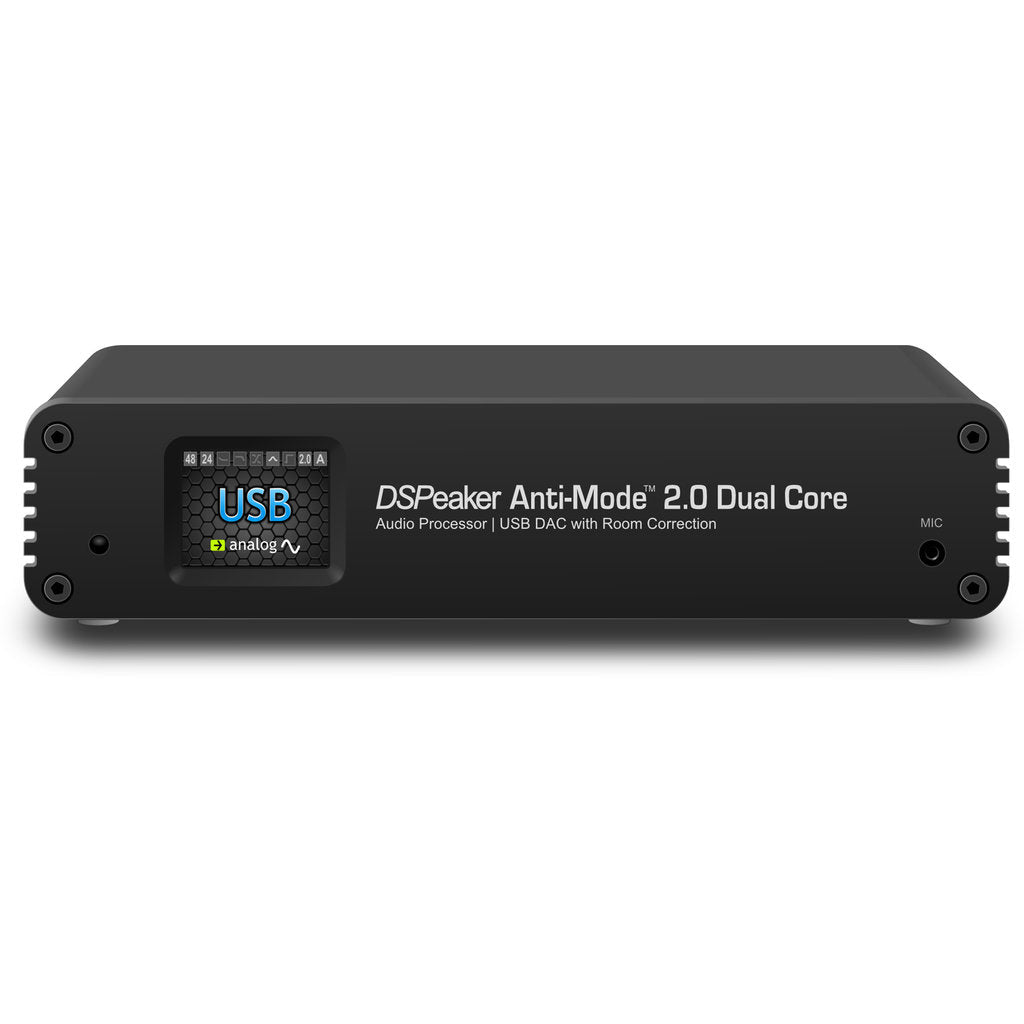

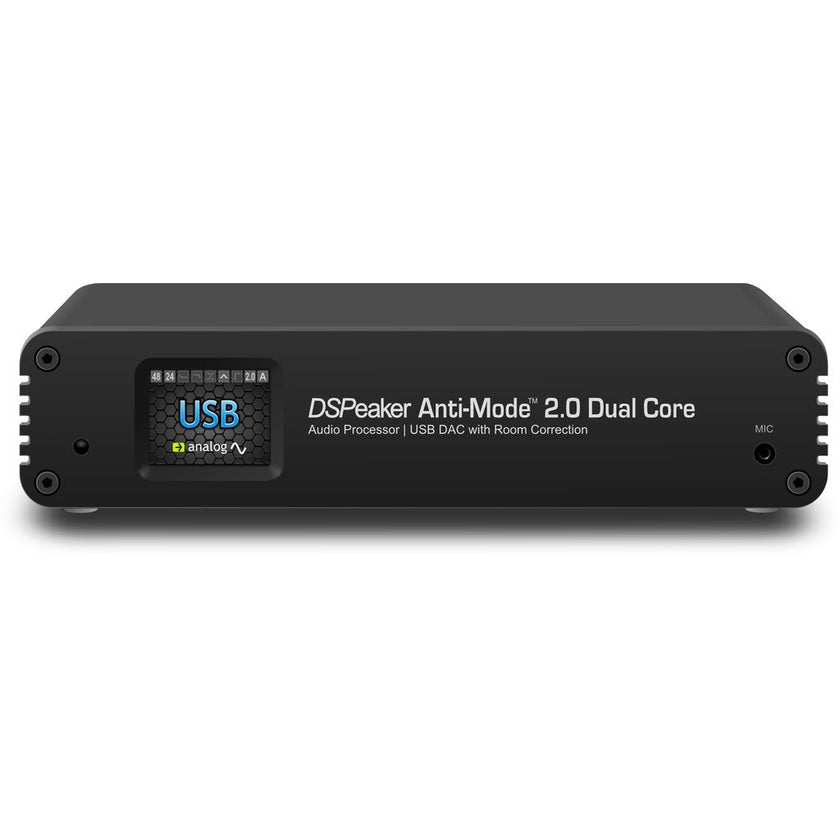

DSpeaker Anti-Mode 2.0 Dual Core
The combined effect of the speaker and the room is typically the most significant factor affecting sound quality in audio systems. Every listening room colors the sound with errors that can be on the order of tens of decibels, meaning significantly larger than any other component in the playback chain. The most harmful errors for perceived sound quality occur in the bass and lower midrange areas, where no acoustic solutions provide sufficient improvement.
The Anti-Mode 2.0 Dual Core is DSPeaker's award-winning speaker control system, which can be used to optimize a full-range audio system. It is based on the new Anti-Mode 2.0 algorithm, which improves upon the already renowned Anti-Mode algorithm.
Features:
-
New, improved Anti-Mode 2.0 automatic room correction
-
Can be used as a high-quality DA converter
-
Supports USB audio, as well as S/PDIF input/output with optical Toslink
-
Balanced, two AD converters and two DA converters per channel
-
Can be used as a preamplifier with remote-controlled volume
-
Analog resistor network volume control that maintains full bit accuracy and dynamics
-
Extensive adjustment options, including a "house curve" tool, parametric EQs, full-spectrum tilt curve, quick adjustments, etc.
-
Supports multiple audio profiles (e.g., independent "sweet spots" or EQ settings), quickly switchable with the remote control
-
Easy user interface
-
Can measure and display room responses on the device's own screen
-
"Pure digital" mode with S/PDIF input and output: signal processed purely digitally
-
Digital signals are re-clocked for jitter-free operation
-
Versatile connectivity: connect Anti-Mode 2.0 Dual Core between the preamplifier and power amplifier, use processor loop or tape loop connectors in an integrated amplifier - or use it directly as a DA converter and preamplifier
-
Anti-Mode 2.0 can be connected to almost any system.
Technical specifications:

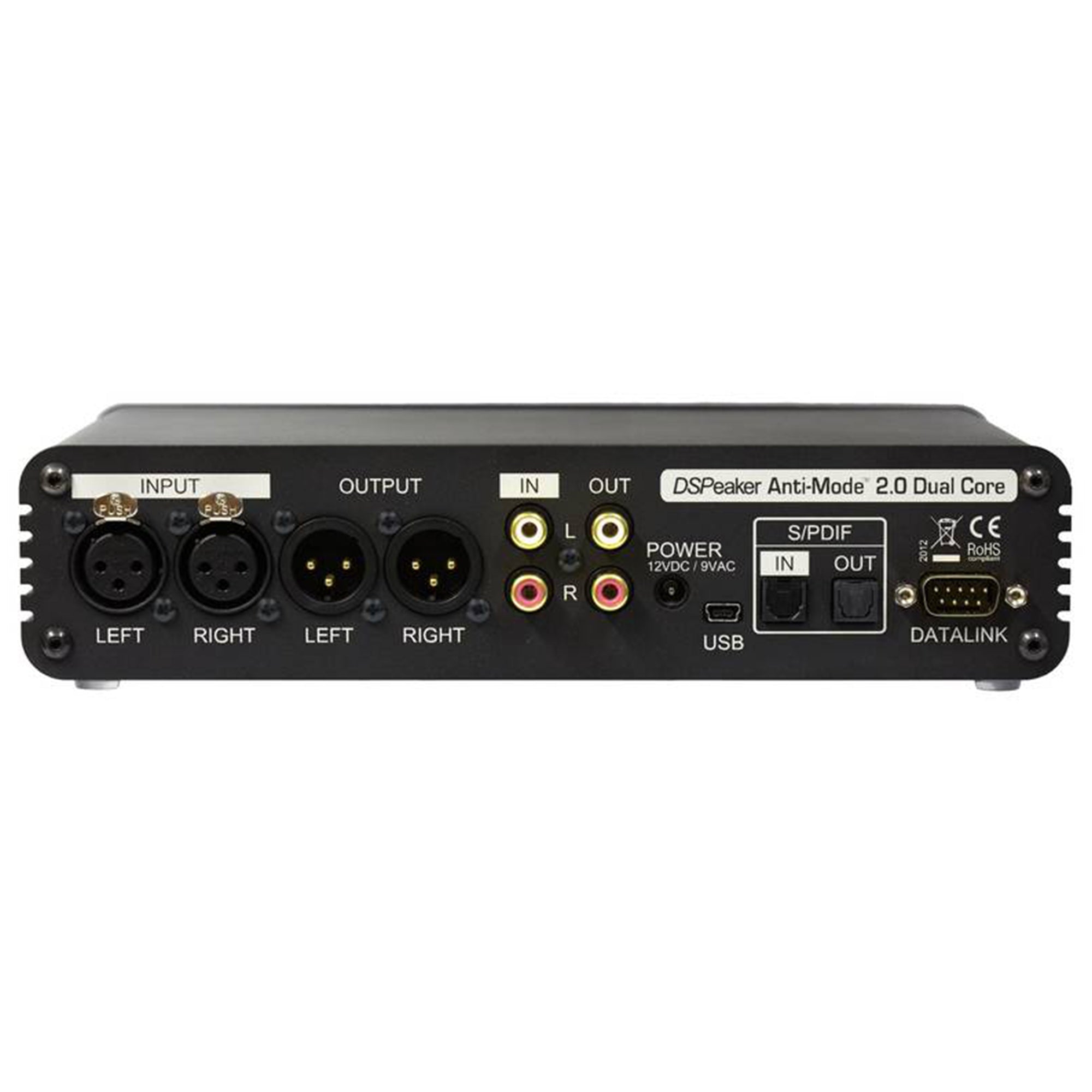

Connections
-
2 x RCA in
-
2 x XLR in
-
2 x RCA out
-
2 x XLR out
-
Toslink S/PDIF digital in
-
Toslink S/PDIF digital out
-
USB
-
Datalink
-
Microphone connector
-
12VDC power connector
DSP Cores
-
1 x VS1000 (GUI&USB)
-
2 x VS8053 IceDragon (Audio)
Processing
-
40-bit, 2-channel
DSP Filters
-
Anti-Mode 2.0 Multi-Rate (FIR & IIR)
-
House Curve filter
-
Linear-Phase Tilt
-
Parametric EQs
-
Infrasonic filter (adjustable)
-
Low-pass/High-pass (adjustable frequency and slope)
Analog specifications
-
Dynamic range > 108dB
-
Volume control step: 0.5dB
-
Input sensitivity: XLR: 3.9/7.9V(RMS)
-
Input sensitivity: RCA: 2.5/5.0V(RMS)
-
Output sensitivity unbalanced RCA: 7.2 V(RMS) max
-
Output sensitivity balanced XLR: 14.4 V(RMS) max
-
ADC: 6.144 MHz oversampling dual per channel
-
DAC: 6.144 MHz oversampling dual per channel, local clock, buffering
