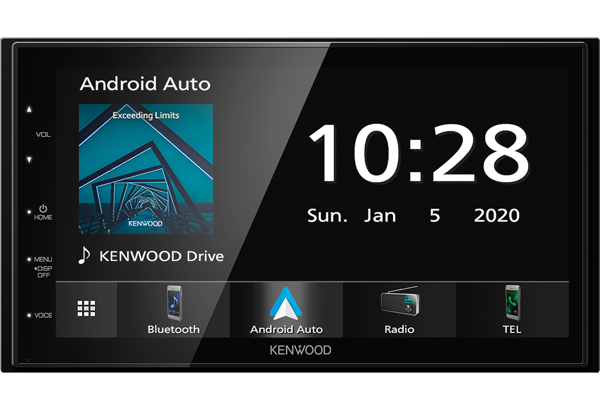

Kenwood DMX5020BTS 2-DIN CARPLAY/ANDROID Multimedia player

6.8" WVGA Capacitive Touch screen - White Key Illumination

Apple CarPlay® & Android Auto™ Ready

Android USB Mirroring Ready

Built-in Bluetooth

Bluetooth wireless music browsing ready

2 Preouts + subwoofer (2.0V)

13 Band EQ - DSP - DTA Built-in

AV-in, Video-out & RCAM-in

Rear Camera input with built-in parking guide lines

Short Chassis for easy installation

Size

2 DIN

Smooth GUI

Yes

Selectable display background

Yes

Button illumination color

White color

Mute with gradual volume restoration

Yes

Touch Tone

Yes

Remote control optional

Yes, (KNA-RCDV331)

Digital 24-hour clock

Yes

ISO connector

Yes

Bluetooth

Yes

Made for iPod

Yes

Works with Apple CarPlay

Yes

Works with Android Auto

Yes

Android USB Mirroring

Yes

Software updateable

Yes

Display type

6.8" Wide VGA

Aspect Ratio

4 Mode (Full/Zoom/Normal/Auto)

Picture adjustments

Brightness / Tint / Color / Contrast

Display dimmer

Manual/Sync

Dimmer Level

Yes

Playable image formats

Mirroring / CarPlay / Android Auto.

Display Type

Glare

Display film

Anti Fingerprint

Display Panel

Capacitive

Mechanism Operation

Fixed

NTSC/PAL color system selection

Yes (automatic)

Display Off Mode

Yes

GUI Type

Graphic

Menu text

14 languages:
► English(UK)(Default)
► English(US)
► Spanish
► French
► German
► Italian
► Dutch
► Russian
► Portuguese
► Hebrew
► Greek
► Polish
► Czech
► Hungarian

Software update (SoC)

Demo Function

Yes

Main Menu Customization

Yes

Opening Screen Type

standard

Wallpaper

6 x presets + 2 x user set

Automatic Rear Camera Display

Yes

Parking Assistance / Guide Lines

Yes

Station selection method

Manual / Preset (List)

FM reception

Yes

Mono switch

Yes

AM reception (MW/LW)

Yes

Station tuning method

Auto1/Auto2/Manual

Station search

Yes

Tuner Presets (FM/AM)

20 Presets (15FM / 15AM)

AME - Automatic Memory Entry

Yes

RDS

Yes

Radio Text Plus

Yes

Traffic Information Reception

Yes

Local Station Search

Yes

Regional Radio Reception

Selectable: AF/AF Reg/OFF

EON function

Yes

PTY - Program Type Selection

Yes

Max num. of regist. phones for HFP & A2DP

7

Hands-Free Profile (HPF)

V1.6

Hands Free Profile with High Sound Quality

HFP V1.6

Audio Transfer Profile (A2DP)

Yes, (SBC/AAC)

Serial Port Profile (SPP)

Yes

Simple Secure Pairing (SSP)

Yes

Contact Access Profile (PBAP)

Yes

Number of PBAP entries

Up to 1000 phonebook entries

PBAP call history

Up to 20 entries of dialed, received and missed calls

Generic Access Profile (GAP)

Yes

Service Discovery Profile (SDP)

Yes

A/V Remote Control Profile (AVRCP)

Yes, V1.5

Call Waiting / Hold

Yes

Private mode

Yes

Alphabetical search (contacts)

Yes

Voice Control

Yes

Background Noise Compensation

Yes

Echo Cancellation

Yes

Mobile network strength display

Yes

Battery level display

Yes

Bluetooth Pairing Indicator

Yes

High-quality microphone with noise cancellation

Included

Bluetooth software updateable

Yes, Included in system updates

AAC (*.aac) files are playable

USB

MP3 files are playable

USB

WMA (.wma) files are playable

USB

WAV (.wav) files are playable

USB

FLAC files are playable

USB

MPEG1/2 files are playable

USB

MPEG4 files are playable

USB

WMV files are playable

USB

H.264 files are playable

USB

mkv files are playable

USB

JPEG files are playable

USB

USB terminal

Yes, rear side / 1m cable / fix

USB bus type

2.0 High speed

Works with Android Auto

Yes

Works with Apple CarPlay

Yes

USB Mirroring for Android

install "Mirroring OA for KENWOOD" from Playstore

Repeat

Folder/File/All

Random Play

Folder

Category Search

Yes

Link Search

Yes

Resume playback from where it left off

Yes

Time Display

Yes

1.5A Smartphone Quick Charge

Yes

Maximum output power (MOSFET power circuits)

4 x 45W

Line output connector

2 RCA : FRONT/REAR + SUB(mono)

Line output level

2V

Volume Offset

Yes

Channel Balance/Fader

Yes

Audio attenuation (-20dB) and gradual restoration

Yes

Equalizer

Yes, 13 Band Graphic EQ

Digital Signal Processor (DSP)

Yes

Digital Time Alignment (DTA)

Yes

Beep on/off

Yes

Loudness

Yes

Bass Boost

Yes

Car type selection

► Off
► Compact
► Sedan
► Wagon
► Minivan
► SUV
► Passenger Van

Speaker size selection

Yes

Crossover

2-way X'over / HPF / LPF

Delay adjustments

Yes

Equalizer type

Graphical

Equalizer

13-Bands

Equalizer presets / User set

7 presets / 4 User set

Balance & Fader Control

Yes

Source Volume Offset

source independent

Sound Effects

► Off
► Compact
► Sedan
► Wagon
► Minivan
► SUV
► Passenger Van

Audio Setup Memory

Yes

AV output connector

Yes, Video only (RCA)

AV input connector

Yes, Video & Audio mini-jack

Video-In for Rear-view Camera

1 dedicated video input (RCA)

Rear camera activation

Wire to be connected to reverse light

Parking Guide Line

Yes

Wired remote control option for aftermarket installation

Yes, Optional interface needed

Programmable OEM Steeringwheel Remote Function

Yes

Connection for parking sensor

Yes

Ignition wire (P.CON)

Yes

Wire for instrument illumination detection

Yes

Preout

2 x RCA (Front/rear) + Sub (mono)

AV input connector

(Mini-jack) audio & video

Video Out

RCA x1

Wire for reverse gear detection

Yes

Rear camera connection

Dedicated RCA Video-in

FM antenna connector

JASO connector

Microphone connection (mini-jack)

3.5mm mini-jack

FM: 87.5 MHz - 108 MHz (in 50 kHz steps)

Yes

Sensitivity (FM)

1.8μV/75ohm (S/N 30dBf)

Frequency response (FM)

30Hz ~ 14kHz (± 3dB)

Signal-to-noise ratio (mono, FM)

50dB

Channel separation (1 kHz, FM)

35dB

MW: 531 kHz - 1611 kHz (in 9 kHz steps)

Yes

Sensitivity (MW)

99μV

Version

Bluetooth V4.1

Frequency

2.402 - 2.48 GHz

Power Output

+8dBm(max), power class 1

Operating range

Approx. 10 m unobstructed

Hands-free (HFP)

Yes, V 1.6

Serial Port (SPP)

Yes

Audio Distribution (A2DP)

Yes

Audio codec

SBC/AAC

Contact Transfer (PBAP)

Yes

USB version

USB 2.0 High Speed

File system

FAT 16/32, exFAT

Maximum current

1500mA

DA converter

24bit

Video decoder

MPEG1/2/4, WMV, H.264, mkv

Audio decoder

MP3, WMA, AAC, WAV, FLAC

Maximum Power

45W x 4

Output Power (DIN45324,+B=14.4v)

21W x 4

Output frequency band

20Hz ~ 20kHz

Preout Level

2000mV / 10kOhm,

Preout Impedance

≤ 1400Ohm

Speaker Impedance

4Ohm ~ 8Ohm

Frequency band - Front

62.5Hz ~ 16kHz

Equalizer Gain

–9db ~ +9db

2-Way X'over / Front/Rear (HPF) / Frequency

trough/30/ ... /220/250Hz

2-Way X'over / Front/Rear (HPF) / Slope

-6/-12/-18/-24 (dB/oct)

2-Way X'over / Subwoofer (LPF) / Frequency

30/40/ ...250Hz/Through

2-Way X'over / Subwoofer (LPF) / Slope

-6/-12/-18/-24 (dB/oct)

Position: 2-Way (Front/Rear/Sub)Delay

0cm ~ 610cm (1cm step)

Subwoofer Level

-40dB ~ 6dB

Equalizer Type

Graphic

Frequency band

13-band

Video input color system

NTSC/PAL

External video input level (mini-jack)

1 Vpp / 75 Ohm

Maximum level of external audio source (RCA)

1.5 V / 25 kOhm

Size

6.75 Inches Wide

Display dimensions

151.8 x 79.7mm

Type

Liquid crystal

Control

TFT active matrix

Number of pixels

1152000pixels (800(H) x 480(V) x RGB)

Effective pixels

99.99%

Pixel structure

RGB

Backlight

Led

Operating voltage

14.4V (10.5 ~ 16V Allowable)

Dimensions (W x H x D)

178 x 100 x 75mm

Weight

1.1 gr.

Weight, inclu. sleeve & escutcheon

1.3 kg

Removal tools

2 pieces

Mounting sleeve

Yes

Mounting frame

Yes

Hands-free microphone

with 3 m cable

Multi-Language Instruction Manual Included
