Device from the fair.

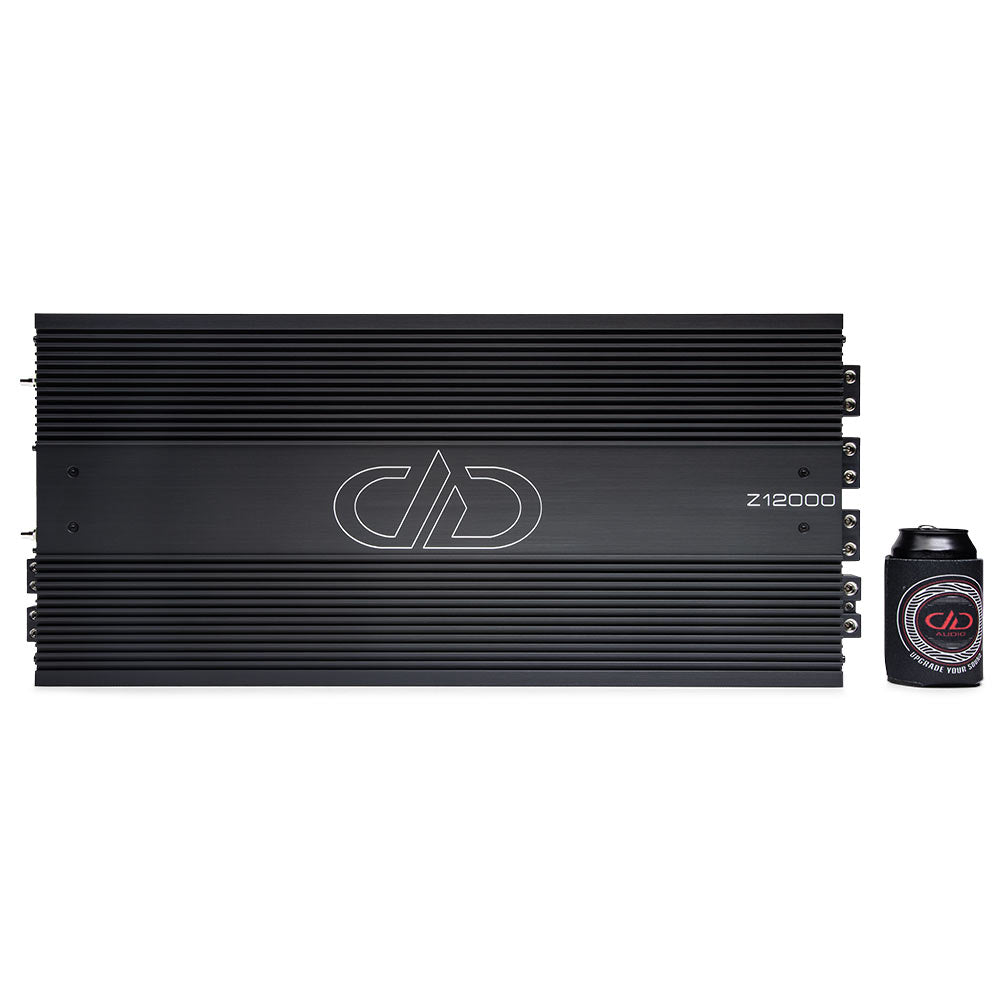

The DD Audio Z12000 is a new top-of-the-line amplifier in the legendary Z-series. This amplifier produces well over 12000 Watts of continuous power and is suitable for driving even the most demanding subwoofers!
The Z12000 features top-tier power circuit optimization.

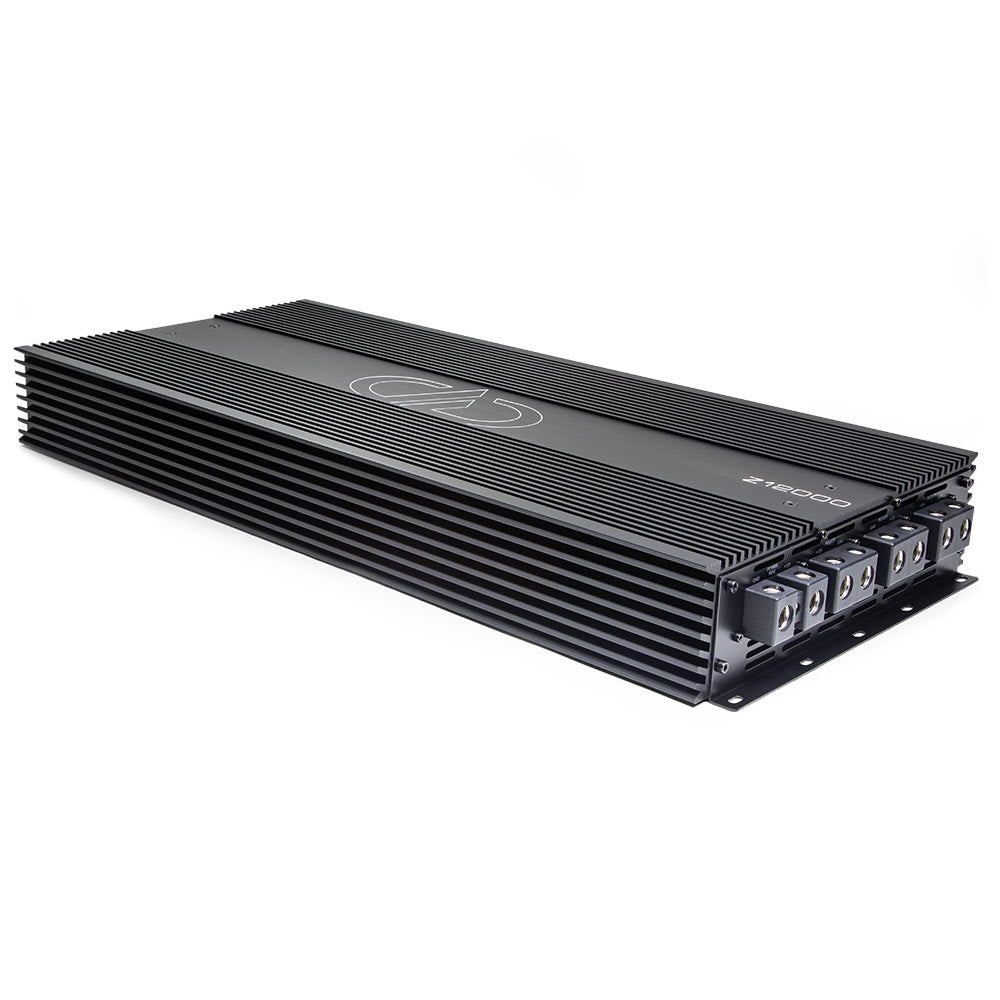

The Z12000 chassis incorporates DD Audio's unique "High Volume Air Circulation" (HVAC) thermal management system.
The mass of the heavy aluminum heatsink combined with intelligent chassis design efficiently dissipates heat, while an internal fan draws cooler air through the raised bottom panel and end panel vents to maximize effective airflow.
The Z12000 is also compatible with the DD Audio ZVL module, which allows you to link multiple amplifiers together and control them with the ZVL.
Specifications:
Operating Voltage: 9 - 16
Test Voltage: 14.4
Output Channel(s): 1
Continuous Wattage @4ohm: 4000
Continuous Wattage @2ohm: 7000
Continuous Wattage @1ohm: 12000
Dynamic Wattage: 14000
Max Current Draw (Amps): 1200
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: 92dB
Damping Factor: 200
Frequency Response (Hz): 10 - 200
Sub-Sonic Filter: 10Hz - 50Hz
Low-Pass Filter: 20Hz - 200Hz
ZVL Input: Yes
Power Wire Gauge: 4x0
Speaker Wire Gauge: 4x8
Dimensions (Inches): 27″ x 12″ x 3.125″
Dimensions (MM): 686 x 305 x 83
Shipping Weight (Lbs): 40
