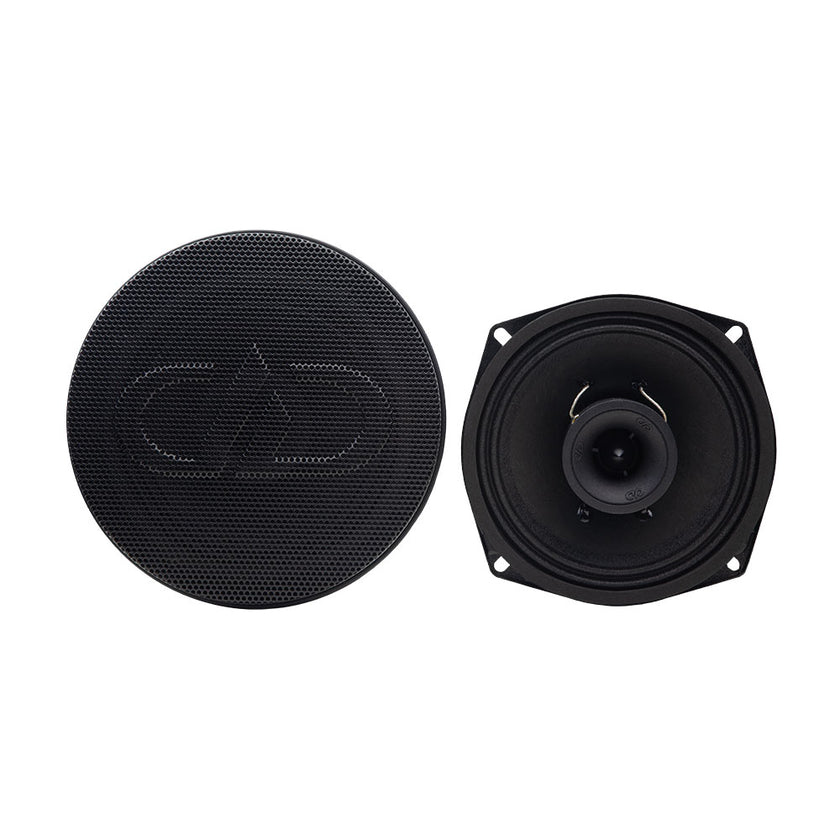

DD Audio VO-XN305-S4 - NEO Coaxial Speaker
The DD Audio VO-XN305 is a robust 5.25" coaxial speaker with neodymium magnets and excellent sound quality.
These speakers feature a polymer cone that is moisture-resistant, making them suitable for installation in cars, as well as motorcycles and boats!
For the tweeter, these new models utilize DD Audio's recently released VO-MBTN 125, which is also available for separate purchase.
The midrange and tweeter have separate speaker terminals. The tweeters have their own 6dB crossover (3500Hz).
The magnet's cooling fins can be detached to reduce the speaker's mounting depth.
Note! Includes speaker grilles.
Features
- 5.25" coaxial speaker
- VO-MBTN 125 1" tweeter
- Neodymium magnet
- 4 Ohm impedance
- 400W peak power handling
- Moisture-resistant coating
- Detachable cooling fins
- Separate terminals for midrange and tweeter
Technical Specifications
- Size: 5.25"
- Tweeter: 1" VO-MBTN 125
- Power Handling RMS: 200W
- Power Handling Peak: 400W
- Impedance: 4Ω
- Voice Coil: 1.5"
- Frequency Response: 120Hz - 20kHz
- Fs: 150Hz
- Qms: 11.73
- Qes: 0.739
- Qts: 0.696
- Vas: 5.672 liters
- Sensitivity: 93 dBSPL (midrange), 104 dBSPL (tweeter)
- Mounting Hole Diameter: 4.5" (115mm)
- Mounting Depth: 2.5" (64mm)
