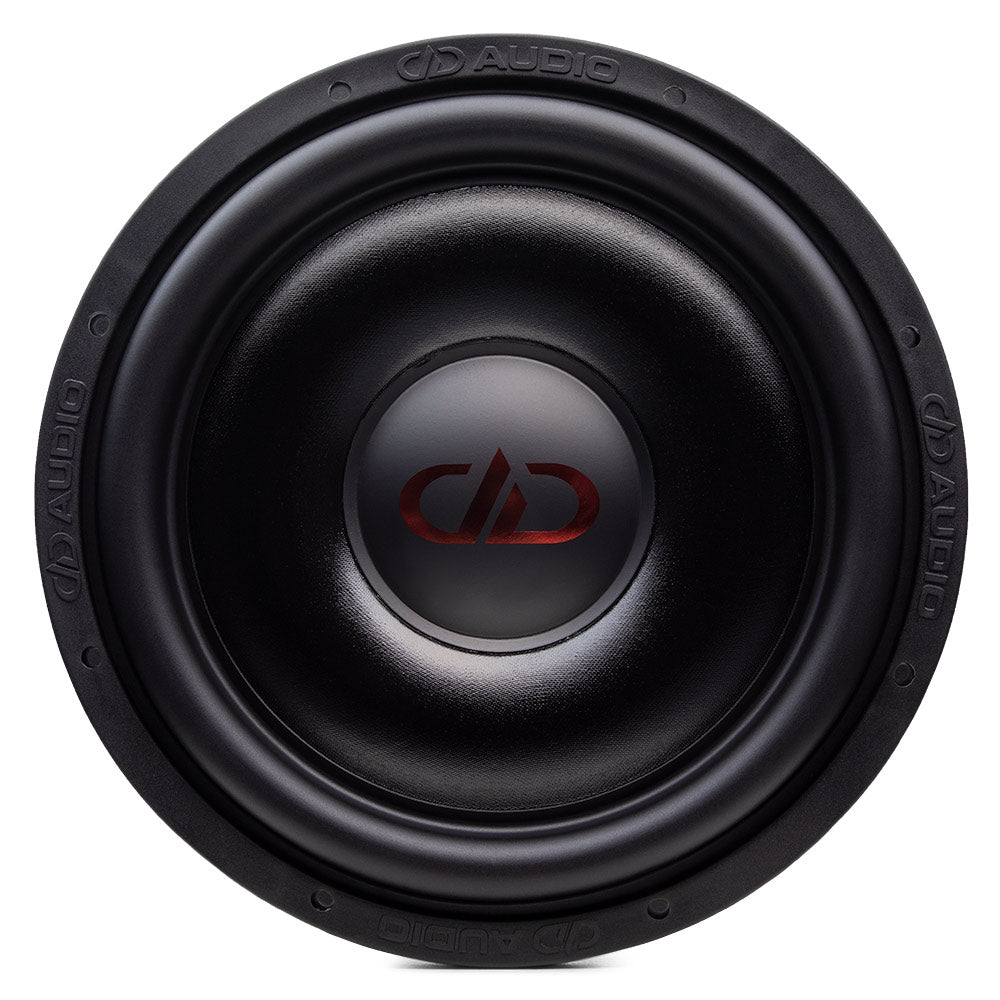

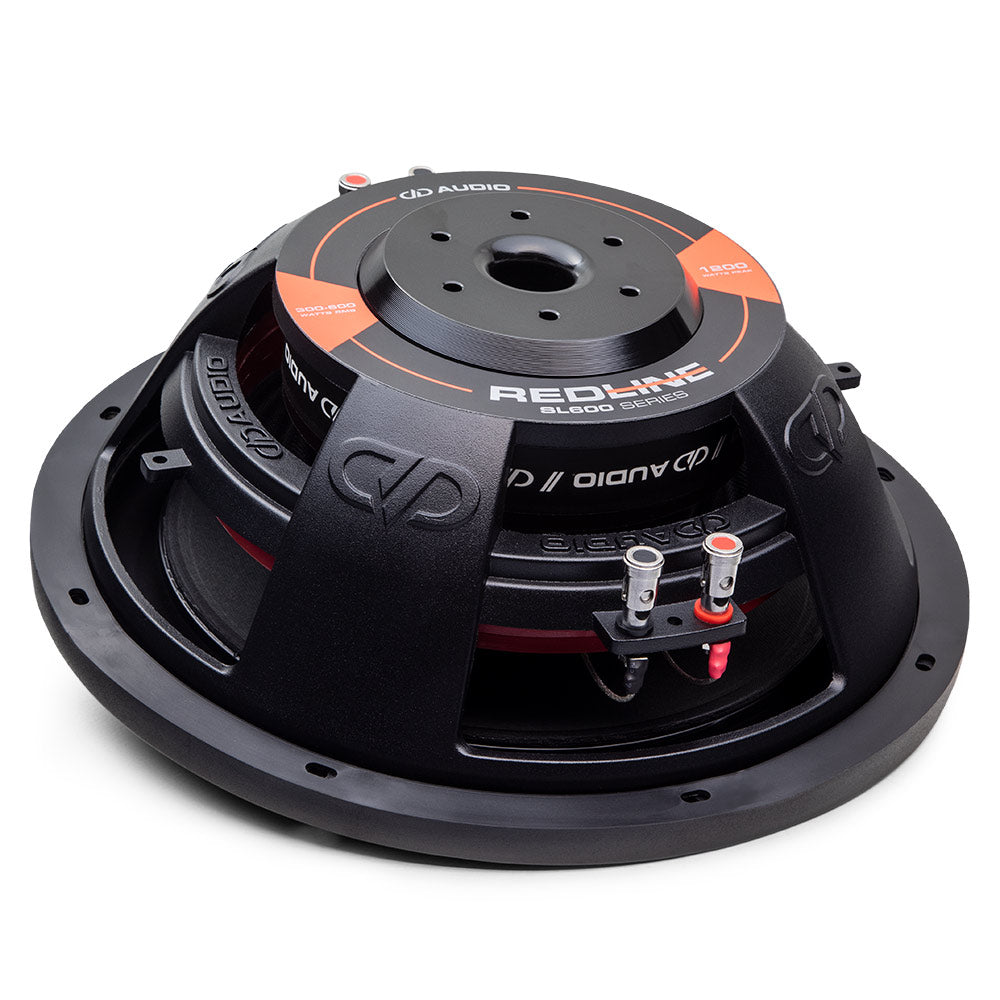

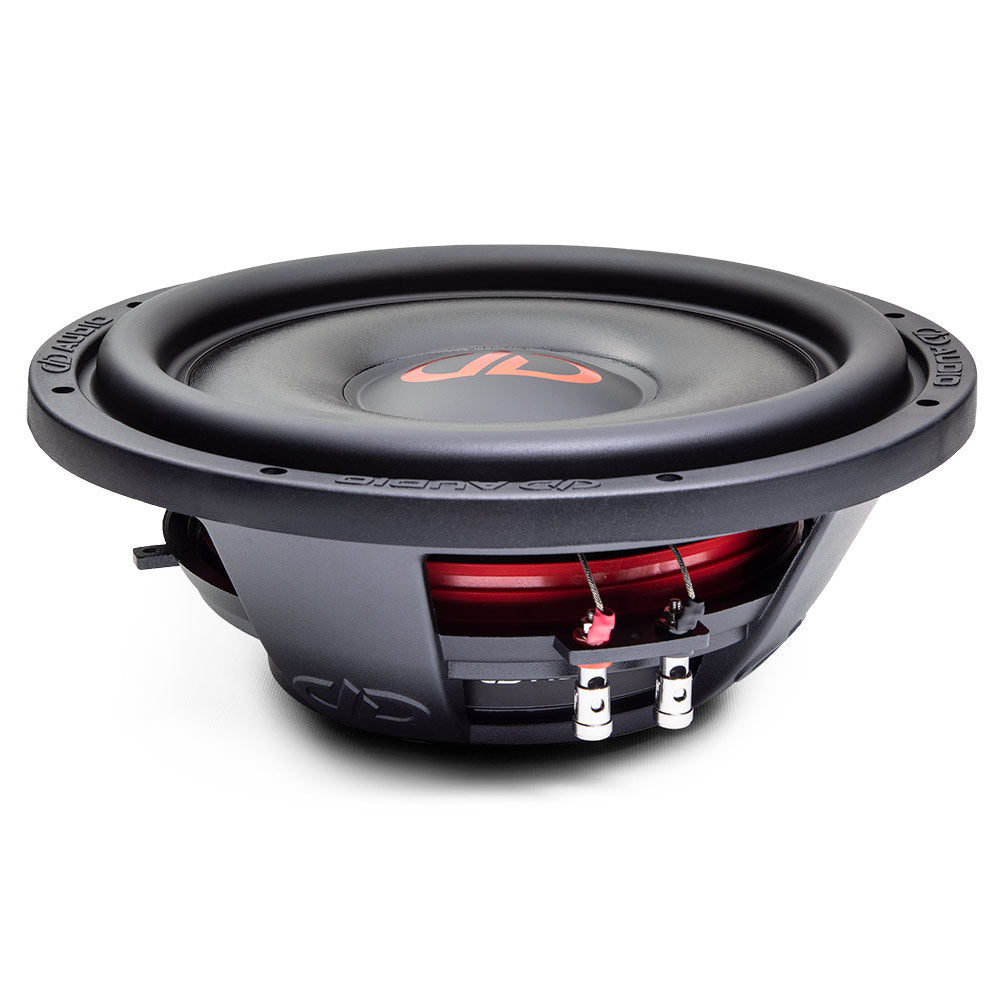

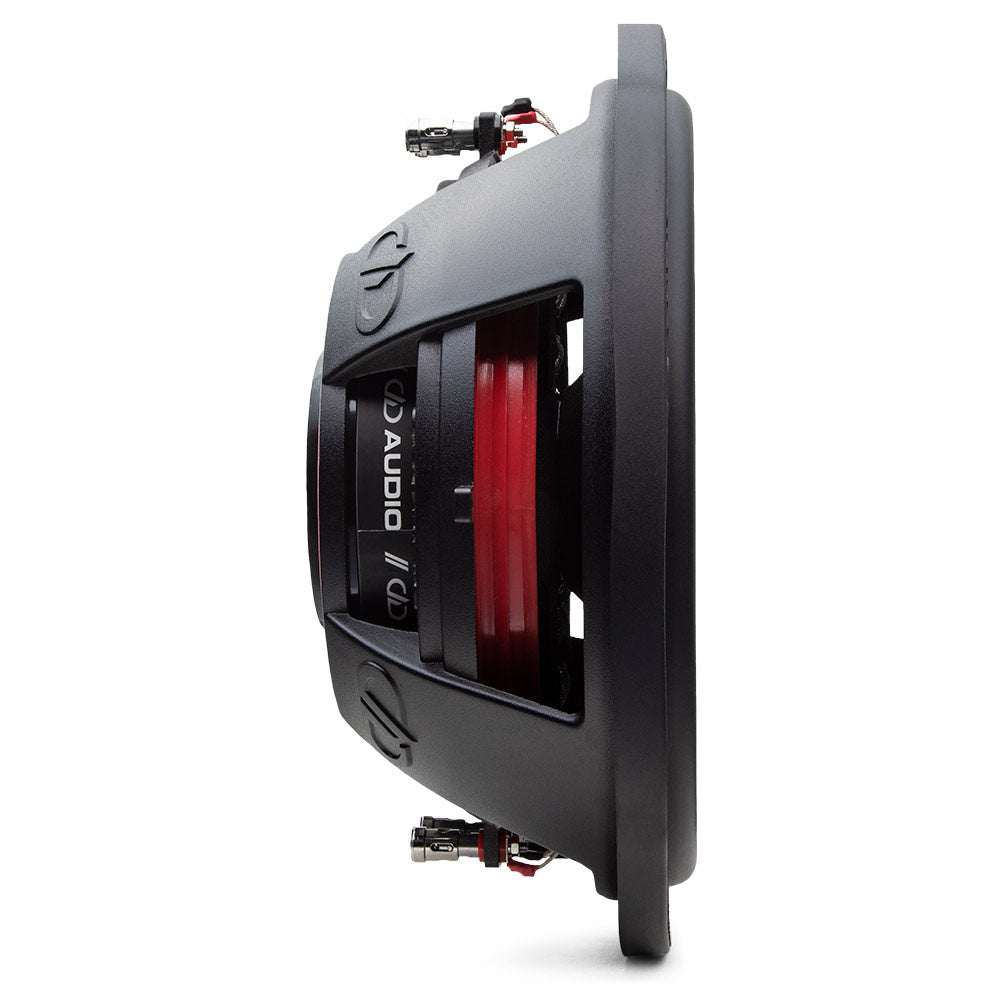

DD Audio SL612 D4
The Redline SL-612 is a very sturdy low-profile subwoofer with excellent sound quality.
A good solution if you need/want to make the subwoofer enclosure very shallow. The element is only 10.5cm deep, so it offers plenty of mounting options compared to a traditional subwoofer.
SL series 12″ subwoofers work in enclosures up to 22.5L (closed)
Specifications:
Features:
12″ (30cm) subwoofer with EROM surround.
High temperature 2.5″ voice coil
Double layer spider system
Three-layer flat diaphragm body
72oz magnet
Coil gap ventilation at rear plate
DD cast aluminum frame
Speaker size (In): 12
Watts RMS: 300 - 600
Watt peak power: 1200
Impedance: D4
Voice coil (inch): 2.5
Data:
Fs (Hz): 27
Qms: 7.906
Qes: 0.432
Qts: 0.409
Left: 68,349
Xmech (MM): 40
Xmax (MM): 14.5
Dimensions:
Frame outer diameter (cm): 31.9
Frame outer diameter with gasket (cm): 32.5
Mounting diameter(cm): 28.7
Mounting depth (cm): 10.5
Engine diameter(cm): 16.51
Motor depth(cm): 3.81
woofer displacement: 0.06 liter
Shipping weight: 8 kg
Enclosure Recommendation:
Closed cabinet: 22.5-42 liters
Bass reflex cabinet: 28-50 liters.
