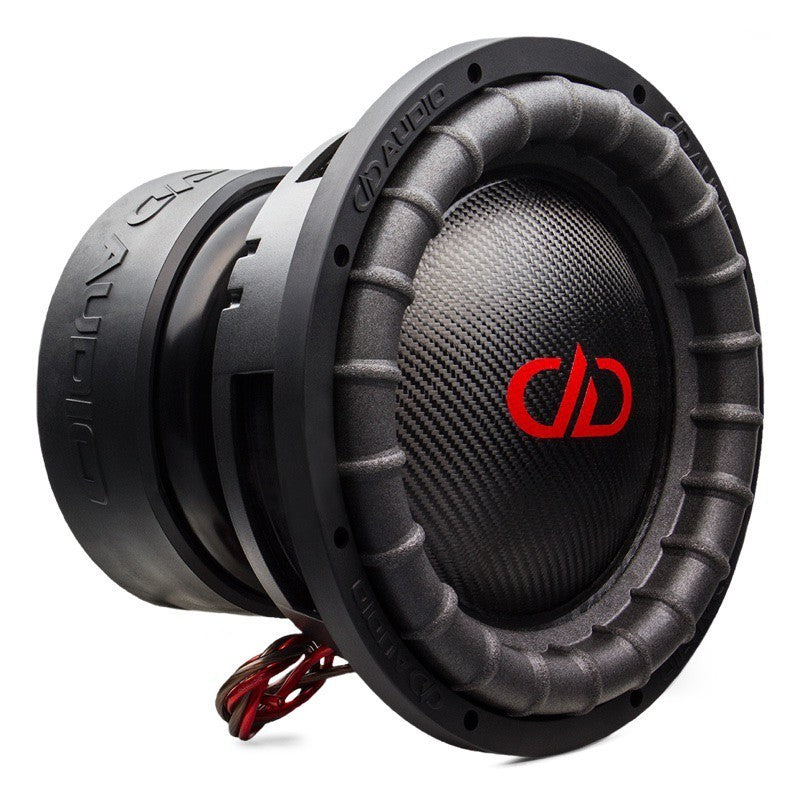

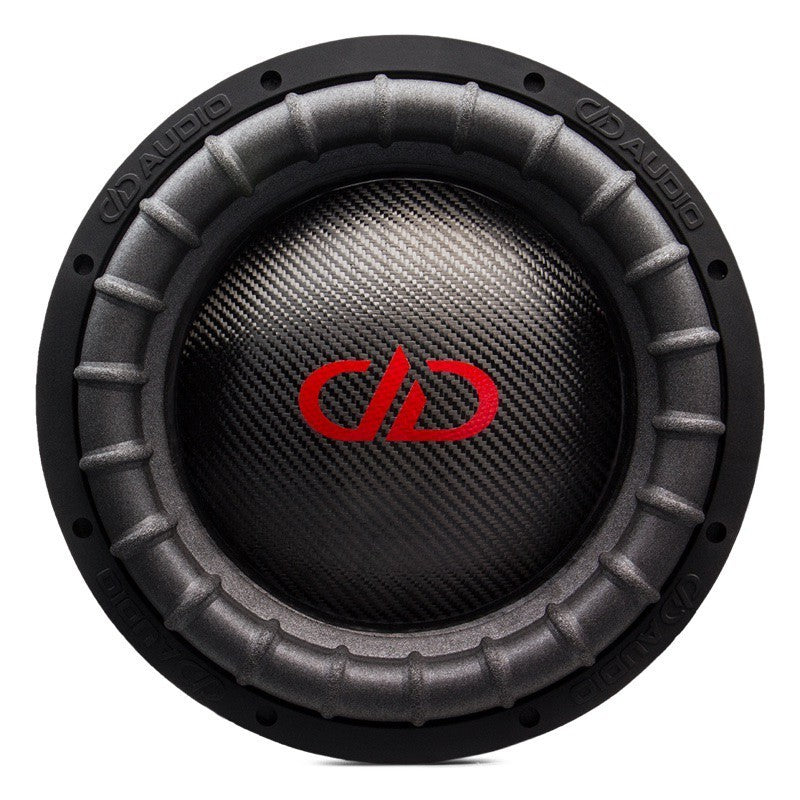

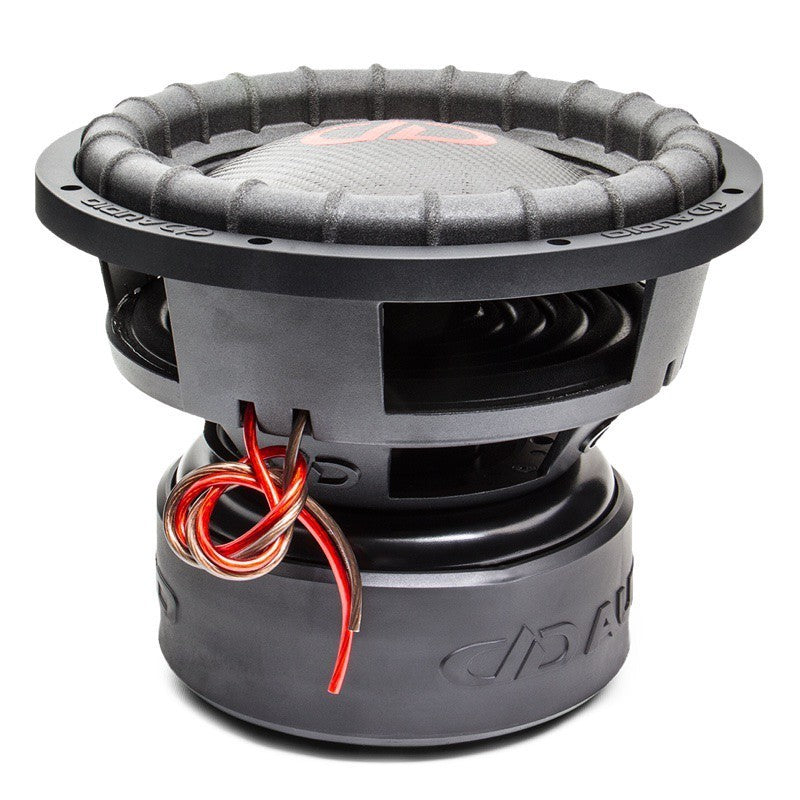

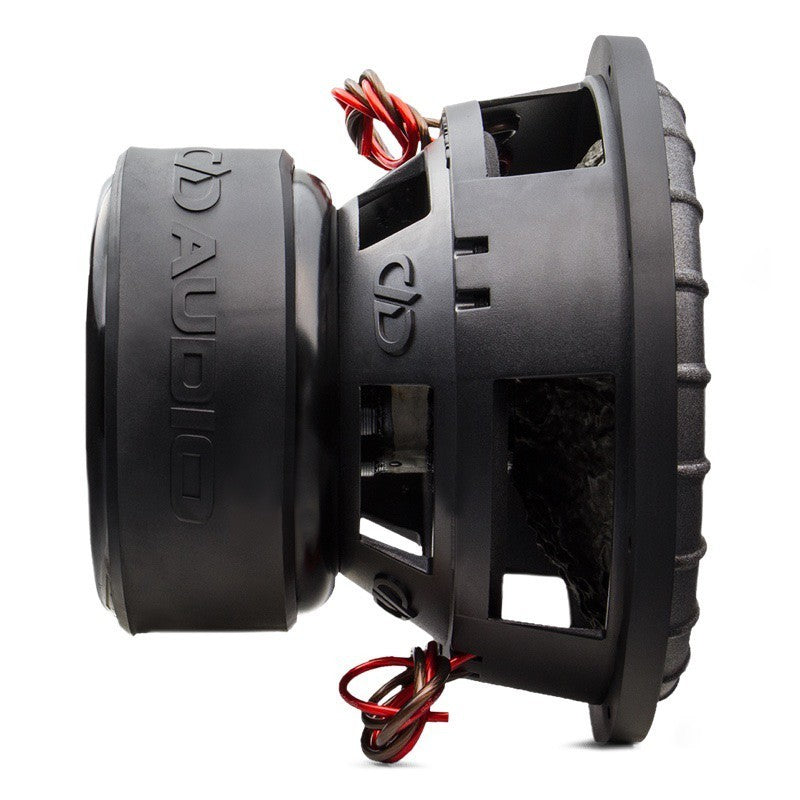

DD Audio 9515K D2 ESP
Often imitated, but never duplicated.
DD Audio's 9500 series drivers are the kind of drivers that other manufacturers try to copy. However, without success. You can feed these drivers 1000-2000 watts of continuous power and up to 8000 watts of instantaneous power. Multiple under-hangs, Free Flow cooling, eight-layer voice coils, EROM and V-Rom suspensions and a 28 mm ventilation hole in the center pole ensure that the driver lasts and works and can handle even higher powers without mucking.
This driver uses the ESP (Evolution Subwoofer Performance) design, which includes, among other things, larger diameter lower suspensions, a chassis with the required depth for the trajectory, and a top suspension and cone structure that differ from normal model series. ESP drivers are built to achieve maximum performance in their size class.
Handmade in the USA.
Specifications:
-15¡šÅsubwoofer
- cast frame
- 2 x 2 ohm voice coils
- magnet weight 31.7 kg
- 4¡šÅvoice coil diameter
- driver displacement: 9.3 liters
- recommended ported enclosure 85-170 liters (NET)
- power handling 2000 W RMS
- Peak power handling 8000 watts
- x-max: +- 22 mm
- xmech: 100 mm
- qts: 0.666
- Fs: 39.03 Hz
- Left: 52.97 liters
- mounting depth 264 mm
- cutout diameter 386 mm.
