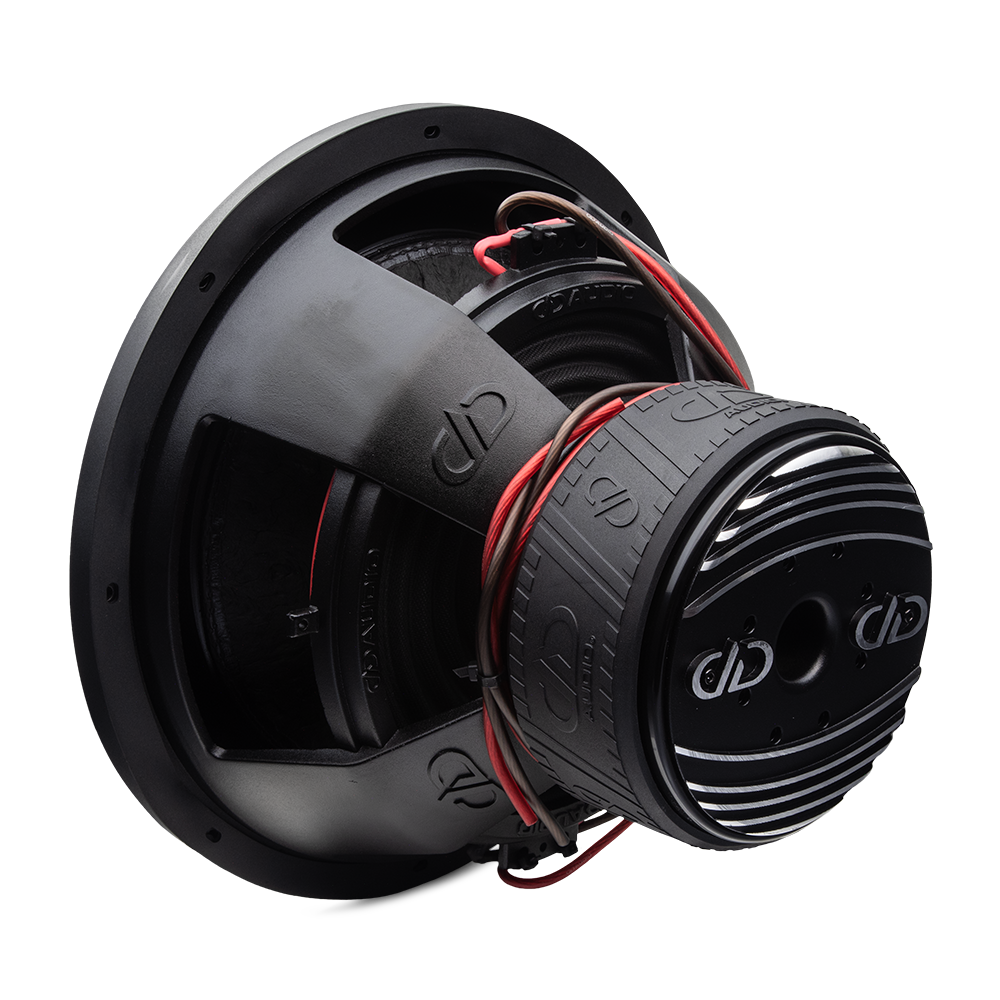

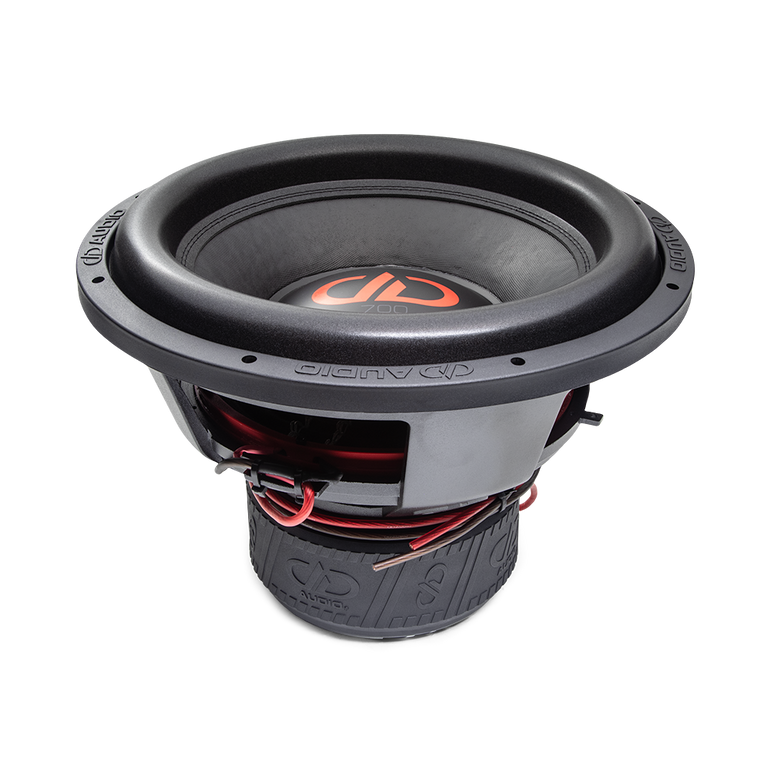

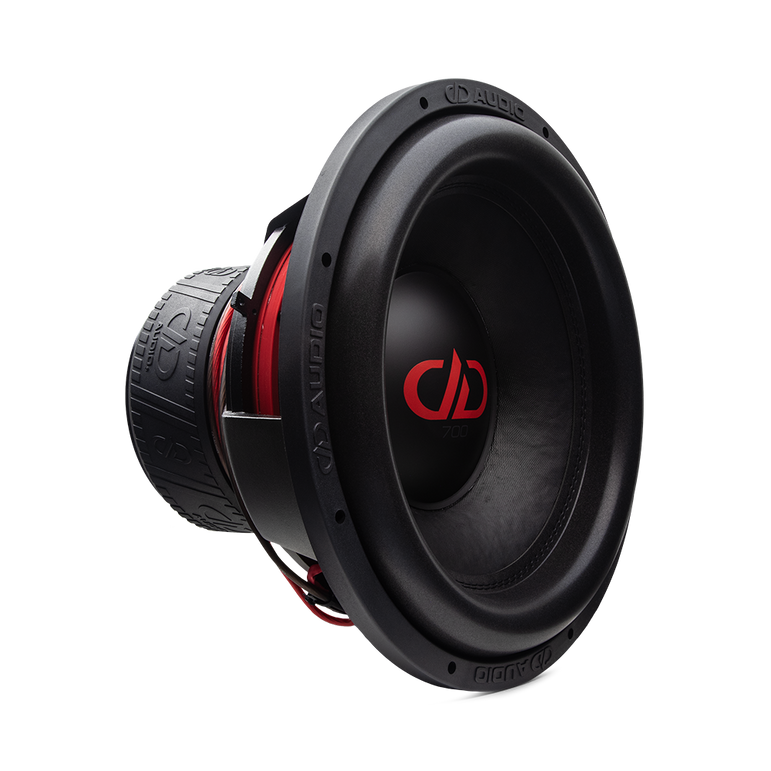

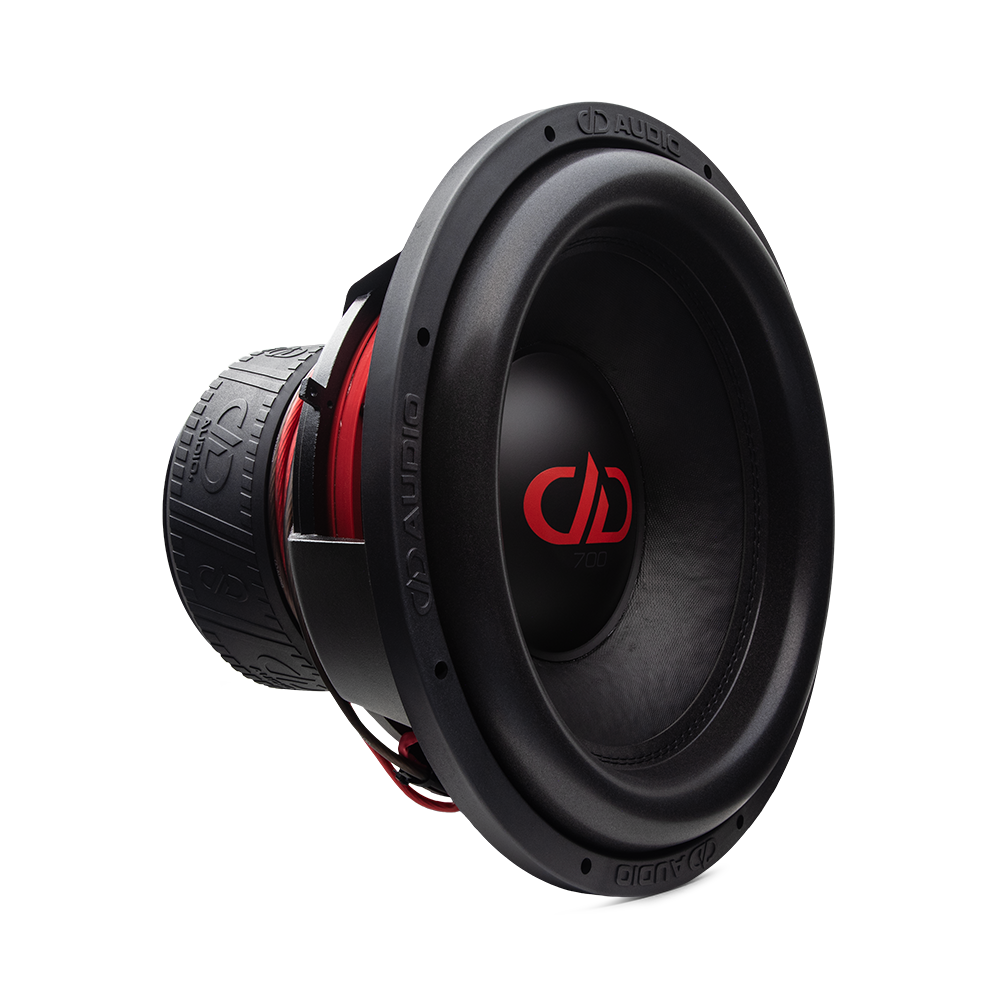

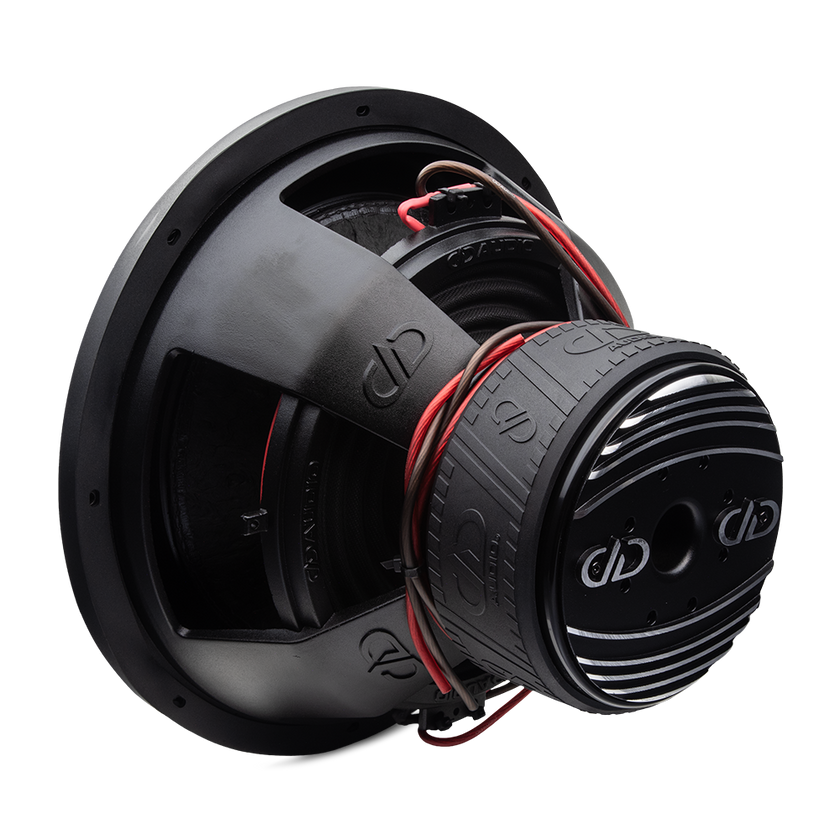

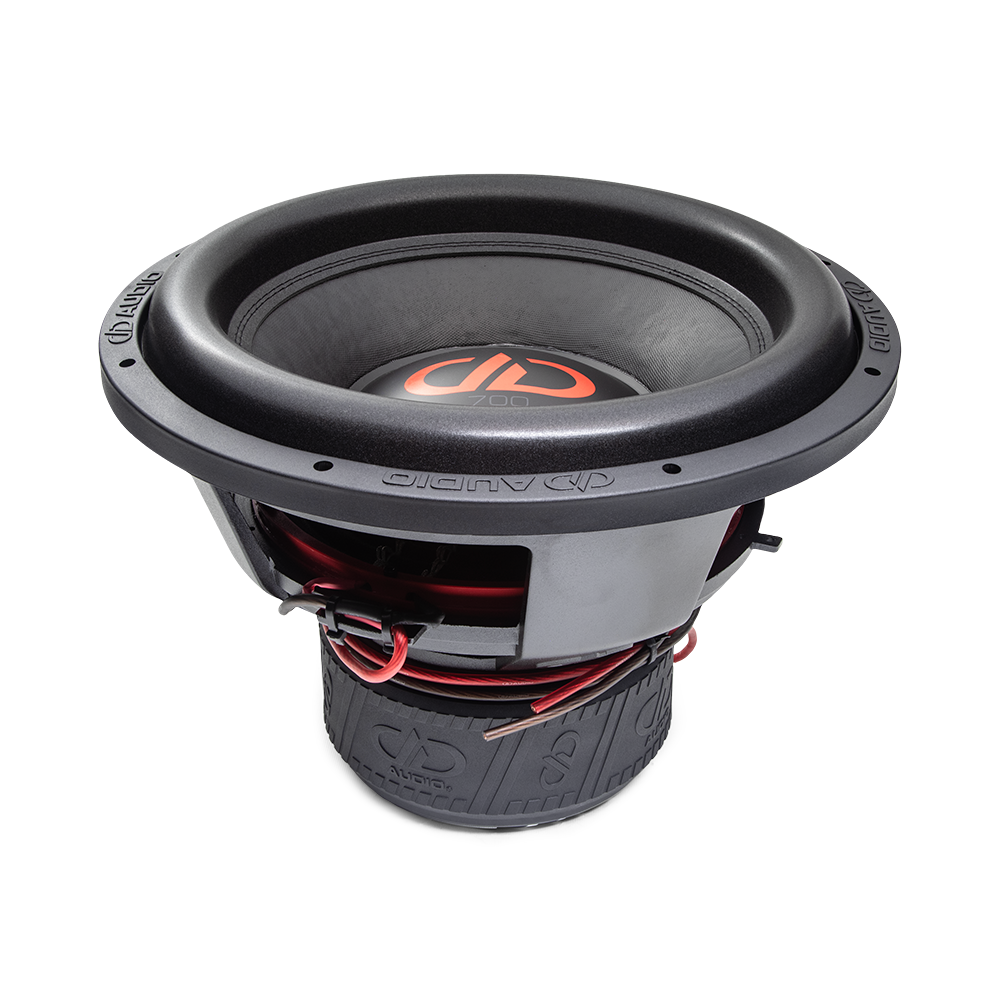

DD audio 715f-D4
The 700f series offers a selection of DD AUDIO's heavy-duty subwoofers with exceptional power handling, making them suitable for even the most demanding use!
HEAT TRANSFER
The "F" series subwoofers are designed to significantly improve heat transfer. The two-stage aluminum heatsink dissipates heat from the moving parts along with the "Free Flow Cooling System" much more effectively than a traditional motor structure.
MORE XMAX
Compared to the old d-series, the top plate and voice coil of the drivers have been enlarged, which means the model series offers an even greater excursion = MORE BASS!
With the increased excursion, the driver suspensions have also been designed to meet new requirements. A higher surround, which is attached to the cone with double stitching. The multi-layer spider ensures better control, tighter bass, and longer durability for the driver.
The Redline 700f series is available with 2x2 or 2x4 ohm voice coils. The coil diameter is 3″. 10″, 12″, and 15″ drivers are available.
- 15″ subwoofer
- 3″ voice coil wound of Made in USA wire
- 2x 4 ohms
- alucast frame with dd-logos
- power handling 1500 W RMS, 4500 W Peak
- weight: N/A
- mounting diameter: 352.4 mm
- mounting depth: 238.1 mm
- x-mech: 100 mm
- x-max: +- 22 mm
- fs: 30.25 Hz
- qts: 0.6269
- vas: 62.47 Liter
- recommended ported enclosure: 85-170 liter ( NET )
- recommended sealed enclosure: N/A
