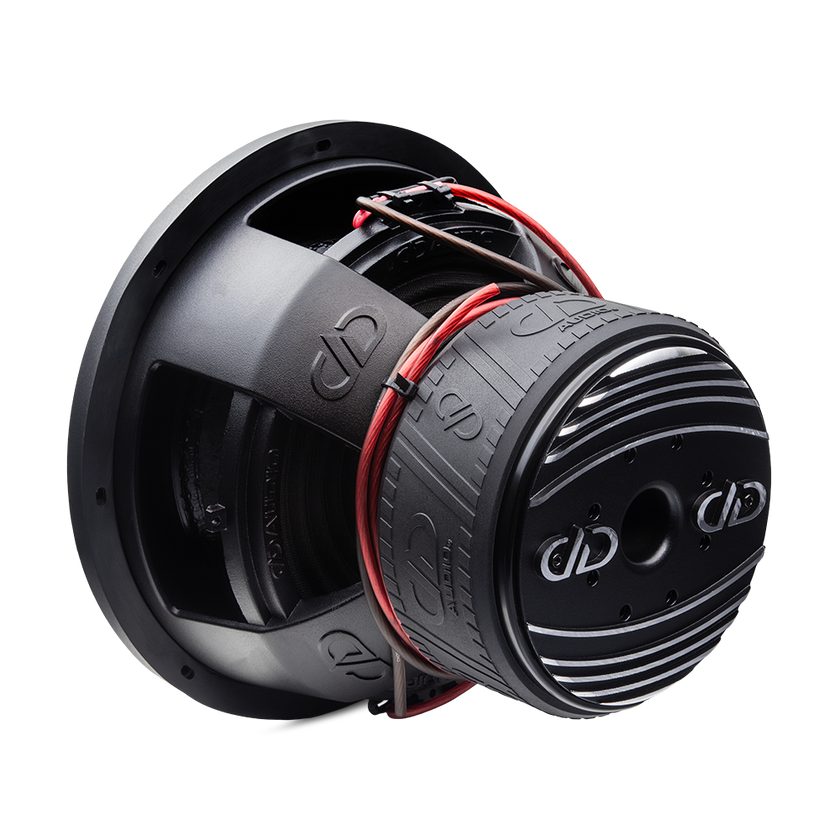

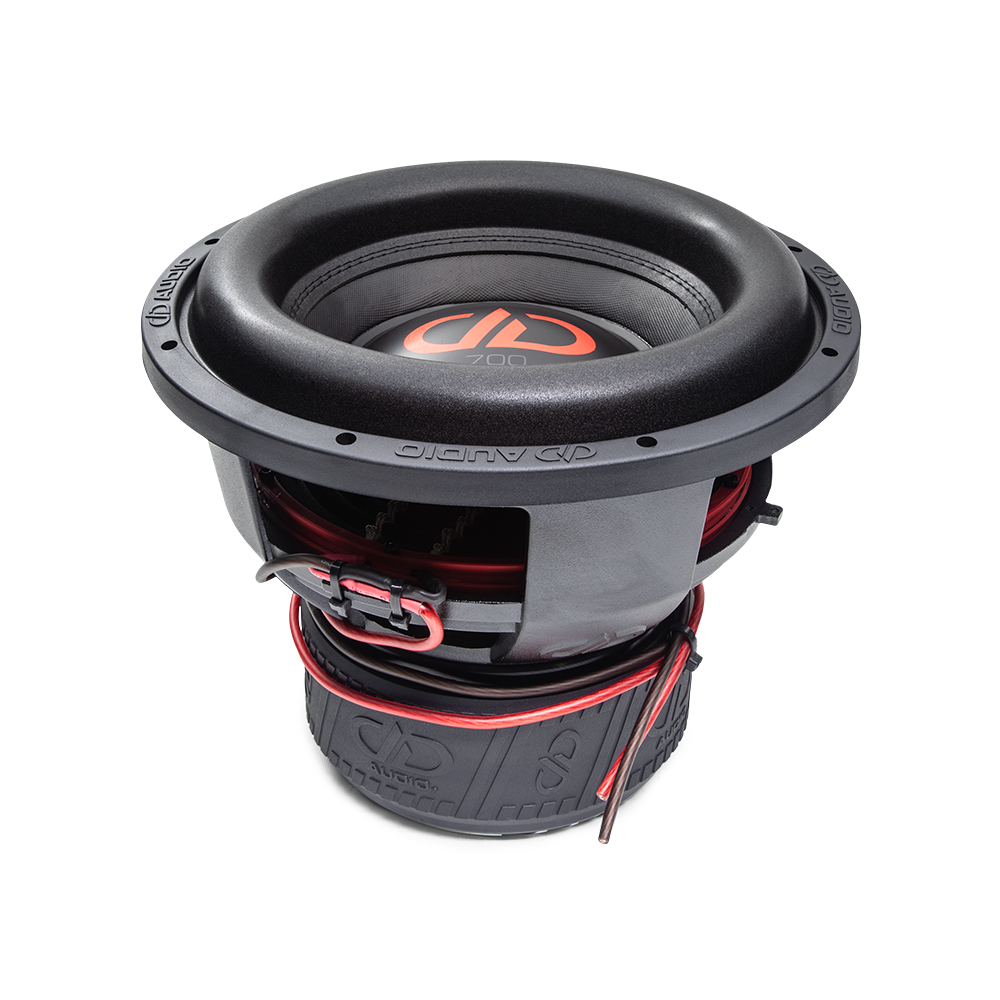

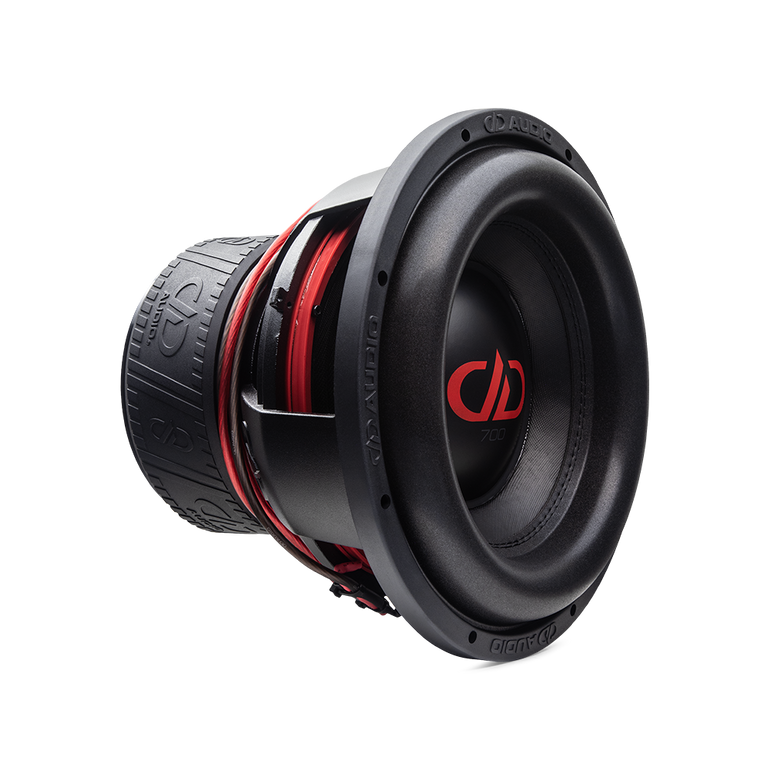

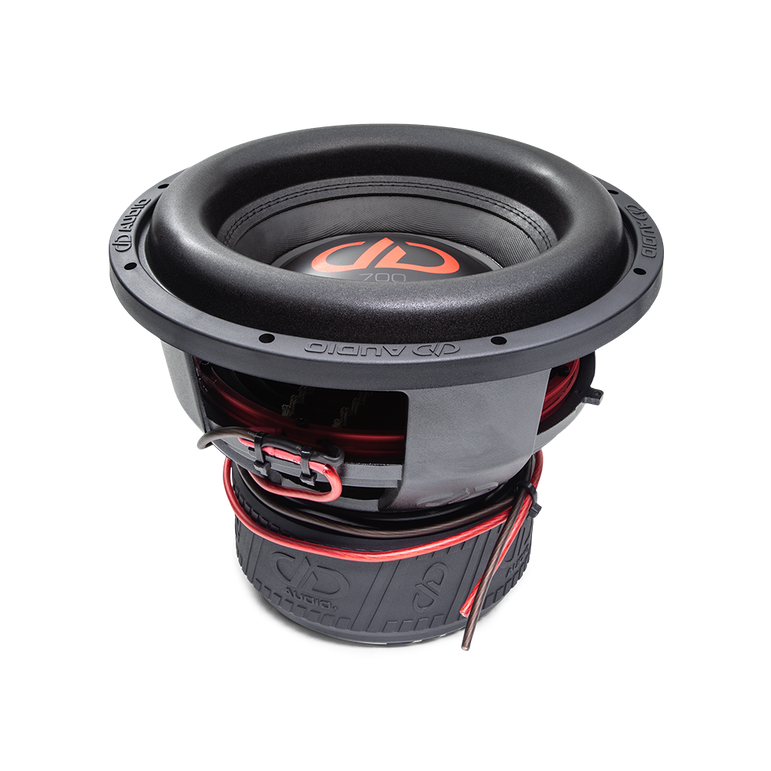

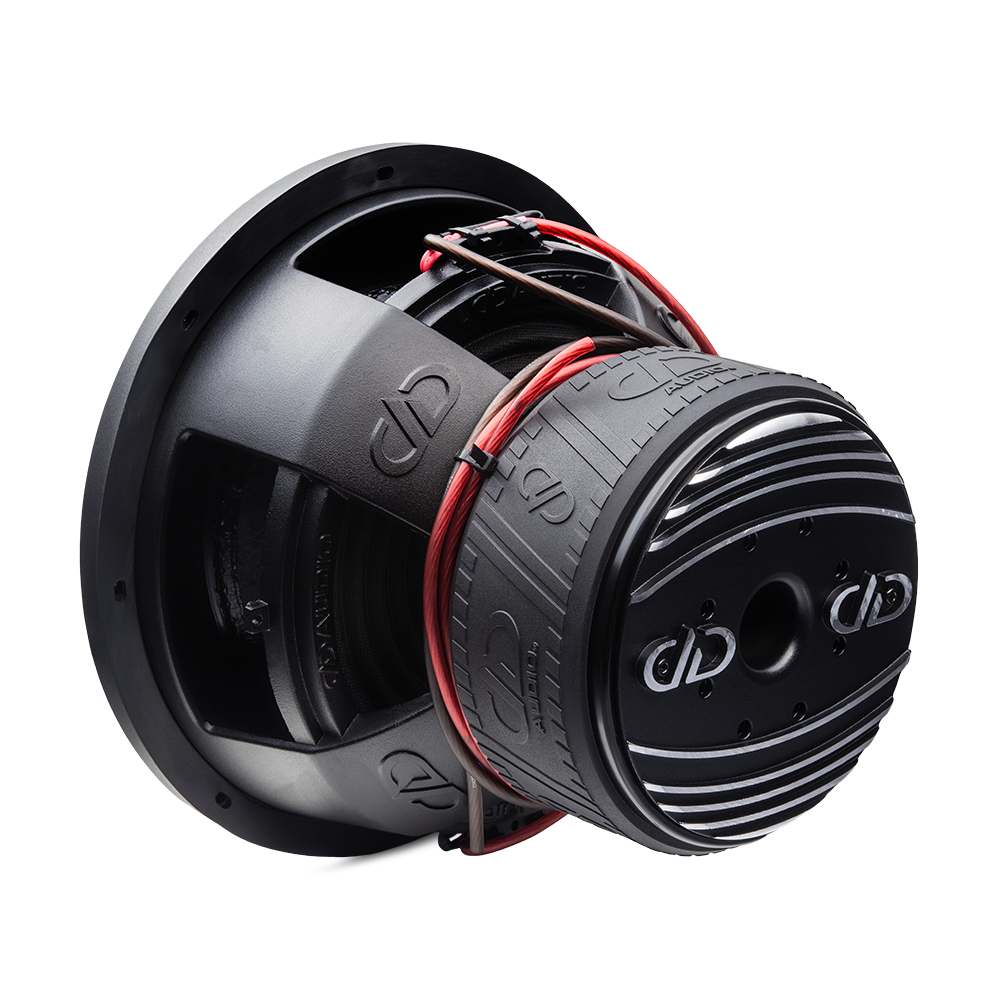

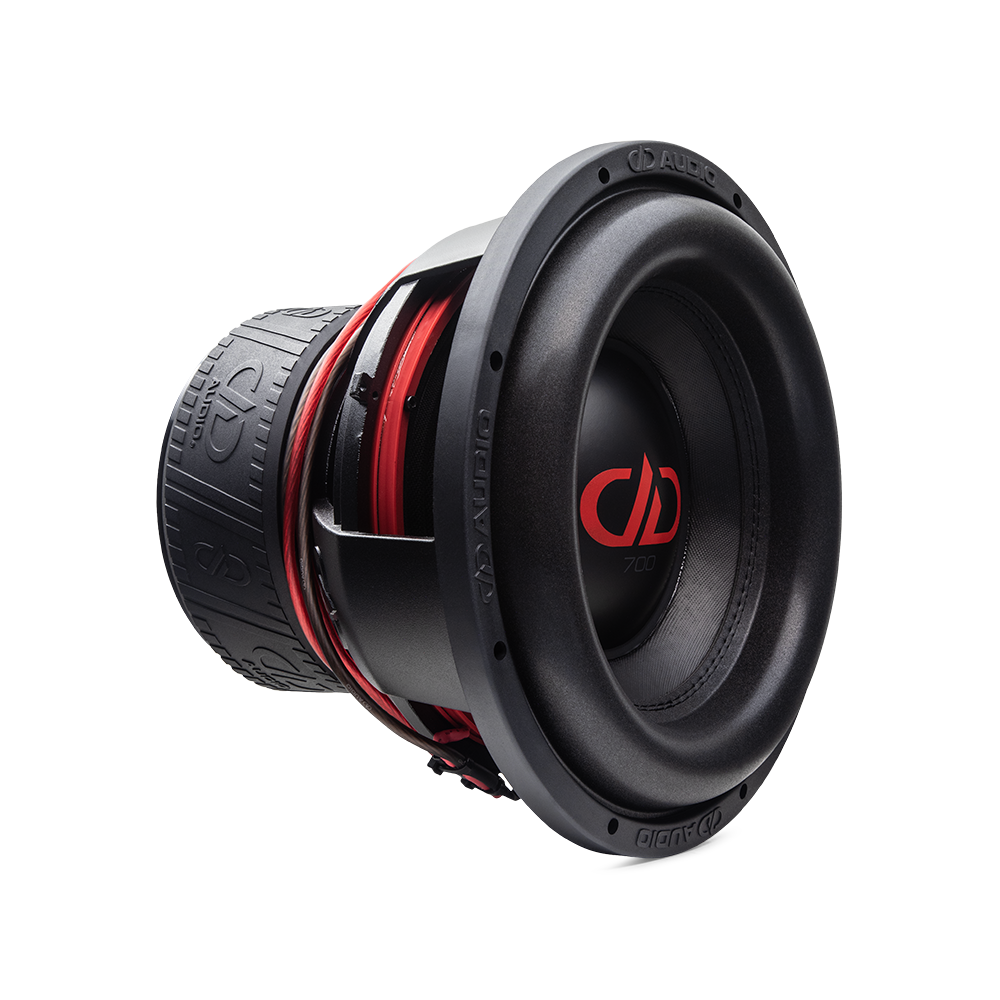

DD Audio 712f-D2 – Powerful 12" Subwoofer for Demanding Use
The 700f-series offers a selection of DD Audio's robust subwoofers with exceptional power handling. They are also perfectly suited for more demanding use.
Heat Dissipation
The F-series subwoofers are designed to significantly improve heat dissipation. The two-stage aluminum heatsink, combined with the Free Flow Cooling System, dissipates heat from the moving parts much more effectively than a traditional motor structure.
Greater Excursion
Compared to the old D-series, the top plate and voice coil have been increased, which means even greater excursion – and thus more bass. The higher surround is attached to the cone with double stitching, and the multi-layer spider ensures better control, tighter bass, and longer durability.
Technical Specifications
- Diameter: 12" (300 mm)
- Voice coil: 3" (75 mm), Made in USA wire
- Impedance: 2×2Ω (Dual Voice Coil)
- RMS Power: 1500W
- Peak Power: 4500W
- Fs (resonant frequency): 32.13 Hz
- Qts: 0.4749
- Vas: 24.23 liters
- X-max: ±22 mm
- X-mech: 100 mm
- Mounting hole diameter: 288.9 mm
- Mounting depth: 228.6 mm
- Frame: Cast aluminum frame with DD logos
Enclosure Recommendation
- Ported: 49–85 liters (net)
- Sealed: not recommended
