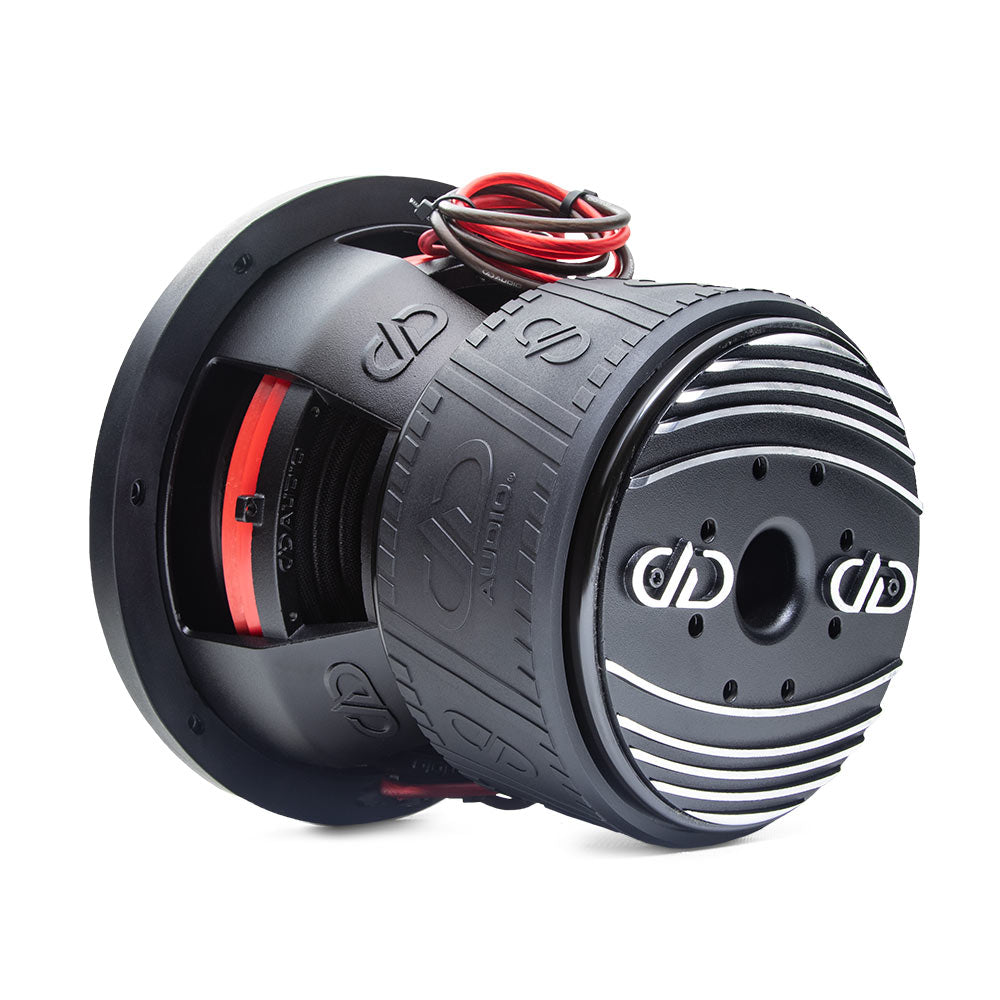

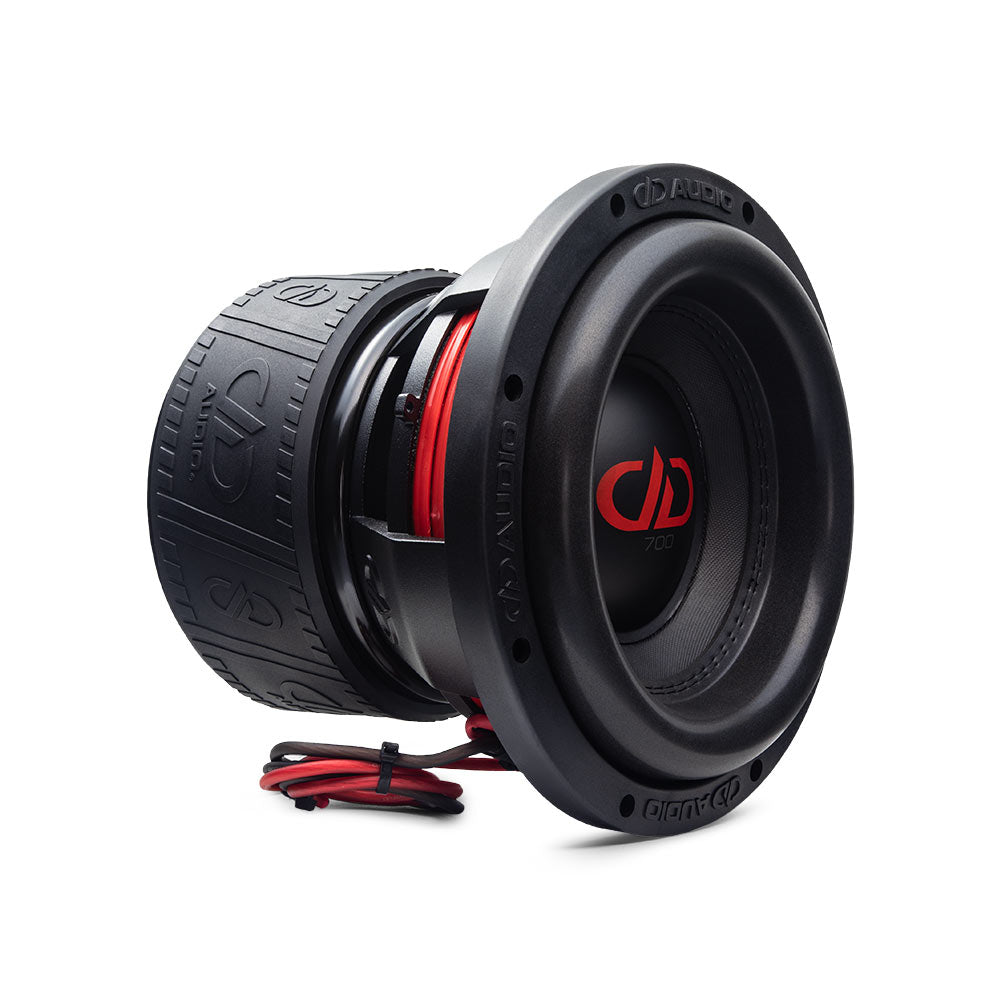

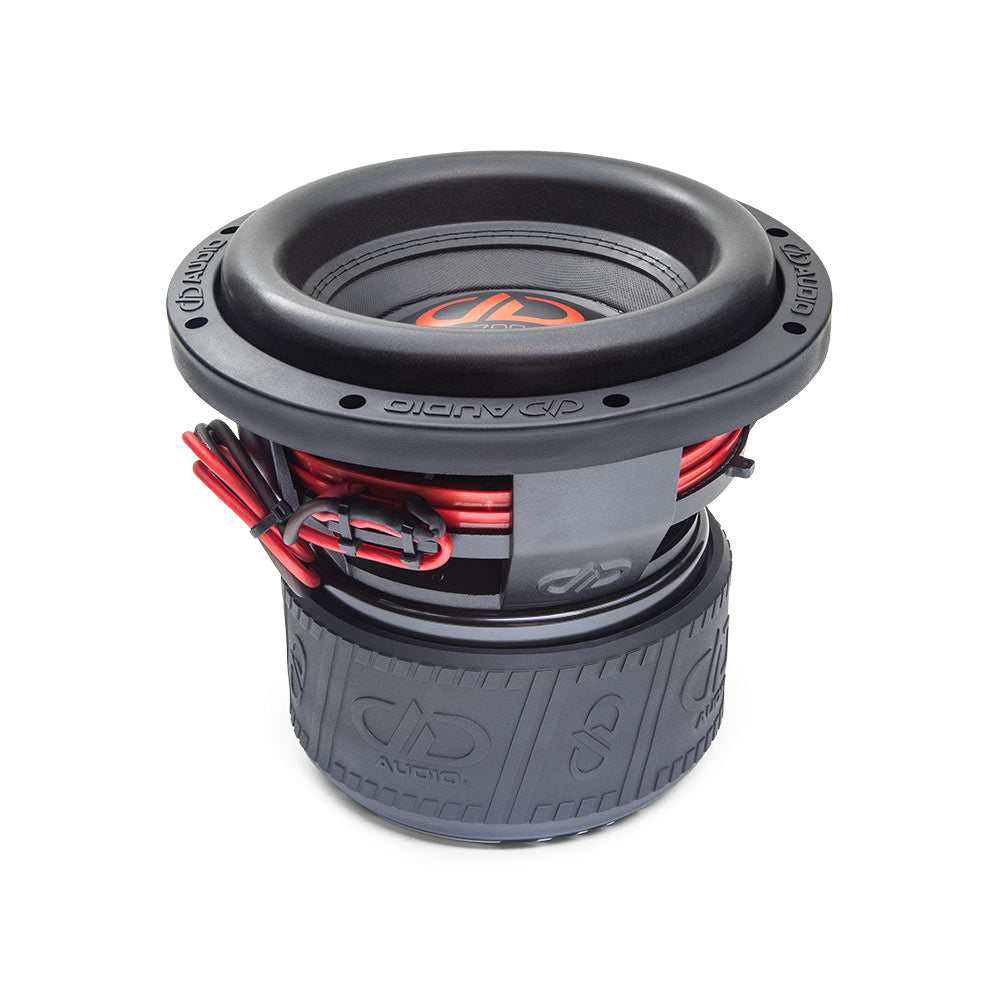

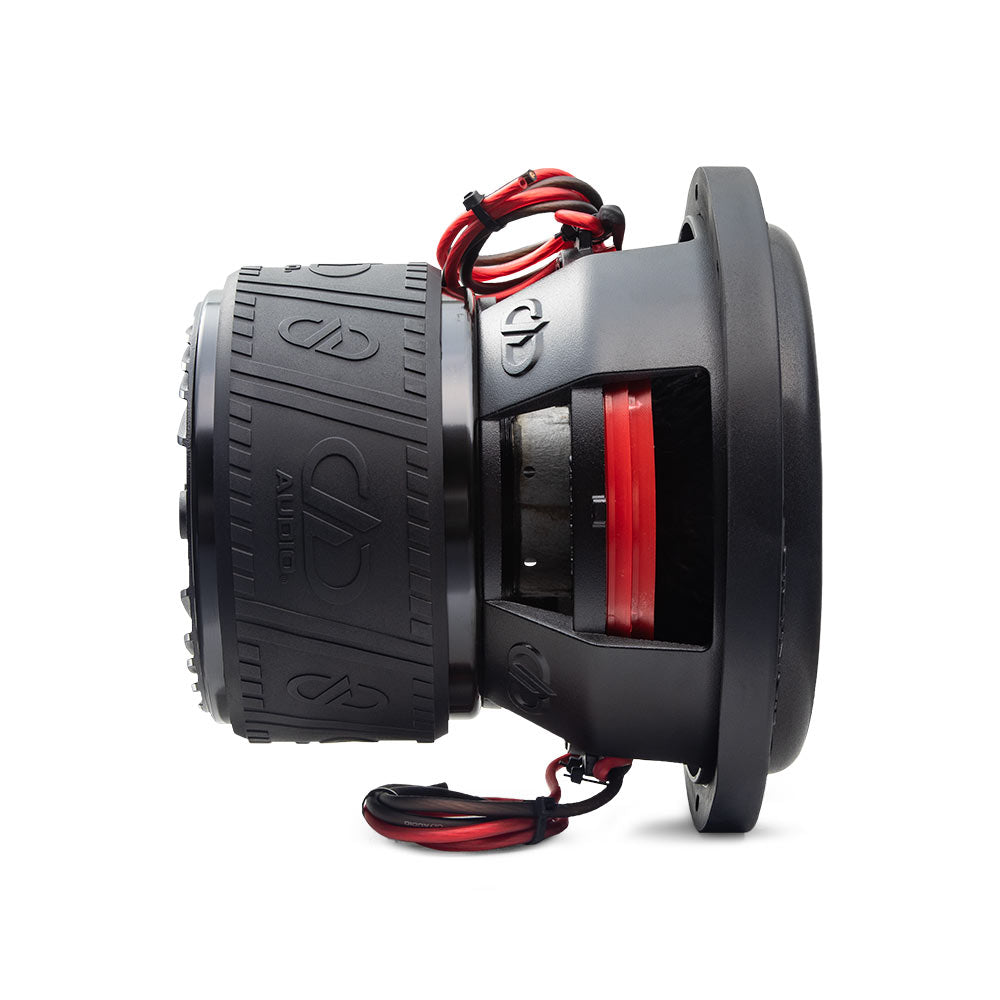

DD AUDIO 710g-D4

DD AUDIO 710g-D4

• 10″ subwoofer
• 3-inch voice coil
• Triple magnet structure
• Power handling: 4500 W
• 2 x 4 ohm
• Xmax 26 mm (one-way)

The DD Audio 700 "G" revision includes significant improvements to the motor structure: longer voice coils, a thicker top plate (and thus a deeper magnetic gap), and a more robust magnet assembly. These features allow for extremely high excursion, efficient heat dissipation, and better voice coil control, resulting in a more powerful, cleaner, and impactful bass (the Xmax value of the 10-inch model increased to 26 millimeters (one-way)).

With the increased excursion, the suspensions of the elements have also been designed to meet the new requirements. A taller surround, attached to the cone with double stitching. The multi-layer spider guarantees better control, tighter bass, and longer durability for the element.

The 700g series is available with 2x2 or 2x4 ohm voice coils. The coil diameter is 3″. 10″, 12″ and 15″ elements are available.
