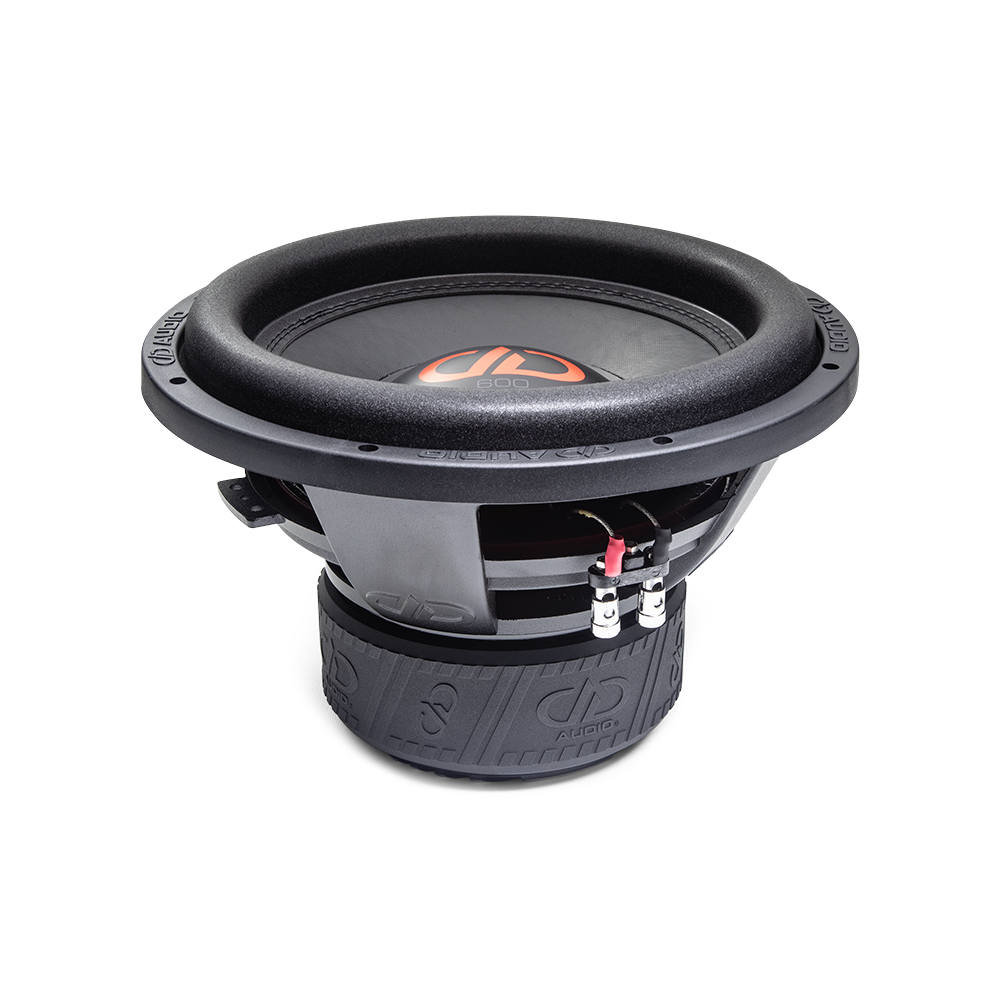

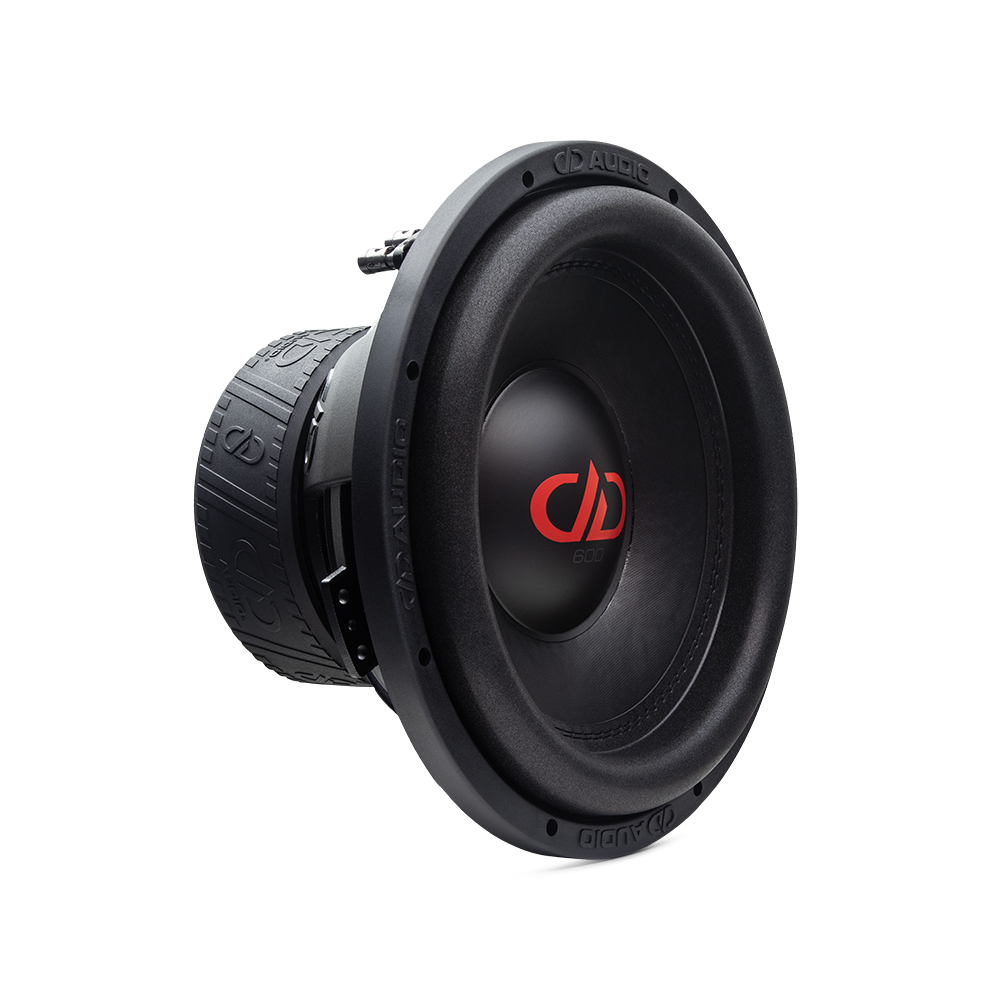

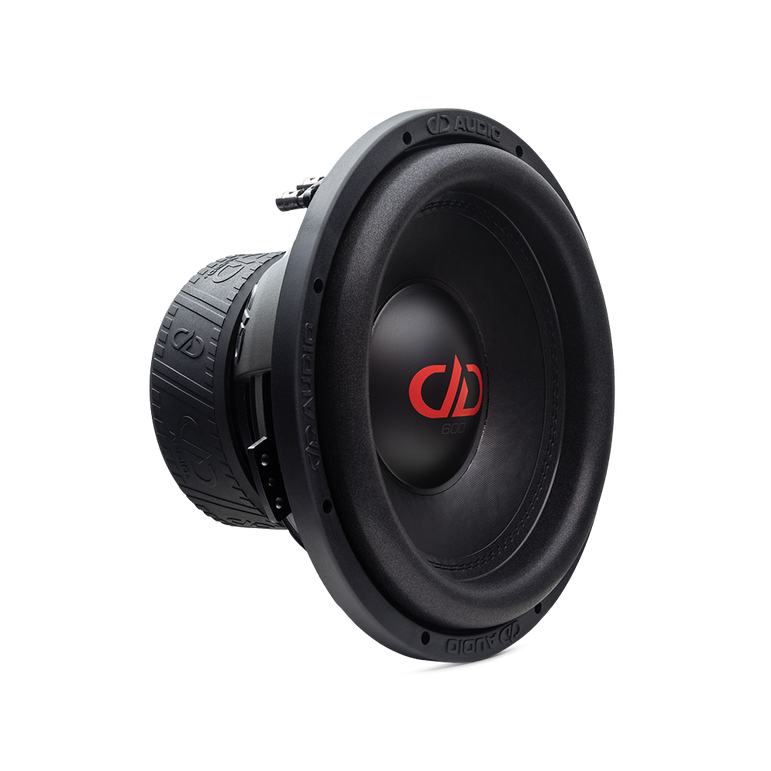

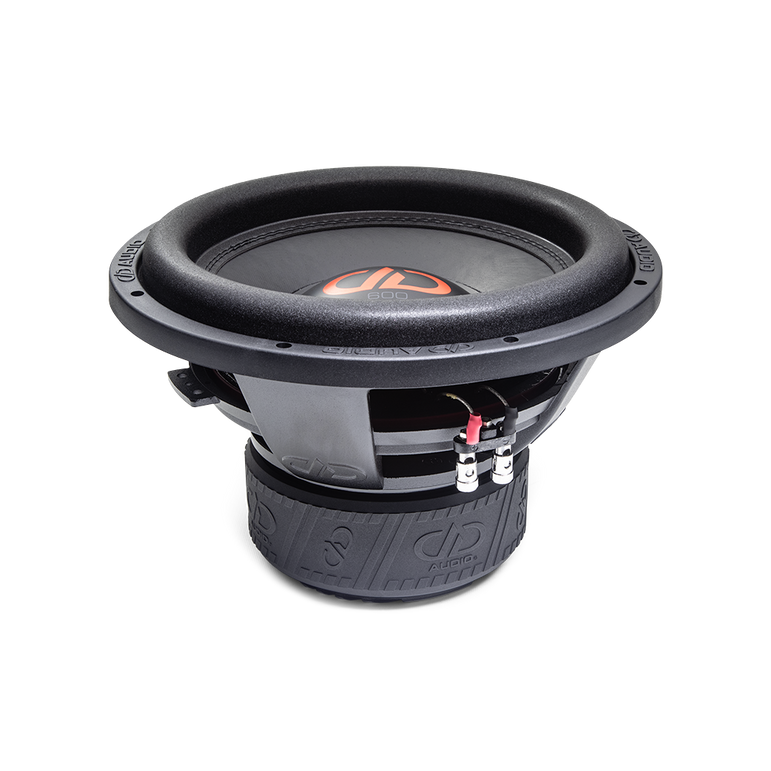

DD Audio 612f-D2
The new Redline 600f series offers some of DD Audio's most popular subwoofers, specifically designed for excellent power handling and tough daily use.
Efficient Heat Dissipation

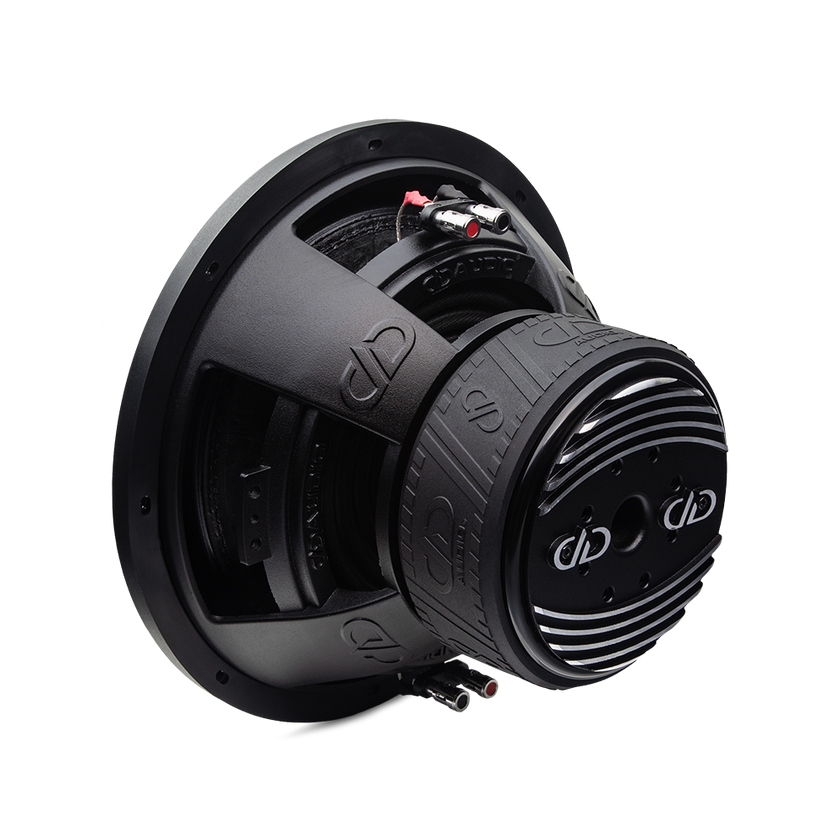

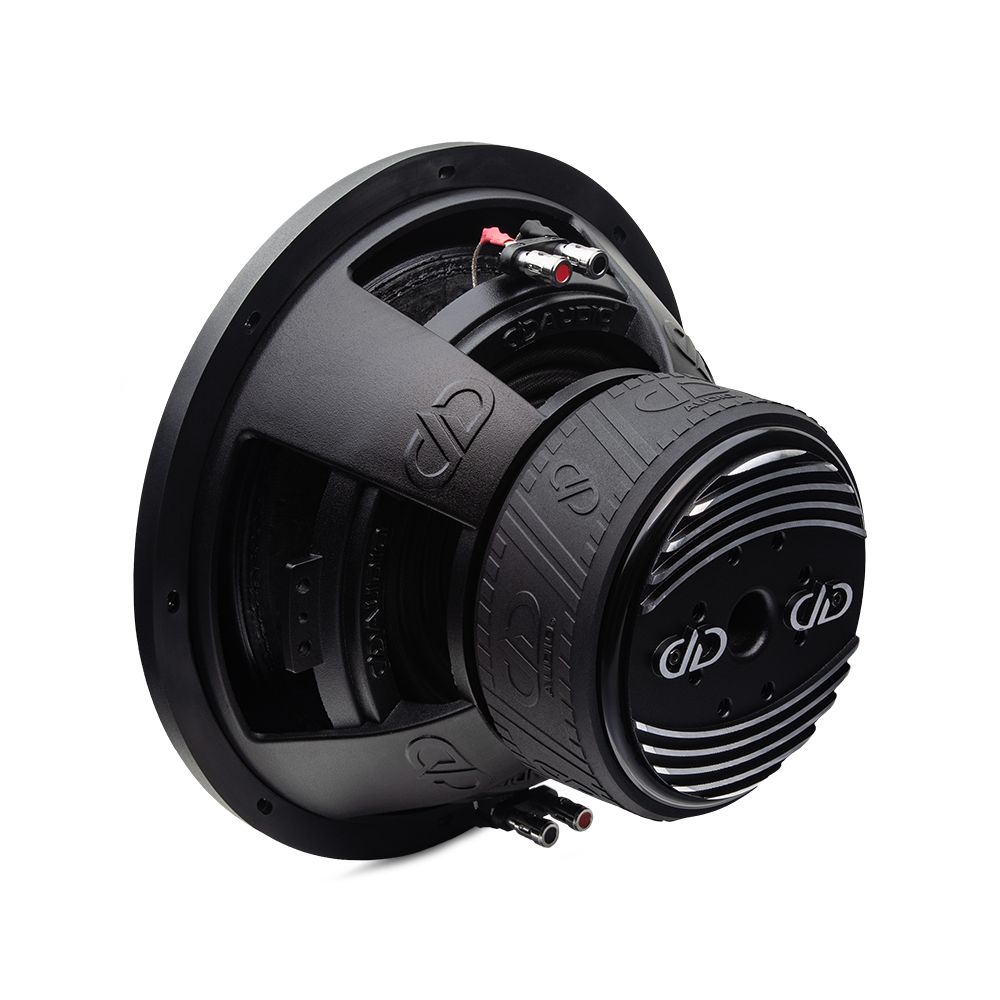

The two-stage aluminum heatsink dissipates heat from the moving parts in conjunction with the Free Flow Cooling System technology – significantly more efficiently than a traditional motor structure.
More XMAX = More Bass
The top plate and voice coil have been enlarged compared to the old d-series, which means greater excursion and deeper bass. The higher surround is attached to the cone with double stitching, and the multi-layered spider ensures tighter bass and longer durability.
Technical Specifications
- Size: 12"
- Voice coil: 2.5", 2 x 2 Ω (D2)
- Power handling: 1,000 W RMS / 3,000 W Peak
- Mounting diameter: 292.1 mm
- Mounting depth: 187 mm
- X-max: ±22 mm
- X-mech: 60 mm
- Fs: 31 Hz
- Qts: 0.4075
- Vas: 81.16 l
- Recommended ported enclosure: 49–78 l (net)
- Sealed enclosure: not recommended
- Frame: cast aluminum frame with DD logos
- Weight: 12.3 kg
