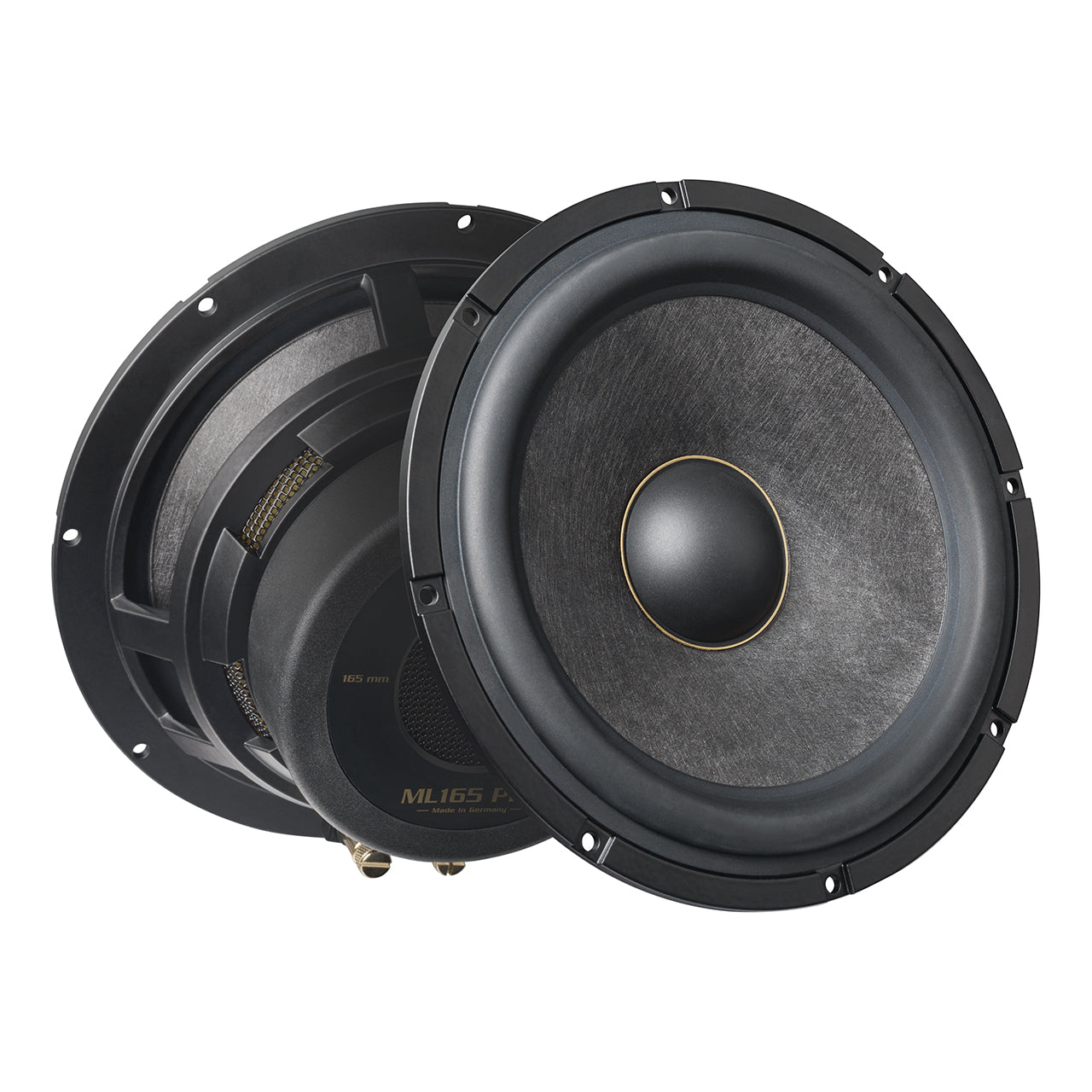

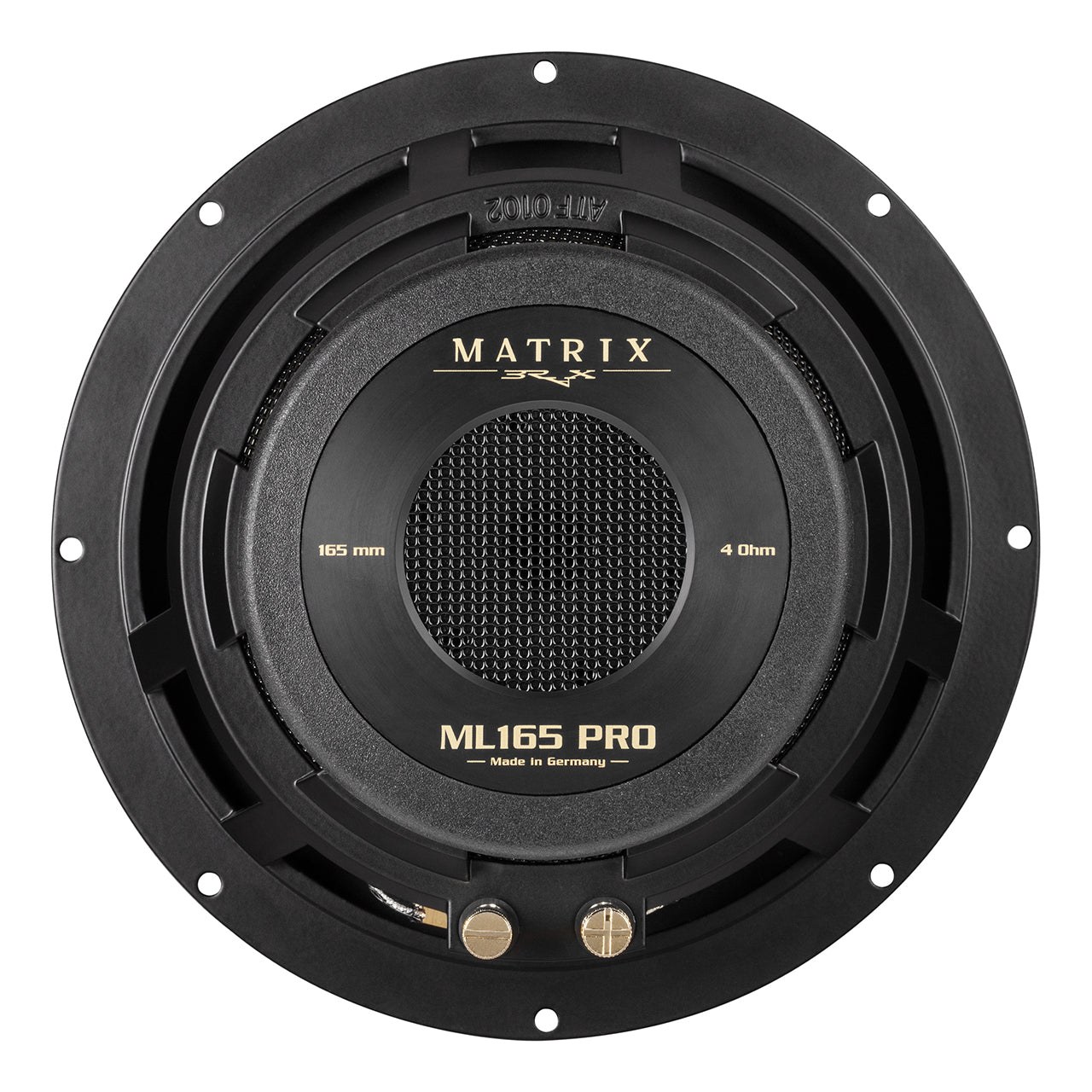

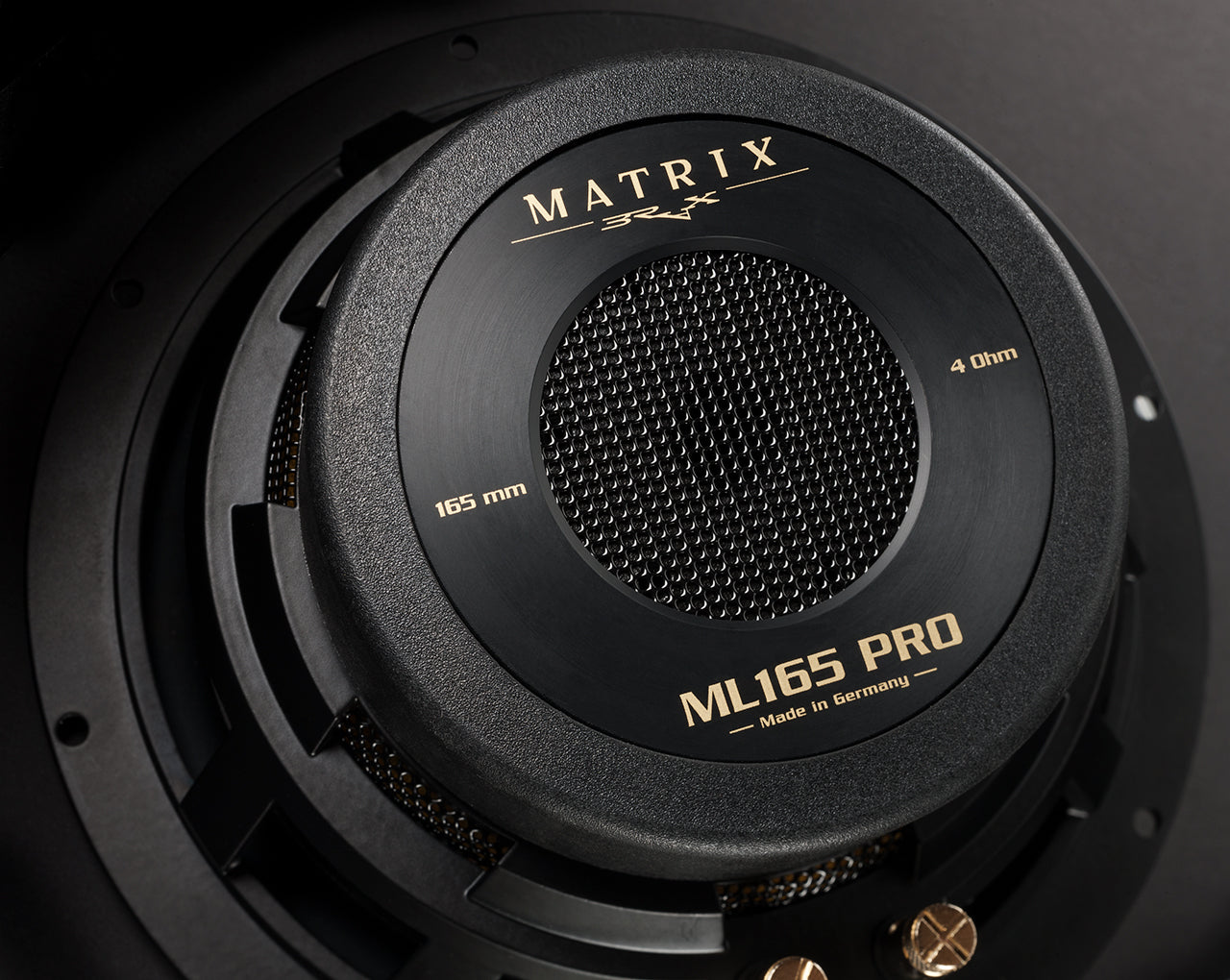

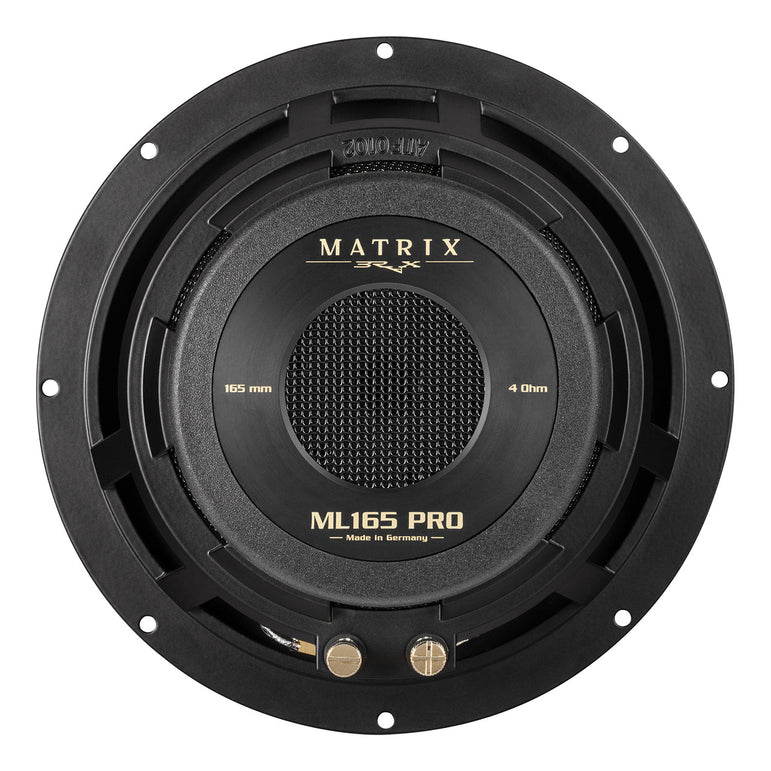

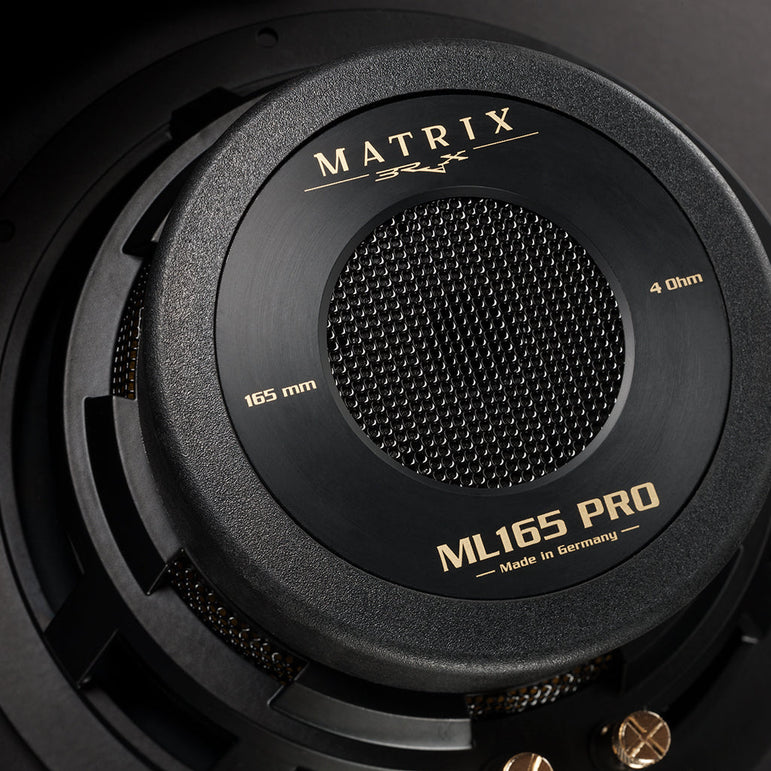

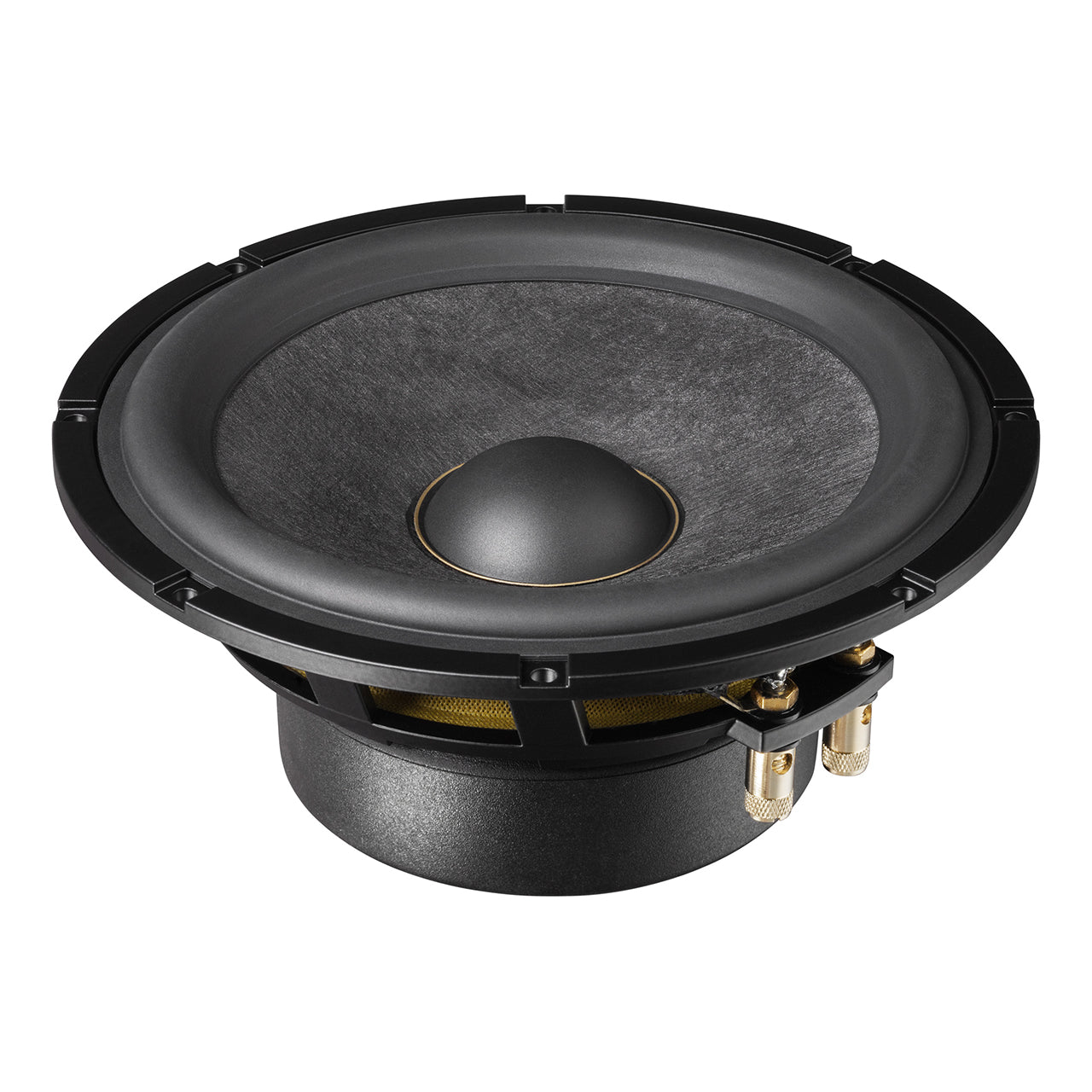

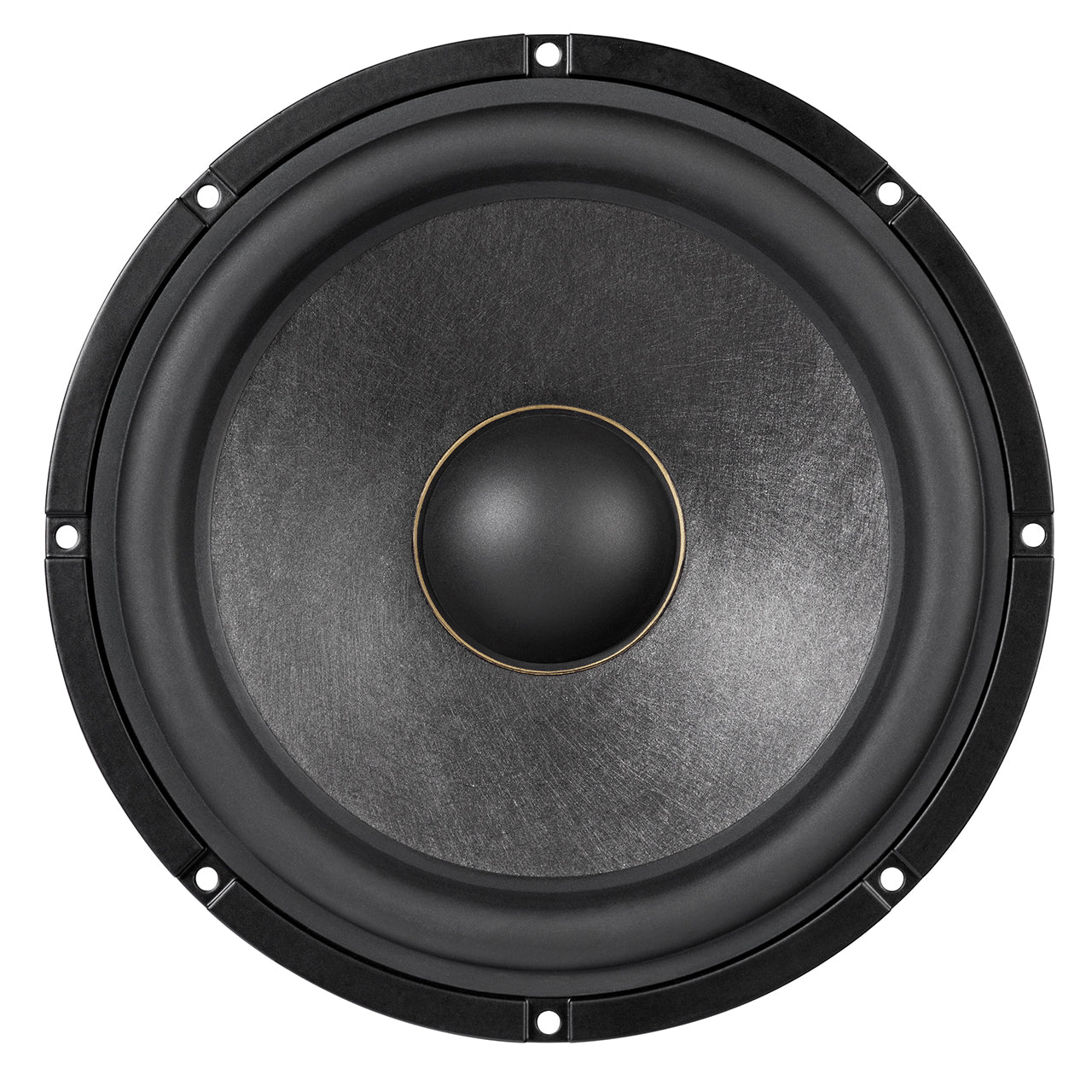

BRAX Matrix ML165 PRO — 6.5" High-End Midwoofer
The legendary BRAX MATRIX speaker series has for many years been synonymous with top-class sound quality. The ML165 PRO has been developed and manufactured with the same uncompromising approach as all other BRAX speakers.

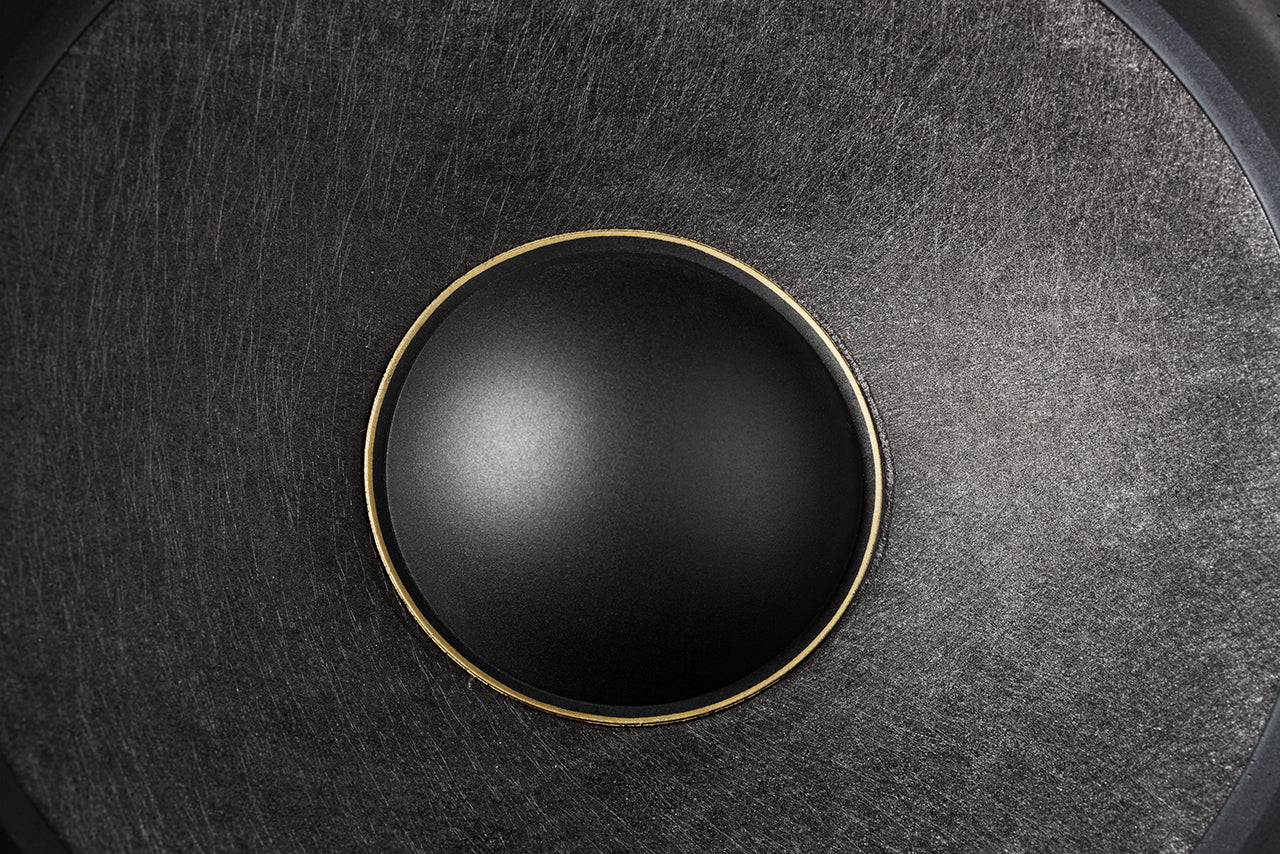

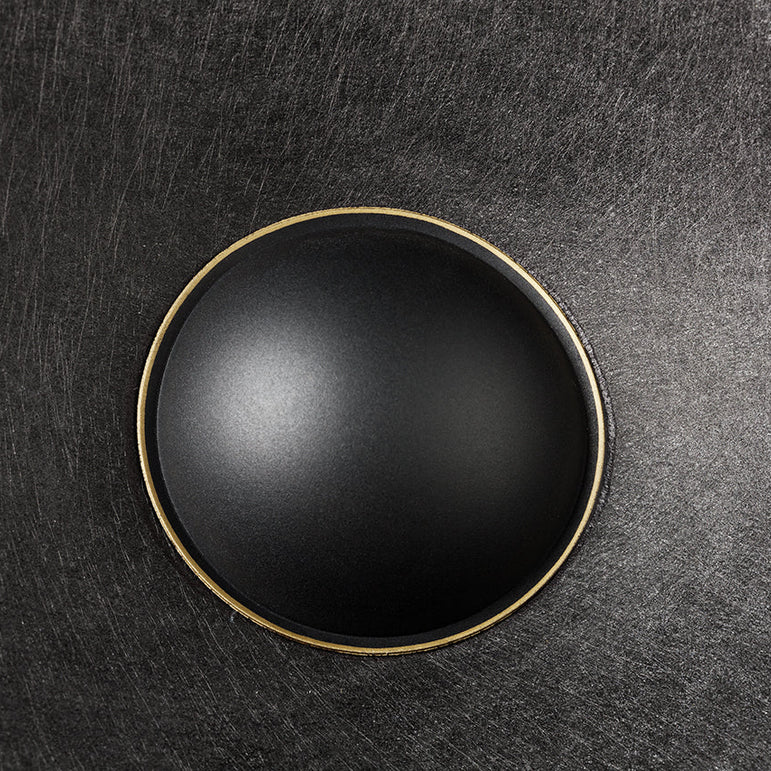

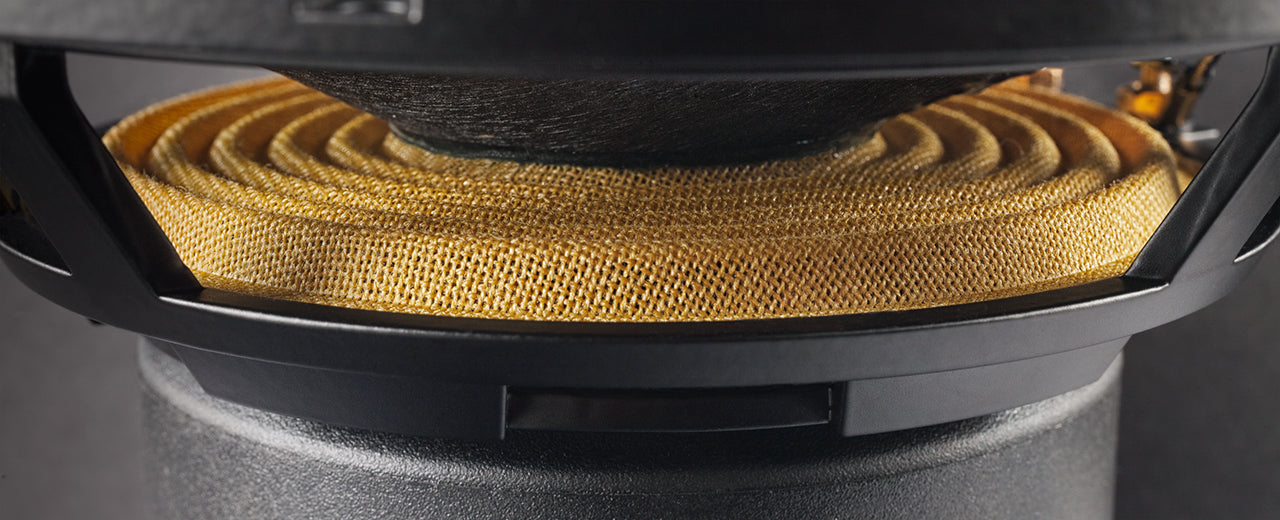

The cone of the ML165 PRO was designed in close cooperation with Dr. Kurt Müller. The layered carbon fiber structure combines extreme rigidity with minimal mass, effectively reducing unwanted resonances. The new aerodynamically shaped open cast aluminum basket allows for ideal voice coil cooling and reduces distracting airflow noise. Price per pair.
- Power (RMS/max): 120 / 170 W
- Impedance: 4 Ohm
- Sensitivity: 91 dB @ 2.83V / 1m
- Frequency Response: 40 Hz – 4,000 Hz
- Fs: 48 Hz
- Cone: carbon fiber multilayer construction
- Voice coil: 37 mm / 1.5"
- Xmax: ±8.0 mm
Technical Specifications
- Power RMS / max: 120 / 170 W
- Impedance: 4 Ohm
- DC Resistance (Re): 3.4 Ohm
- Frequency Response: 40 Hz – 4,000 Hz
- Fs: 48 Hz
- Qms: 6.80 | Qes: 0.50 | Qts: 0.47
- Cms: 560 μm/N
- Vas: 14.6 l
- Bl: 6.3 Tm
- Sensitivity: 91 dB @ 2.83V / 1m (88 dB @ 1W / 1m)
- Sd: 137 cm²
- Mms: 19.1 g
- Rms: 0.87 kg/s
- Voice coil: 37 mm / 1.5"
- Xlin: ±4.0 mm | Xmax: ±8.0 mm
- Outer diameter: 167 mm / 6.5"
- Mounting cut-out: 143 mm / 5.6"
- Mounting depth: 64 mm / 2.5"
Mounting Options
- Infinite baffle: recommended high-pass filter 50 Hz / 24 dB/oct (Linkwitz-Riley)
- Sealed enclosure: 13 l net, lower cutoff frequency -3 dB @ 71 Hz, recommended high-pass filter 65 Hz / 24 dB/oct (Linkwitz-Riley)
Included in the package
- 2 x BRAX Matrix ML165 PRO midwoofers
- Drill bit, screwdriver, stainless steel screws
- Certificate and data sheet
