BLAM RA501D

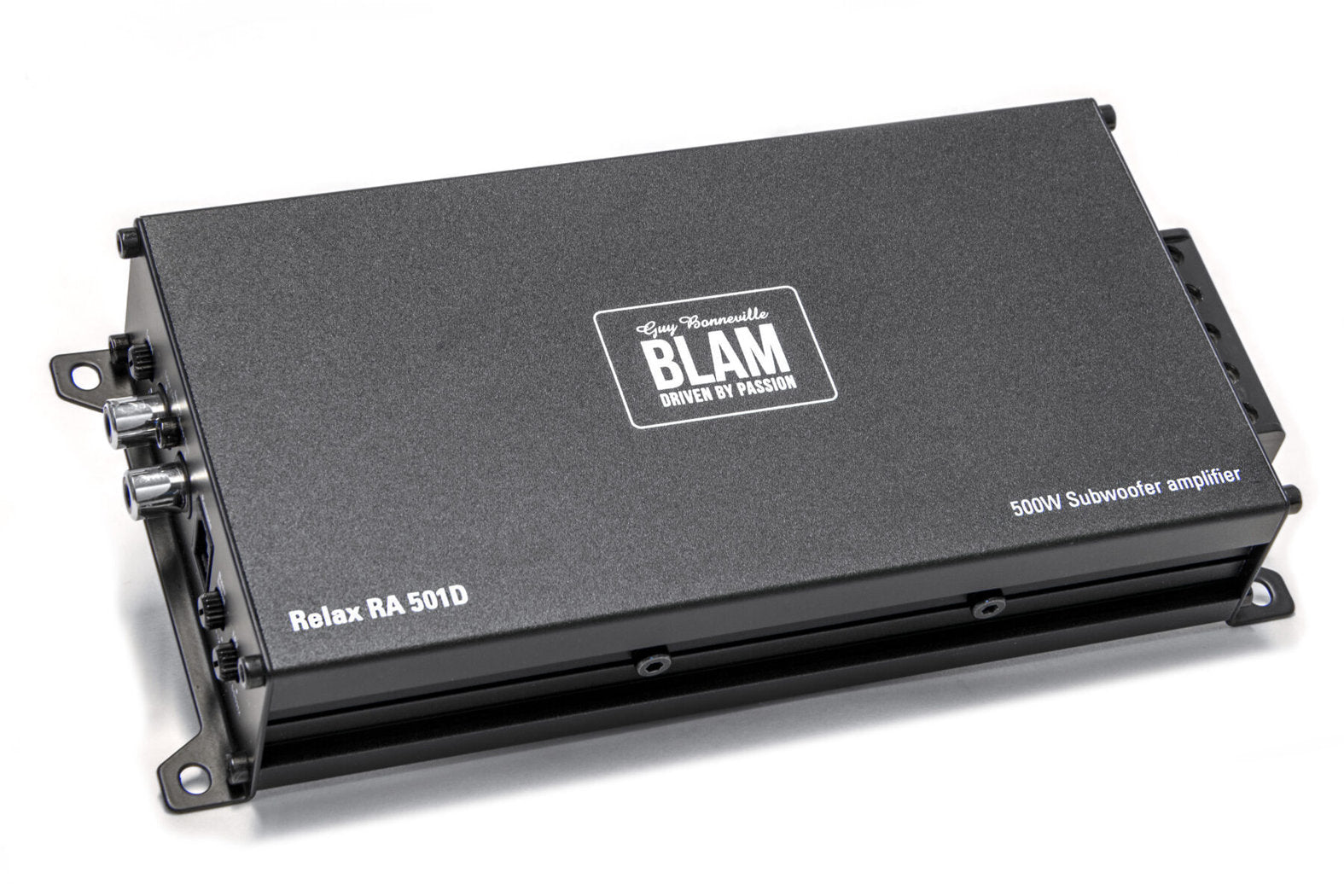

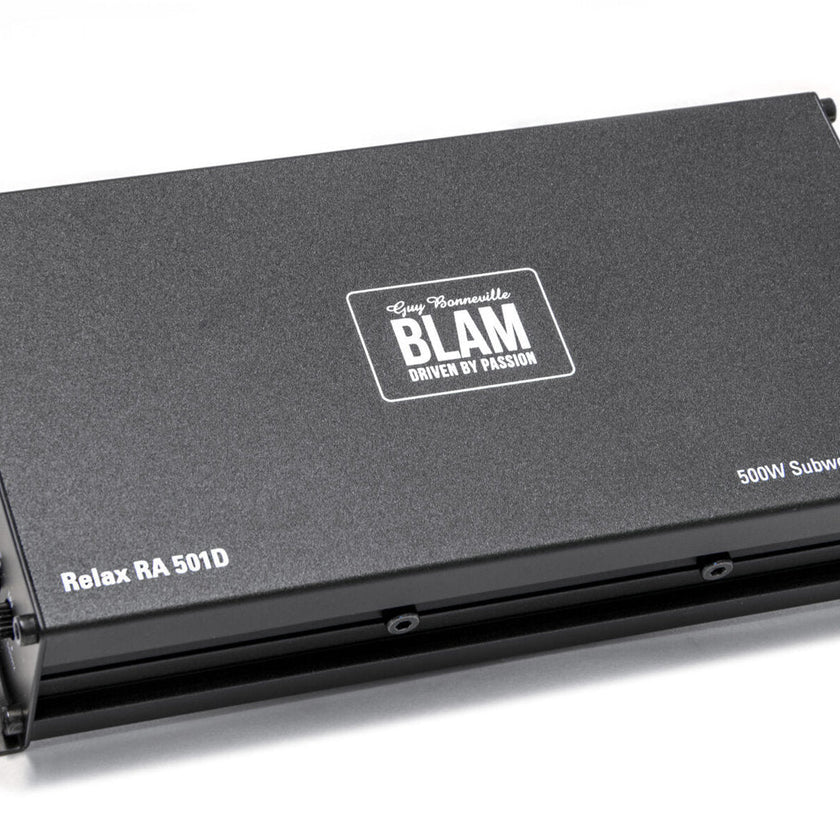

The BLAM RA501D is a larger "Ultra-Compact" mono amplifier from the RELAX series, yet its size allows it to be installed practically anywhere. This subwoofer amplifier, measuring approximately 20 x 10cm, delivers 300W into a 4-ohm load or 500W into a 2-ohm load.

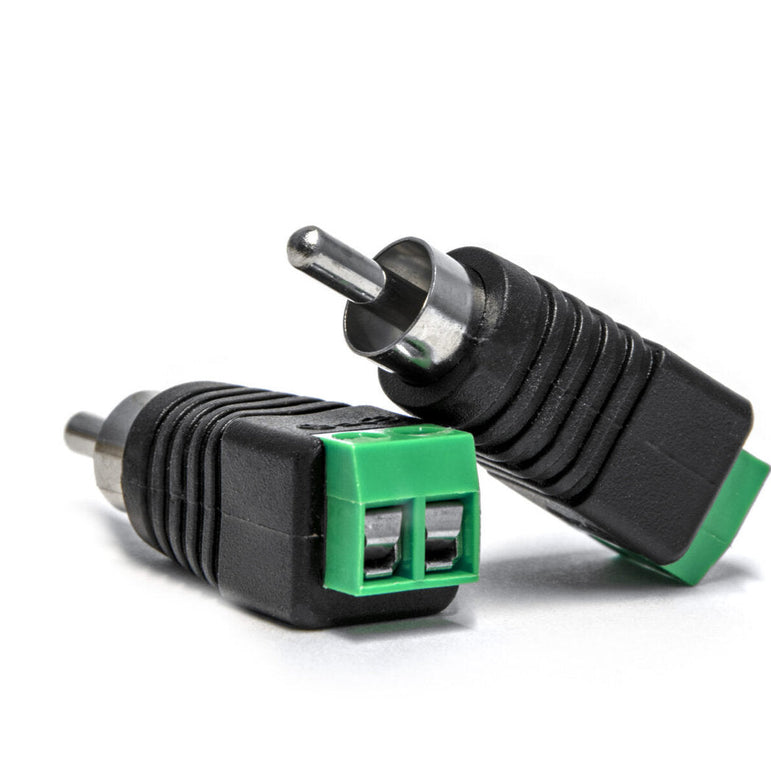

The RA501D comes with RCA adapters, should the amplifier need to be connected to, for example, a factory-installed car stereo that lacks RCA outputs. When using the speaker-level input, the amplifier does not require a separate remote turn-on wire; the RA501D powers on when it receives a speaker-level signal.

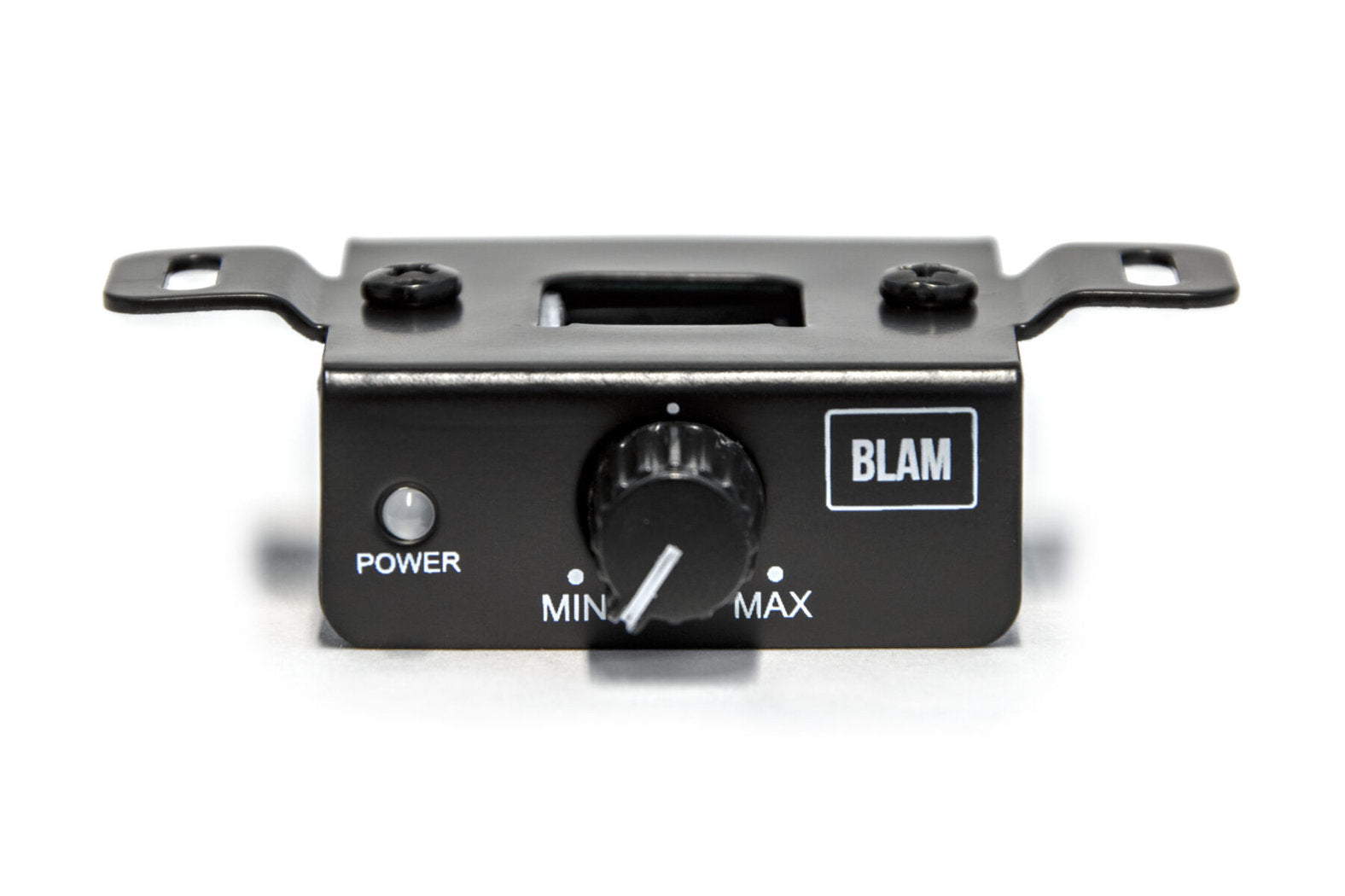

A wired level control is included with the amplifier, for installation, for instance, on the dashboard.
Technical specifications

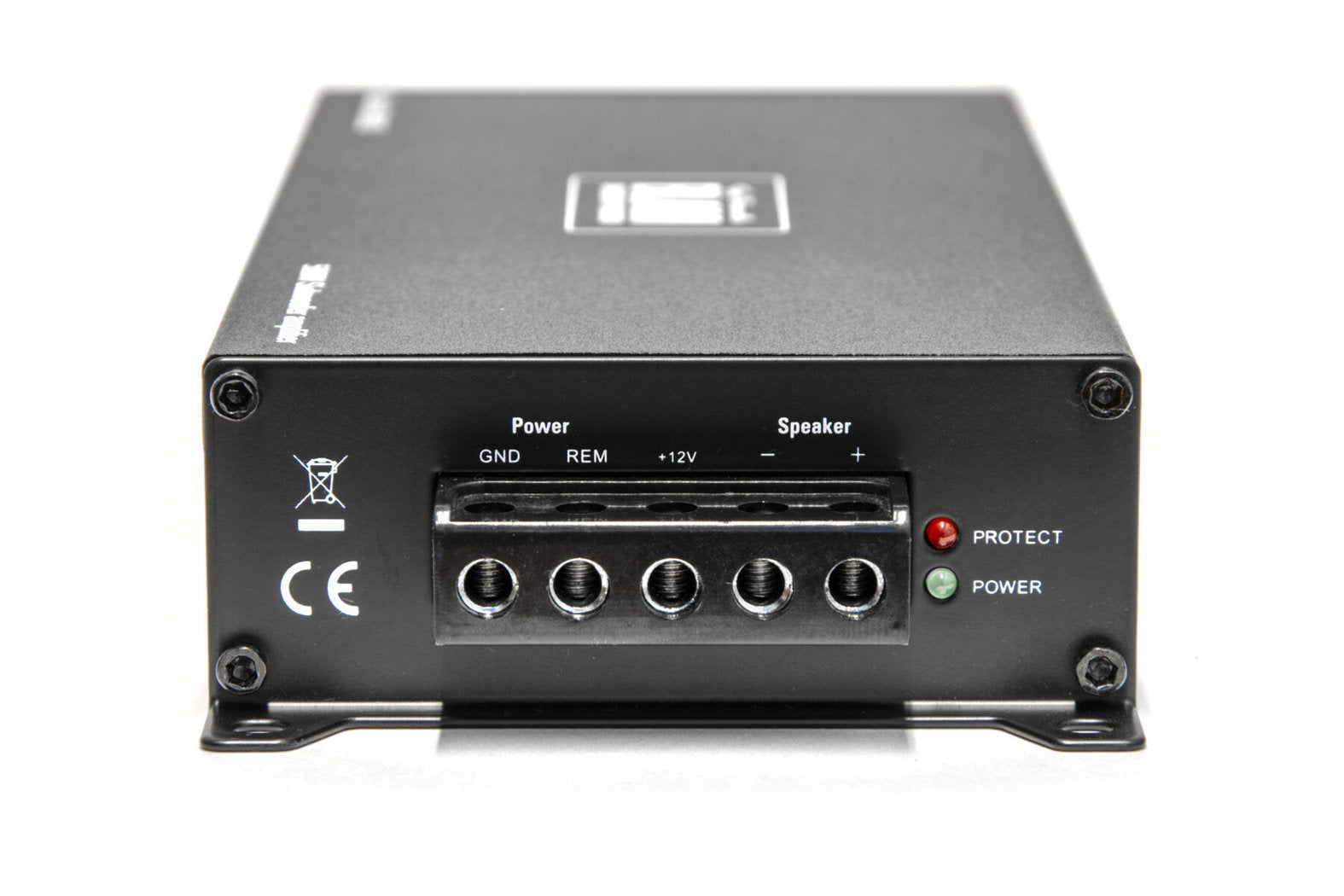

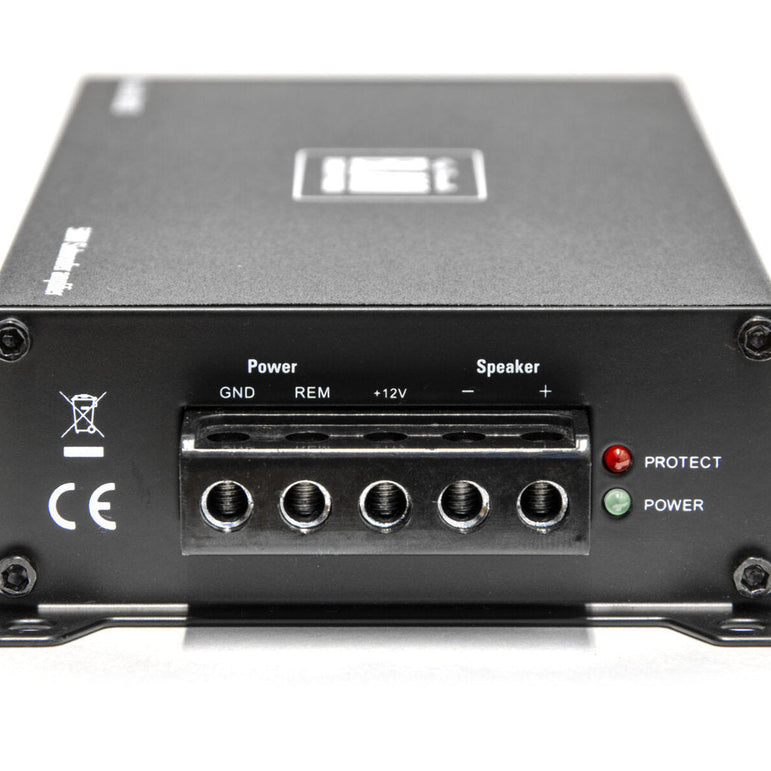

- Class D mono amplifier
- Excellent for expanding the original car stereo system

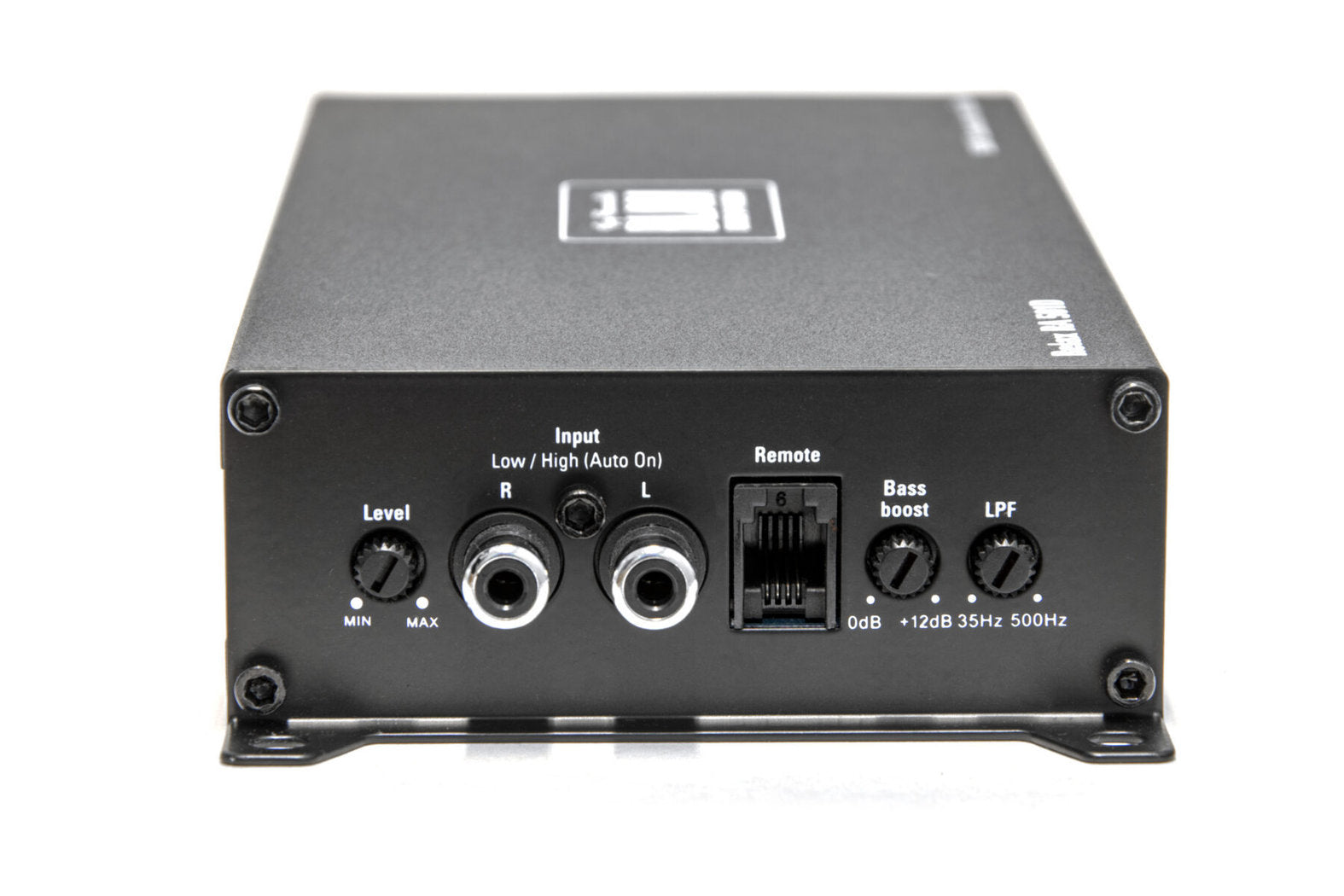

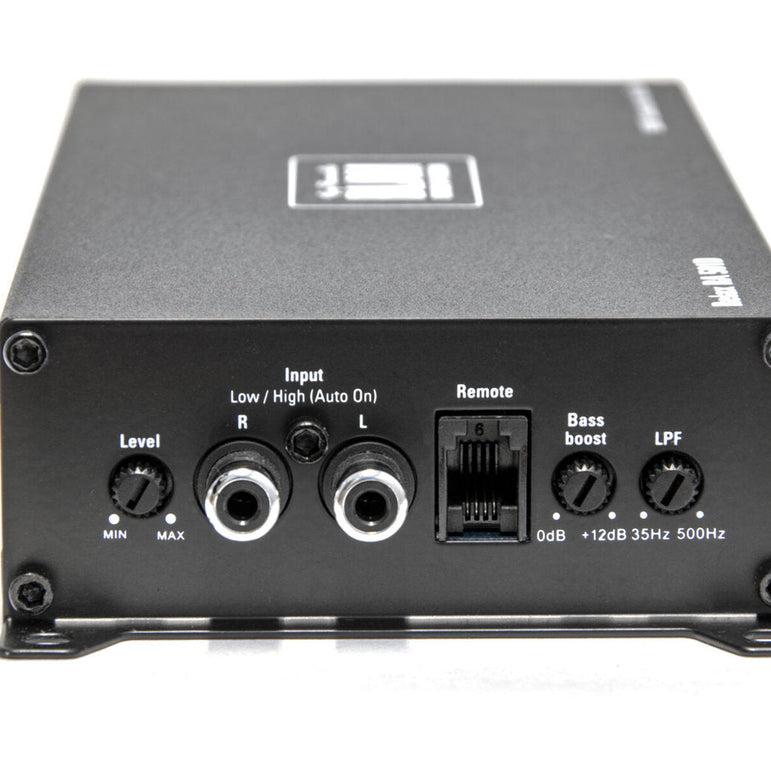

- RCA and speaker-level input
- Speaker-level input with auto-start
- 1 x 300W (4ohm)
- 1 x 500W (2ohm)
- Adjustable low-pass filter: 35 – 500Hz
- Adjustable BassBoost: 0 – +12dB (45Hz)
- Signal-to-noise ratio: 100dB
- Protection circuits for overheating and short circuit
- Wired level control
- Dimensions: 198 x 36 x 92mm
