BASSKIT AI 8SQ

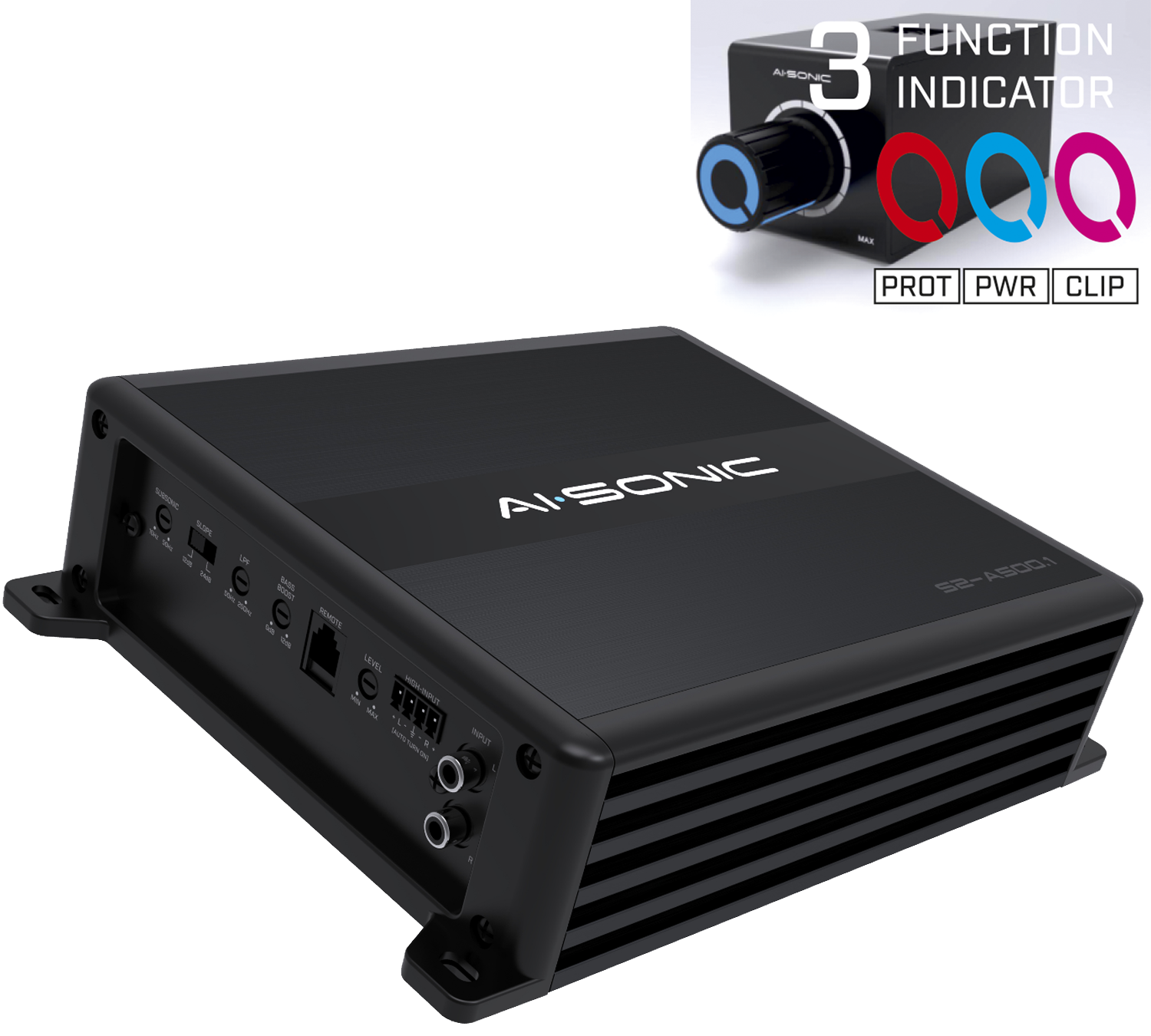

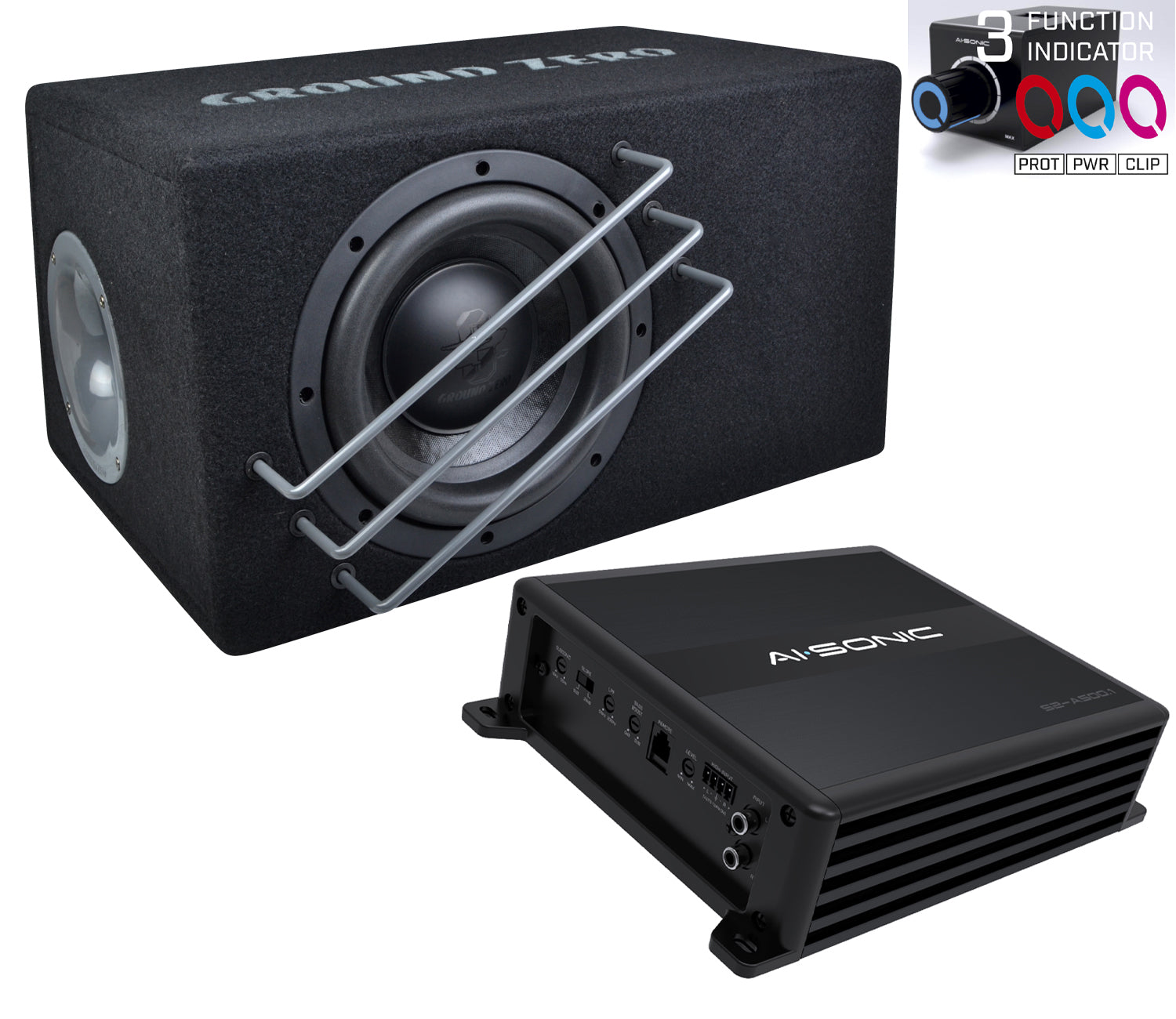

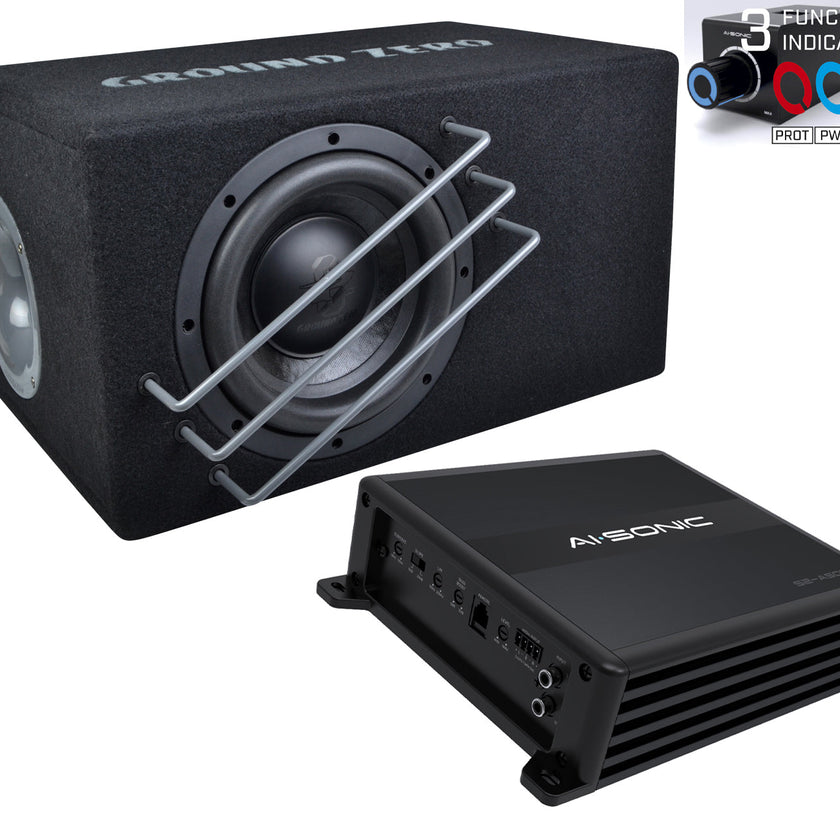

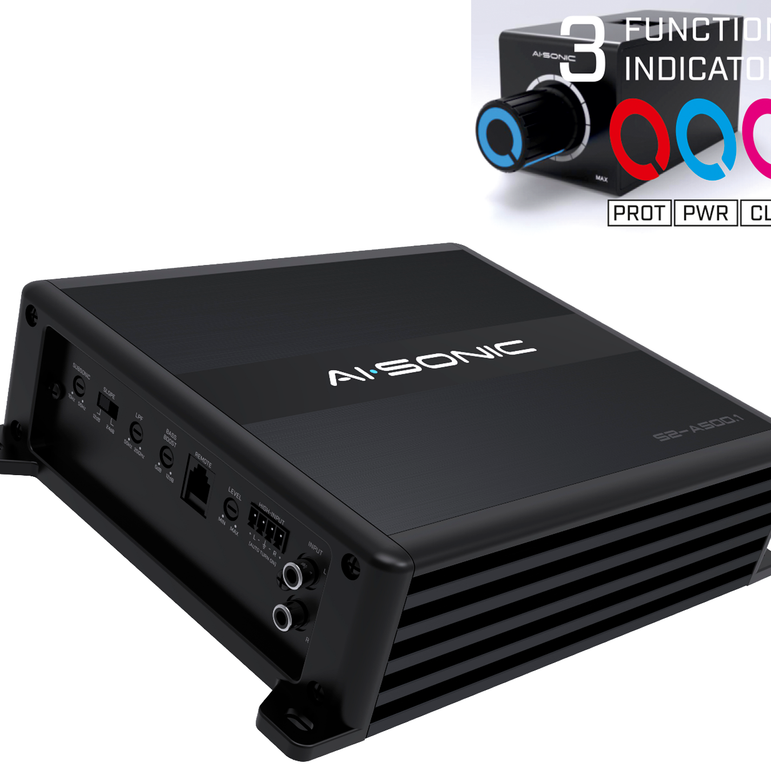

The new SQ bass packages are here! We have selected suitable amplifiers and pre-enclosed subwoofers for the packages. Ground Zero Uranium 8¡šÅsubwoofer. The pre-enclosed cabinets of the Uranium series are sturdy, compact in size and tuned especially low. This pre-enclosed cabinet achieves low-end reproduction, great sound quality and does not require much power. The element in this cabinet is the new Uranium GZUW 8SQ-D2 subwoofer. The amplifier is the AI-SONIC S2-A500.1 high-quality class D mono amplifier. A level control is included, which also has power, clip and interference status indicators.
Specifications:
RMS POWER (1ohm) 12v THD 0.5% 500W
RMS POWER (2ohm) 12v THD 0.5% 350W
RMS POWER (4ohm) 12v THD 0.5% 220W
THD 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35-6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB/24dB /oct
BASS BOOST: 0-12dB(@45Hz)
POWER FUSE: 30A¡šÅ
HIGH-LEVEL VOLTAGE: 0.53-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 57A
DIMENSIONS W: 183mm / (7.2IN)
H: 60mm / (2.4 IN)
W: 274mm / (10.8 IN)

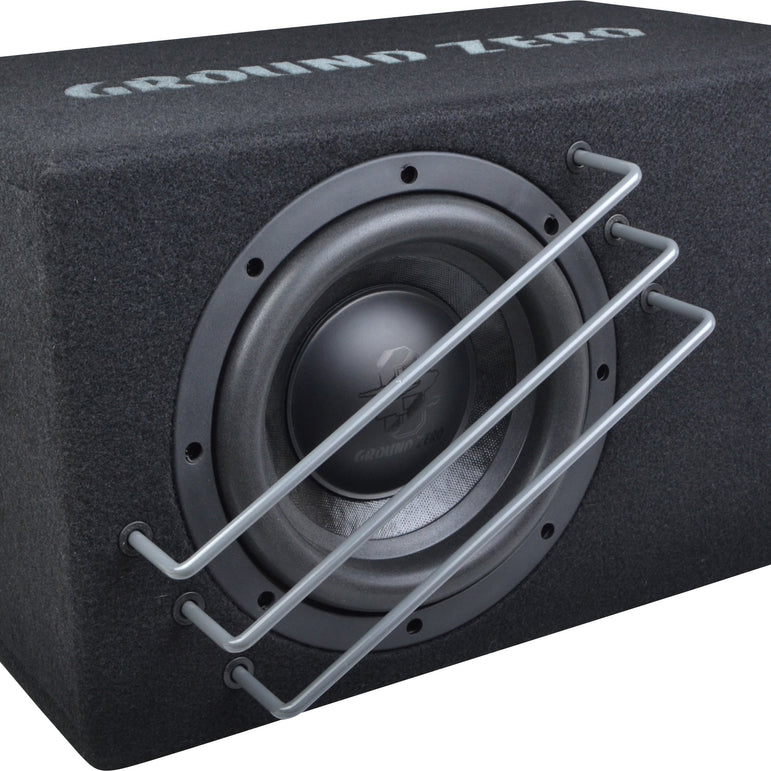

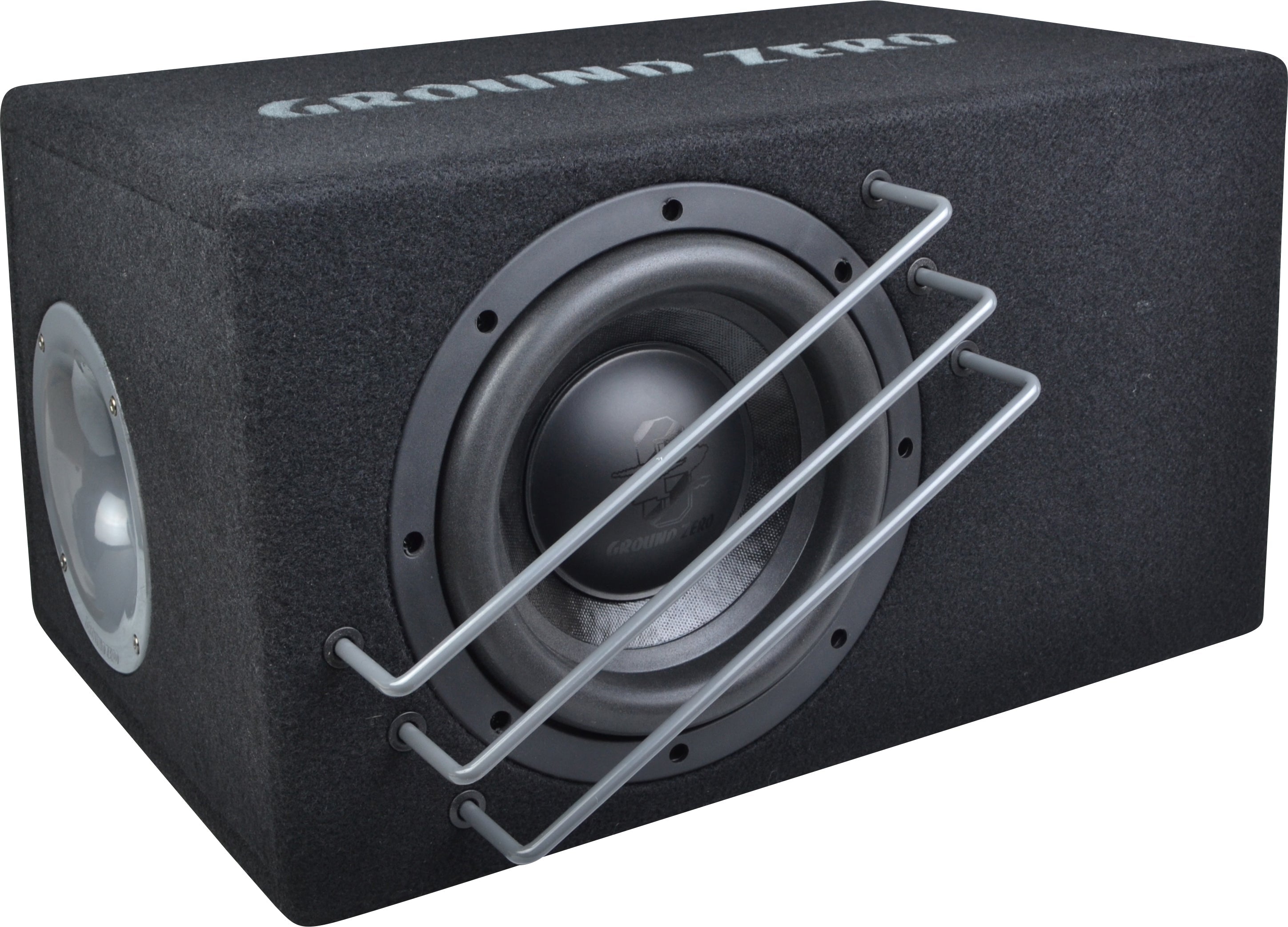

8¡šÅvented SQ loaded enclosure
Subwoofer GZUW 8SQ-D2
Resonance-free aluminum cast basket
2¡šÅcopper voice coil
High quality vented enclosure
Airflow optimized ventilation tube
Solid enclosure made of MDF
GZ Push terminal
Power handling 300 Watts RMS
Impedance 2x2 Ohm
Xmax 20mm (p2p)
New volume 20.5 Liter
Tuning frequency 40 Hz
Roll-off frequency 33 Hz
Ventilation port 1x7cm
Port length 34cm
Dimensions (wxhxd) 430 x 250 x 318mm
Backwall angle 78°.
