The Audison APBMW S8-2.2 is an 8″ subwoofer designed for BMW cars to fit in the original location under the front seats. Plug&Play connections and a frame that fits directly into the original speaker's position make installation easy without additional mounting accessories.
This 2-ohm version is especially suitable when you want to get more power from your BMW head unit or the amplifier of your 676 Hi-Fi package, or when adding a separate amplifier. If your car has a Top Hi-Fi system (S688A/S677A/S752A), choose the 4-ohm model APBMW S8-4.
Features
- Designed for BMW and Mini cars in original locations

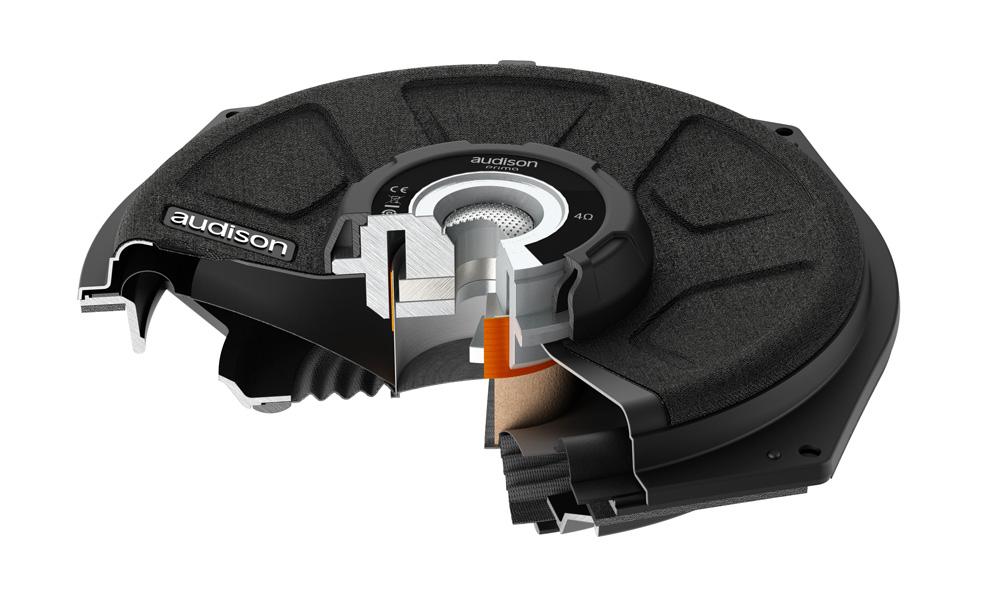

- Neodymium magnets inversely mounted — shallow mounting depth, high performance
- 38 mm aluminum voice coil former — linear and distortion-free reproduction up to extreme limits
- Two 5 mm polyurethane gaskets separate the element from the car structure
- Acoustically transparent protective fabric covering the voice coil
- Plug&Play — fits the same mounts and connectors as the original BMW
- Size: 200 mm (8″)
- Impedance: 2 Ω
- Continuous power handling: 150 W RMS
- Peak power handling: 300 W
- Frequency response: 40–500 Hz
- Sensitivity: 91 dB
- Voice coil diameter: 50 mm
- Weight: 1.21 kg
Electroacoustic Parameters
- D: 159 mm | Xmax: ±7 mm
- Re: 2.2 Ω | Fs: 45 Hz | Le: 0.32 mH
- Vas: 16.3 L | Mms: 41 g | Cms: 0.3 mm/N
- BL: 5.6 T·m | Qts: 0.61 | Qes: 0.83 | Qms: 2.3
- SPL: 91 dB
Dimensions
- Overall diameter of the element: 217 mm
- Overall diameter with connector: 239 mm
- Mounting cut-out diameter: 191 mm
- Overall depth: 55.2 mm
- Mounting depth: 32 mm
Compatibility
All BMW models with subwoofer locations under the front seats. Also the following G-series X-models (revised mounting depth):
- X3 G01, X3 G08
- X4 G02
- X5 G05
- X6 G06
Mini: F56 (2014–), F55 (2014–), F57 (2015–), F54 (2015–), R60 (2010–2016), F60 (2017–), R61 (2012–2016)
Note! This speaker is not suitable for Top Hi-Fi systems (S688A/S677A/S752A). For these, choose the Audison APBMW S8-4.
