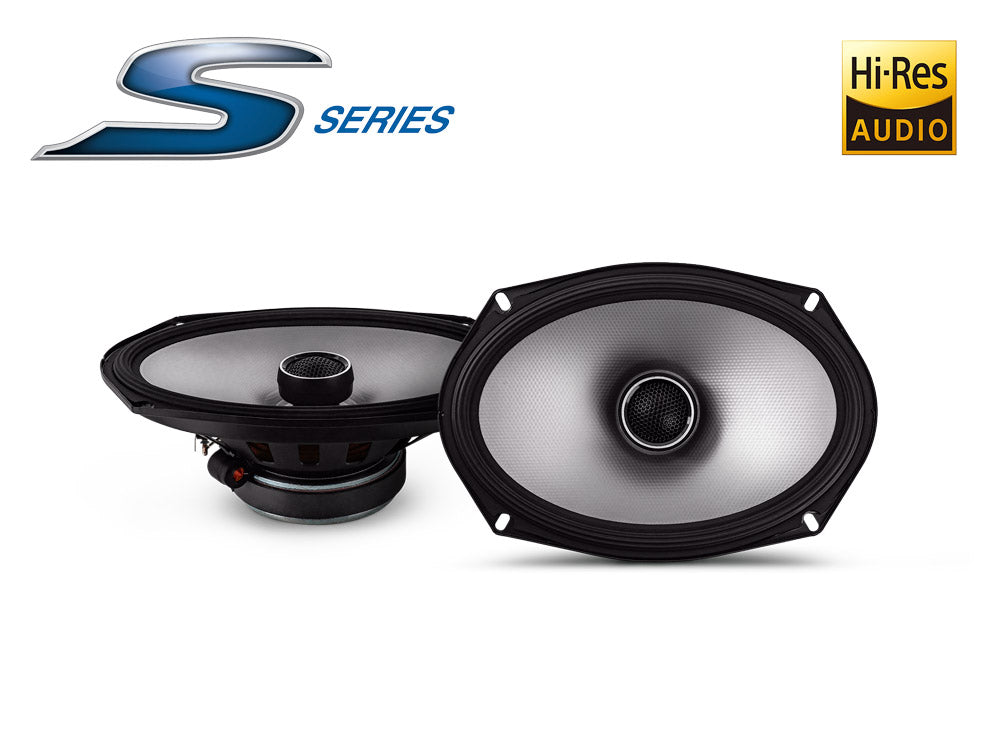

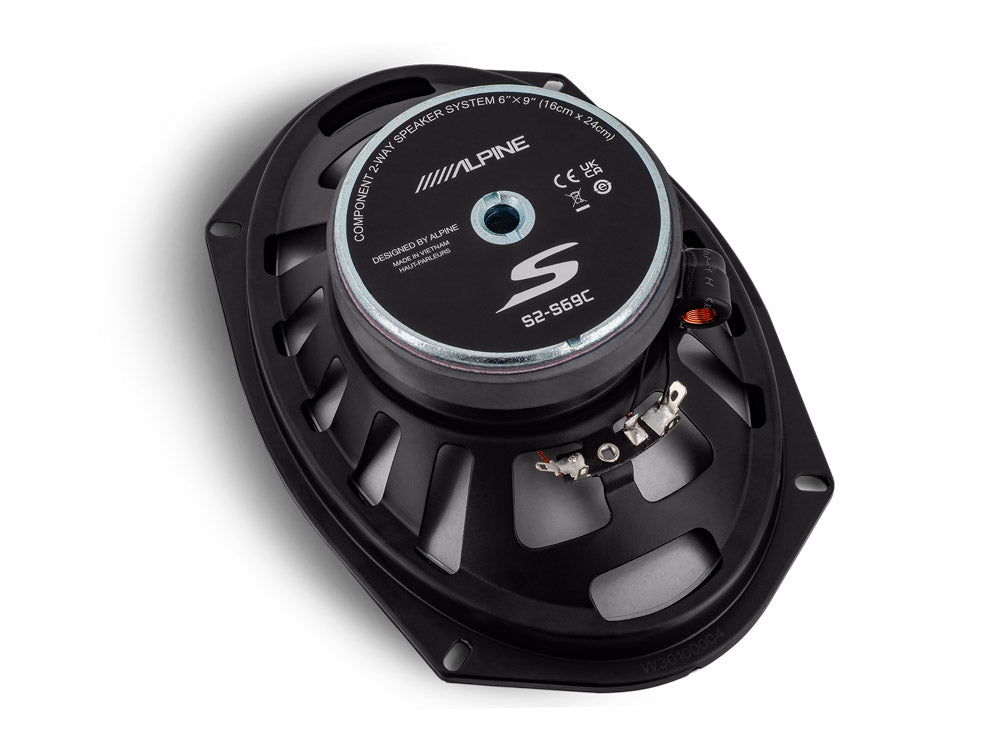

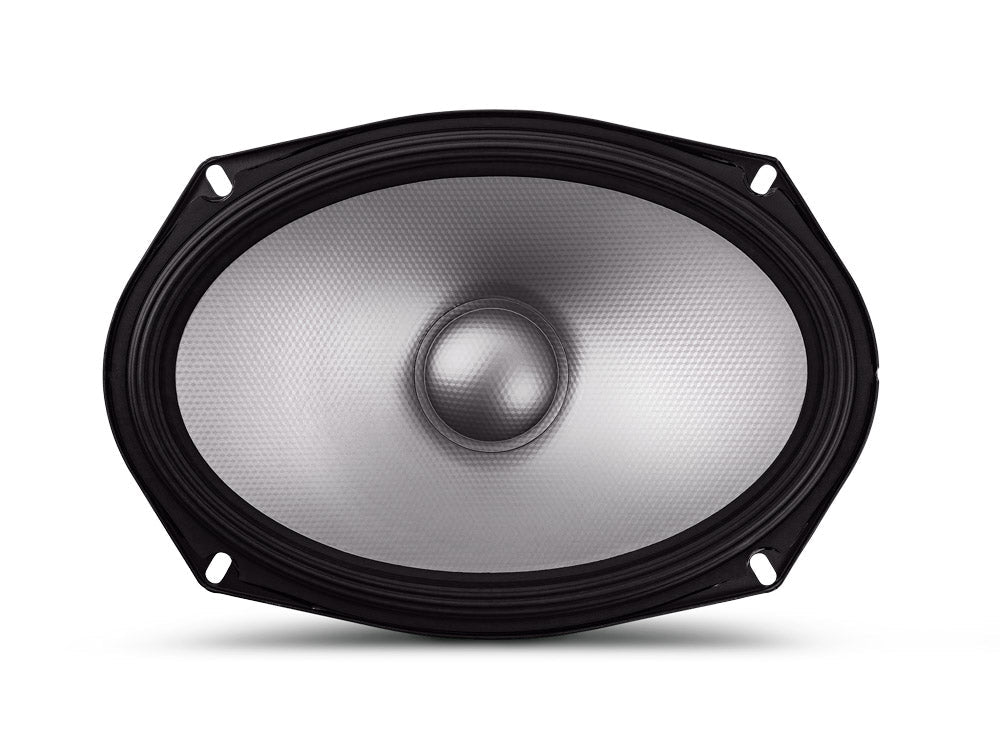

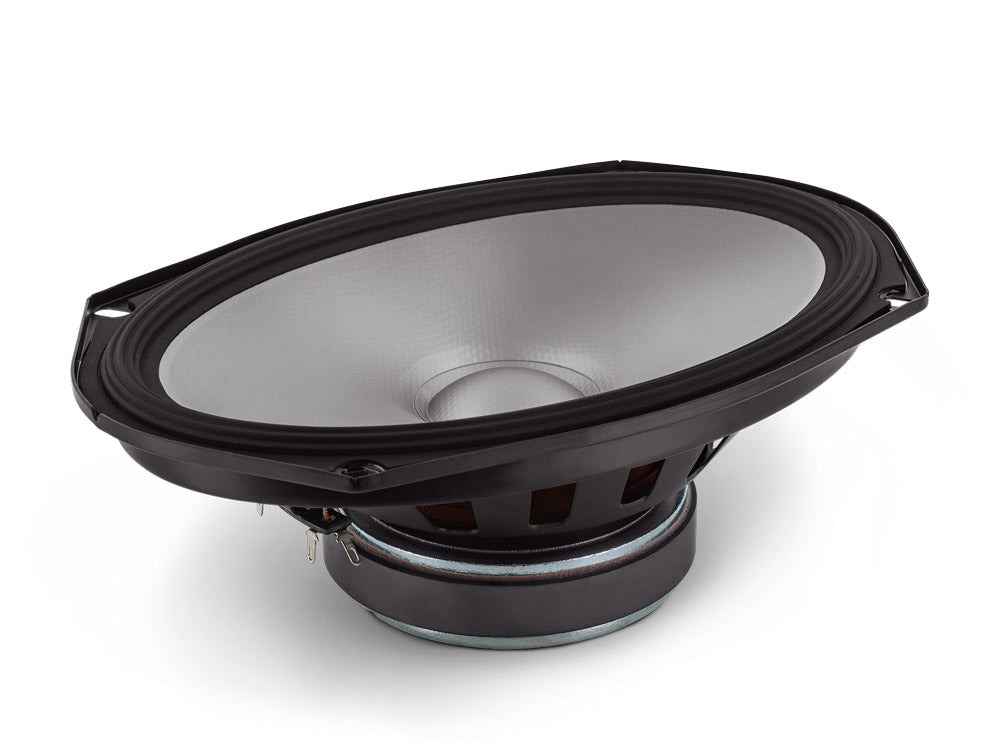

Alpine S2-S69 6x9" Coaxial Speaker Hi-Res

New 2023 S-Series lineupThe completely redesigned S-Series lineup now brings Hi-Res Audio certified speakers to a whole new price point....
Sale price €149,90Regular price
Regular price €149,90

New 2023 S-Series lineup
The completely redesigned S-Series lineup now brings Hi-Res Audio certified speakers to a whole new price point. The speakers incorporate design elements familiar from Alpine's more expensive F#1 Status and R2-Series lineups, and the S2-S69 reproduces even the smallest musical details with incredible accuracy and naturalness.

Hi-Res Audio certified
The Alpine S2-S69 is Hi-Res Audio certified, and its reproduction extends up to 40kHz. The S2-S69 sets the price of Hi-Res Audio speakers at a completely new level.

Even more precise reproduction
The S2-S69 cone material is a unique combination of polypropylene, fiberglass, and mica, making the cone lightweight and the driver capable of handling higher power.

HAMR Suspension
Thanks to Alpine's HAMR (High-Amplitude Multi-Roll) suspension, the cone's excursion remains linear at all volumes, ensuring very controlled bass reproduction even at higher volumes.

Protect your drivers
The S2-S69 is compatible with separately sold KTE-S69G grilles. The sturdy and robust mesh protects the speakers and creates a stylish installation when the speakers are mounted visibly.


Features

General

  • Coaxial Speaker: 16 x 24cm (6×9”)
  • 2.5cm (1“) Tweeter
  • Hi-Res Audio certified (Reproduction -> 40kHz)
  • Polypropylene / Fiberglass / Mica cone
  • High-Amplitude Multi-Roll (HAMR) surround
  • Compatible with KTE-S69G grilles (sold separately)

TECHNICAL SPECIFICATIONS

Power Handling

  • Peak: 260 W
  • RMS: 85 W

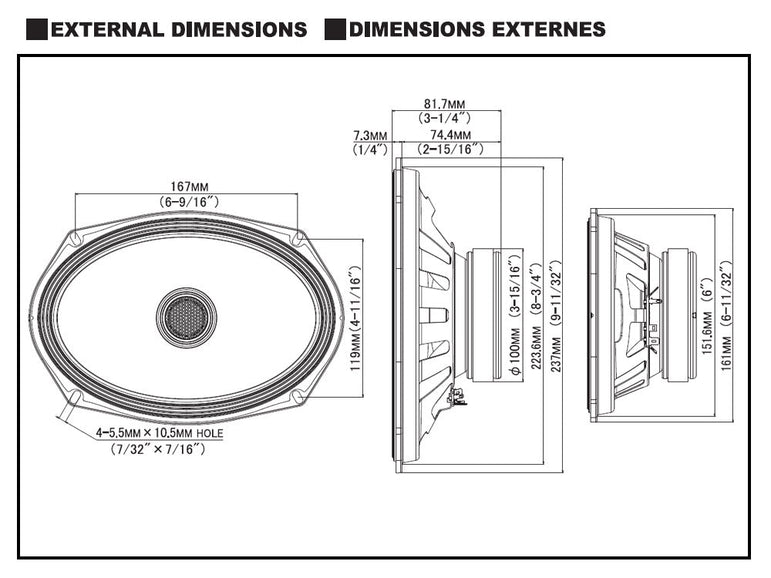

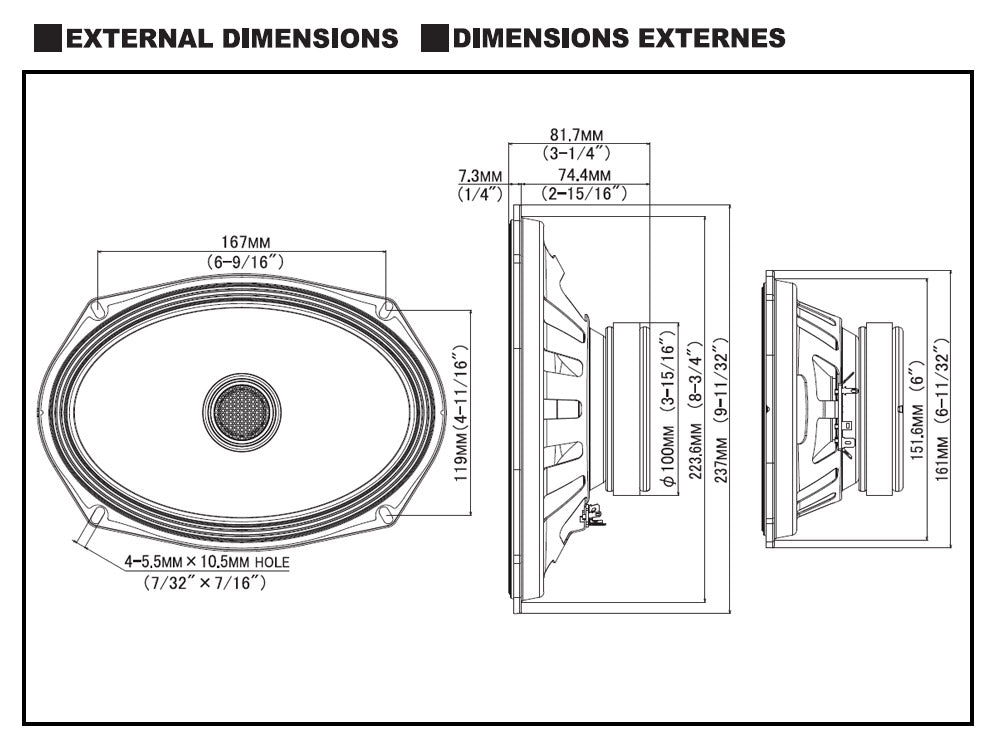

Dimensions

  • Cutout Diameter: 152 x 224 mm
  • Mounting Depth: 74.4 mm
  • Height from Mounting Surface: 7.3 mm
  • Magnet: 100mm

General

  • Frequency Response: 55 Hz – 40 kHz (Hi-Res Audio Certified)
  • Impedance: 4 Ohms
  • Sensitivity: 90 dB/W
