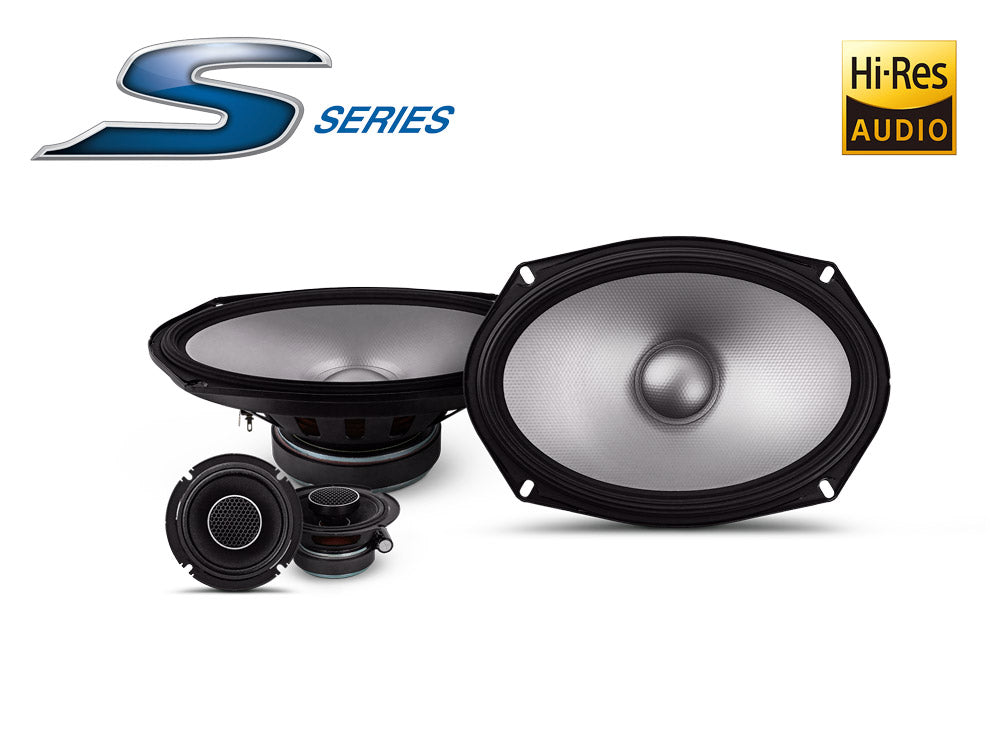

New 2023 S-Series lineup
The completely redesigned S-Series lineup now brings Hi-Res Audio certified speakers to a whole new price point. The speakers incorporate design elements familiar from Alpine's more expensive F#1 Status and R2-Series lineups, and the S2-S50 reproduces even the smallest details of music with remarkable accuracy and naturalness.
Hi-Res Audio certified
The Alpine S2-S69C is Hi-Res Audio certified, and the tweeter's frequency response extends up to 40kHz. The tweeters are integrated with the 3″ midrange driver.
Even more accurate reproduction
The S2-S69C mid-bass cone material is a unique combination of polypropylene, fiberglass, and mica, making the cone lightweight and allowing the driver to handle higher power.
HAMR Surround
Alpine's HAMR (High-Amplitude Multi-Roll) surround ensures that the cone's excursion remains linear at all volume levels, resulting in extremely controlled bass reproduction even at higher volumes.
Protect your drivers
The S2-S69C is compatible with the separately sold KTE-S69G speaker grilles. The robust and sturdy grille protects the speakers and creates a stylish installation when the speakers are mounted visibly.
Features
General
- Mid-bass: 16 x 24cm (6” x 9″)

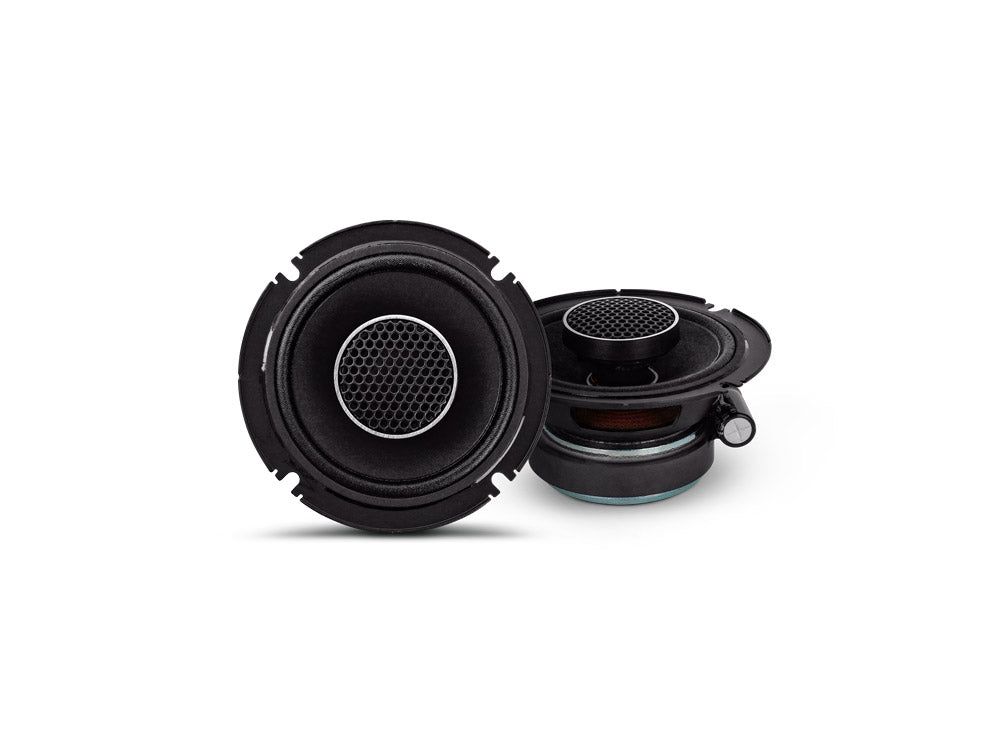

- Midrange: 7.9cm (3″) with 2.5cm (1″) tweeter
- Hi-Res Audio certified (Response -> 40kHz)
- Polypropylene / Fiberglass / Mica cone
- High-Amplitude Multi-Roll (HAMR) surround
- Compatible with KTE-S69G grilles (sold separately)
Power Handling
- Peak: 260 W
- RMS: 85 W

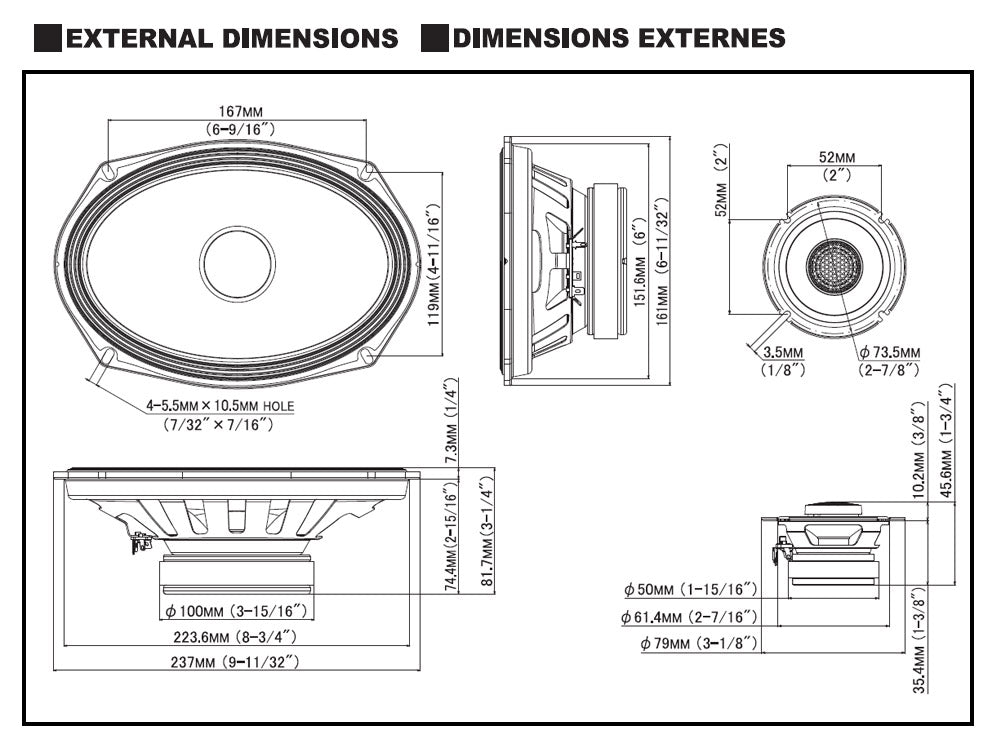

Dimensions (mid-bass)
- Cutout diameter: 15.2 cm x 22.4cm
- Mounting depth: 7.4cm
- Height from mounting surface: 7.3 mm
- Magnet: 100.0 mm
Dimensions (midrange/tweeter)
- Cutout diameter: 6.2cm
- Mounting depth: 3.5cm
- Height from mounting surface: 10.2 mm
General
- Frequency Response: 55 Hz – 40 kHz (Hi-Res Audio Certified)
- Impedance: 4 Ohms
- Sensitivity: 90 dB/W
