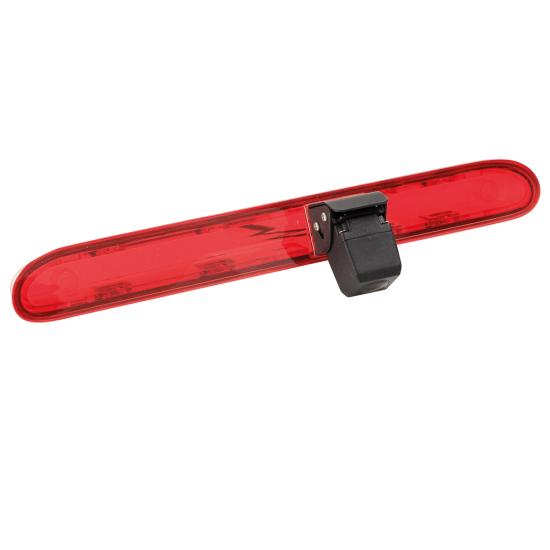

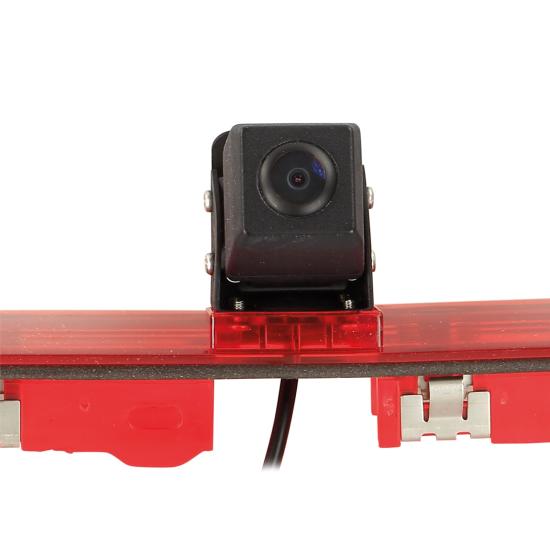

The ACV 771000-6064 replaces the original (OEM) third brake light. Includes guide lines and adjustable viewing angle. All ACV cameras are suitable for continuous +12 V operation.
Compatibility:
- Citroën Dispatch 03/2016–2021
- Citroën Jumpy 03/2016–2021
- Peugeot Expert 03/2016–2021
- Toyota Proace 03/2016–2021
Wiring: Red: +12 V (via fuse) | Black: body ground
Technical Specifications
- Image Sensor: 1/3" CMOS
- TV System: NTSC
- Effective Resolution: 976 × 572 px / 600 TV Lines
- Lens: 1.9 mm / F2.0
- Lens Angle: 160° ±5°
- Viewing Angle: 115° (horizontal) / 75° ±5° (vertical)
- Light Sensitivity: 0.3 lux
- IP Rating: IP68
- Connector: 4-pin mini connector (male) 5.2 mm
- Power Supply: DC 12 V ±10 %
- Operating Temperature: −30 °C – +75 °C
- Dimensions: corresponds to the original third brake light

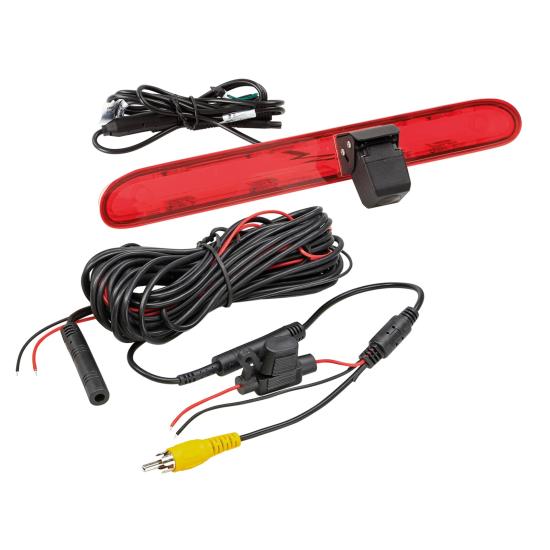

Camera Wiring

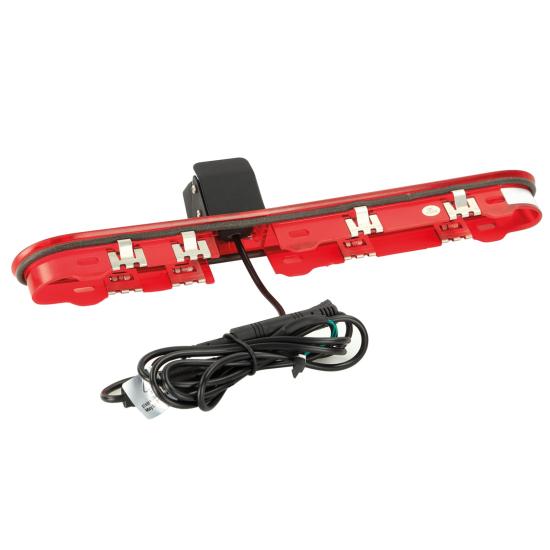

- 1 m cable, 4-pin mini connector (male) 5.2 mm + jumper wire
- 6.5 m extension cable: 3 m power cable for reverse light + connection cable (4-pin: female 10 mm / male 5.2 mm)
- 0.2 m power cable harness: fuse + RCA video connector
