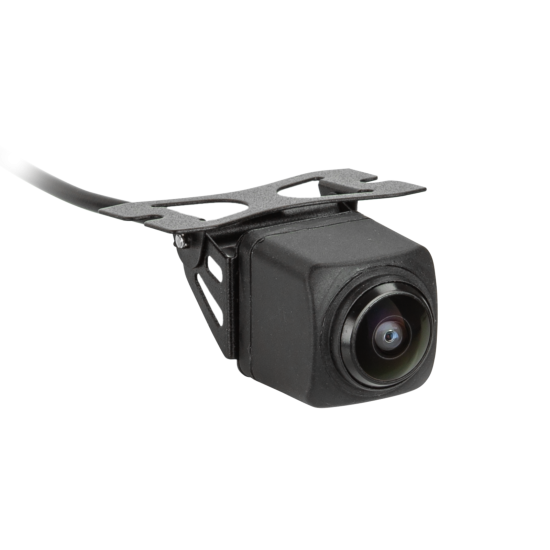

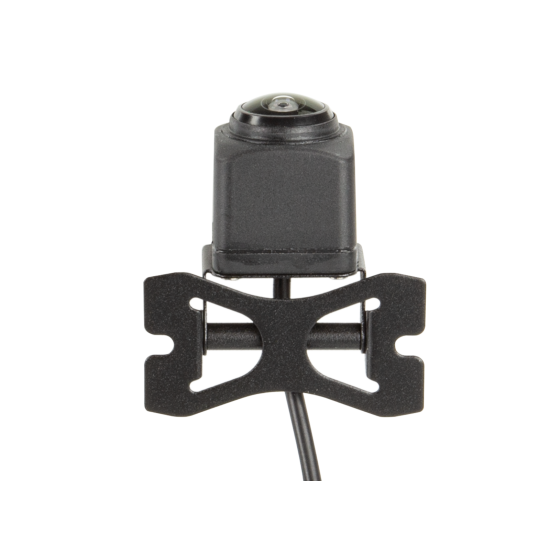

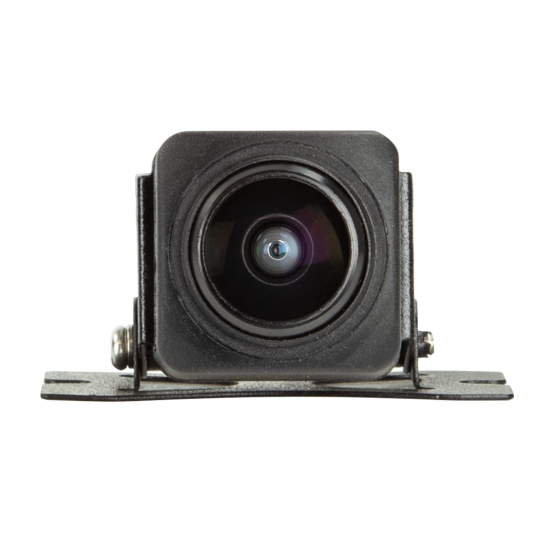

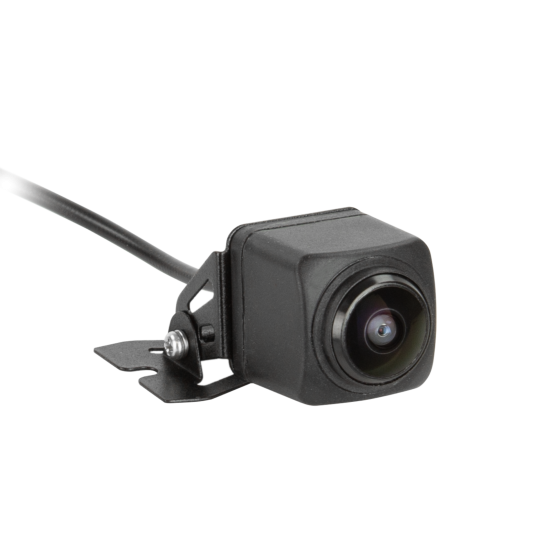

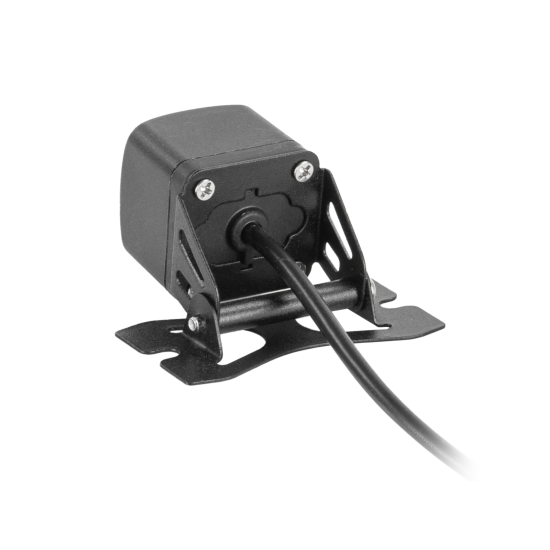

The ACV 771000-6004 is a camera with a very wide 194° viewing angle, which can be used as a reversing or front camera. It provides good image quality even in low light conditions.
Viewing angle and functions
- Viewing angle: diagonal 192°, horizontal 194°, vertical 142° +5°
- Guidelines
- Mirror Image On/Off (front or rear camera)

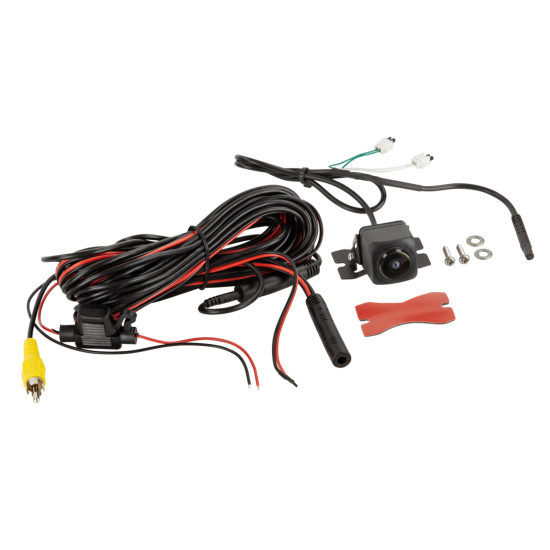

Connections and wiring
- Connection: RCA
- Total cable length: 7.5 m (fixed 1.0 m + extension 6.5 m)
- Green jumper wire: activate/deactivate guidelines
- White jumper wire: Mirror Image On/Off
Technical specifications
- Sensor type: 1/4" CMOS
- Image system: NTSC
- Resolution: 720 × 480
- Lens / aperture: 1.9 mm / F2.0
- Minimum illumination: 0.5 lux
- Dust and water resistance: IP69
- Operating temperature: −30 °C – +75 °C
- Dimensions (L × W × H): 23 × 23 × 26 mm
